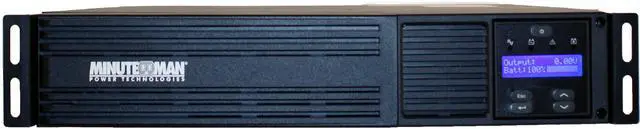

Minuteman EXR1000RT2UNC EXR 1000VA Tower/Rack/Wall Mountable UPS - 2U Tower/Rack/Wall Mountable - 2.50 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Sine Wave - Serial Port - USB
- Surge Energy Rating 1000 J
- Waveform Type Sine Wave
- Input Frequency 60 Hz
- Load Capacity (VA) 1000 VA
- Load Capacity (Watt) 900 W
- Technical Information
- Dataline Protection RJ-45
- Plug/Connector Type NEMA 5-15P
- Phase Single Phase
- Receptacle Type NEMA 5-15R
- Receptacle Detail 8 x NEMA 5-15R
+
+
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Learn more about the MINUTEMAN EXR1000RT2UNC
| Brand | MINUTEMAN |
|---|---|
| Series | EXR Series |
| Model | EXR1000RT2UNC |
| Input Voltage Range | 80 to 164VAC (150 - 271VAC) |
|---|---|
| Input Frequency | 50/60 Hz, +/- 6 Hz auto-sensing |
| Input Connection | NEMA 5-15P (10-ft.) (NEMA 6-15P) |
| VA Rating | 1000 VA |
|---|---|
| Watts | 900W |
| Output Voltage | 120VAC: 101 - 136VAC (208VAC: 186 - 236VAC) |
| Outlets | 8 |
| Outlet Type | (8) NEMA 5-15R |
| Battery Run Time | Full/Half Load: 4 / 13 minutes |
|---|---|
| Battery Replaceable | BM0086 |
| Interface Port | DB-9, USB, RJ-45 |
|---|---|
| Approvals | cULus (UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class B, CE & NOM certified,EnergyStar 2.0, RoHS2 (EU Directive 2011/65/EU & 2015/863/EU) |
| Rackmountable | 2U |
| Surge Energy Rating | 1000 Joules |
|---|---|
| Surge Protection | 1Gbit RJ45 Ethernet (in/out) |
| Temperature | 0 to 40°C (+32 to +104°F) |
|---|---|
| Humidity | 0 - 95% Non-Condensing |
| Dimensions | 3.48" x 18.96" x 17.32" |
|---|---|
| Weight | 41.70 lbs. |
| First Listed on Newegg | June 09, 2025 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-238-7272
- Support Email: mmsupport@minutemanups.com
- Support Website
- View other products from MINUTEMAN
LOADING...
The Minuteman EXR1000RT2UNC is a 1000VA/900W sine-wave UPS for small-business servers, network equipment, and other compatible electronics, with eight NEMA 5-15R outlets, USB and DB-9 interfaces, and a 2U design for rack, tower, or wall mounting.
Recommended For
- Small-office or branch-network admins backing up a server, router, and network gear in a rack or equipment closet who need sine-wave battery output and USB/serial monitoring.
- IT teams protecting sensitive networking, VoIP, or security equipment that benefits from true sine-wave output and a UPS that can be installed as a rack, tower, or—using an optional kit—wall mount.
- Admins of remote IDF/MDF closets who want to monitor UPS status and coordinate equipment shutdown through included SentryHD software and USB or RS-232 communications.
- Teams prioritizing critical devices during an outage, such as keeping networking equipment powered before less essential loads, using the UPS’s load-shedding power banks.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Backup power and surge protection for connected equipment, with capacity for up to eight devices |
| Output Capacity And Voltage | 1000 VA / 900 W capacity; 120 VAC output, specified range 101–136 VAC (208 VAC range: 186–236 VAC) |
| Input Power | Input range 80–164 VAC (150–271 VAC); 50/60 Hz auto-sensing (±6 Hz); NEMA 5-15P, 10-ft. cord (NEMA 6-15P) |
| Battery Backup | Runtime of 4 minutes at full load or 13 minutes at half load; replaceable battery, model BM0086 |
| Outlets And Interfaces | Eight NEMA 5-15R outlets; DB-9, USB, and RJ-45 interface ports |
| Surge Protection | 1000 J surge rating; 1 Gbit RJ-45 Ethernet protection with in/out connections |
| Mounting And Dimensions | 2U rackmountable; 3.48 × 18.96 × 17.32 in.; 41.70 lb. |
| Environmental Conditions | Operating temperature 0–40°C (32–104°F); humidity 0–95%, non-condensing |
| Certifications And Compliance | cULus (UL 1778 5th Edition and CSA 22.2 No. 107.3-14 / R: 2014), FCC Class B, CE, NOM, Energy Star 2.0, and RoHS2 |
| Model Identifiers | Minuteman EXR Series, model EXR1000RT2UNC |
