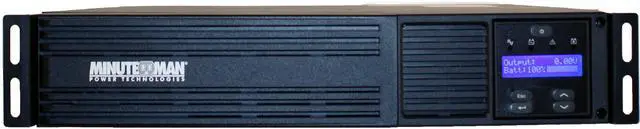

Minuteman EXR1500RTHVNC UPS 500VA/1350W 208 VAC line interactive, extended runtime rack/wall/tower UPS designed for critical, power-sensitive electronic environments.

Model: EXR1500RTHVNC

Compact 2U case design for high density rack/cabinet installations
Flexible Rack or Tower installation format, (wallmount available with optional kit)
Rackmount ears come pre-installed on unit
Line-interactive, True sine wave output (AC and Battery mode)
Higher power factor: at least 0.9
High-frequency design
Independent Battery Bypass
DC Cold Start capable
Automatic internal bypass
Temperature-compensated battery charging
Fan speed control
Predictive Battery Replacement: Using install date and periodic monitoring of batteries with early warning alarms instead of calendar countdown
Tool-less battery connection and replacement
Hot-swappable batteries
All models compatible with external battery packs
Auto-recognition of external battery packs, (If the Battery Pack supports this function): automatically recalculate runtimes
Unlimited runtime capability with external battery packs

This item is covered under the Manufacturer Only Return Policy.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MINUTEMAN EXR1500RTHVNC

Battery
Battery Run Time	Full/Half Load: 2.5 / 9 minutes
Battery Replaceable	BM0087

Details
Interface Port	DB-9, USB, RJ-45
Approvals	cULus (UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class B, CE & NOM certified,EnergyStar 2.0, RoHS2 (EU Directive 2011/65/EU & 2015/863/EU)
Rackmountable	2U

Surge Protection
Surge Energy Rating	1000 Joules
Surge Protection	1Gbit RJ45 Ethernet (in/out)

Environmental
Temperature	0 to 40°C (+32 to +104°F)
Humidity	0 - 95% Non-Condensing

Dimensions & Weight
Dimensions	3.48" x 18.96" x 17.32"
Weight	43 lbs.

Additional Information
First Listed on Newegg	May 23, 2025
