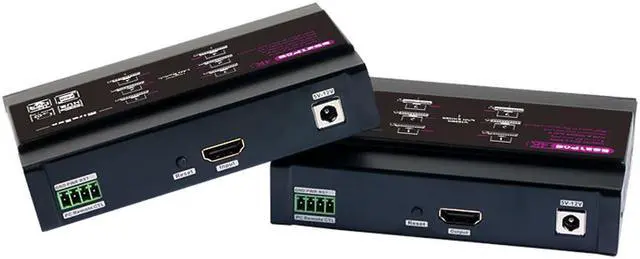

MiraBox HDMI KVM Extender -HSV5631 4K@30Hz 4:4:4 with USB2.0 Hub over Cat5e/6 Latency<50ms -Share Your Home Switch with Other Network Device

Be the first to review this product...
  • [4K@30Hz EXTENDER] Extend 4K up to 328 feet (100 meters) over Cat5e/6 UTP cable. The extender supports latest YUV4:4:4 color space and 4K 30Hz refresh rate.
  • [Support Full USB2.0 Extending] Receiver with usb2.0 port*4, widely used in Bluetooth, USB Headsets, Cameras, MIC, Keyboards, etc.
  • [Power over Ethernet (PoE)] Support PoE power supply (IEEE802.3af) for easy construction and improve system robustness,recommend Gigabit PoE Switch power for the produc.
  • [Ultra HD lossless low latency] Offer low latency <50ms without delays and compression artefacts that degrades the high-resolution viewing experience Great ideal for applications such as broadcast, high-end medical imaging, interactive digital signage, home theatres.
  • [Strong Compatibility] It supports sharing a switch with other network devices without causing IP address conflicts.
Overview
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
******Logistics: We use FedEx, UPS, DHL to deliver goods to ensure that you can receive the goods within 7-10 days.

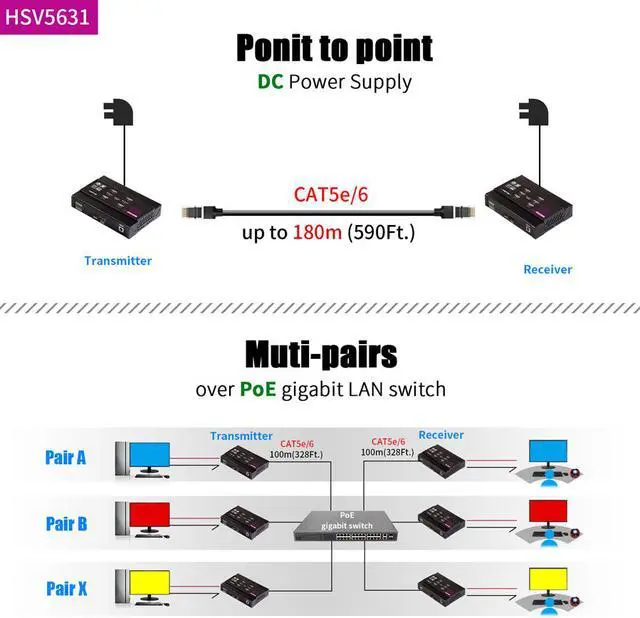

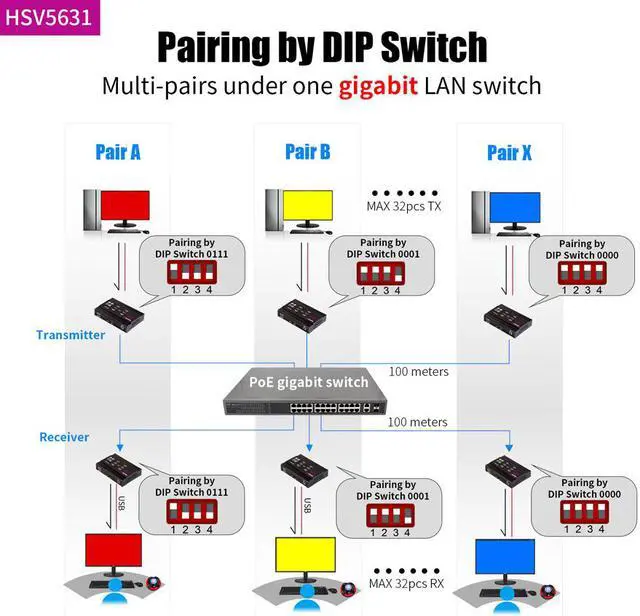

HSV5631 uses Gigabit IP network technology to process and distribute 4K ultra-high-definition video signals. At the same time, the mouse and keyboard control signals are sent from the receiving end to the transmitting end to realize the KVM extension function. Through DIP switch dial code pairing, multiple pairs of HSV5631 can be operated in the same switch without affecting the normal operation of other devices.Especially suitable for Internet cafes, server rooms, CCTV,Home etc.

Features

*Resolution up to 4K@30Hz 4:4:4, visually lossless
*Ultra-low latency <50ms

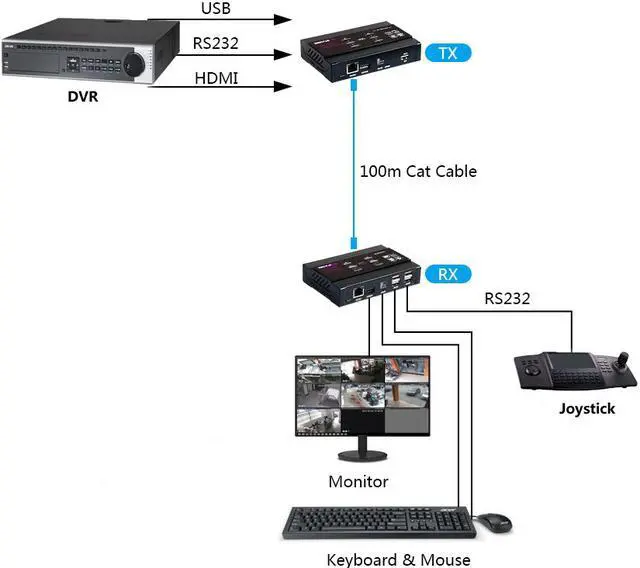

*Support keyboard/mouse extending
*Support full USB2.0 extending
*Support HDMI audio 2CH/5.1CH/7.1CH/DTS/Dolby format
*Support PoE(802.3af)power supply, improve system robustness

Specifications

Power:PoE(802.3af) or 5V1A DC power adapter
HDMI format:HDMI1.4, HDCP1.4
HDMI audio format:2ch/5.1ch/7.1ch/DTS/Dolby
Ethernet Interface:RJ45 Gigabit Ethernet
USB port:Sender: 1*USB2.0 to PC/Host ;Receiver: 4*USB2.0 to USB device
Resolution supported:4K@30Hz/1080p@60Hz/1080p@50Hz/1080p@30Hz/720p@50Hz/720p@60Hz/480p@60Hz
USB protocol supported:USB2.0 full function
Working Mode:Video: Point to Point ;USB: Point to Point
Transmission distance:Point to Point: CAT5e 100m/CAT6 100m
Working Temperature:0°C - 40°C

Package

1* Transmitter
1* Receiver
2 * Power Adapters
1*1 Meter USB2.0 Cable (Male to Male)
1 * User Manual
