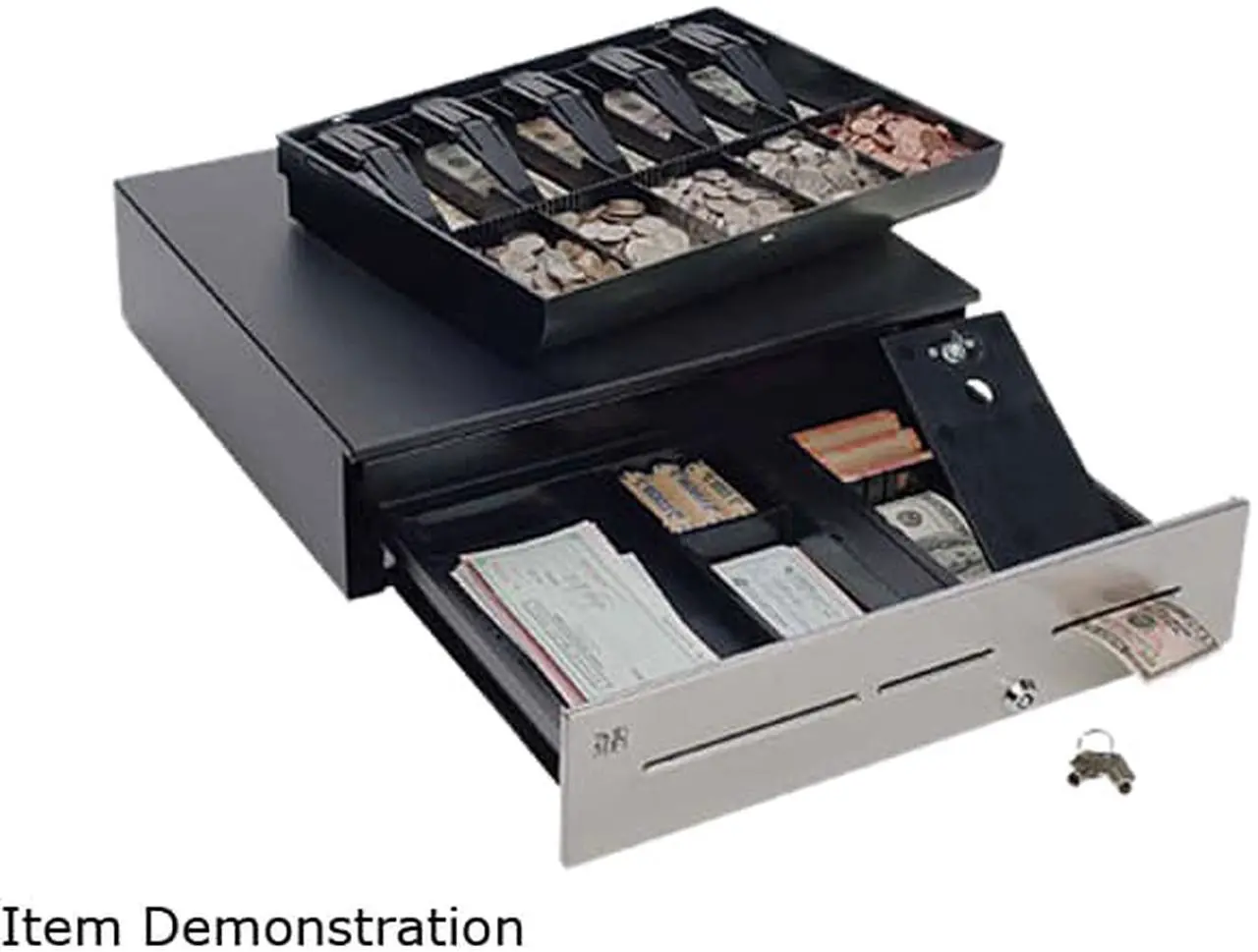

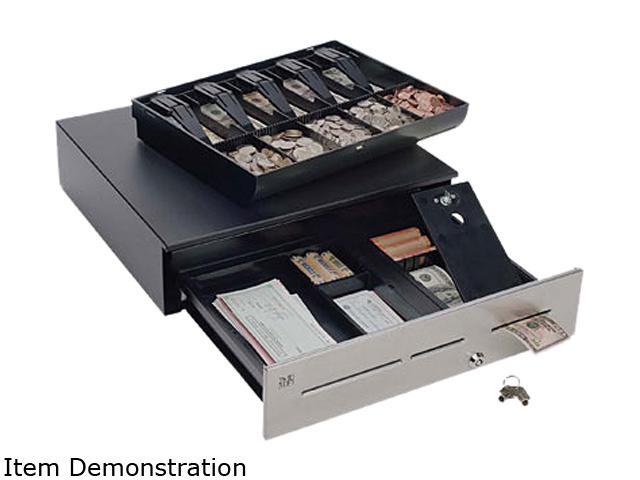

MMF ADV113C2131004 ADVANTAGE SERIES CASH DRAWER
- 3 media slots
- Stainless Front 18.8 x 21 x 4.6
- Black
- US Std 5/5 Tray
- 12/24 Printer Driven
Overview
Specs
Reviews
The Advantage® Cash Drawer Series is a highly configurable line of heavy-duty cash drawers. Every model, with media slots, comes standard with the patented LockIt® feature, a discreet and secure cash drop compartment. The LockIt compartment is an exclusive feature that offers businesses a built-in Loss Prevention tool that adds an extra layer of protection at the POS station--minimizing cash losses.
- Heavy-duty cash drawer rated for over 4 million cycles
- 5 Bill/ 5 Coin US till with ABS plastic bill weights
- 3 Media slots with ample under-till storage and LockIt® system for extra security
- Durable heavy-gauge steel construction with a scratch and chip-resistant powder coat finish for strength and longevity
- Overall size is 18.8"W x 21"D x 4.6"H
- Printer-Driven RJ12 - 24Vdc connection
- Color: Black with Stainless Steel Front
Advantage® Cash Drawers
Features

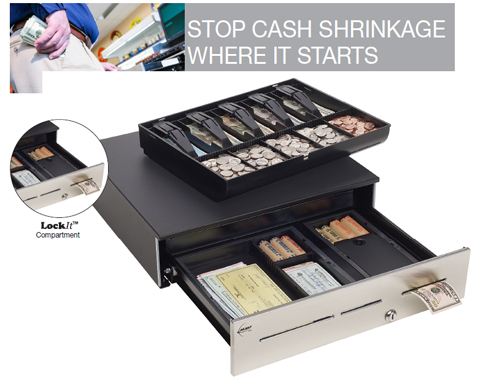

- Comes standard with LockIt™, a fully integrated secure cash drop compartment
- High-capacity configurable global till
- Upgradeable/interchangeable interfaces
- Large-capacity under-till and media coin roll storage
Options
- Metal LockIt™ cover
- High security lock
- Locking till cover
- Legacy till conversion kits
- Metal bill weights in global till
- Under counter mounting brackets
- Bell
Advantage® Electronic Cash Drawer |
||
| Dimensions (W x D x H) | Weight | |
| ADV-A1 | 17.4 x 18.7 x 4.6 in. / 24.55 lbs | |
| 442 x 475 x 117 mm (W x H x D) / 11.14 kg | ||
| Shipping Box: 20.9 x 25.20 x 8.6 in | Shipping Weight: 27.58 lbs | |
| Shipping Box: 408 x 311 x 218 mm | Shipping Weight: 12.51 kg | |
| ADV-B1 | 18 x 16.7 x 4.6 in / 23.55 lbs | |
| 457 x 424 x 117 mm / 10.68 kg | ||
| Shipping Box: 23.2 x 21.5 x 8.6 in | Shipping Weight: 25.52 lbs | |
| Shipping Box: 589 x 546 x 218 mm | Shipping Weight: 12.02 kg | |
| ADV-C1 | 18.8 x 20 x 4.6 in / 25.20 lbs | |
| 477 x 508 x 117 mm / 11.43 kg | ||
| Shipping Box: 22.3 x 26.5 x 8.6 in | Shipping Weight: 28.66 lbs | |
| Shipping Box: 566 x 673 x 218 mm | Shipping Weight: 13 kg | |
| ADV-C2 | 18.8 x 21 x 4.6 in / 25.88 lbs | |
| 477 x 533 x 117 mm / 11.74 kg | ||
| Shipping Box: 22.3 x 27.5 x 8.6 in | Shipping Weight: 29.21 lbs | |
| Shipping Box: 566 x 699 x 218 mm | Shipping Weight: 13.25 kg | |
| Manufacturing Features | ||
| Cash Drawer Body | 18-20 Gauge Steel, Modular Construction | |
| Rails | Roller Suspension System (Standard) | |
| Finish | Scratch Resistant Texture Powder Coat | |
| Drawer Front | Texture Powder Coat or Stainless Steel; 3 Slots or No Slots | |
| LockIt™ | 44 Cubic Inch Capacity | |
| Configurable Global Till | ||
| Construction | ABS Plastic | |
| Configurations | US (5 Bill / 5 Coin), Canada (4 Bill / 6 Coin) | |
| Lock Options | ||
| Standard | 3 Position, 4 Function (Random, Alike, Master) | |
| High Security | 3 Position, 4 Function with Operator and Manager Key | |
| Upgradeable Interfaces | ||
| Connectivity | USB with Statistics, USB with Statistics & 4 Port Hub Combo, USB Serial Emulation, 12V Powered USB, Standard and Multi-Serial, and RJ-12 Printer Driven Connections |
|
| Performance | ||
| Life Cycle | Over 4 Million Cycles | |
| Warranty | 5 Years Standard Warranty; Lifetime Limited Warranty Available Free Technical Support |
|
Advantage® Manual Cash Drawer |
||
| Dimensions (W x D x H) | Weight | |
| ADV-B1 | 18 x 16.7 x 4.6 in / 23.55 lbs | |
| 457 x 424 x 117 mm / 10.68 kg | ||
| Shipping Box: 23.2 x 21.5 x 8.6 in | Shipping Weight: 25.52 lbs | |
| Shipping Box: 589 x 546 x 218 mm | Shipping Weight: 12.02 kg | |
| ADV-1M161-04 (Black) or ADV-1M161-89 (Putty w/Silver Painted Front) | ||
| ADV-C1 | 18.8 x 20 x 4.6 in / 25.20 lbs | |
| 477 x 508 x 117 mm / 11.43 kg | ||
| Shipping Box: 22.3 x 26.5 x 8.6 in | Shipping Weight: 28.66 lbs | |
| Shipping Box: 566 x 673 x 218 mm | Shipping Weight: 13 kg | |
| ADV-1M201-04 (Black) or ADV-1M201-89 (Putty w/Silver Painted Front) | ||
| Manufacturing Features | ||
| Cash Drawer Body | 18-20 Gauge Steel, Modular Construction | |
| Rails | Roller Suspension System (Standard) | |
| Finish | Scratch Resistant Texture Powder Coat | |
| Drawer Front | Texture Powder Coat or Stainless Steel; 3 Slots or No Slots | |
| LockIt™ | 44 Cubic Inch Capacity | |
| Configurable Global Till | ||
| Construction | ABS Plastic | |
| Configurations | US (5 Bill / 5 Coin), Canada (4 Bill / 6 Coin) | |
| Lock Options | ||
| Standard | 3 Position, 4 Function (Random, Alike, Master) | |
| Performance | ||
| Life Cycle | Over 4 Million Cycles | |
| Warranty | 5 Years Standard Warranty; Lifetime Limited Warranty Available Free Technical Support |
|
