    ModMyMods ATX 3.1 PCIe Gen 5 H++ 12-Pin 90 Degree Angled Connector - White (Set)

    • Black
    • White
    • Streamline your GPU power setup with this angled 12-pin connector, built for next-gen performance
    • Fully supports 675W delivery and includes pre-installed terminalsperfect for clean, space-saving builds.
    • Streamline your GPU power setup with this angled 12-pin connector, built for next-gen performance.
    • Fully supports 675W delivery and includes pre-installed terminalsperfect for clean, space-saving builds.
    • Color: White
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    The ModMyMods ATX 3.1 PCIe Gen 5 H++ 12V-2X6 MicroFit 3.0 16-Pin Angled Connector Set White - Pins Included is a complete kit for building a 16-pin 12V-2x6 graphics card power plug: a white MicroFit 3.0 style connector housing, a matching 90° cover and loose terminal pins for the 12 power and 4 sense positions. The angled cover makes the cable leave the graphics card sideways, which helps in cases with little room next to the card.

    Properties

    • Type: 12V-2x6 (H++) 16-pin connector set, 90° angled
    • Standard: ATX 3.1, PCIe Gen 5
    • Positions: 12 power + 4 sense
    • Power: Graphics cards up to 675W
    • Terminal pins: Included, loose (crimp on)
    • Color: White
    • Pieces in the pack: 1 set

    Build your own 12V-2x6 cable

    Crimp the included terminal pins onto your wires, push them into the housing and clip on the 90° cover. The result is a custom sleeved or plain GPU power cable in the length you need, with an angled plug for the 16-pin power socket of a modern graphics card.

    Angled for tight cases

    The 90° cover sends the wires sideways right at the plug, so the cable does not need room to bend in front of the card. That gives more clearance to a side panel and keeps the cable from pushing on the connector.

    ATX 3.1 and PCIe Gen 5

    The 12V-2x6 (H++) connector is the 16-pin GPU power connector of ATX 3.1 and PCIe Gen 5, with 12 power positions and a row of 4 small sense positions. It is the updated form of the 12VHPWR connector and is built for graphics cards of up to 675W.

    Technical data

    • Model: TD422-A
    • Type: 12V-2x6 (H++) 16-pin connector set, 90° angled
    • Standard: ATX 3.1, PCIe Gen 5
    • Positions: 16 (12 power, 4 sense)
    • Style: MicroFit 3.0
    • Power: Graphics cards up to 675W
    • Color: White

    Notes

    • The pins come loose and are crimped on by you; they are not pre-installed in the housing.
    • Push the finished plug fully into the graphics card socket until it latches. A 12V-2x6 plug that is not fully seated can overheat.
    • To release a pin from the housing, use a pin extractor such as the ModMyMods ATX3.0 / 12VHPWR Pin Extractor Tool.
    • The angled set comes in white (MOD-0386) and black (MOD-0387). This listing is the white version; the black (MOD-0387) is sold separately.

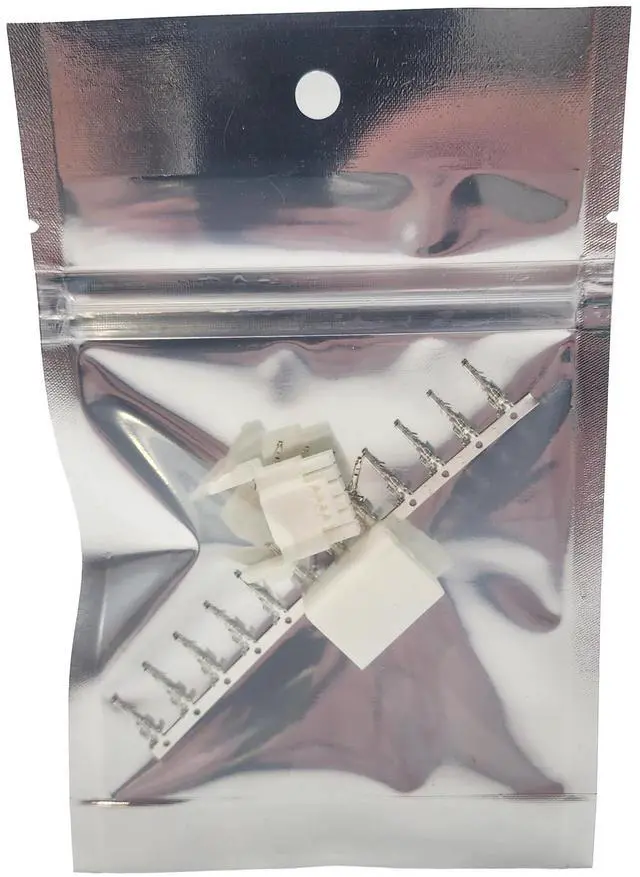

    In the box

    • 1x 12V-2x6 16-pin connector housing
    • 1x 90° connector cover
    • 12x Power terminal pin
    • 4x Sense terminal pin
