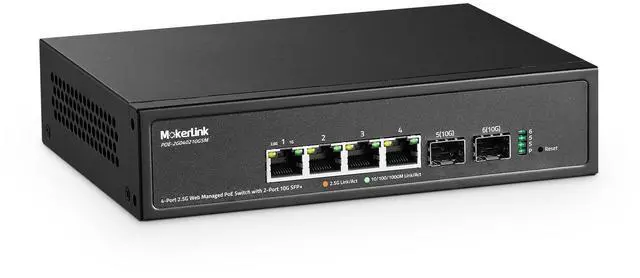

The POE-2G040210GSM is a web managed PoE switch with 4x2.5GbE PoE+ RJ45 and 2x10GbE SFP+ port. Each PoE+ port can supply up to 30W power to PDs with up to total 72W power budget. With Layer2 features such as QoS, 802.1Q VLAN, LACP, IGMP Snooping, It provides a cost-effective and reliable solution.
4x2.5G RJ45 and 2x10G SFP+ Uplink
Equipped with 4x 2.5G Multi-Gigabit RJ45 ports and 2x10G SFP+ port for high-speed connections, It give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automatically. Unlock the full potential of WiFi 7/6E/6 APs or your servers.
PoE+ Solution with PoE Auto-detection

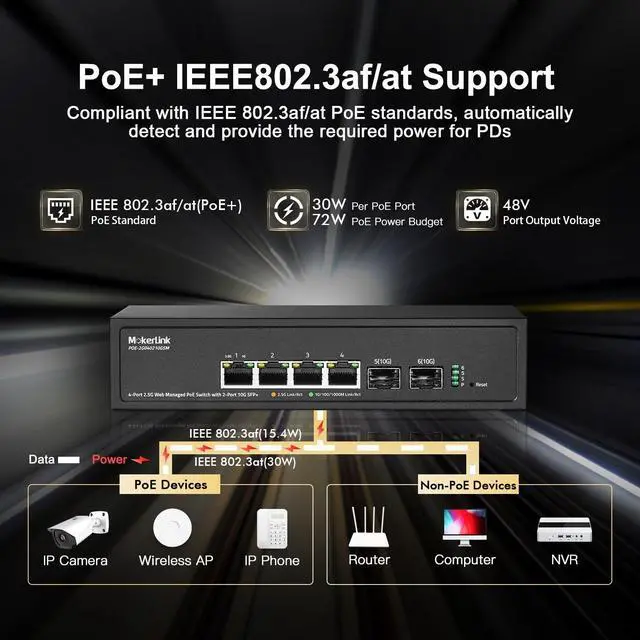

The switch auto detects powered devices (PD) and power consumption levels, up to 30W per port. Connected to any IEEE 802.3af/at end-nodes such as speed dome IP cameras, APs, also support non-PoE devices such as NAS server, PCs.
Power Saving
With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently. It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length
Power and Port Protection
With a dedicated and intelligent microchip, power backfeed and lighting protection, It can avoid damaging the ports and power.
Technical Parameter
The POE-2G040210GSM is a web managed PoE switch with 4x2.5GbE PoE+ RJ45 and 2x10GbE SFP+ port. Each PoE+ port can supply up to 30W power to PDs with up to total 72W power budget. With Layer2 features such as QoS, 802.1Q VLAN, LACP, IGMP Snooping, It provides a cost-effective and reliable solution.
4x2.5G RJ45 and 2x10G SFP+ Uplink
Equipped with 4x 2.5G Multi-Gigabit RJ45 ports and 2x10G SFP+ port for high-speed connections, It give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automatically. Unlock the full potential of WiFi 7/6E/6 APs or your servers.
PoE+ Solution with PoE Auto-detection
The switch auto detects powered devices (PD) and power consumption levels, up to 30W per port. Connected to any IEEE 802.3af/at end-nodes such as speed dome IP cameras, APs, also support non-PoE devices such as NAS server, PCs.
Power Saving
With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently. It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length
Power and Port Protection
With a dedicated and intelligent microchip, power backfeed and lighting protection, It can avoid damaging the ports and power.
Technical Parameter

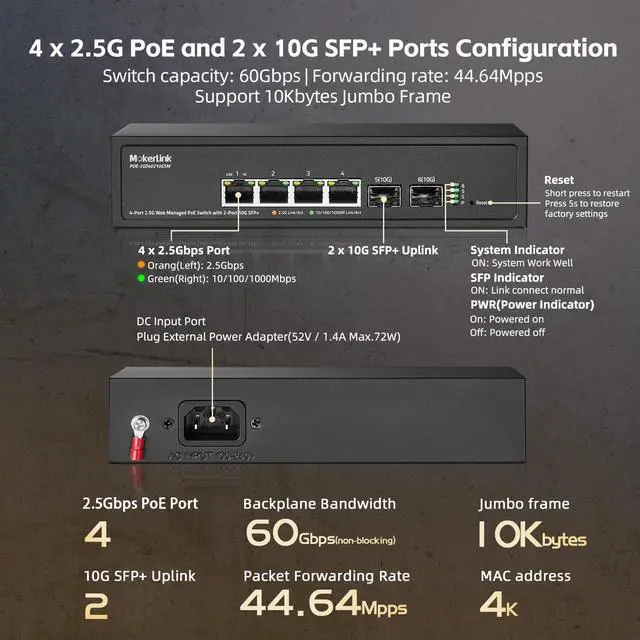

| Ports | 4 x RJ45 2.5Base-T 2.5 Gigabit PoE+ Ports + 2 x SFP+ 10GBase-X 10 Gigabit Uplink Port |
|---|---|
| Switching Capacity / Backplane | 60Gbps |
| Forwarding Rates | Max. 44.64Mpps (64-byte package size) |
| MAC Address Table | 4K |
| Jumbo Frames | 12KB |
| PoE Standard | IEEE 802.3at (PoE+), IEEE 802.3af (PoE), Up to 30W per Port |
| Pin Assignment | Alternative A (Pin 1,2/3,6) |
| LED Indicators | PWR: System Power Status, 1-4 port Yellow Light On:2.5G Link normal, Green Light On:10/100/1000Mbps Link normal, Off: Link blocked, Flashing: Data transmitting, 5-6 SPF+ port Yellow Light On:10G Link normal, Green Light On:1G Link normal, Off: Link blocked, Flashing: Data transmitting |
| Power Input | 100-240V AC, 50-60 Hz, Internal Power Supply, Max 72W |
| Mounting | Desktop / Wall-mount, Metal Housing |
| Structure Information | Product Dimensions :270*181*44mm, Packaging Dimensions : 200*118*44mm, Product Net Weight: 0.7KG, Product Gross Weight:1.2KG |
| Environment | Operating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%,non condensing, Storage Humidity:5%~95%,non condensing |
| SMART FEATURES | VLAN, QoS, IEEE 802.3ad LACP Trunk-Static Trunk, IGMP Snooping, Port Mirroring, Broadcast Storm Control |
