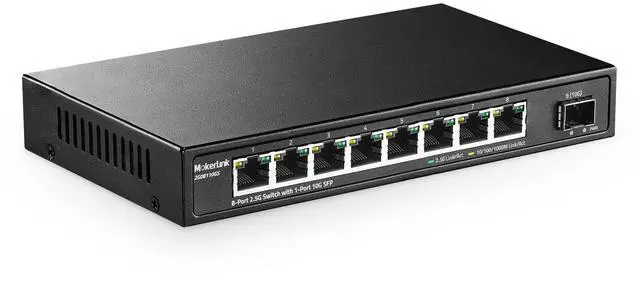

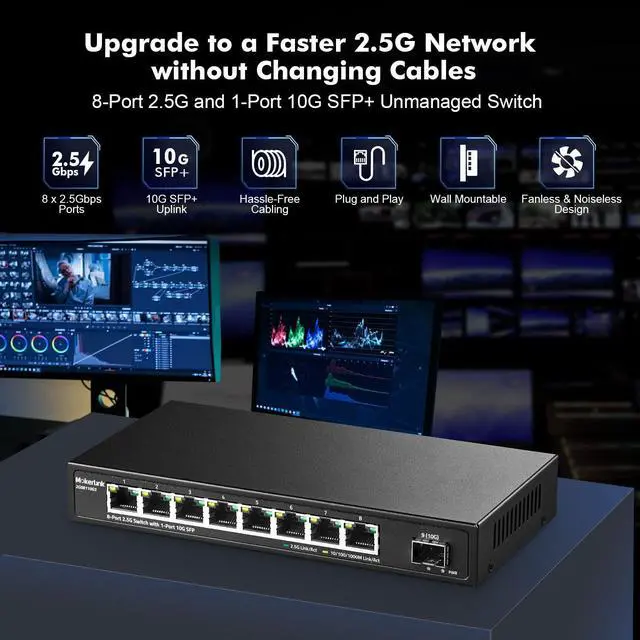

2G08110GS adopts the network chip solution of high quality and high speed. The switch has 8* 2.5G RJ45 ports and 1* 10G SFP+ port, providing seamless connection to 10/100/1000M/2.5G Ethernet for easy management and maintenance.

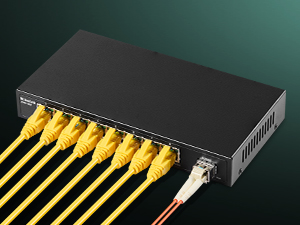

8x 2.5G Connection

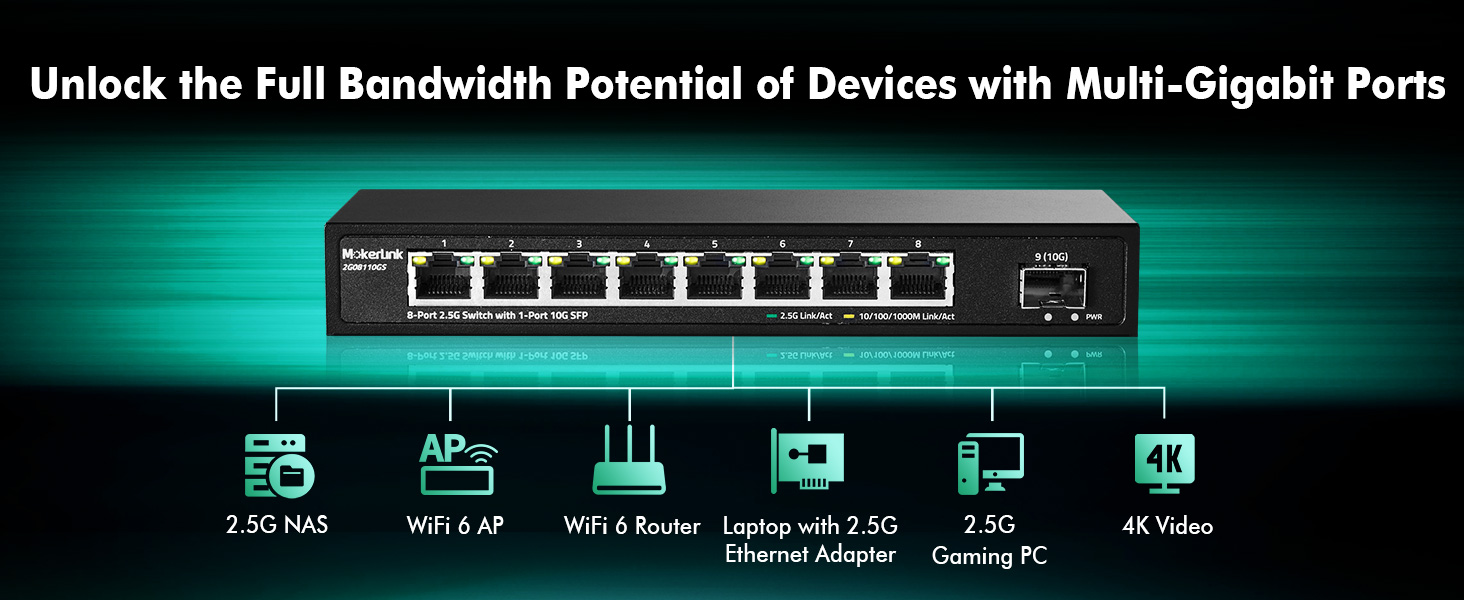

Offers high-bandwidth connectivity with 8× 2.5Gbps RJ45 ports and unlock the full potential of NAS and WiFi6 APs.

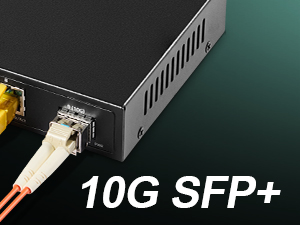

10G SFP+ Uplink
The switch features with 1× 10Gbps SFP+ slots enable high-bandwidth connectivity. SFP port is not encrypted, you can use any brand of SFP module.
Plug and Play
plug and play, unmanaged switch, No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables.

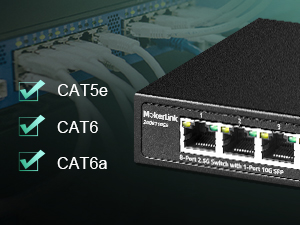

Hassle-Free Cabling
Upgrade to 2.5Gbps speed without changing cabling, you can use Cat 5e and above cables.

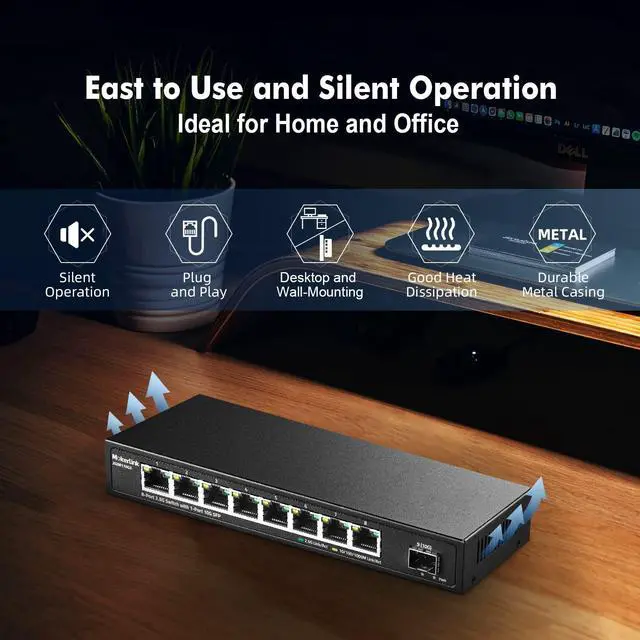

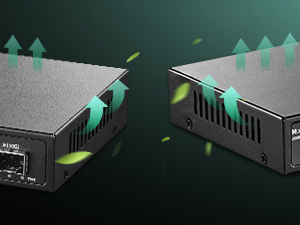

Fanless & Silent Operation
The 2.5G switch features with metal case and fanless design that ensures noiseless operation and greater reliability over time.

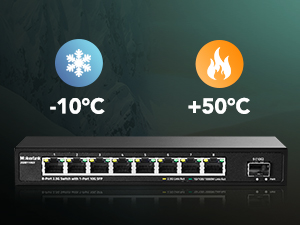

Wide Operating Temperature
Supports working at ambient temperatures of -10 °C to +50 °C, improving system robustness, adapted to harsh environments.
Lighting Protection
The switch has built-in mine-proof circuits, effectively reducing the impact of thunderstorms on network systems.

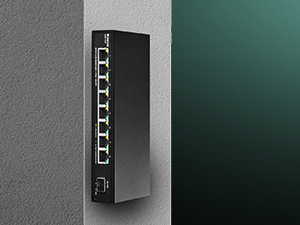

Wall Mountable
You can mount the switch on the wall or desktop, perfect solution for a variety of environments.
Product Specifications
Compare 2.5G Switches
 8-Port 2.5G Switch |  8-Port 2.5G PoE Switch |  8Port 2.5G Managed Switch |  5-Port 2.5G Switch |  5-Port 2.5G PoE Switch |  5Port 2.5G Managed Switch |  24-Port 2.5G Switch | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Ethernet | 8x2.5G RJ45 + 1x10G SFP+ | 8x2.5G PoE + 1x10G SFP+ | 8x2.5G RJ45 + 1x10G SFP+ | 5x2.5G RJ45 + 1x10G SFP+ | 5x2.5G PoE + 1x10G SFP+ | 5x2.5G RJ45 + 1x10G SFP+ | 24x2.5G RJ45 + 2x10G SFP+ |
Managed Support | ? | ? | ? | ? | ? | ? | ? |
PoE Support | ? | ? | ? | ? | ? | ? | ? |
PoE Protocol | - | IEEE802.3af/at (Max 30W) | - | - | IEEE802.3af/at (Max 30W) | - | - |
Total Power Budget | DC 12V/2A(24W) | DC 52V/2.3A(120W) | DC 12V/2A(24W) | DC 12V1A(12W) | DC 52V/1.25A(65W) | DC 12V1A(12W) | AC 12V/4A(48W) |
Backplane bandwidth | 60Gbps | 60Gbps | 60Gbps | 45Gbps | 45Gbps | 45Gbps | 160Gbps |
Packet forwarding rate | 44.64Mpps | 44.64Mpps | 44.64Mpps | 33.48Mpps | 33.48Mpps | 33.48Mpps | 119.04Mpps |
Structural dimension | 190*100*28mm / 0.49KG | 220*161*44mm / 0.88kg | 190*100*28mm / 0.49KG | 140*93*28mm / 0.33kg | 200*118*44mm / 0.63kg | 140*93*28mm / 0.33kg | 440*204*44.5mm / 2.61kg |
Managed Function | - | - | L2 Function(VLAN, QoS, etc) | - | - | L2 Function(VLAN, QoS, etc) | - |
Mount Way | Desktop / Wall Mount | Desktop / Wall Mount | Desktop / Wall Mount | Desktop / Wall Mount | Desktop / Wall Mount | Desktop / Wall Mount | Desktop / Rack Mount |
2G08110GS adopts the network chip solution of high quality and high speed. The switch has 8* 2.5G RJ45 ports and 1* 10G SFP+ port, providing seamless connection to 10/100/1000M/2.5G Ethernet for easy management and maintenance.
8x 2.5G Connection
Offers high-bandwidth connectivity with 8× 2.5Gbps RJ45 ports and unlock the full potential of NAS and WiFi6 APs.
10G SFP+ Uplink
The switch features with 1× 10Gbps SFP+ slots enable high-bandwidth connectivity. SFP port is not encrypted, you can use any brand of SFP module.
Plug and Play
plug and play, unmanaged switch, No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables.
Hassle-Free Cabling
Upgrade to 2.5Gbps speed without changing cabling, you can use Cat 5e and above cables.
Fanless & Silent Operation
The 2.5G switch features with metal case and fanless design that ensures noiseless operation and greater reliability over time.
Wide Operating Temperature
Supports working at ambient temperatures of -10 °C to +50 °C, improving system robustness, adapted to harsh environments.
Lighting Protection
The switch has built-in mine-proof circuits, effectively reducing the impact of thunderstorms on network systems.
Wall Mountable
You can mount the switch on the wall or desktop, perfect solution for a variety of environments.
Product Specifications

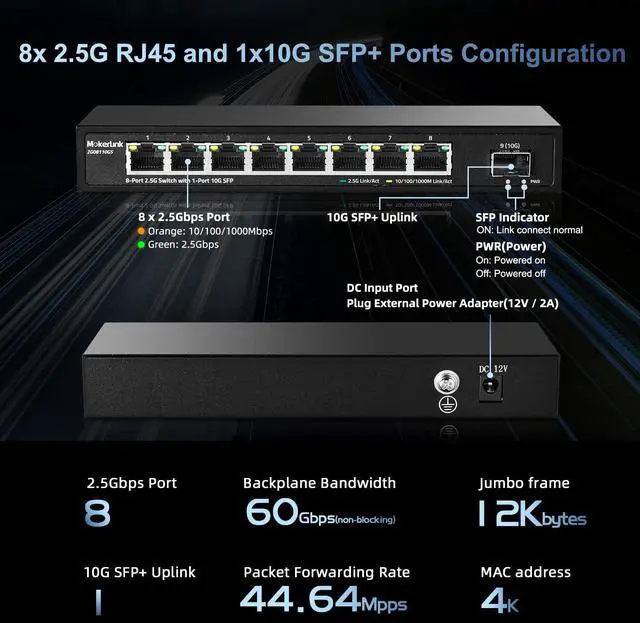

| Model | 2G08110GS |
|---|---|
| Ethernet | 8*2.5G RJ45 ports + 1*10G SFP ports |
| Bandwidth | 60Gbps |
| Pack forward rate | 44.64Mpps |
| Forwarding mode | Store forward |
| MAC address | 4K |
| Jumbo Frame | 12Kbytes |
| Network Protocol | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab(Gigabit Ethernet), IEEE 802.3bz(5G Ethernet), IEEE 802.3z(Gigabit Ethernet), IEEE 802.3ae(10G Ethernet), IEEE802.3x (Flow control) |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP/STP(=100m), 100Base-TX: Cat5 or higher UTP/STP(=100m), 1000Base-TX: Cat5 or higher UTP/STP(=100 M) |
| Optical fiber medium | Multimode optical fiber: 50/125, 62.5/125, 100/140um, Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Working environment | Operating temperature: -10~50°C, Storage temperature: -40~70°C, Operating humidity: 10%~90%, no condensation Storage humidity: 5%~90%, no condensation |
| LED Indicator | PWR(Power indicator) On: Powered on, Off: Powered off. 1-8 Network port yellow indicator On: 2.5G Link connect normal, Off: Link off, Flashing: data transmitting. 1-8 Network port green indicator Lighting:Connecting, Flashing: Data Transmit, Un-Light: Disconnect, Flashing: data transmitting |
| Structure Size | Product size: 190*100*28mm, Package size: 245*190*60mm, Product weight: 0.49KG, Packing weight: 0.71KG |
| Power Voltage | Adapter input voltage: AC 100-240 V Switch input voltage: DC 12V2A |
| Packing List | Switch 1pc, Specification 1pc, Power adapter 1pc |
Compare 2.5G Switches
8-Port 2.5G Switch | 8-Port 2.5G PoE Switch | 8Port 2.5G Managed Switch | 5-Port 2.5G Switch | 5-Port 2.5G PoE Switch | 5Port 2.5G Managed Switch | 24-Port 2.5G Switch |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Ethernet | ||||||
| 8x2.5G RJ45 + 1x10G SFP+ | 8x2.5G PoE + 1x10G SFP+ | 8x2.5G RJ45 + 1x10G SFP+ | 5x2.5G RJ45 + 1x10G SFP+ | 5x2.5G PoE + 1x10G SFP+ | 5x2.5G RJ45 + 1x10G SFP+ | 24x2.5G RJ45 + 2x10G SFP+ |
| Managed Support | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| PoE Support | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| PoE Protocol | ||||||
| - | IEEE802.3af/at (Max 30W) | - | - | IEEE802.3af/at (Max 30W) | - | - |
| Total Power Budget | ||||||
| DC 12V/2A(24W) | DC 52V/2.3A(120W) | DC 12V/2A(24W) | DC 12V1A(12W) | DC 52V/1.25A(65W) | DC 12V1A(12W) | AC 12V/4A(48W) |
| Backplane bandwidth | ||||||
| 60Gbps | 60Gbps | 60Gbps | 45Gbps | 45Gbps | 45Gbps | 160Gbps |
| Packet forwarding rate | ||||||
| 44.64Mpps | 44.64Mpps | 44.64Mpps | 33.48Mpps | 33.48Mpps | 33.48Mpps | 119.04Mpps |
| Structural dimension | ||||||
| 190*100*28mm / 0.49KG | 220*161*44mm / 0.88kg | 190*100*28mm / 0.49KG | 140*93*28mm / 0.33kg | 200*118*44mm / 0.63kg | 140*93*28mm / 0.33kg | 440*204*44.5mm / 2.61kg |
| Managed Function | ||||||
| - | - | L2 Function(VLAN, QoS, etc) | - | - | L2 Function(VLAN, QoS, etc) | - |
| Mount Way | ||||||
| Desktop / Wall Mount | Desktop / Wall Mount | Desktop / Wall Mount | Desktop / Wall Mount | Desktop / Wall Mount | Desktop / Wall Mount | Desktop / Rack Mount |
