Main Features

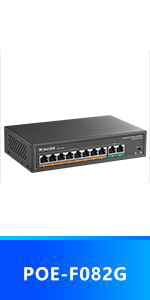

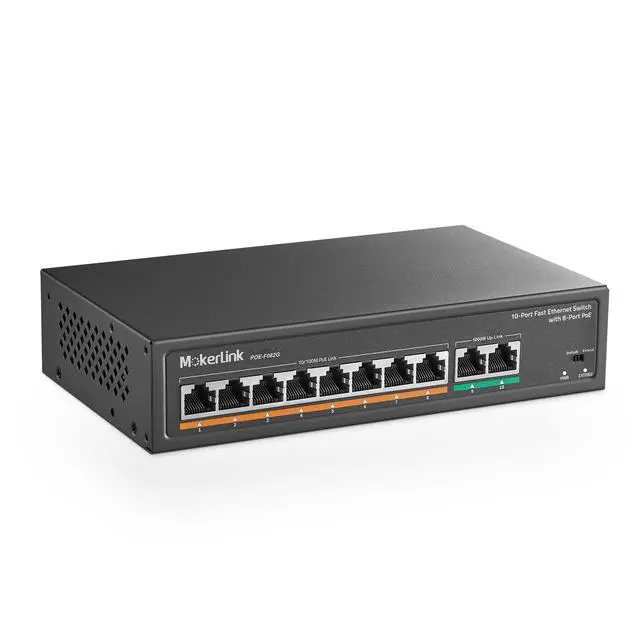

POE-F082G is an unmanaged PoE switch with 8 × 10/100Mbps PoE ports. It provides 8 × 10/100Mbps PoE ports and 2 × 10/100/1000Mbps uplink ports. The product is equipped with two types of transmission modes (Default Mode / Extend Mode). By enabling extend mode, the transmission distance of a PoE port can be up to 250m and port 1-8 isolated with each other. The maximum power consumption is 120W.
With simple and convenient installation and maintenance methods and rich business features, it helps users to build a safe and reliable high-performance network. It is mainly located in the edge or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband. it can be widely used in ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.
- 8*10/100Mbps PoE ports + 2* 10/100/1000Mbps Ethernet Uplink ports.
- Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab standards.
- Ethernet port supports 10/100/1000Mbps adaptive and POE functions.
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard.
- Support port auto flip (Auto MDI/MDIX).
- Automatically supplied to adaptive devices.
- Panel indicator monitoring status and help failure analysis.
- Support for Extend mode, Default mode.
- Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 8KV.

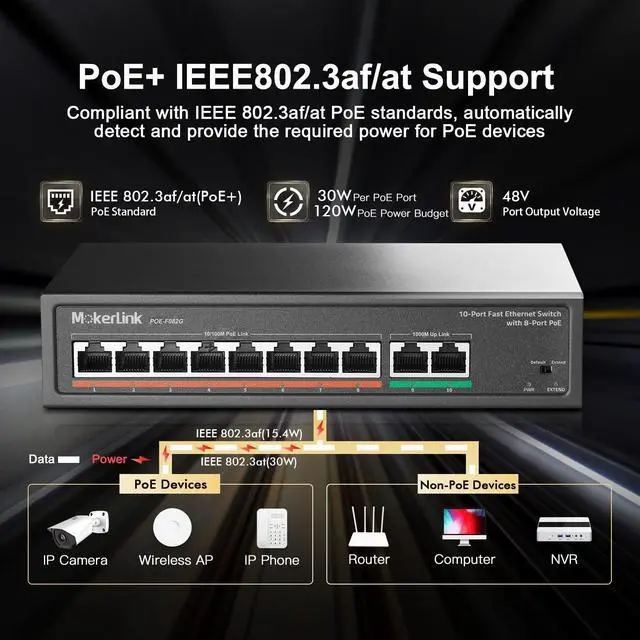

Smart PoE+
Compatible with IEEE802.3af/at standard, PoE switch determines and delivers the exact power supply to your devices. Supports ultra wide power supply, able to adapt to IPC power fluctuation.

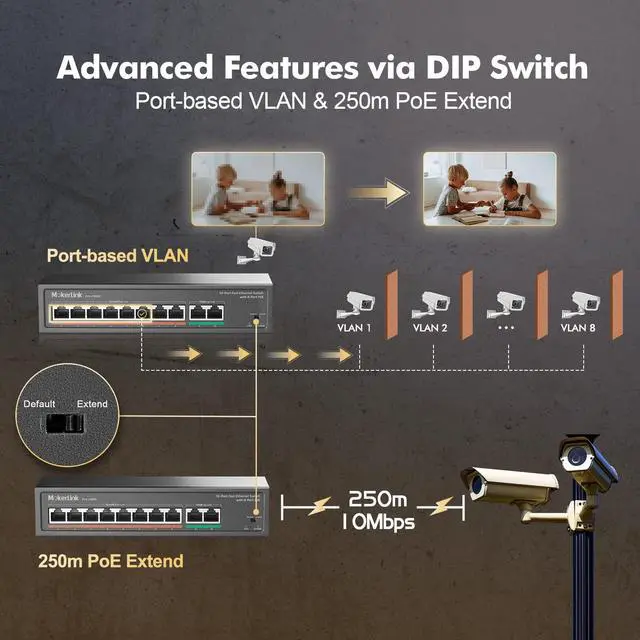

Link Extention to 250m
By dialing or enabling extend mode on the front panel, the transmission distance of a PoE port can be up to 250m, meeting the requirement of wired transmission (bandwidth reduced to 10 Mbps).
Port-based VLAN
When you enable the extend mode with DIP switch, switch divides traffic for ports 1-8 to prevent IP camera's muliticast or broadcast storm from affecting each other.

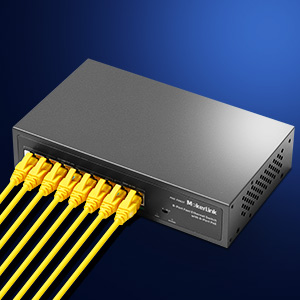

Plug and Play
10 port PoE switch support installation plug and play. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance.

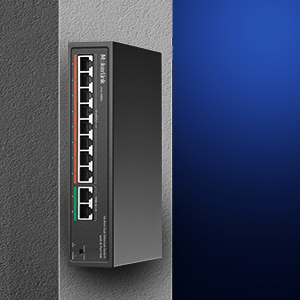

Wall Mountable
You can mount the switch on the wall or desktop,perfect solution for a variety of environments.

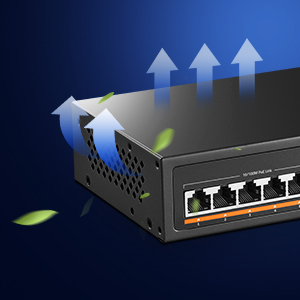

Fanless & Silent Operation
The PoE switch features with metal case and fanless design that ensures noiseless operation and greater reliability over time.

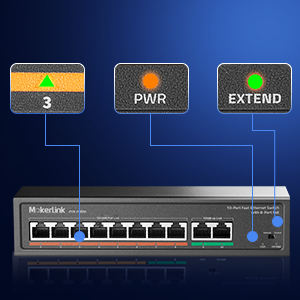

Unique LED Indicator Design
You can quickly check working status and troubleshoot ports with Power/PoE/Extend indicator. PWR(power supply), Extend(DIP), 1-10 Green(Link&Data).
Lighting Protection
The 10 port poe switch has built-in professional mine-proof circuits, effectively reducing the impact of thunderstorms on network systems and improving system robustness.
Wide Operating Temperature
Supports working at ambient temperatures of -10 °C to +50°C. Unique design make sure PoE switch is adapted to harsh environments.
Product Specifications
 8 Port Fast Ethernet Switch with 6 Port PoE |  10 Port Fast Ethernet Switch with 8 Port PoE |  10 Port Fast Ethernet Switch with 8 Port PoE |  11 Port Fast Ethernet Switch with 9 Port PoE |  8 Port Gigabit Ethernet Switch with 8 Port PoE |  11 Port Gigabit Ethernet Switch with 8 Port PoE | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| PoE Port | 6x10/100Mbps | 8x10/100Mbps | 8x100/1000Mbps | 9x10/100Mbps | 8x10/100/1000Mbps | 8x10/100/1000Mbps |
| UpLink Port | 2x10/100Mbps RJ45 | 2x10/100Mbps RJ45 | 2x10/100/1000Mbps RJ45 | 2x10/100Mbps RJ45 | / | 2x10/100/1000Mbps RJ45 + 1000Mbps SFP |
| PoE Power Budget | 78W | 96W | 120W | 120W | 120W | 120W |
| Switch Capacity | 1.6Gbps | 2Gbps | 12Gbps | 1.6Gbps | 12Gbps | 12Gbps |
| Dimensions (L x W x H) | 200 x 118 x 44mm | 200 x 118 x 44mm | 200 x 118 x 44mm | 200 x 118 x 44mm | 200 x 118 x 44mm | 200 x 118 x 44mm |
| Weight (kg) | 0.6kg | 0.6kg | 0.6kg | 0.7kg | 0.8kg | 1.1kg |
| Extend Function | ? | ? | ? | ? | / | ? |
Multi-Gigabit Switch
2.5g/10G Series Ethernet Switch
Choose More 2.5g/10g Switch
PoE Switch
4/8/16/24/48 Port PoE Switch
Choose More PoE Switch
Choose More Managed Switch
Choose More Fiber Switch
Choose More Industrial Switch
MokerLink is a professional company that specializes in research and development of ethernet products.
We have many years of experience in design, manufacturing and sales in the ethernet field. We are committed to providing the best quality products and best service to our customers.
Main Features
POE-F082G is an unmanaged PoE switch with 8 × 10/100Mbps PoE ports. It provides 8 × 10/100Mbps PoE ports and 2 × 10/100/1000Mbps uplink ports. The product is equipped with two types of transmission modes (Default Mode / Extend Mode). By enabling extend mode, the transmission distance of a PoE port can be up to 250m and port 1-8 isolated with each other. The maximum power consumption is 120W.
With simple and convenient installation and maintenance methods and rich business features, it helps users to build a safe and reliable high-performance network. It is mainly located in the edge or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband. it can be widely used in ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.
- 8*10/100Mbps PoE ports + 2* 10/100/1000Mbps Ethernet Uplink ports.
- Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab standards.
- Ethernet port supports 10/100/1000Mbps adaptive and POE functions.
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard.
- Support port auto flip (Auto MDI/MDIX).
- Automatically supplied to adaptive devices.
- Panel indicator monitoring status and help failure analysis.
- Support for Extend mode, Default mode.
- Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 8KV.
Smart PoE+
Compatible with IEEE802.3af/at standard, PoE switch determines and delivers the exact power supply to your devices. Supports ultra wide power supply, able to adapt to IPC power fluctuation.
Link Extention to 250m
By dialing or enabling extend mode on the front panel, the transmission distance of a PoE port can be up to 250m, meeting the requirement of wired transmission (bandwidth reduced to 10 Mbps).
Port-based VLAN
When you enable the extend mode with DIP switch, switch divides traffic for ports 1-8 to prevent IP camera's muliticast or broadcast storm from affecting each other.
Plug and Play
10 port PoE switch support installation plug and play. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance.
Wall Mountable
You can mount the switch on the wall or desktop,perfect solution for a variety of environments.
Fanless & Silent Operation
The PoE switch features with metal case and fanless design that ensures noiseless operation and greater reliability over time.
Unique LED Indicator Design
You can quickly check working status and troubleshoot ports with Power/PoE/Extend indicator. PWR(power supply), Extend(DIP), 1-10 Green(Link&Data).
Lighting Protection
The 10 port poe switch has built-in professional mine-proof circuits, effectively reducing the impact of thunderstorms on network systems and improving system robustness.
Wide Operating Temperature
Supports working at ambient temperatures of -10 °C to +50°C. Unique design make sure PoE switch is adapted to harsh environments.
Product Specifications
| Model | POE-F082G |
| Ethernet | 8 *10/100M PoE Ports + 2 *10/100/1000M RJ45 Uplink Ports |
| Switching Capacity | 12Gbps |
| Throughput | 8.92Mpps |
| Packet Buffer | 1M |
| MAC Address | 2K |
| Jumbo Frame | 2048bytes |
| Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
| PoE Protocol | IEEE802.3af (15.4W) IEEE802.3at (30W) |
| Network Medium | 10Base-T : Cat3?4?5 or above UTP(=100m) 100Base-TX : Cat5 or above UTP(=100m) |
| LED Indicators | PWR(power supply), Extend(DIP), 1-10 Green(Link&Data) |
| DIP Switch | Extend: Extend mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M.. Default: Default mode, all port can communicate with each other. |
| Product Dimension (L*W*H) | 200mm*118mm*44mm |
| Product Weight | 0.6kg |
| Working Environment | Working Temperature:-20~50°C Working Humidity :10%~90%,non-condensing Working Height:Maximum10,000 feet |
| Power Voltage | Input Voltage :AC 100-240 V Power supply:52V 120W |
