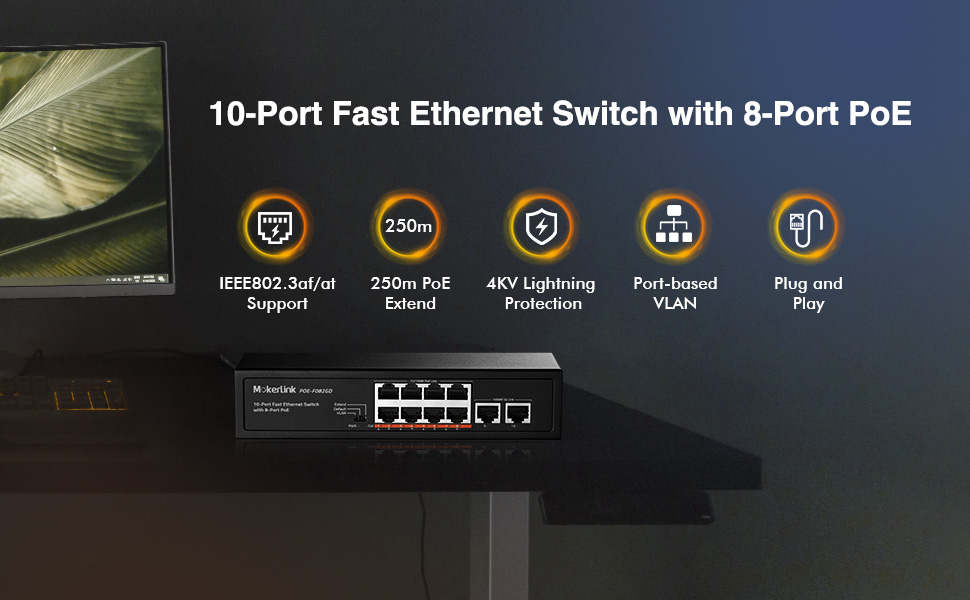

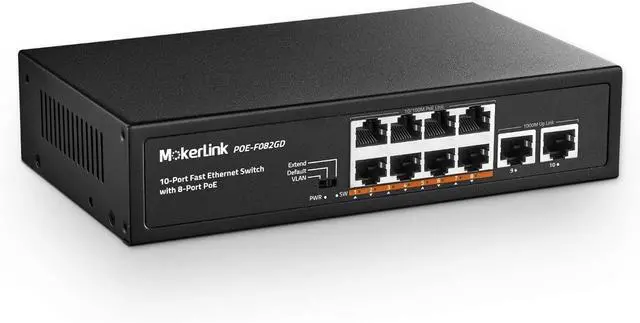

Main Features
10-port fast ethernet poe switch using high-quality high-speed network IC and the most stable PoE chip, 1-8 PoE Port support IEEE802.3af/at standard(Please note that passvie POE protocol is not supported, 24v poe is not supported, IEEE802.3bt is not supported), The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE 802.3af or IEEE802.3at standards. The non-PoE device intelligently detects no power and only transmits data.
- 8*10/100Mbps PoE ports + 2* 10/100/1000Mbps Ethernet Uplink ports.
- Supports RJ45 interface, does not support SFP fiber optic interface, please use the correct network cable
- Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab standards.
- Ethernet port supports 10/100Mbps adaptive and POE functions. POE ports 1-8 do not support Gigabit rates
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard.
- Support ethernet port auto flip (Auto MDI/MDIX).
- Automatically supplied to adaptive devices.
- Panel indicator monitoring status and help failure analysis.
- Support for VLAN mode, Normal mode and Extend mode. After opening the VLAN, ports 1-8 are isolated from each other and cannot communicate
- Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 8KV.
- His maximum output power is 96W, please note that the connected device should not exceed 96W, or it will not work!
- If your connected device can't work, please make sure your device supports IEEE802.3AF/AT standard POE protocol, please use high quality cable and connector, and make sure the connection is normal and not loose.

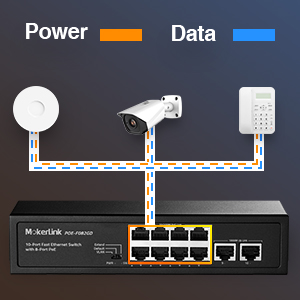

Auto Detects Power Devices
Compatible with IEEE802.3af/at standard(not support passive/24v/IEEE802.3bt protocol), PoE switch determines and delivers the exact power supply to your devices with up to 30W power output for per PoE port.

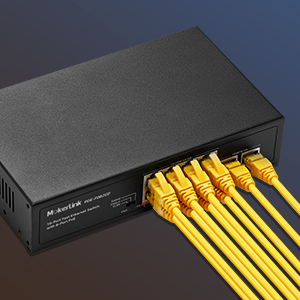

Plug and Play
10 port PoE switch support installation plug and play. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance.Please use new high quality network cable, fiber optic is not supported

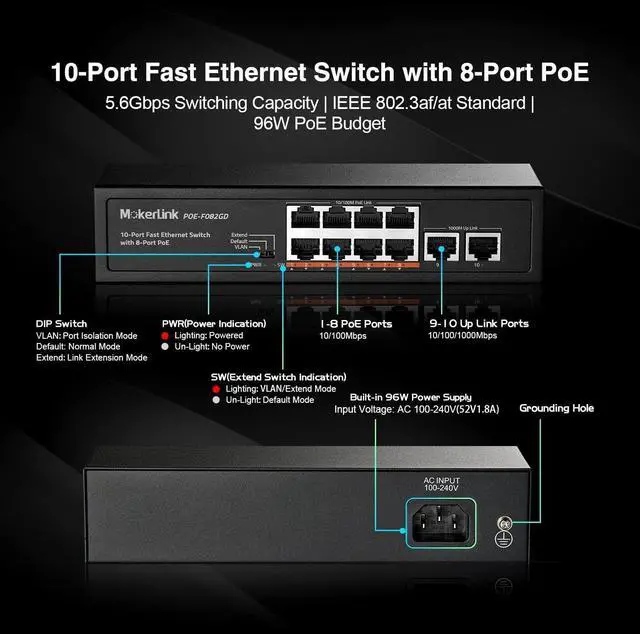

Unique LED Indicator Design
You can quickly check working status and troubleshoot ports with Power/PoE/Extend indicator. PWR(power supply), SW(DIP), 1-10 Green(Link&Data).If the power light is not on, please check your power connection; if the port light is not on, please check whether your device supports the IEEE802.3AF/AT standard, and check if the network cable and interface are normal

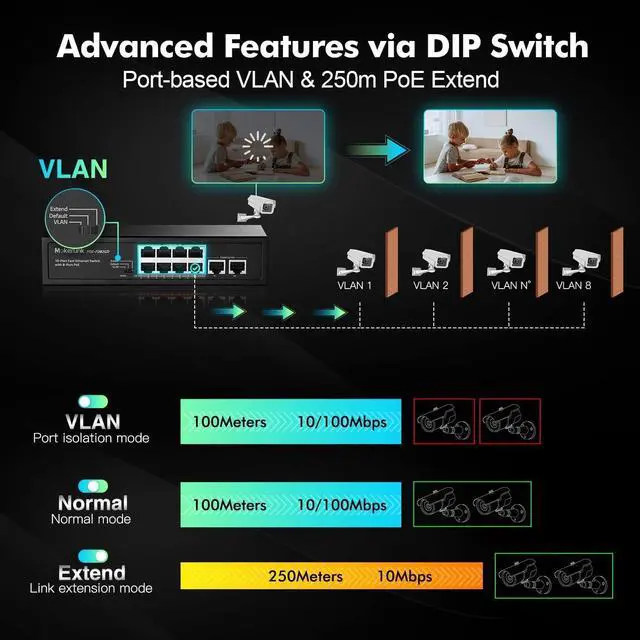

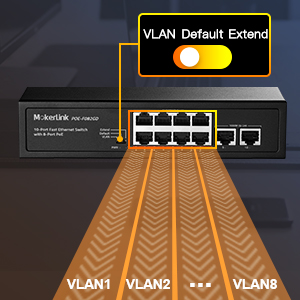

Port-based VLAN
When you enable the extend mode with DIP switch, switch divides traffic for ports 1-8 to prevent IP camera's muliticast or broadcast storm from affecting each other.
Link Extention to 250m
PoE (Power Over Ethernet) usually has a maximum run of around 100 meters. When link extend mode is enabled, it will allow you to increase your run to a distance of 250 meters. the maximum speed will downgrade to 10Mbps.

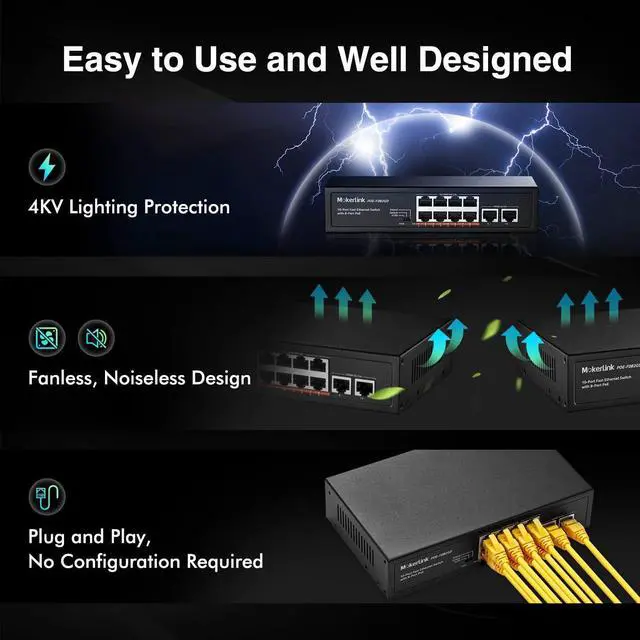

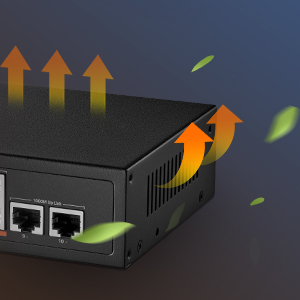

Fanless & Silent Operation
The PoE switch features with metal case and fanless design that ensures noiseless operation and greater reliability over time.

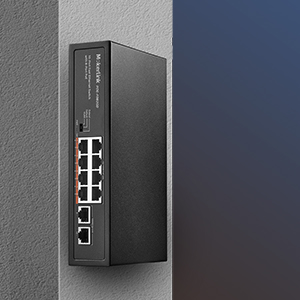

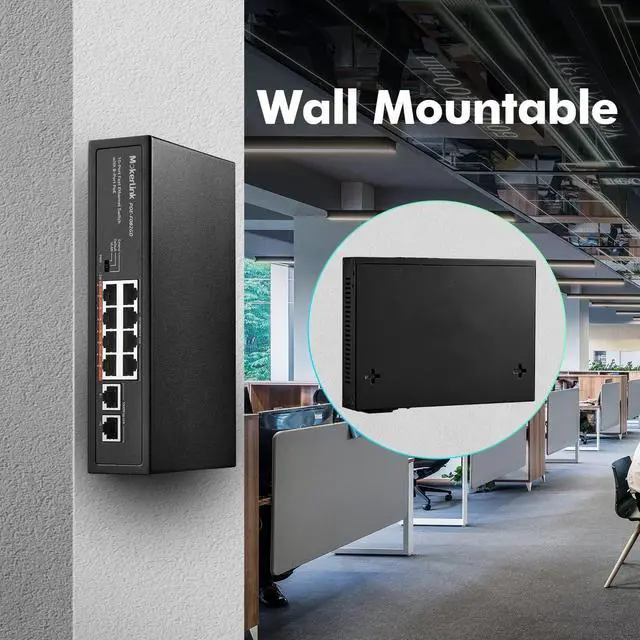

Support Wall Mount
You can mount the switch on the wall or desktop,perfect solution for a variety of environments.

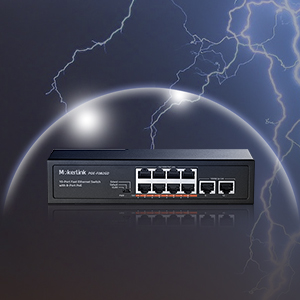

Lighting Protection
The 10 port poe switch fetures with 4KV surge protection, It can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.

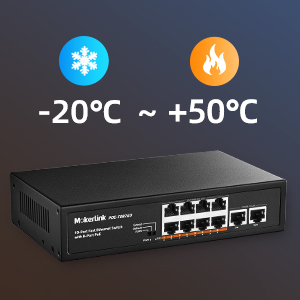

Opation Over Wide Temperature Ranges
Unique design make sure PoE switch long-term stable operation over temperature spans of -20 and +50°C.
Product Specifications

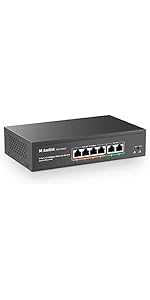

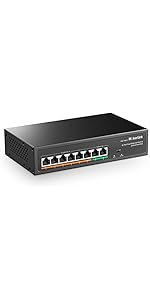

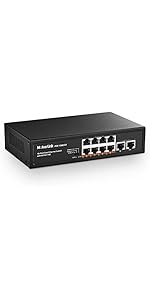

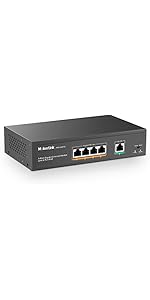

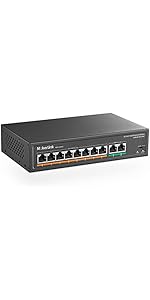

 MokerLink 6 Port PoE Switch with 4 Ports PoE+, 2 Fast Ethernet Uplink, 10/100... |  MokerLink 8 Port PoE Switch with 6 PoE+ Port, 2 Uplink, 100Mbps, 78W AI Detec... |  MokerLink 5 Port Gigabit POE Switch, with 4 POE+ Ports 1000Mbps, 78W IEEE802.... |  MokerLink 10 Port PoE Switch with 8 Port PoE+, 2 Gigabit Uplink, 96W 802.3af/... |  MokerLink 8 Port PoE Switch with 2 Gigabit Uplink, 802.3af/at PoE+ 100Mbps, 1... | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — no data | — |
| PoE Port | 4x10/100Mbps | 6x10/100Mbps | 4x100/1000Mbps | 8x10/100Mbps | 8x10/100Mbps |
| UpLink Port | 2x10/100Mbps | 2x10/100Mbps | 1x100/1000Mbps | 2x100/1000Mbps | 2x100/1000Mbps |
| POE Power Output | 78W | 78W | 78W | 96W | 120W |
| Switch Capacity | 1.6Gbps | 1.4Gbps | 12Gbps | 5.6Gbps | 10Gbps |
| Dimensions (L x W x H) | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 |
| Weight (lbs) | 2.15 | 2.15 | 2.15 | 2.31 | 2.31 |
| Extend Function | ? | ? | ? | ? | ? |
Main Features
10-port fast ethernet poe switch using high-quality high-speed network IC and the most stable PoE chip, 1-8 PoE Port support IEEE802.3af/at standard(Please note that passvie POE protocol is not supported, 24v poe is not supported, IEEE802.3bt is not supported), The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE 802.3af or IEEE802.3at standards. The non-PoE device intelligently detects no power and only transmits data.
- 8*10/100Mbps PoE ports + 2* 10/100/1000Mbps Ethernet Uplink ports.
- Supports RJ45 interface, does not support SFP fiber optic interface, please use the correct network cable
- Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab standards.
- Ethernet port supports 10/100Mbps adaptive and POE functions. POE ports 1-8 do not support Gigabit rates
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard.
- Support ethernet port auto flip (Auto MDI/MDIX).
- Automatically supplied to adaptive devices.
- Panel indicator monitoring status and help failure analysis.
- Support for VLAN mode, Normal mode and Extend mode. After opening the VLAN, ports 1-8 are isolated from each other and cannot communicate
- Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 8KV.
- His maximum output power is 96W, please note that the connected device should not exceed 96W, or it will not work!
- If your connected device can't work, please make sure your device supports IEEE802.3AF/AT standard POE protocol, please use high quality cable and connector, and make sure the connection is normal and not loose.
Auto Detects Power Devices
Compatible with IEEE802.3af/at standard(not support passive/24v/IEEE802.3bt protocol), PoE switch determines and delivers the exact power supply to your devices with up to 30W power output for per PoE port.
Plug and Play
10 port PoE switch support installation plug and play. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance.Please use new high quality network cable, fiber optic is not supported
Unique LED Indicator Design
You can quickly check working status and troubleshoot ports with Power/PoE/Extend indicator. PWR(power supply), SW(DIP), 1-10 Green(Link&Data).If the power light is not on, please check your power connection; if the port light is not on, please check whether your device supports the IEEE802.3AF/AT standard, and check if the network cable and interface are normal
Port-based VLAN
When you enable the extend mode with DIP switch, switch divides traffic for ports 1-8 to prevent IP camera's muliticast or broadcast storm from affecting each other.
Link Extention to 250m
PoE (Power Over Ethernet) usually has a maximum run of around 100 meters. When link extend mode is enabled, it will allow you to increase your run to a distance of 250 meters. the maximum speed will downgrade to 10Mbps.
Fanless & Silent Operation
The PoE switch features with metal case and fanless design that ensures noiseless operation and greater reliability over time.
Support Wall Mount
You can mount the switch on the wall or desktop,perfect solution for a variety of environments.
Lighting Protection
The 10 port poe switch fetures with 4KV surge protection, It can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Opation Over Wide Temperature Ranges
Unique design make sure PoE switch long-term stable operation over temperature spans of -20 and +50°C.
Product Specifications

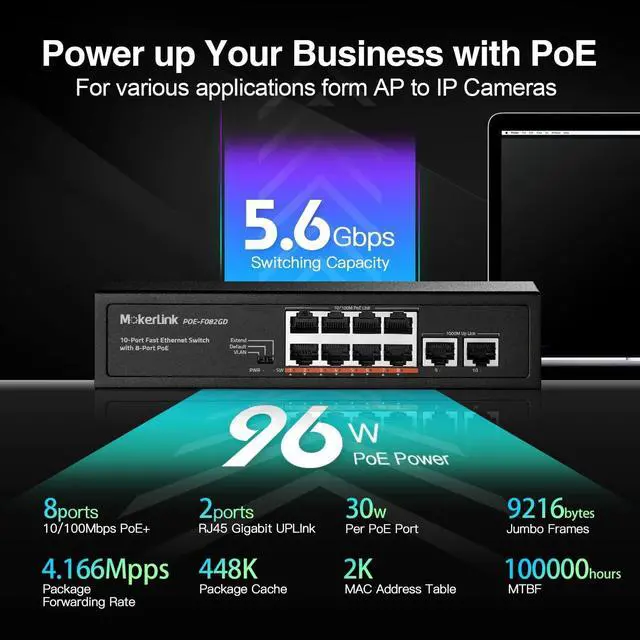

| Model | POE-F082GD |
| Ethernet | 8 Port 10/100M PoE + 2 Port 1000M Ethernet Uplink |
| Switching Capacity | 5.6Gbps |
| Throughput | 4.166Mpps |
| Packet Buffer | 448K |
| MAC Address | 2K |
| Jumbo Frame | 9216bytes |
| Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
| PoE Protocol | IEEE802.3af (15.4W) IEEE802.3at (30W) |
| Network Medium | 10Base-T : Cat3?4?5 or above UTP(=100m) 100Base-TX : Cat5 or above UTP(=100m) 1000Base-TX : Cat5 or above UTP(=100m) |
| LED Indicators | PWR(power supply), SW(DIP), 1-10 Green(Link&Data) |
| DIP Switch | VLAN: Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port. Normal: Normal mode, all port can communicate with each other. Extend: Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M. |
| Product Dimension (L*W*H) | 200mm*118mm*44mm |
| Product Weight | 0.6kg |
| Working Environment | Working Temperature:-20~50°C Working Humidity :10%~90%,non-condensing Working Height:Maximum10,000 feet |
| Power Voltage | Input Voltage :AC 100-240 V Power supply:52V1.8A 96W |
