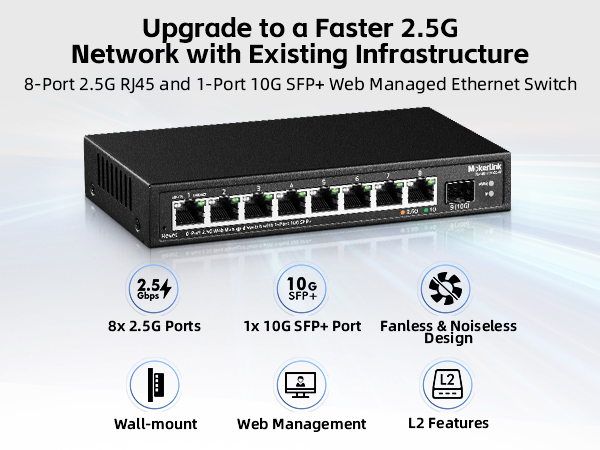

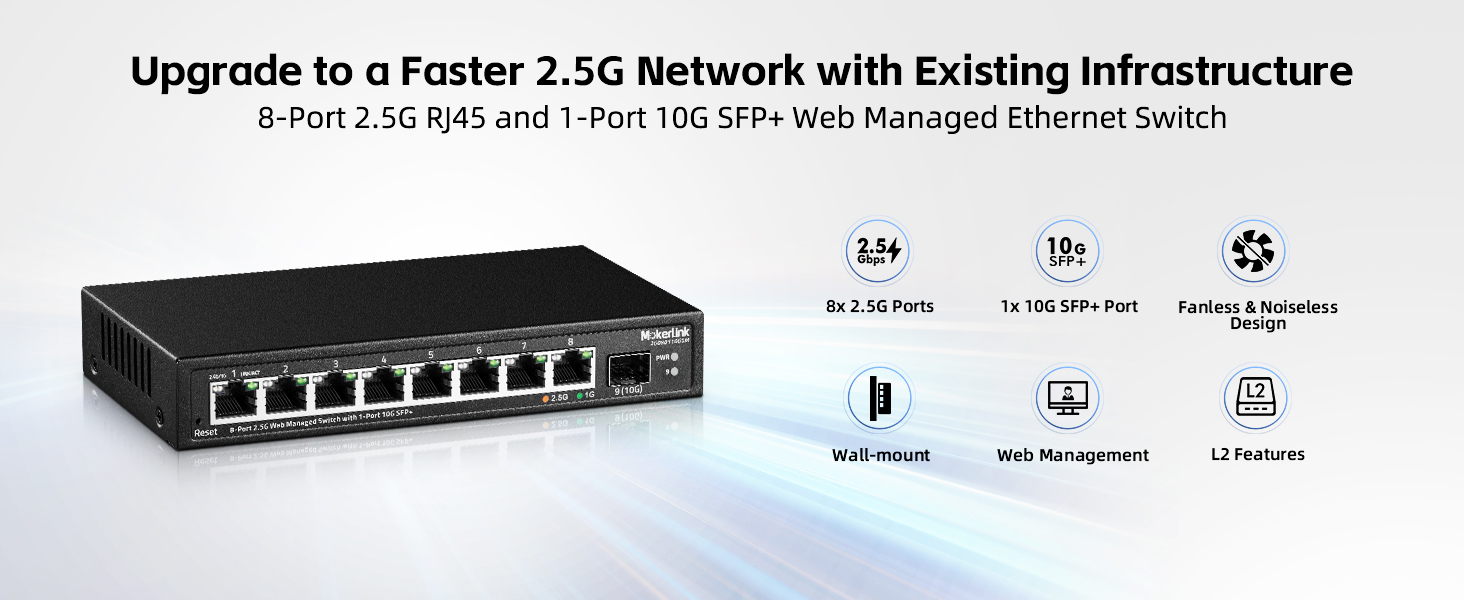

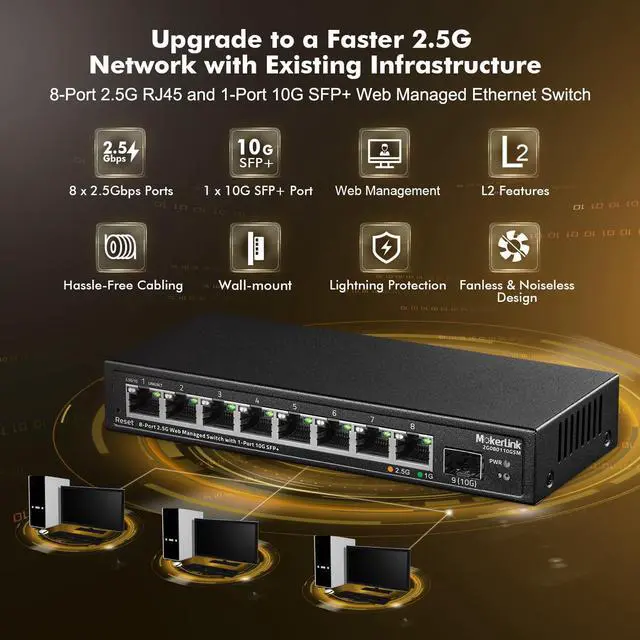

The 2G080110GSM is a web managed switch with 8x2.5GbE RJ45 and 1x10GbE SFP+ port. 8 ethernet ports provide either 10M/100M/1G/2.5G connectivity, as well as 1 SFP+ Fiber port with 1G or 10G connectivity. With Layer2 features such as QoS, VLAN, Trunk, IGMP, It provides a cost-effective solution.

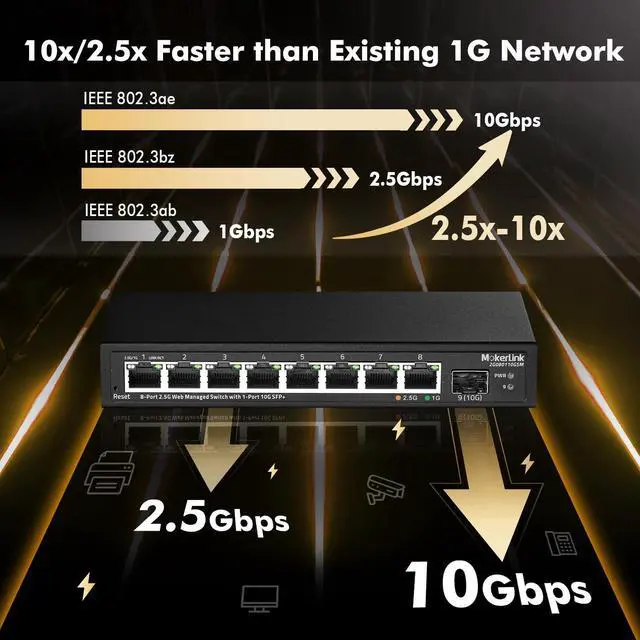

8x 2.5G Ports for WiFi 7/6 or NAS
8× 2.5Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6 APs and NAS server. Supports cat5e and above cables, 2.5x faster network bandwidth.
1x 10G SFP+ Slots for Servers or Core Switches
1× 10Gbps open SFP+ slot enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 2.5G, 10G sfp modules that can connect to core servers and switches

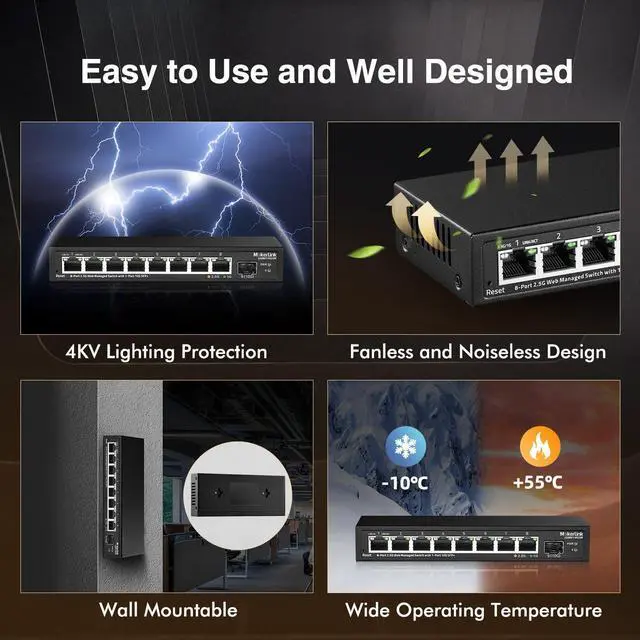

Power Saving
With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently. It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length

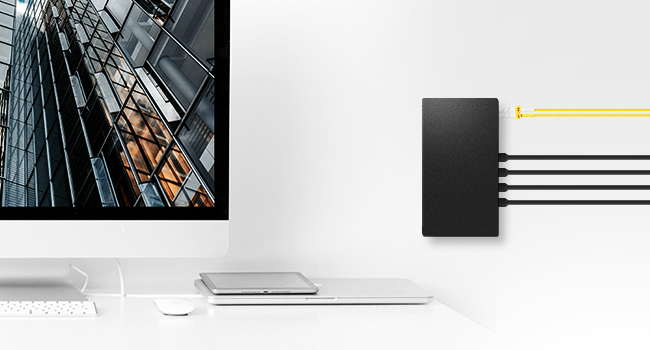

Mounting flexibility
Flexible deployment options for desktop or wall mount in your office and home, meet the network environment requirement.
Technical Parameter
4/8 Ports 2.5G Series Switches
 8x2.5G Managed Switch | 8x2.5G Unmanaged Switch |  8x2.5G Unmanaged PoE SW | 8x2.5G Managed PoE Switch |  48x2.5G Unmanaged Switch | 4x2.5G Managed Switch |  4x2.5G Managed PoE Switch | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Model | 2G080110GSM | 2G080110GS | POE-2G080110GS | POE-2G080110GSM | 2G040210GS | 2G040210GSM | POE-2G040210GSM |
Ethernet Port | 8x2.5G RJ45 + 1x10G SFP+ | 8x2.5G RJ45 + 1x10G SFP+ | 8x2.5G PoE + 1x10G SFP+ | 8x2.5G PoE + 1x10G SFP+ | 4x2.5G RJ45 + 2x10G SFP+ | 4x2.5G RJ45 + 2x10G SFP+ | 4x2.5G PoE+ 2x10G SFP+ |
Managed Support | ? | ? | ? | ? | ? | ? | ? |
PoE Support | ? | ? | ? | ? | ? | ? | ? |
Switching Capacity | 60Gbps | 60Gbps | 60Gbps | 60Gbps | 45Gbps | 45Gbps | 45Gbps |
Forwarding Rates | 44.64Mpps | 44.64Mpps | 44.64Mpps | 44.64Mppsb | 33.48Mpps64Mpps | 64Mpps | 64Mpps |
PoE Budget | / | / | 135W | 135W | / | / | 72W |
The 2G080110GSM is a web managed switch with 8x2.5GbE RJ45 and 1x10GbE SFP+ port. 8 ethernet ports provide either 10M/100M/1G/2.5G connectivity, as well as 1 SFP+ Fiber port with 1G or 10G connectivity. With Layer2 features such as QoS, VLAN, Trunk, IGMP, It provides a cost-effective solution.
8x 2.5G Ports for WiFi 7/6 or NAS
8× 2.5Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6 APs and NAS server. Supports cat5e and above cables, 2.5x faster network bandwidth.

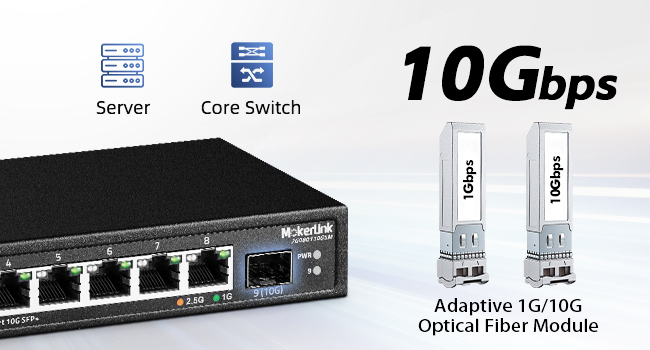

1x 10G SFP+ Slots for Servers or Core Switches
1× 10Gbps open SFP+ slot enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 2.5G, 10G sfp modules that can connect to core servers and switches

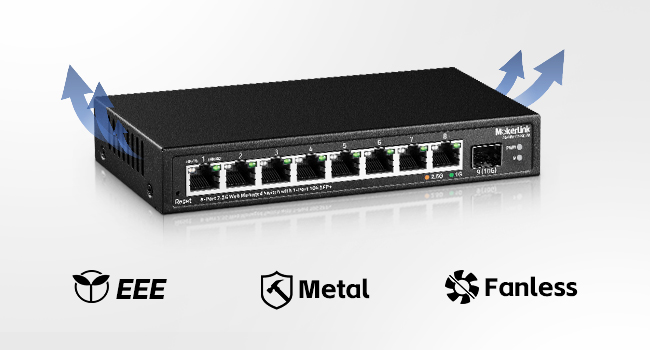

Power Saving
With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently. It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length
Mounting flexibility
Flexible deployment options for desktop or wall mount in your office and home, meet the network environment requirement.
Technical Parameter

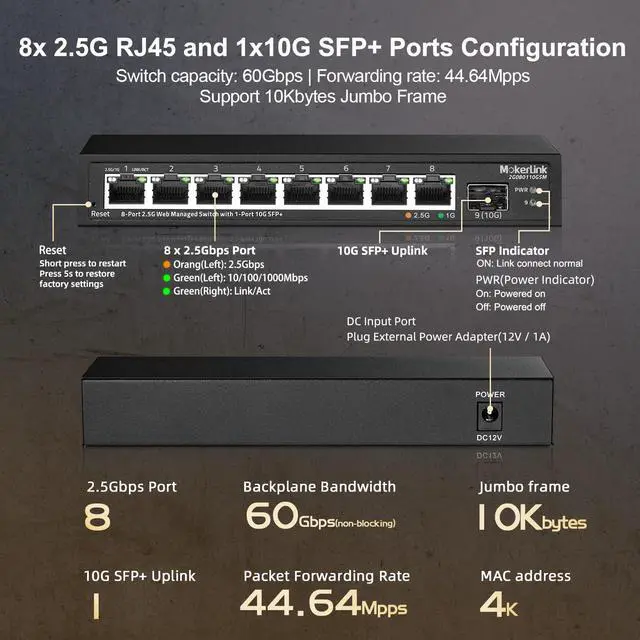

| Ports | 8 x RJ45 2.5Base-T 2.5 Gigabit Ports + 1 x SFP+ 10GBase-X 10 Gigabit Uplink Port |
|---|---|
| Switching Capacity / Backplane | 60Gbps |
| Forwarding Rates | 44.64Mpps |
| MAC Address Table | 4K |
| Jumbo Frames | Support 10K bytes |
| Port Standard | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol, IEEE 802.3i: 10BASE-T Ethernet, IEEE 802.3u: 100BASE-TX Fast Ethernet, IEEE 802.3ab: 1000BASE-T Gigabit Ethernet, IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Fiber optic), IEEE 802.3x: Flow Control, IEEE 802.3az (Efficient and Energy saving Ethernet), IEEE 802.3ae (10 Gigabit Ethernet), IEEE802.3x (Flow Control), IEEE802.3 bz (2.5G/5G Ethernet standard) |
| LED Indicators | PWR: System Power Status, 1-8 port Yellow Light On:2.5G Link normal, Green Light On:10/100/1000Mbps Link normal, Off: Link blocked, Flashing: Data transmitting, 9 SPF+ port Light On:Link normal, Off: Link blocked, Flashing: Data transmitting |
| Power Input | External Power Supply, DC12V, Total Power consumption <6W |
| Mounting | Desktop / Wall-mount, Metal Housing |
| Structure Information | Product Dimensions :175*73*28mm, Product Weight: 0.3KG |
| Environment | Operating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%,non condensing, Storage Humidity:5%~95%,non condensing |

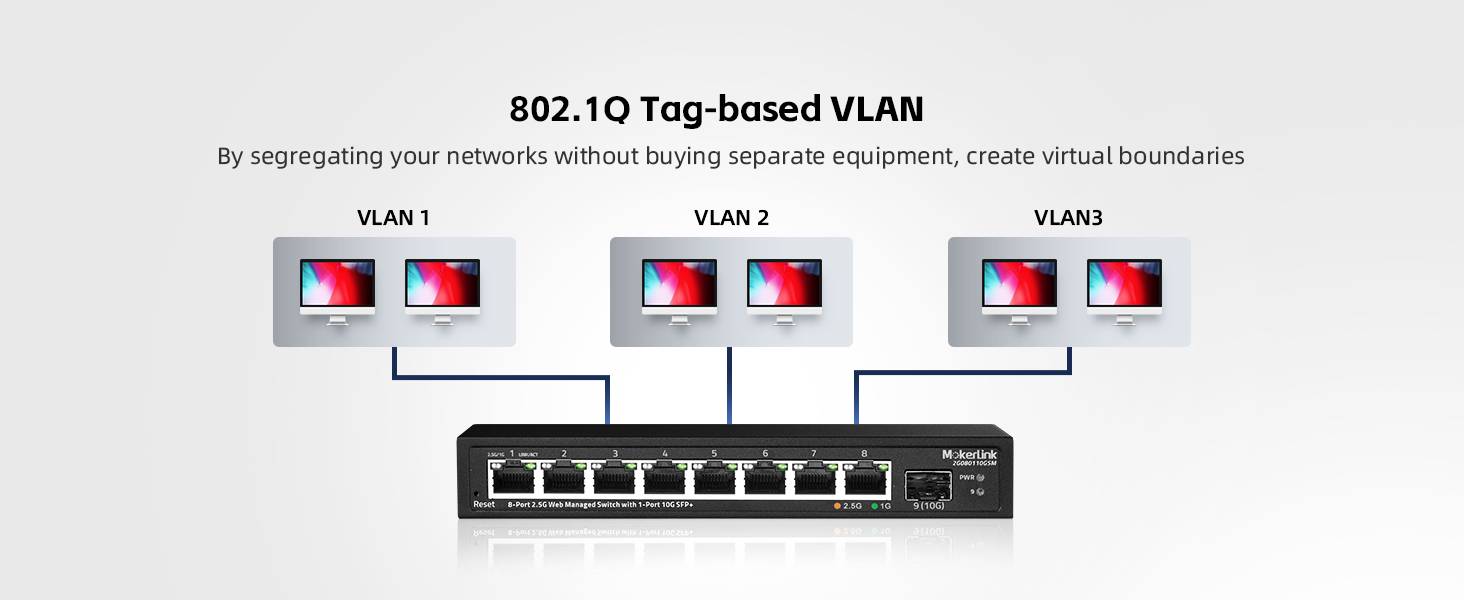

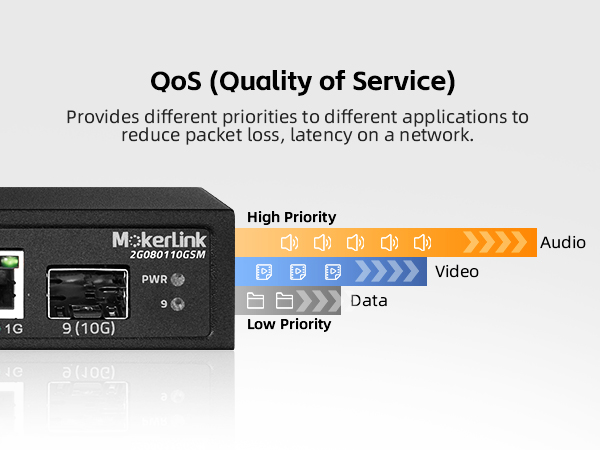

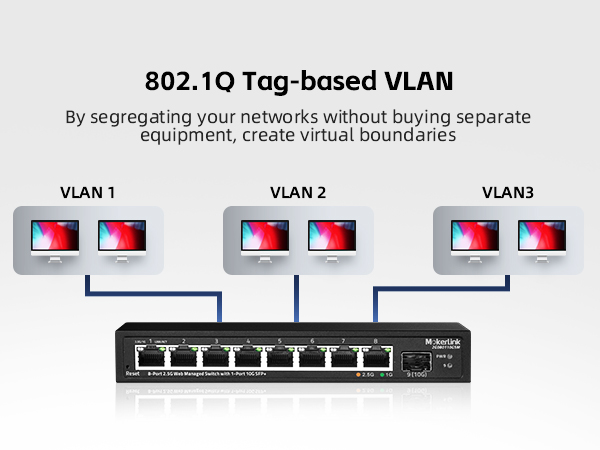

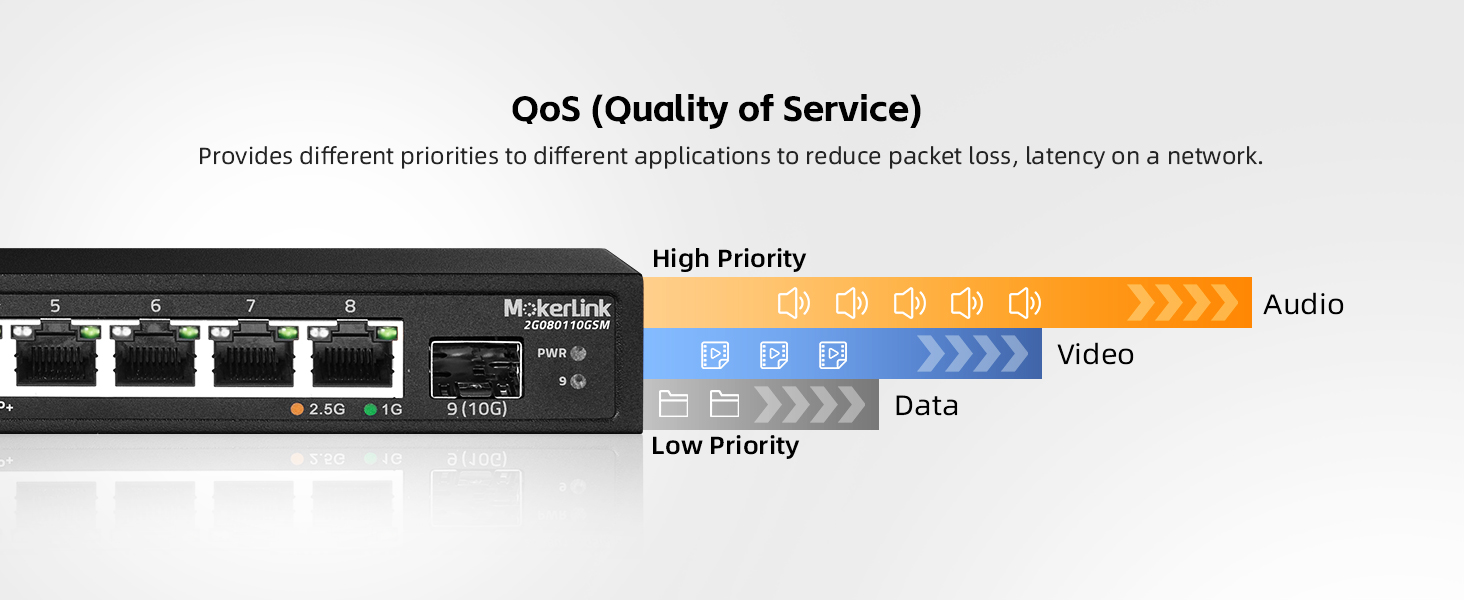

| SMART FEATURES | VLAN, QoS, Trunk-Static Trunk, IGMP Snooping, Port Mirroring, Broadcast Storm Control |
4/8 Ports 2.5G Series Switches
8x2.5G Managed Switch | 8x2.5G Unmanaged Switch | 8x2.5G Unmanaged PoE SW | 8x2.5G Managed PoE Switch | 48x2.5G Unmanaged Switch | 4x2.5G Managed Switch | 4x2.5G Managed PoE Switch |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Model | ||||||
| 2G080110GSM | 2G080110GS | POE-2G080110GS | POE-2G080110GSM | 2G040210GS | 2G040210GSM | POE-2G040210GSM |
| Ethernet Port | ||||||
| 8x2.5G RJ45 + 1x10G SFP+ | 8x2.5G RJ45 + 1x10G SFP+ | 8x2.5G PoE + 1x10G SFP+ | 8x2.5G PoE + 1x10G SFP+ | 4x2.5G RJ45 + 2x10G SFP+ | 4x2.5G RJ45 + 2x10G SFP+ | 4x2.5G PoE+ 2x10G SFP+ |
| Managed Support | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| PoE Support | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Switching Capacity | ||||||
| 60Gbps | 60Gbps | 60Gbps | 60Gbps | 45Gbps | 45Gbps | 45Gbps |
| Forwarding Rates | ||||||
| 44.64Mpps | 44.64Mpps | 44.64Mpps | 44.64Mppsb | 33.48Mpps64Mpps | 64Mpps | 64Mpps |
| PoE Budget | ||||||
| / | / | 135W | 135W | / | / | 72W |
