HDMI Signal Generator and Display Analyzer

HDMI Signal Generator and Display Analyzer

Compact AV tool for 4K HDMI signal generation, display analysis, and HDCP testing

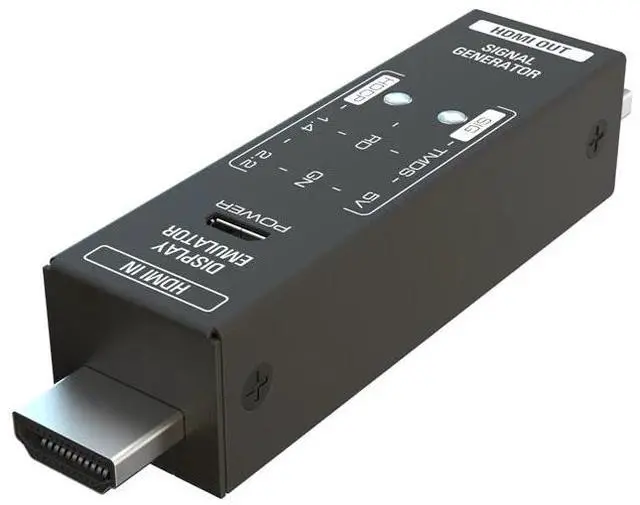

Versatile Installation Tool for AV Professionals The HDMI Signal Generator and Display Analyzer is a highly versatile tool designed for AV installers and testers, streamlining a wide range of signal generation and analysis tasks within a single compact device. Functioning both as an HDMI signal generator and a display emulator (signal analyzer), this innovative unit supports resolutions up to 4K@60Hz in rich 4:4: 4 chroma, ensuring full compatibility with the latest display technologies. A convenient 4pin DIP switch allows users to easily set video resolutions and manage HDCP content, with selectable signal outputs including 4K@60Hz 4:4: 4, 4K@60Hz
4:2: 0, 4K@30Hz
4:4: 4, and 1080p@60Hz. The device analyzes HDCP content and signal status, such as 5V and TMDS, while intuitive LED indicators clearly display signal and HDCP status. Supporting HDCP OFF, HDCP 1.4, and HDCP 2.2 output modesas well as four test patterns for verifying HDCP versionsthis analyzer ensures thorough compatibility and diagnostic capability. It is also backwards compatible with USB 2.0 and 1.1, enhancing its flexibility in a range of setups. With its robust feature set and userfriendly controls, the HDMI Signal Generator and Display Analyzer is an essential companion for any AV professional seeking reliability and precision in installation or testing environments.






Used as HDMI signal generator or display emulator (signal analyzer)

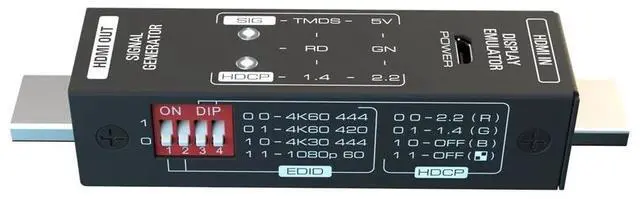

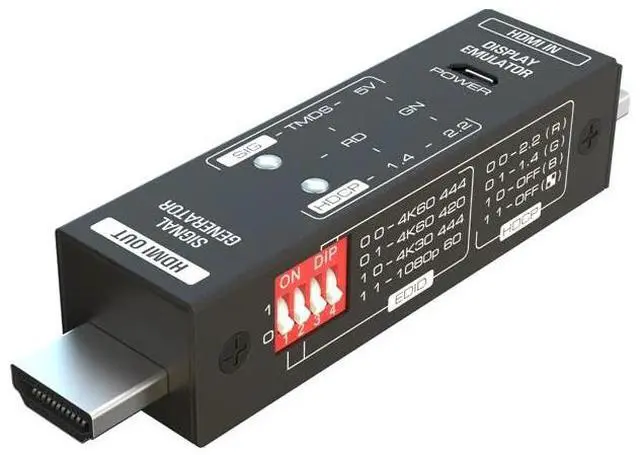

Provides 4pin DIP switch for setting video resolution and HDCP content

Supports 4K @60Hz 4:4: 4, 4K@60Hz
4:2: 0, 4K@30Hz
4:4: 4, and 1080p@60Hz video signal outputs

Backwards compatible with USB 2.0 and 1.1





Supports HDCP OFF, HDCP 1.4, and HDCP 2.2 outputs

Supports four different test patterns for HDCP versions

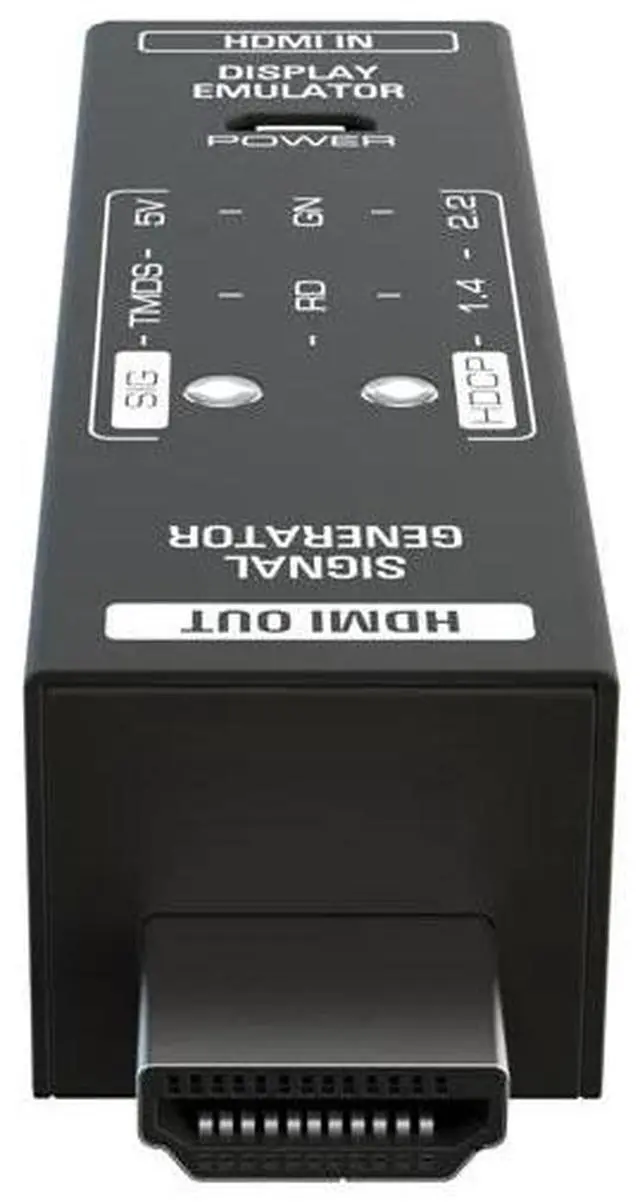

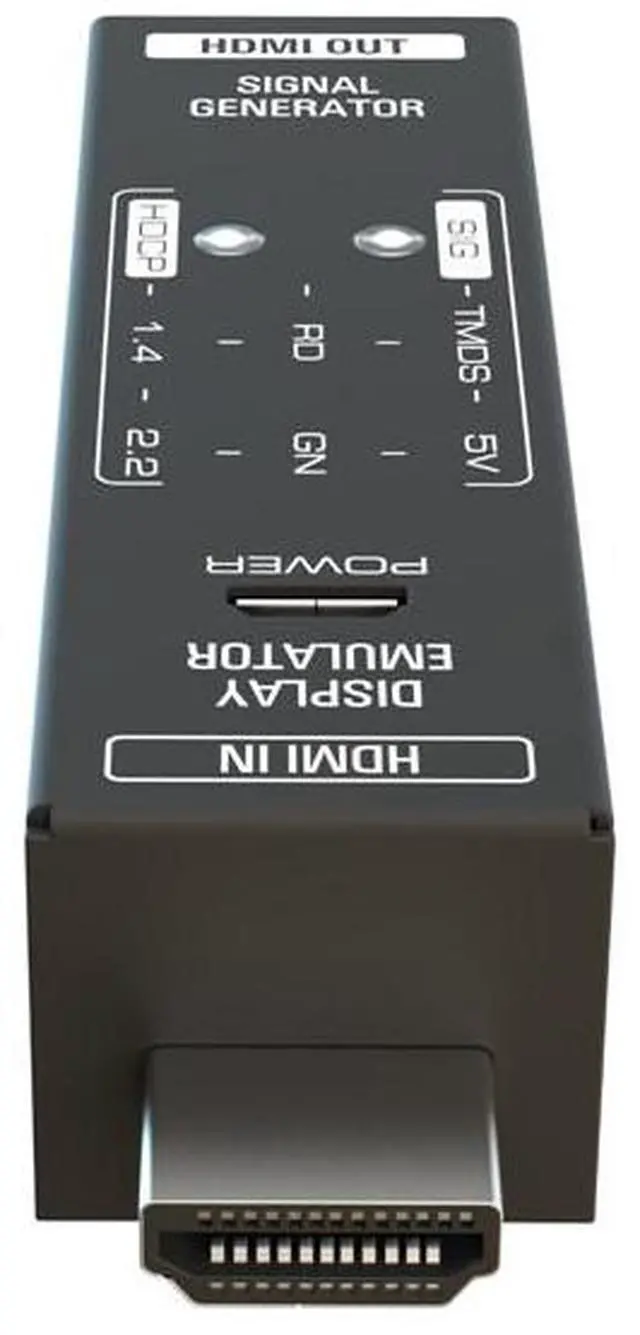

LEDs show signal and HDCP status


















ULTIMATE VERSATILITY



Functions as both an HDMI signal generator and a display analyzer, supporting
up to 4K@60Hz 4:4: 4 resolution for seamless compatibility with modern AV technology.



















EFFORTLESS SIGNAL MANAGEMENT



Easily set video resolutions and manage HDCP content using a handy 4pin DIP switch, with clear LED indicators for signal and HDCP status.



















ESSENTIAL FOR AV PROFESSIONALS



Robust featureslike support for multiple HDCP modes and four test patternsmake this device a musthave for reliable AV installation and precise testing environments.













PACKAGE CONTENTS


HDMI Signal Generator and Display Analyzer
1x USB Power Cord
1x Brown Cloth Bag
1x User Manual







Support Files:


Manual (Jul 11, 2025)



Tech Drawing (Jul 24, 2025)



Manual (Sep 16, 2025)





Updated Sep 16, 2025
