Question 1

Will this unit work with windows 8?

Accepted Answer

I am using it with Windows 8.1 on a Samsung 11" Tablet and it works great.  Just need to figure out how to program it to drop the Lead and Check digits in a barcode.

Question 2

The overview shows a cradle that is not in the product pictures.  Is the cradle included?

Accepted Answer

We have purchased nearly 20 of these and none have had a cradle. To be honest I don't see the value in a cradle, but maybe it's just that our use case is not the right fit for one.

Question 3

I just found out the barcodes are being switched to QR codes.  Can this scanner scan QR as well?

Accepted Answer

No. QR codes are 2D (2-dimensional) barcodes. This is a 1D scanner.

Question 4

The picture shows a "symbol" branded scanner, however the description says it is a "zebra" branded scanner. Which product would I be getting? I realize it is Motorola, but I am looking for the "symbol" one (as shown in the picture) and not the "zebra" one as stated in the decription.

Accepted Answer

Few years ago Motorola acquired Symbol, then after Zebra acquired the scanners division from Motorola hence right now is kinda Zebra Motorola Symbol

Question 5

How do I program the scanner to drop the lead and check digits?

Accepted Answer

This uses all of the standard Motorola/Symbol symbologies.  They have a 400 page guide of all the actions that can be done.  The most comprehensive guide DS6707-HD Product Reference Guide.pdf.

Since I can not attach documents or links you will need to search for it.

Question 6

How can we read the batch data, once we are back near the computer ? Can this works on cold temperature ?

Accepted Answer

I don't recall the exact process, but I know you were able to use software to open the stored data in a text document.

I don't know if it will works on cold temperatures because we returned the device once we found we weren't able to create syntax commands that would work with our inventory software.

Question 7

Which barcodes does this scanner read?

Accepted Answer

The specifications state "1D symbologies" which translates to all 1D barcodes.

We have scanned various 1D barcode types successfully including Code 39, Code 128, and UPC types.

Question 8

What is the size of this scanner?  Is the lanyard an additional accessory?  Is it comfortable to wear this scanner?

Accepted Answer

It is about 3.25" long by 1.75" wide by 0.75" thick.  It did not come with a lanyard or string but does have a loop to attach something to it.  It is fairly lightweight so attaching a lanyard and wearing it around your neck for several hours would not seem to cause any problems.

Brand	Motorola
Series	CS3000
Model	CS3070
Part Number	CS3070-SR10007WW
Form Factor	Handheld
Connectivity	Cordless
Scan Engine	Laser

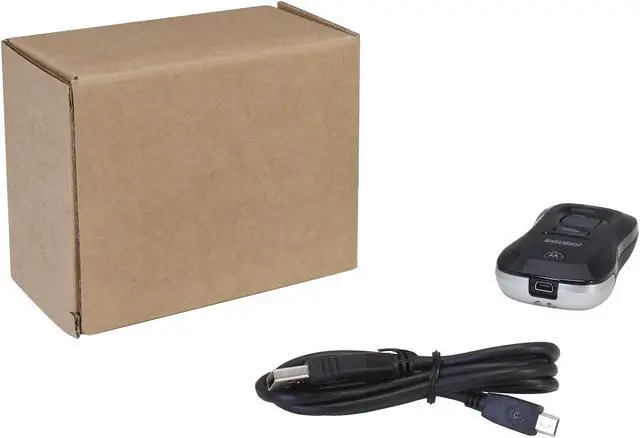

Included Cables	USB Cable Included
Interfaces Supported	USB
Cordless Type	Bluetooth & Batch

Light Source	Laser
Decoding Capability	Bar Code Symbology Supported: 1D Symbologies

Battery	Battery: 780 mAh Lithium ion Battery Life: Batch - 24 hours use or 8,500 scans (6 scans per minute on full charge) Standby - 3 months Bluetooth - 12 hours use or 4,250 scans (6 scans per minute on full charge)
Power Consumption	5 V, 500 mA max while charging

Color	Black
Dimensions	3.41" x 1.95" x 0.87"
Weight	0.15 lb.

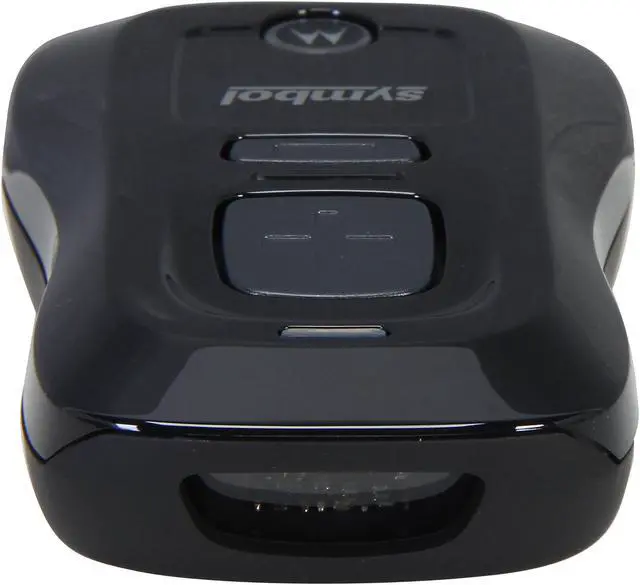

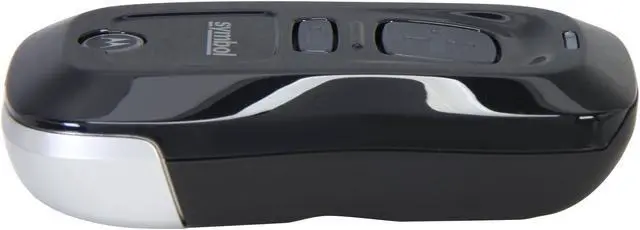

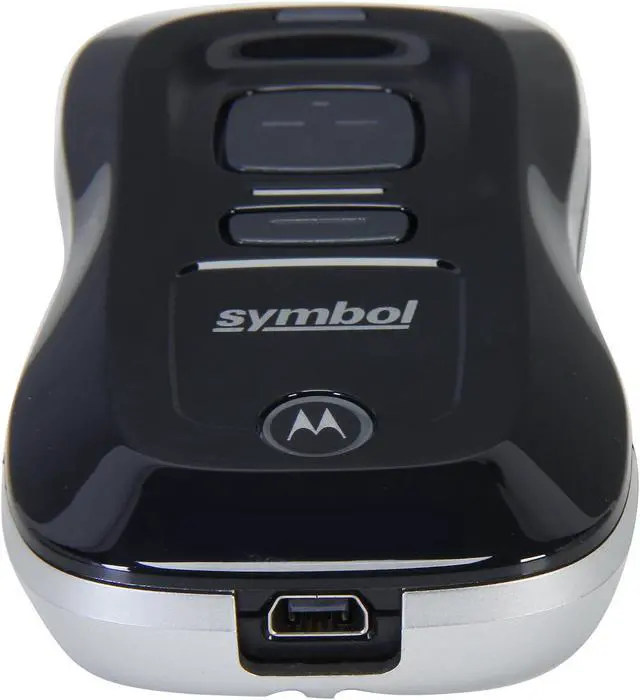

Zebra (Motorola) CS3070 (CS3070-SR10007WW) Handheld Bar Code Reader - USB Batch and Bluetooth

Flexible Mobile 1D Laser Scanner

Long Battery Life

Simple Two Button Design

Small and Lightweight

Easy to Integrate with a Host Device

512MB Non-Volatile Memory

Superior Scanning Performance

Enterprise Durability: 4-foot (1.2m) drop specification; 250 tumbles (500 drops) @ 1.64 feet (0.5m)

Learn more about the Motorola CS3070

Customer Reviews of the Motorola CS3070

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Features	Physical Characteristics: Memory: 512 MB Flash Memory Capacity: Over 1 million barcodes (UPC with time date stamp) LEDs: Scan LED (Green, Red, and Amber) and Bluetooth LED (Blue) Buttons: Scan, remove scan (batch mode only), enable Bluetooth (RF scanners only) Performance Characteristics: Decode Capability: 1D symbologies Real Time Clock: A date / time stamp can be recorded with each bar code scanned (Batch mode operation only) Bluetooth: Bluetooth Radio: Bluetooth, Class 2, Version 2.1 + Enhanced Data Rate (EDR) Bluetooth Range: 30.00 ft. / 10.00 m Bluetooth Profiles: HID keyboard wedge and Serial Port Profile (SPP) User Environment: Tumble Specification: 250 cycles @ 1.64 ft. / 0.5 m (500 drops) Operating Temperature: 32 to 104 degrees Fahrenheit / 0 to 40 degrees Celsius Storage Temperature: -40 to 158 degrees Fahrenheit / -40 to 70 degrees Celsius Environmental Sealing: IP40 Humidity: 10 to 95% noncondensing
Drop	4.00 ft. / 1.21 m drop to tiled linoleum over concrete, 6 drops per 6 sides, across the operating temperature range
Ruggedness	General Purpose
