If I use the M.2 port on this borad will it disable any of the six SATA Ports?

M.2 is just a form factor. It depends on the interface type. It will disable 1-2 ports if the m.2 has a SATA interface. If it is NVMe it shouldn't disable since it is interfacing with the PCIe lanes directly.

What BIOS version will this ship with? I would be getting a 9th Gen i5, and I see it requires a certain version for 9th gen. I do not have an 8th gen processor to update the BIOS with.

Unfortunately you will need an 8th gen CPU to update the BIOS. Mine shipped with only the 8th gen compatible BIOS. You could always ask the manufacturer to update the BIOS, but you would have to send it in for that.

Recommended power supply?

Hello Ezra, You will need to first figure out the power requirements of the system you are trying to put together. The board sort of acts as a passthrough or "bridge" to supply power from the PSU to components that require external power to operate (like the CPU or graphics card). You could look up power calculators online that will help determine how much power on average the system will use based on the specs you provide, I usually recommend at least a 500W unit to start and go up from there based on your needs. Hope this helps! Newegg Support

Were is the M.2 port?

right above the pci-e slot towards the right.

$142^.88

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by HongnaNetwork

Top Rated

4.4 (148 seller ratings)

Shipped by HongnaNetwork

Best Sellers

Volcanic electron

Top Rated

4.1 (116 total ratings)

$126^.06
+ $29.99 Shipping

Meet Your Seller

HongnaNetwork

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

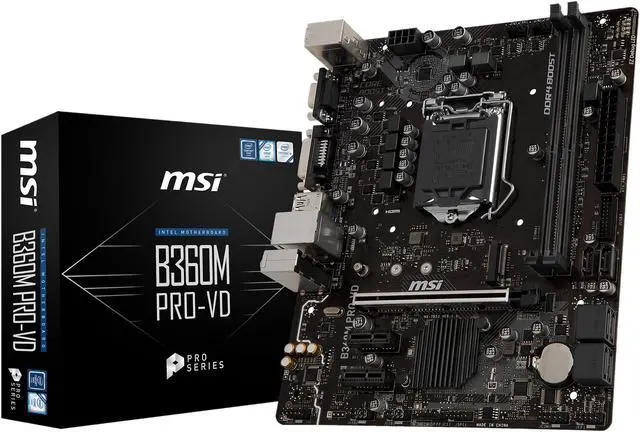

Main image of MSI PRO B360M PRO-VD LGA 1151 (300 Series) Intel B360 Micro ATX Intel Motherboard

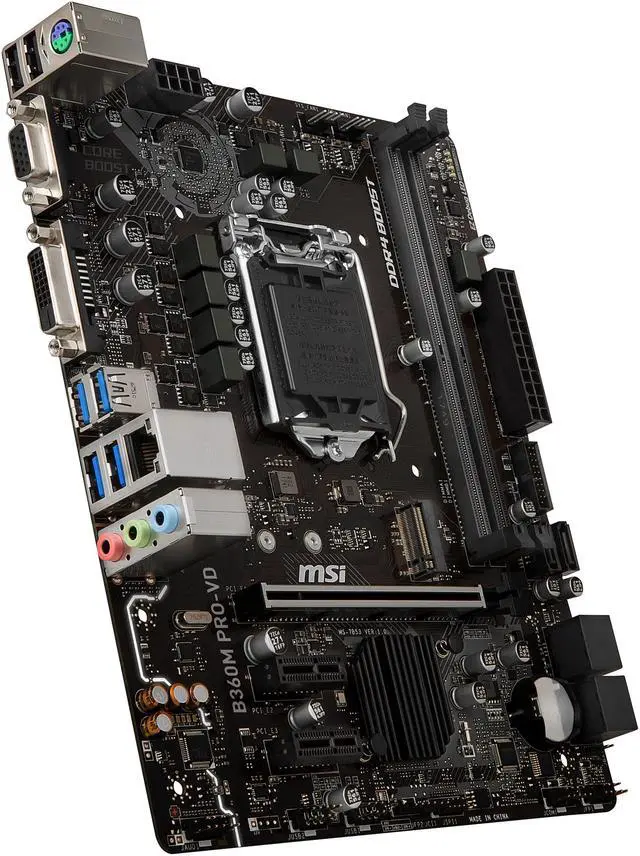

Alt view image 2 of 6 - MSI PRO B360M PRO-VD LGA 1151 (300 Series) Intel B360 Micro ATX Intel Motherboard

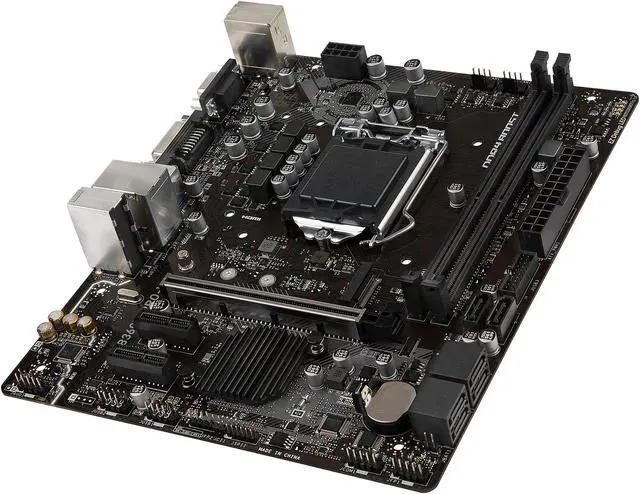

Alt view image 3 of 6 - MSI PRO B360M PRO-VD LGA 1151 (300 Series) Intel B360 Micro ATX Intel Motherboard

Alt view image 4 of 6 - MSI PRO B360M PRO-VD LGA 1151 (300 Series) Intel B360 Micro ATX Intel Motherboard

Alt view image 5 of 6 - MSI PRO B360M PRO-VD LGA 1151 (300 Series) Intel B360 Micro ATX Intel Motherboard

Alt view image 6 of 6 - MSI PRO B360M PRO-VD LGA 1151 (300 Series) Intel B360 Micro ATX Intel Motherboard

Customer images

Shop All MSI Products | Visit HongnaNetwork Store

MSI PRO B360M PRO-VD LGA 1151 (300 Series) Intel B360 Micro ATX Intel Motherboard

(161)(2) Write a Review

Option: B360M PRO-VD

B360 GAMING ARCTIC
B360 GAMING PLUS
B360-F PRO
B360M BAZOOKA
B360M GAMING PLUS
B360M MORTAR
B360M MORTAR TITANIUM
B360M PRO-VD
B360M PRO-VDH

Intel B360
Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Supports DDR4 2666/ 2400/ 2133 MHz

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (161)

Any questions? Our AI beta will help you find out quickly.

Try me now

MSI B360M PRO-VD MATX Motherboard DVI

MSI B360M PRO-VD

Based on Intel B360 chipset, this micro ATX motherboard is designed to fully utilize 9th/8th Gen Intel Core processors of up to eight cores, ready to deliver world class performance when gaming. The PCIe x16 slot is reinforced with more solder points and steel armor, to better support heavy card and better protect against EMI. An M.2 slot supports both PCIe 3.0 x4 and SATA modes. And the use of premium quality components guarantees your system runs stable and reliable even in demanding conditions.

Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI PRO SERIES motherboards. Engineered to gratify even the most demanding professionals, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable and long-lasting top performance.

Supports 9th / 8th Gen Intel, Core / Pentium, Gold / Celeron processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666MHz
Audio Boost: Reward your ears with studio grade sound quality.
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
EZ Debug LED: Easiest way to troubleshoot.
PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

BUSINESS ELEGANCE

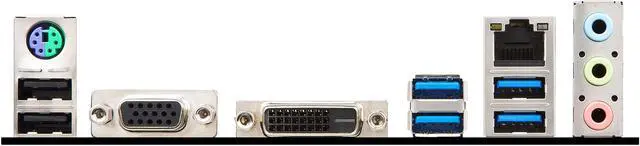

1	USB 2.0 & PS/2 Combo Port
2	VGA Port
3	DVI-D Port
4	4 x USB 3.1 Gen1
5	LAN Port
6	Audio jacks

7	DDR4 Boost Optimized traces and isolated memory circuitry
8	Turbo M.2 NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4
9	PCI-E Steel Armor Protecting VGA cards against bending and EMI
10	Heavy plated heatsinks Leading heatsinks design, for maximum cooling
11	Audio Boost Reward your ears with studio grade sound quality.

Display Interface

DVI-D Port

VGA Port

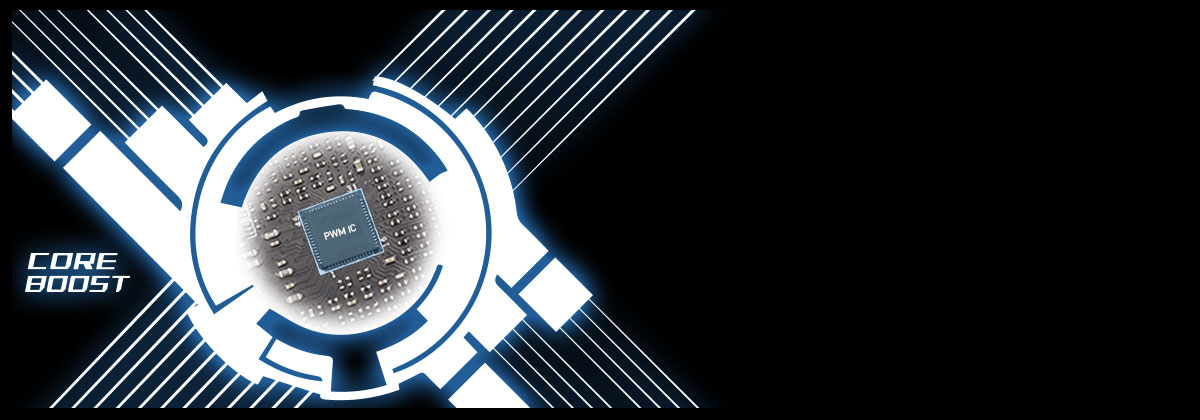

Core Boost

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

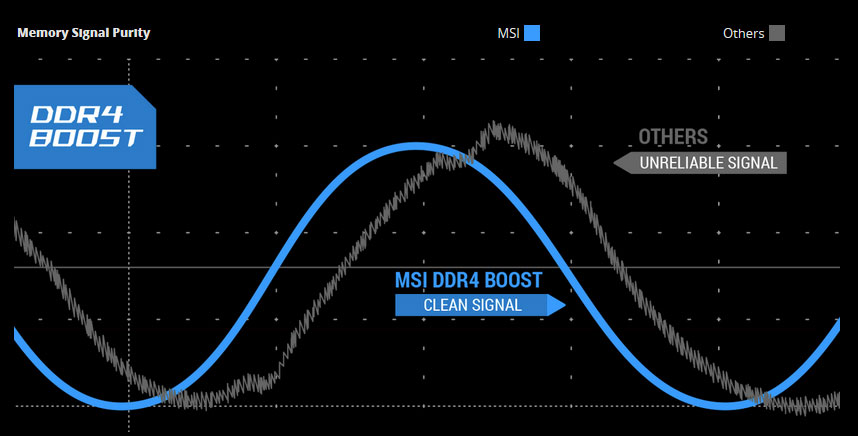

Unmatched Memory Performance

MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability.

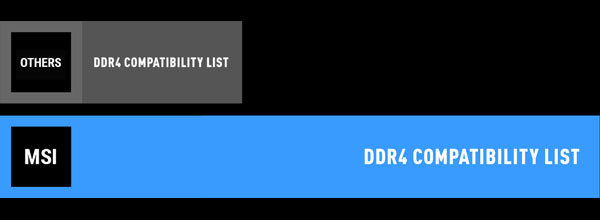

Best compatibility

Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing during games.

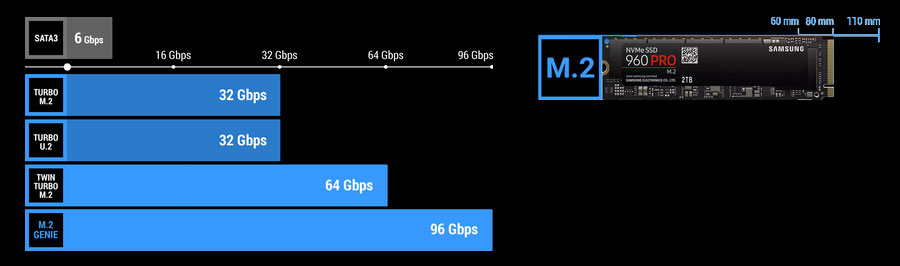

Extreme storage performance: Turbo M.2

Enjoy a blazing fast system boot up and insanely quick loading of applications and data. Delivering speeds up to 32Gb/s per device using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection!

X-BOOST YOUR USB PERFORMANCE

When enabled, X-Boost optimizes your devices for even better transfer speeds, saving a lot of time when transferring data. This handy tool is very easy to use and automatically detects & optimizes the USB devices connected to your system.

SUPER CHARGE YOUR PHONE & BATTERY-POWERED GEAR

MSI Super Charger USB ports charge any connected device faster. It delivers more power than regular USB ports to your smartphone, tablet, USB peripherals or other battery-powered gear.

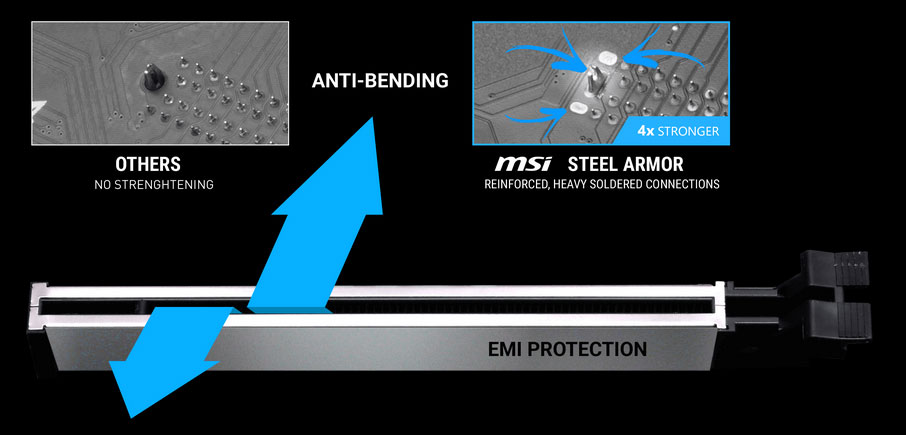

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR

MSI PCI Express Steel Armor slots are armed with more solder points on the motherboard for a stronger hold, preventing any damage due to heavy-weight graphics cards. Steel Armor also protects PCI Express signals against electromagnetic interference to provide a pure and reliable signal for the best performance, even when turning it up a notch.

Amplify your Game with Audio Boost

Like a dedicated sound card Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Immerse yourself into Virtual Worlds

Integrating the very best of cutting edge technologies on MSI hardware provides a smooth Mixed Reality, Augmented Reality and Virtual Reality ride. Through joint efforts with major VR brands, combined with unique MSI features to optimize VR, MSI brings gamers and professionals a vivid and realistic experience in which content truly comes alive.

Model
Brand	MSI
Series	PRO
Model	B360M PRO-VD

Supported CPU
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket * Not backward compatible with older generation of LGA 1151 CPUs

Chipsets
Chipset	Intel B360

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz * No Display support when using the Processor model with suffix "F"

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	Supports DDR4 2666/ 2400/ 2133 MHz
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x1	2 x PCIe 3.0 x1 slots

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s * The SATA2 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.
M.2	1 x M.2 slot (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/2260/2280 storage devices
Intel Optane Ready	Yes * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x D-Sub / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 1 x DVI-D / 4 x USB 3.1 Gen 1 Type-A

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen1 connector1 (supports additional 2 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x Clear CMOS jumper 2 x Front panel connectors 1 x Serial port connector 1 x Chassis Intrusion connector 1 x Front panel audio connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	8.9" x 7.3"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket. Supports DDR4 Memory, up to 2666 MHz. Audio Boost: Reward your ears with studio grade sound quality. Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. EZ Debug LED: Easiest way to troubleshoot. PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance,stability and strength. X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
