$92.98
Ships from China.
Meet Your Seller
Sponsored Products

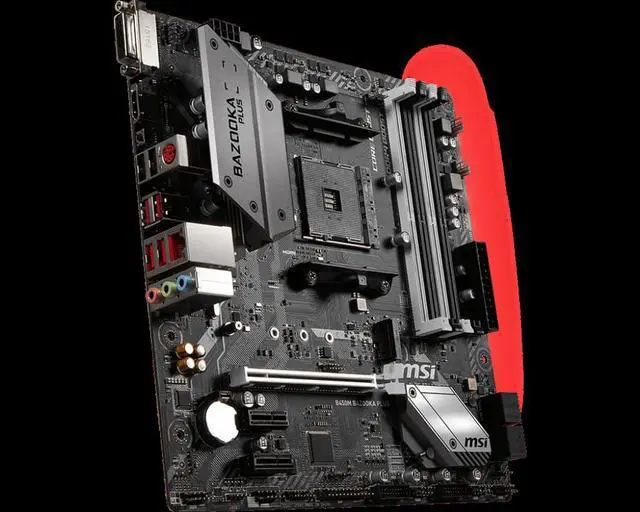

MSI B450M BAZOOKA PLUS AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard
Used - Very Good Product Type
- AMD B450
- Support AMD Ryzen 1st and 2nd Generation/ Ryzen with Radeon Vega Graphics Processors for Socket AM4
- Supports 2667/ 2400/ 2133/ 1866 (by JEDEC)
- Supports 3333/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 (by A-XMP OC MODE)
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI B450M BAZOOKA PLUS
| Brand | MSI |
|---|---|
| Model | B450M BAZOOKA PLUS |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Support AMD Ryzen 1st and 2nd Generation/ Ryzen with Radeon Vega Graphics Processors for Socket AM4 |
| Chipset | AMD B450 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Supports 2667/ 2400/ 2133/ 1866 (by JEDEC) Supports 3333/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 (by A-XMP OC MODE) |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCIe 3.0 x16 slot - Supports x16 speed with AMD Ryzen 1st and 2nd Generation processors - Supports x8 speed with AMD Ryzen with Radeon Vega Graphics processors |
|---|---|
| PCI Express x1 | 2 x PCIe 2.0 x1 slots |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 slot (M2_1, Key M) Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/2260/2280/22110 storage devices |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Onboard Graphics: - 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz* - 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz* * Only support when using AMD Ryzen with Radeon Vega Graphics Processors - Maximum shared memory of 2048MB |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | 1 x DVI-D |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 4 x USB 3.1 Gen1 Type-A |
| USB 1.1/2.0 | 2 x USB 2.0 Type-A |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 2 x 5050 RGB LED strip 12V connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial Port connector 1 x Parallel Port connector |
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector |
| Features | Supports AMD Ryzen 1st and 2nd Generation/ Ryzen with Radeon Vega Graphics Processors for Socket AM4. Supports DDR4 Memory, up to 3333+(OC) MHz. Supports ECC UDIMM memory. Lightning Fast Game experience: 1 x TURBO M.2, Store MI technology. Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability. Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience. Mystic Light and Mystic Light Sync: 16.8 million colors / 10 effects in one click. Synchronize RGB strips and other RGB solutions for customization. BIOS FLASHBACK+: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphic cards. PCI-E Steel Armor: Protecting VGA cards against bending and EMI. VR Ready: Best virtual reality game experience without latency, reduces motion sickness. In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost. EZ Debug LED: Easiest way to troubleshoot. |
|---|
| First Listed on Newegg | April 08, 2026 |
|---|
