Intel Core 2 Duo / Pentium D / Pentium 4 Intel Socket T(LGA775)
Intel 945GZ ICH7
2 x 240Pin DIMM DDR2 533/400
Intel GMA 950
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

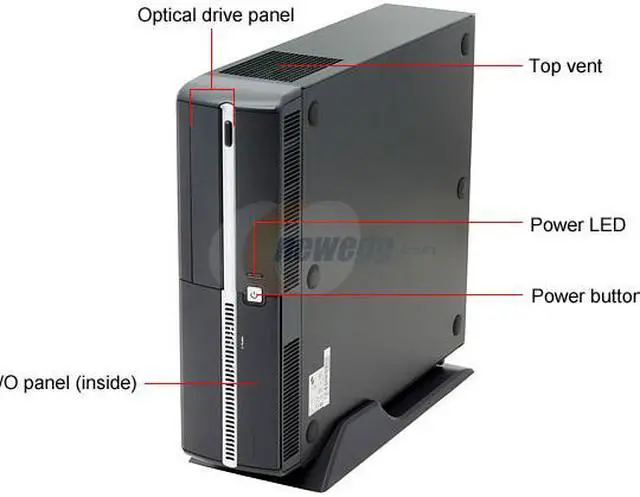

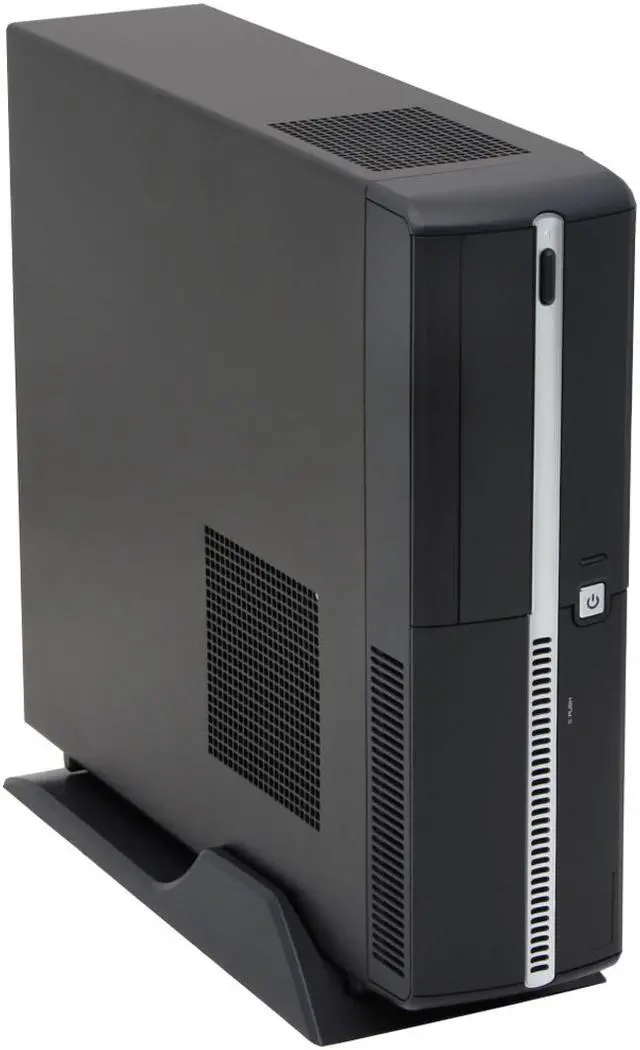

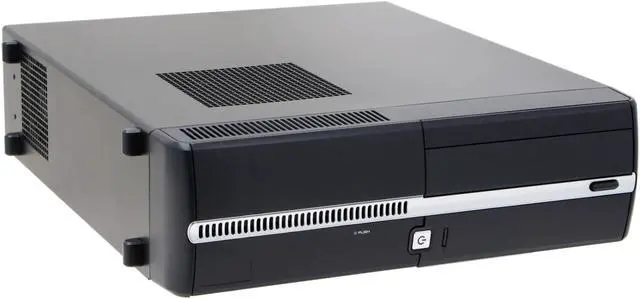

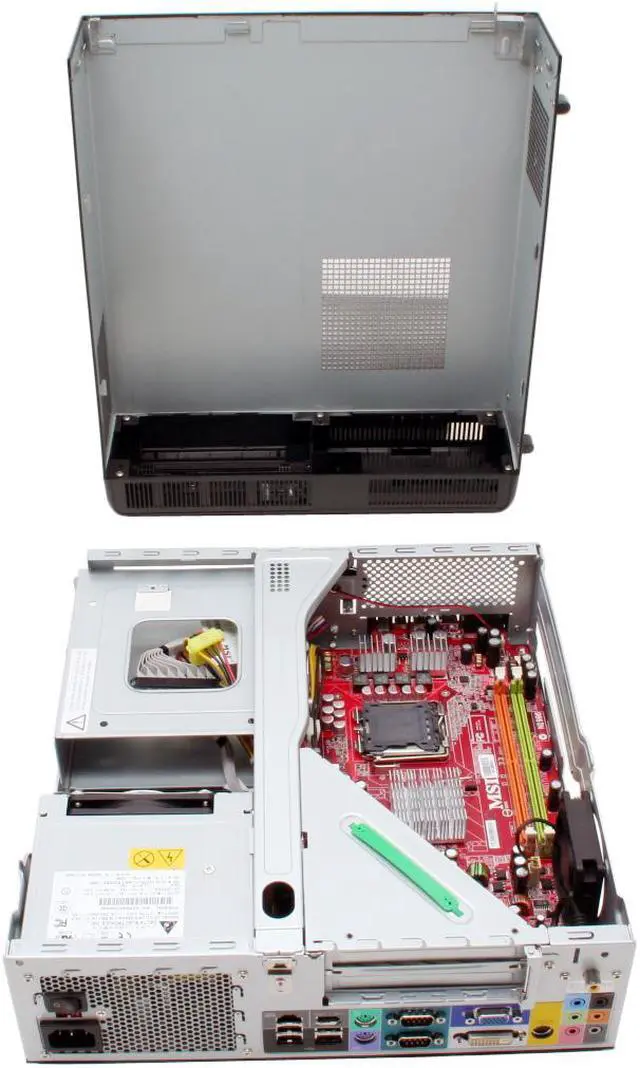

Lots of power in a small package, that's what you get with the MSI Hetis 945E. Intel Socket T support for Pentium 4, Pentium D and Core 2 Duo processors and up to 2GB of DDR2 SDRAM along with integrated Intel GMA 950 graphics, one ATA and two SATA ports are included. Also in the system are gigabit Ethernet, USB 2.0, FireWire, and 6 channel audio.
Intel LGA 775 CPU SupportWith the MSI Hetis 945-E's support for LGA 775 processors, choose the processor from the Intel Core 2 Duo, Pentium D and Pentium 4 series to match your budget and performance needs.
Integrated Intel GMA 950 Graphics CoreThe Intel Graphics Media Accelerator 950 (GMA 950) graphics core is an intelligent and responsive graphics engine built into the chipset that is on the motherboard. This integration provides incredible visual quality, faster graphics performance and flexible display options without the need for a separate graphics card.
PCI Express x16 Graphics InterfaceThe latest PCI Express x16 graphics interface delivers over 3.5 times the bandwidth of AGP 8X to support the latest high-performance graphics cards.
Gigabit Ethernet ConnectivityThe MSI Hetis 945-E features a fast Gigabit network interface for high-speed LAN connections at up to 1000Mb/s data transfer rates with advanced security features to ward off malicious attacks. Gigabit LAN is ideal for supercharged seamless streaming of Internet audio and video content.
Learn more about the MSI Hetis 945-E Black
General
Brand
MSI
Model
Hetis 945-E Black
CPU Supported
CPU Type
Intel Core 2 Duo / Pentium D / Pentium 4
CPU Socket
Intel Socket T(LGA775)
FSB
1066/800 MHz
Chipset
North Bridge
Intel 945GZ
South Bridge
ICH7
Memory Supported
Memory slot
2 x 240Pin DIMM
Memory Type Supported
DDR2 533/400
Max Memory Supported
2GB
Dual Channel Memory Supported
Yes
Expansion Slots
PCI Express
None
PCI
2
Storage
IDE ATA
1 x ATA
Serial ATA
2 x SATA
Graphics
Onboard Video
Intel GMA 950
Video Memory
Shared
Audio
Onboard Audio
Realtek ALC880
Channel
8-CH
Communications
First LAN
10/100/1000 LAN
Max LAN Speed
10/100/1000Mbps
Extension Bays
3.5" Internal bays
1
3.5" External bays
0
5.25" External bays
1

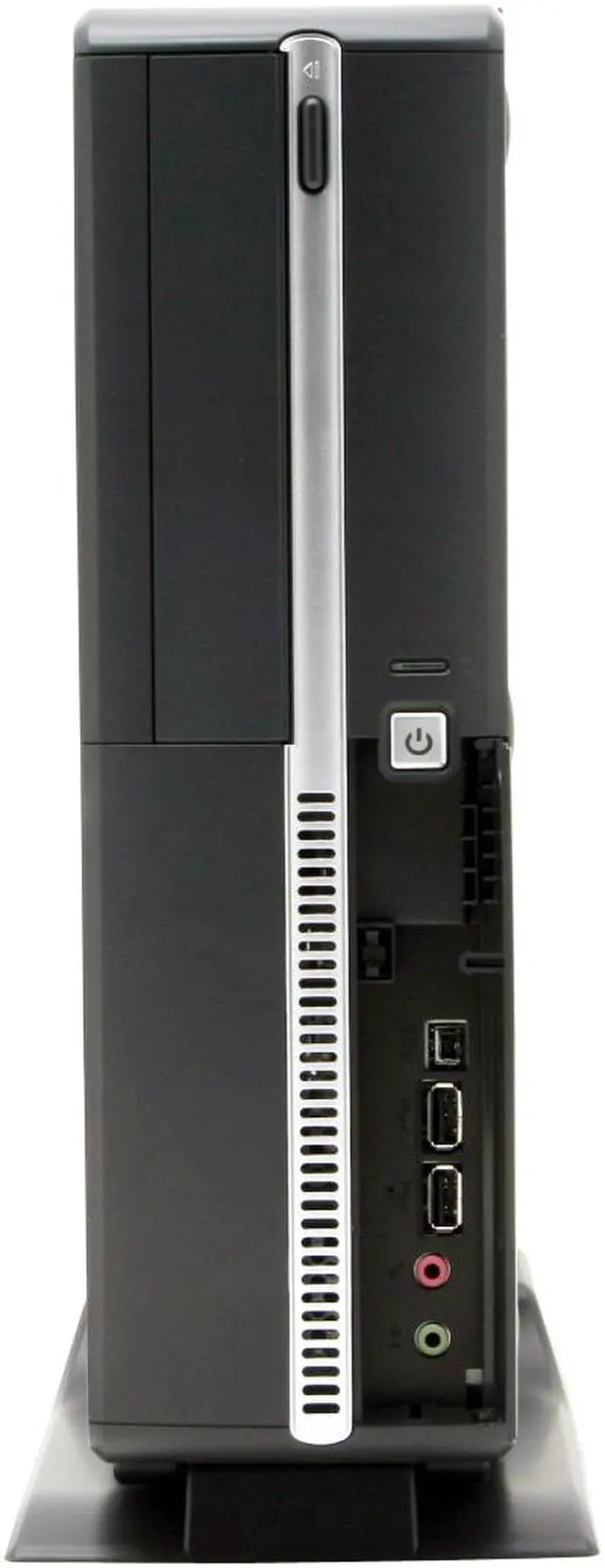

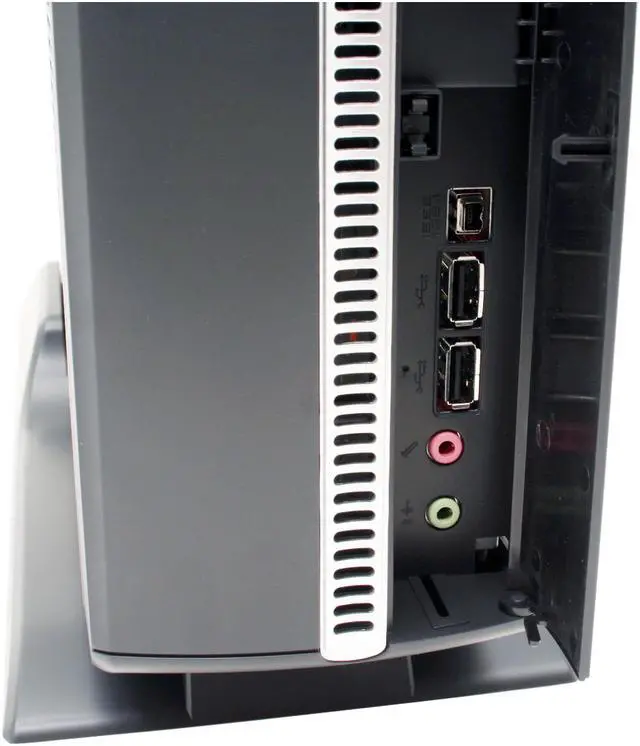

Front Panel Ports
Front USB
2
Front IEEE 1394
1
Front Audio Ports
2 jacks

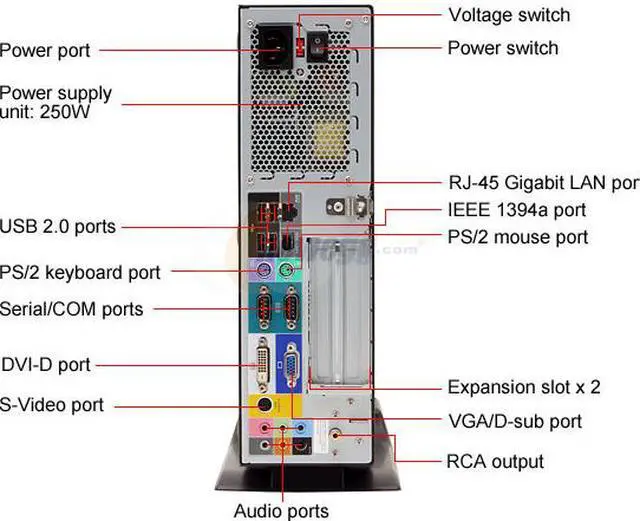

Back Panel Ports
PS/2
2
COM
2
VGA
1 x D-Sub + 1 x DVI
TV-Out
S-Video + RCA
Rear USB
4
Rear IEEE 1394
1
RJ45
1
Rear Audio Ports
6 jacks
Power Supply
Power Supply
250 Watts Max PFC DC Output: +3.3V 16A, +5V 16A, +12V 16A, -12V 0.8A, +5Vsb 2A Certificate: FCC, CE/LVD, BSMI, UL/CUL, TUV-GS, CB Report, C-Ticket, CCC, VCCI AC Output: 100~127/200~240 VAC, Switch Selectable, Auto Protection
Packaging
Package Contents

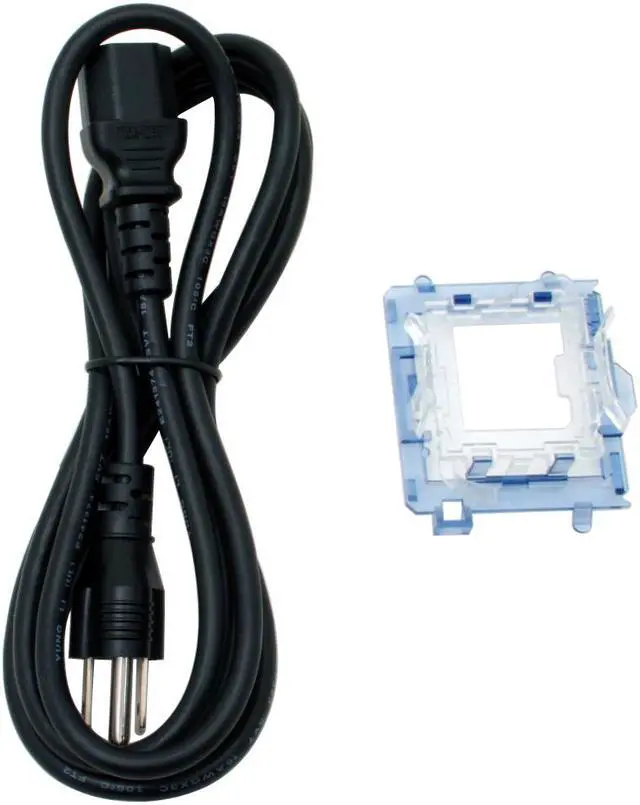

Hetis 945-E Black Driver Disk User Manual Software Disk Power Cord CPU Clip CPU Heatsink & Fan
