MSI is leading a new trend towards USFF (Utra Small Form Factor) systems with the G41 miniature barebone. This tiny system measures only 3.7” x 12.6” x 12.99” so it'll fit just about anywhere, yet it has all the features you need to work, or play, efficiently.
Featuring the Intel socket T(LGA775) and Intel G41 Express Chipset, the Hetis G41 is an energy-efficient solution for building up your small home file server, or a computer for remote-backup, etc. 4GB of RAM will ensure that all of your programs run without a hitch while the SATA connectors let you achieve high-speed data transfers with no bottlenecks. Integrated fast Ethernet LAN lets you connect to other systems on your network at broadband speeds. An additional PCI slot adds extra options for expanding your system.
Using fan control technology, this system operates at full speed with nearly negligible noise. MSI's Hetis G41 is a real superstar in a tiny package!
MSI is leading a new trend towards USFF (Utra Small Form Factor) systems with the G41 miniature barebone. This tiny system measures only 3.7” x 12.6” x 12.99” so it'll fit just about anywhere, yet it has all the features you need to work, or play, efficiently.
Featuring the Intel socket T(LGA775) and Intel G41 Express Chipset, the Hetis G41 is an energy-efficient solution for building up your small home file server, or a computer for remote-backup, etc. 4GB of RAM will ensure that all of your programs run without a hitch while the SATA connectors let you achieve high-speed data transfers with no bottlenecks. Integrated fast Ethernet LAN lets you connect to other systems on your network at broadband speeds. An additional PCI slot adds extra options for expanding your system.
Using fan control technology, this system operates at full speed with nearly negligible noise. MSI's Hetis G41 is a real superstar in a tiny package!

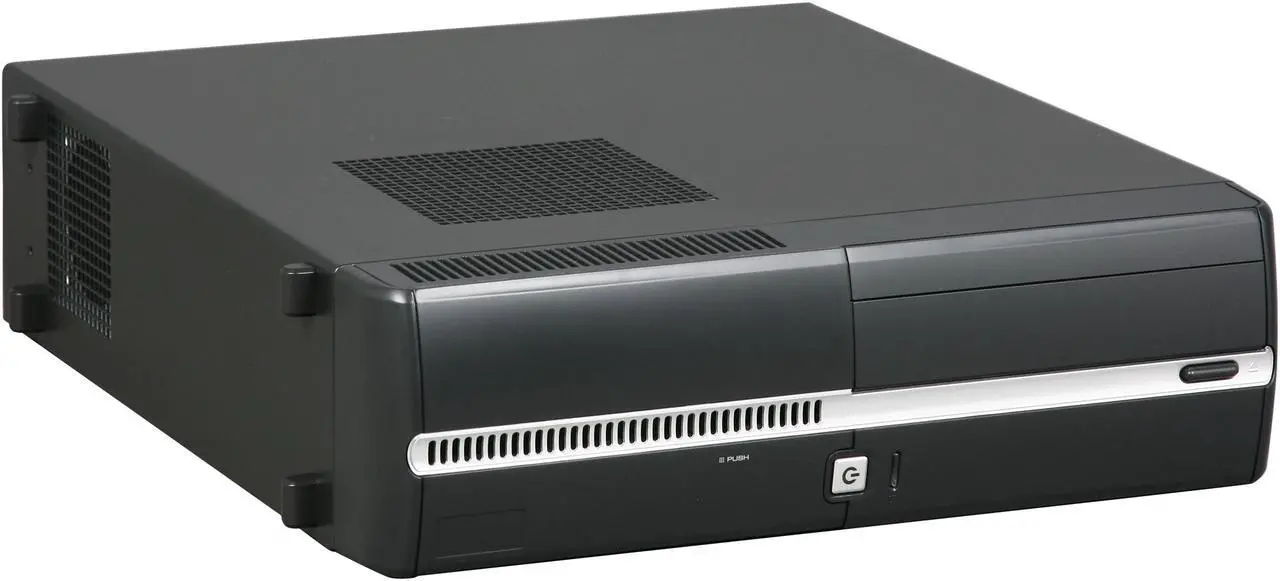

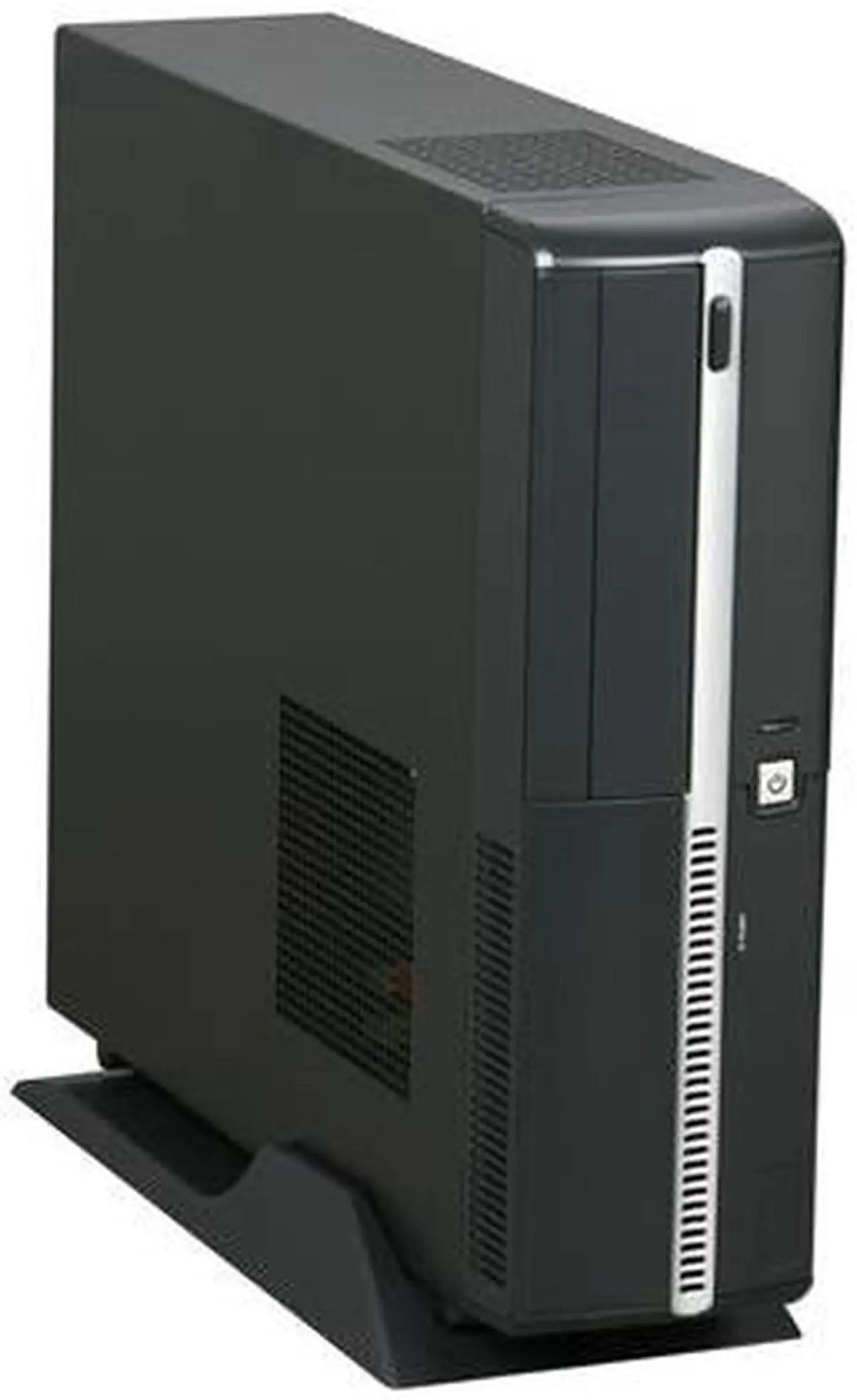

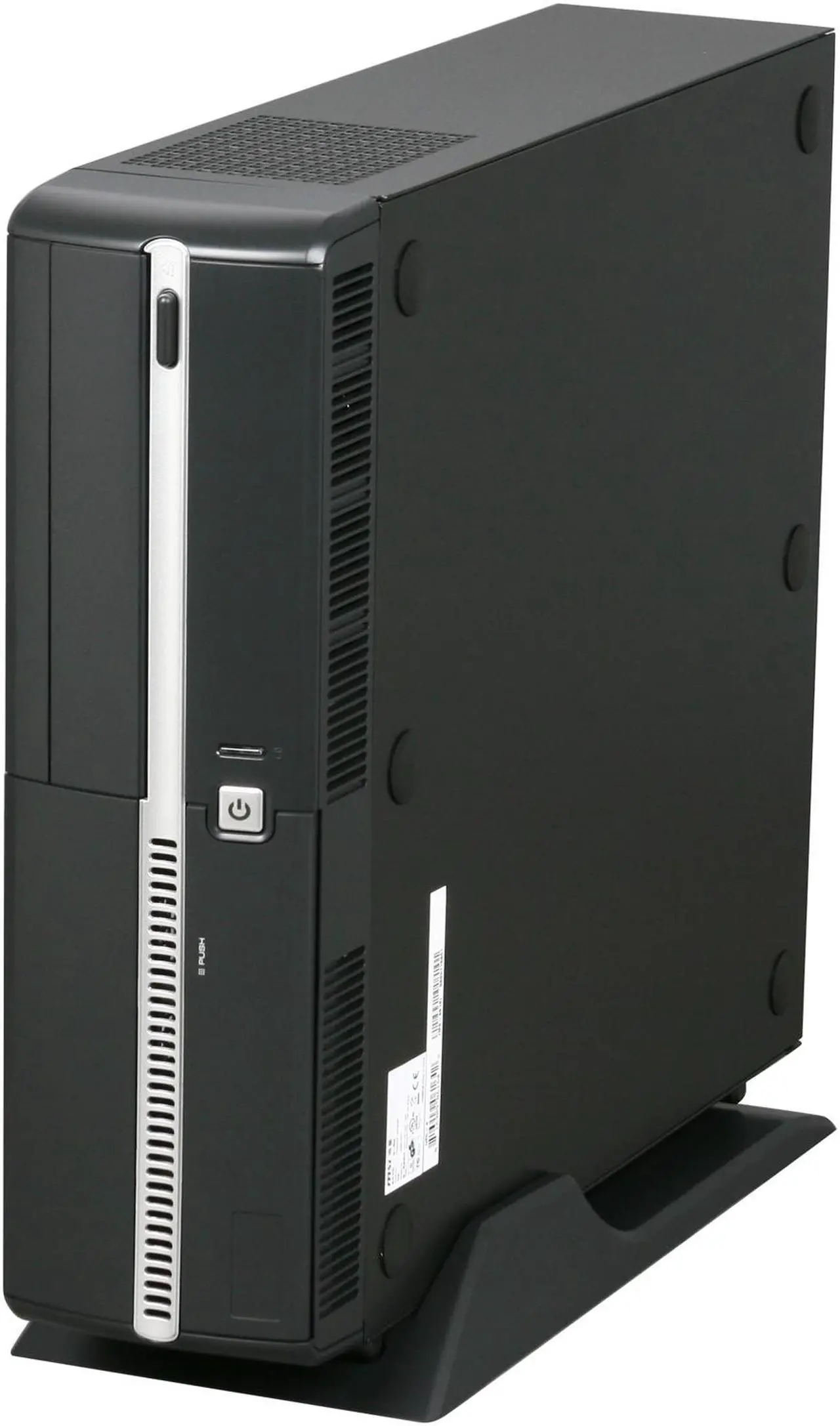

Compact and StylishThe MSI Hetis G41 barebones combines an ultra-compact design with stylish looks for seamless integration into any home décor. The included stands allow for vertical placement to save more space.
Intel Socket T (LGA 775)The MSI Hetis G41 barebone supports Intel LGA 775 (Socket T) processors including the Core 2 Quad, Core 2 Duo and Celeron series CPU, delivering improved performance, scalability, energy efficiency and the benefit of dual-core processing in a tiny package.
Integrated Intel GMA X4500 Graphics CoreThe Intel Graphics Media Accelerator X4500 (GMA X4500) graphics core is an intelligent and responsive graphics engine built into the onboard Intel G41 chipset. This integration provides incredible visual quality, faster graphics performance and flexible display options without the need for a separate graphics card.

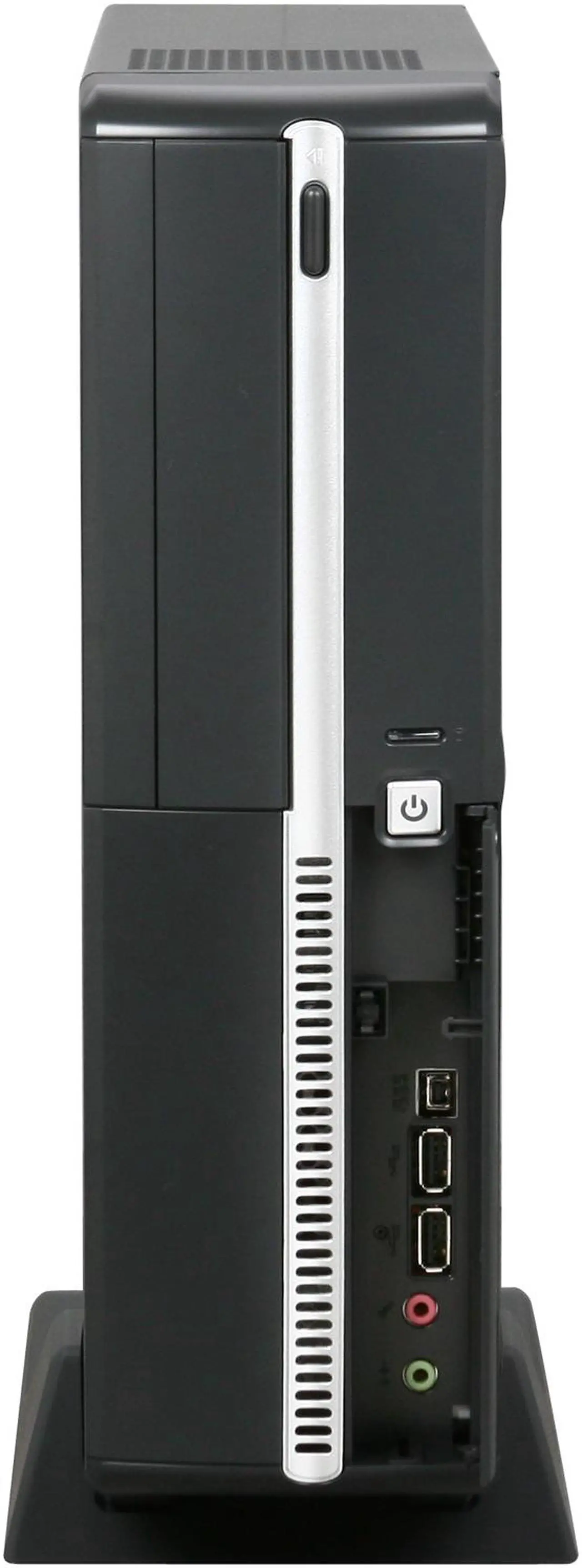

Convenient Front I/O PanelThe MSI Hetis G41 barebones features a convenient front I/O panel for easy access to one IEEE 1394 port, two USB 2.0 ports and two audio ports.
Learn more about the MSI Hetis G41
General
Brand
MSI
Model
Hetis G41
CPU Supported
CPU Type
Intel Core2 Quad / Core2 Duo / Celeron
CPU Socket
Intel Socket T(LGA775)
FSB
1333/1066/800/ MHz
Chipset
North Bridge
Intel G41
South Bridge
ICH7
Memory Supported
Memory slot
2 x 240Pin DIMM
Memory Type Supported
DDR2 800/667/533
Max Memory Supported
4GB
Dual Channel Memory Supported
Yes
Expansion Slots
Other
1 x PCI-X slot (for riser card to support 1 PCI-E 16X and 1 PCI)
Storage
Serial ATA
2 x SATA 3.0Gb/s
Graphics
Onboard Video
Intel GMA X4500
Audio
Onboard Audio
Realtek ALC888
Channel
8-CH
Communications
First LAN
Intel 82573L
Max LAN Speed
10/100/1000Mbps
Extension Bays
3.5" Internal bays
1
5.25" External bays
1
Front Panel Ports
Front USB
2
Front IEEE 1394
1
Front Audio Ports
2 jacks

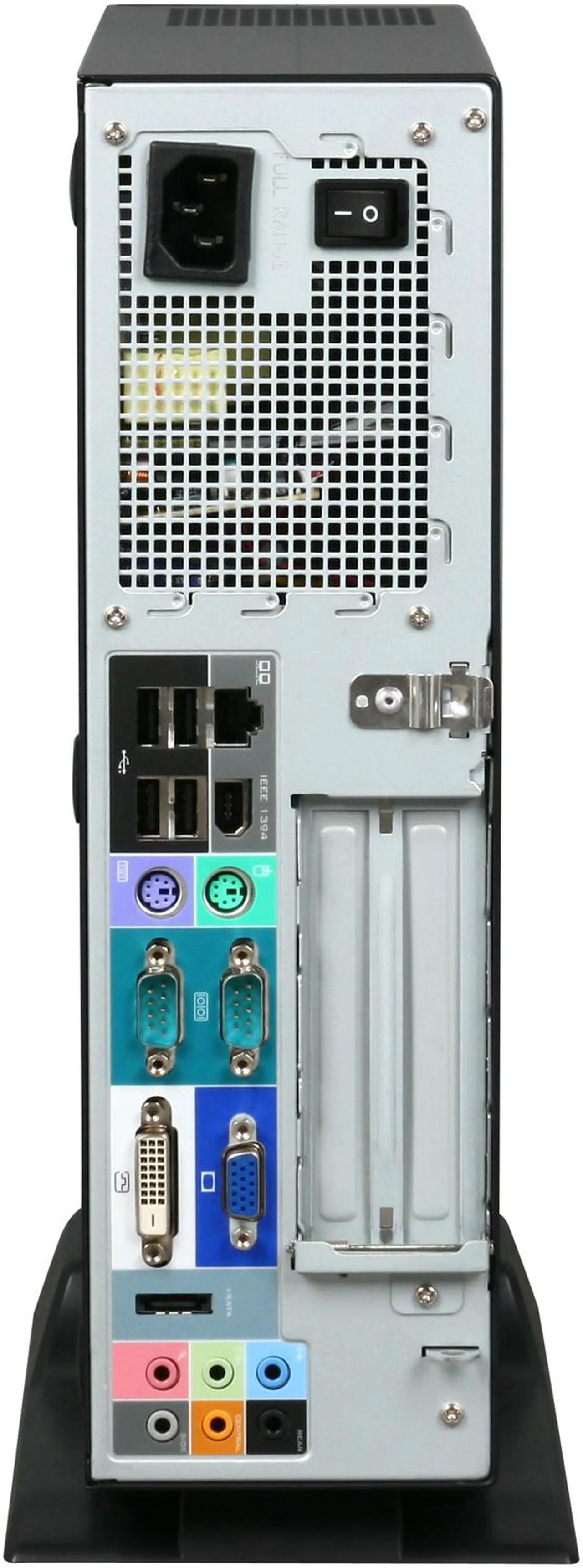

Back Panel Ports
PS/2
2
COM
2
VGA
1 x D-Sub + 1 x DVI
Rear USB
4
Rear IEEE 1394
1
Rear e-SATA Ports
1
RJ45
1
Rear Audio Ports
6 jacks
Power Supply
Power Supply
Waltage: 270 Watts Max Certificate: 80 Plus Bronze, FCC, Ul/CUL, CB, CE, TUV, CCC AC Output: 100~127/200~240 VAC, Switch Selectable, Auto Protection, PFC in 110/220V ON/OFF Switch: Yes, Active PFC
Physical SPEC
Dimensions
3.7" (H) x 12.6" (W) x 12.99" (D)
Features
Features
Effective Heat Dissipation Quiet in Idle and Busy Mode by Specific Smart Fan Control Technology Premium I/O Port Support Alternative of Vertical Stand or Horizontal Laying
