$539.98
Meet Your Seller

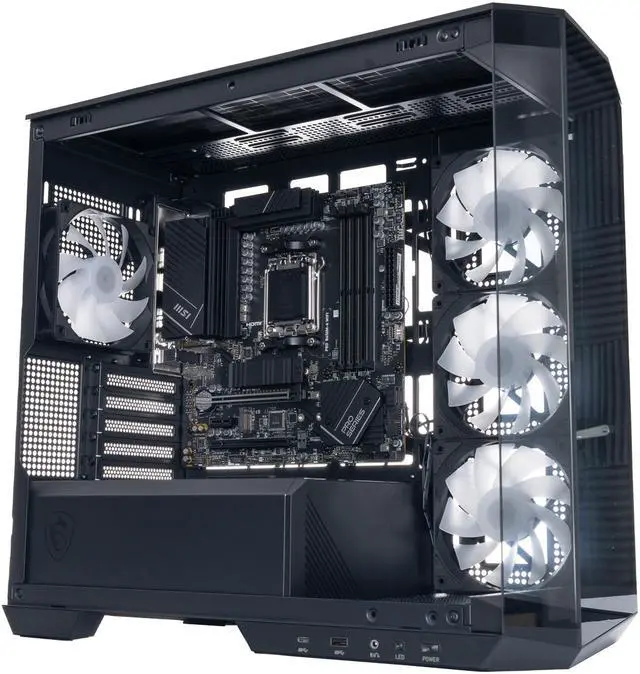

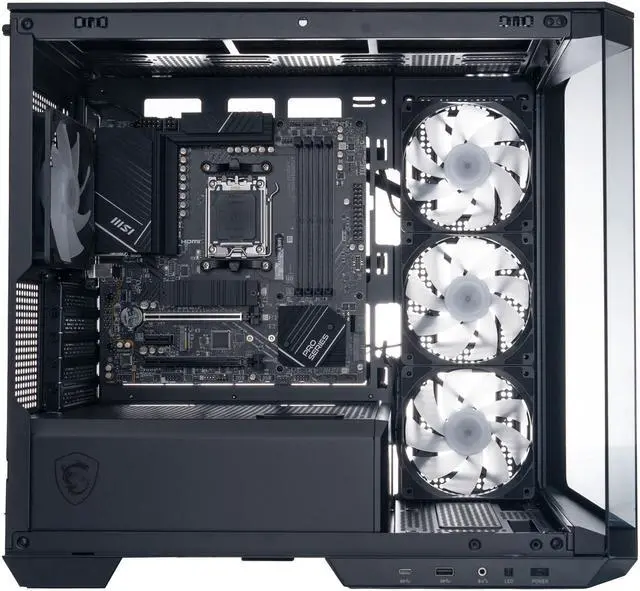

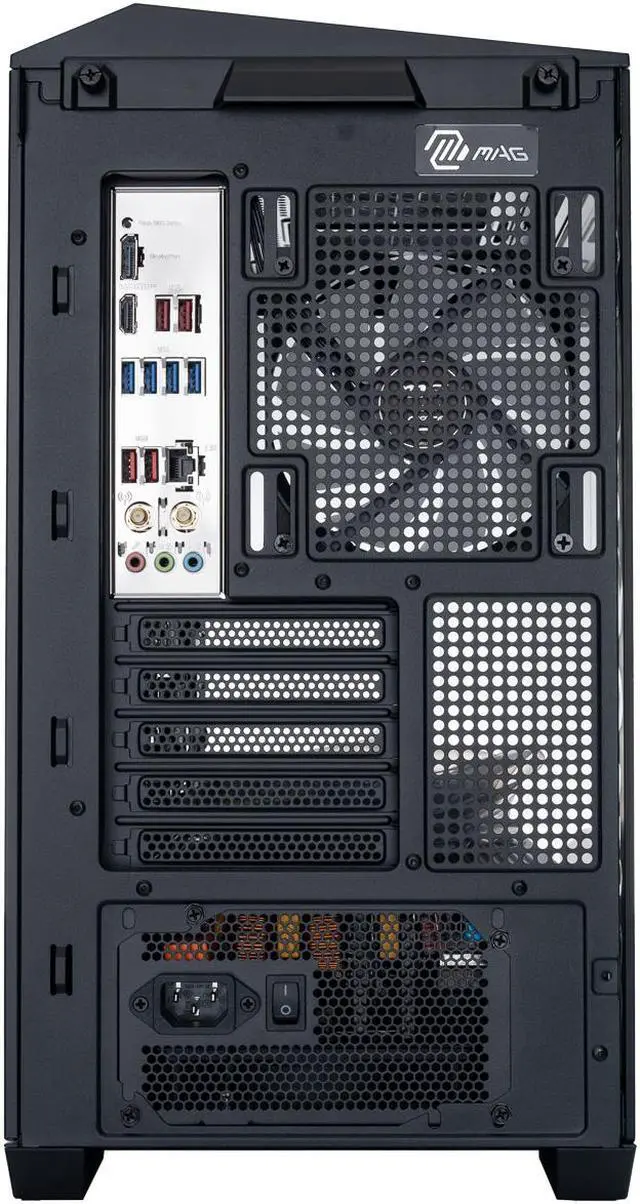

MSI MAG AMD PRO B650M-A WIFI Barebone Kit
- MAG B650 TOMAHAWK WIFI + CHASSIS MPG GUNGNIR 110R + PSU MAG A750GL PCIE5
- Supports AMD Ryzen 7000 Series and Ryzen 9000 Series processors
- Bios update MAY required when used with 9000 Series processors
- Supports DDR5 Memory, up to 6000+(OC) MHz
- PRO B650M-A WIFI + MAG PANO M100R BLACK + PSU MAG A750GL PCIE5
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
+
+
Learn more about the MSI MAG Kit AMD B650
| Brand | MSI |
|---|---|
| Model | MAG Kit AMD B650 |
| Color | Black |
| Cases | MAG PANO M100R Black Micro ATX Tower |
|---|---|
| Cooling Options | Air Cooling Top: 3 x 120mm or 2 x 140mm Side: 3 x 120mm Rear: 1 x 120mm Bottom: 1 x 120mm PSU Shroud: 2 x 120mm Liquid Cooling Top: 1 x 120/240/360mm radiator Rear: 1 x 120/140mm radiator |
| Case Fans Installed | Side: 3 x 120mm A-RGB Fan Rear: 1 x 120mm A-RGB Fan |
| Max CPU Cooler Height | 175mm / 6.9" |
| Max GPU Length | 390mm / 15.35" |
| CPU Installed | None |
|---|---|
| CPU Type | Supports AMD Ryzen 8000/ 7000 Series Desktop Processors |
| CPU Socket | AMD Socket AM5 |
| Memory installed | No Memory |
|---|---|
| Memory slot | 4 x 288Pin DIMM |
| Memory Type Supported | DDR5 4800 |
| Max Memory Supported | 256GB |
| Dual Channel Memory Supported | Yes |
| Other | 2x PCI-E x16 slot - Supports x16/x4 (For Ryzen 7000 Series processors) - Supports x8/x4 (For Ryzen 7 8700G and Ryzen 5 8600G processors) - Supports x4/x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|---|
| Hard Drive Installed | No Hard Drive |
|---|---|
| Serial ATA | 4 x SATA 6G - M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed |
| M.2 | 2 x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices |
| SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Onboard Audio | Realtek ALC897 Codec |
|---|---|
| Channel | 7.1-CH |
| Wireless LAN | 802.11ax |
|---|---|
| Bluetooth | Bluetooth 5.3 |
| Max LAN Speed | 10/100/1000/2500Mbps |
| 3.5" Internal bays | 1 x 3.5", Compatible with 2.5", Max up to 2 x 2.5" |
|---|
| Power Supply | MAG A750GL PCIE5: 750W Gold (Up to 90%) |
|---|
| Package Contents | Motherboard: PRO B650M-A WIFI CHASSIS: MAG PANO M100R BLACK Power Supply: MAG A750GL PCIE5 |
|---|
| First Listed on Newegg | February 22, 2026 |
|---|
