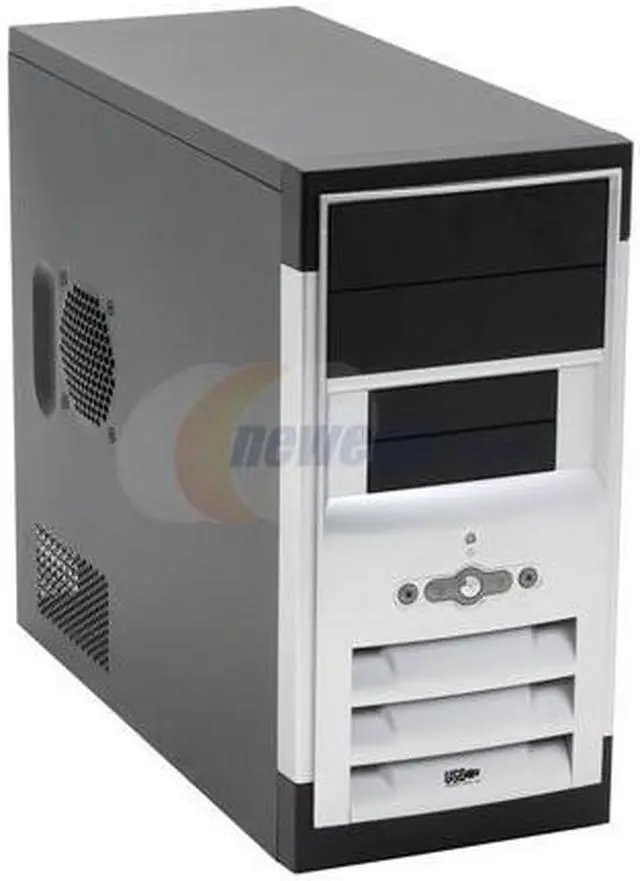

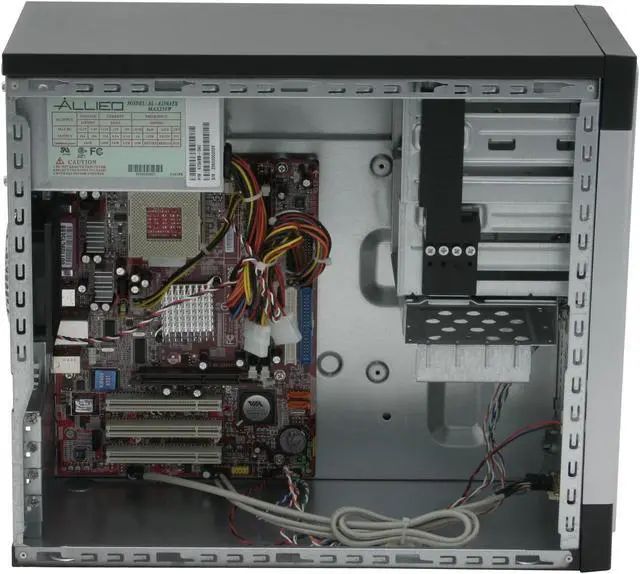

Main image of MSI MBOX KM4M-L AMD Socket A(462) VIA KM400 Barebone

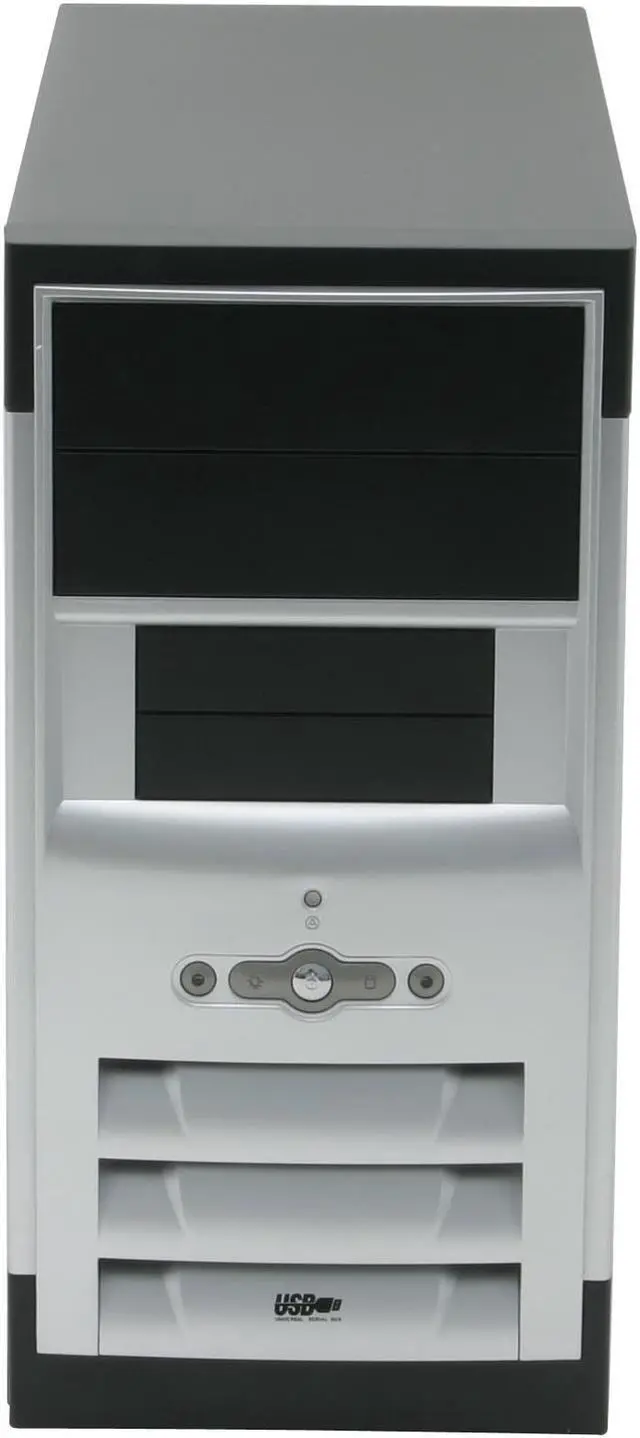

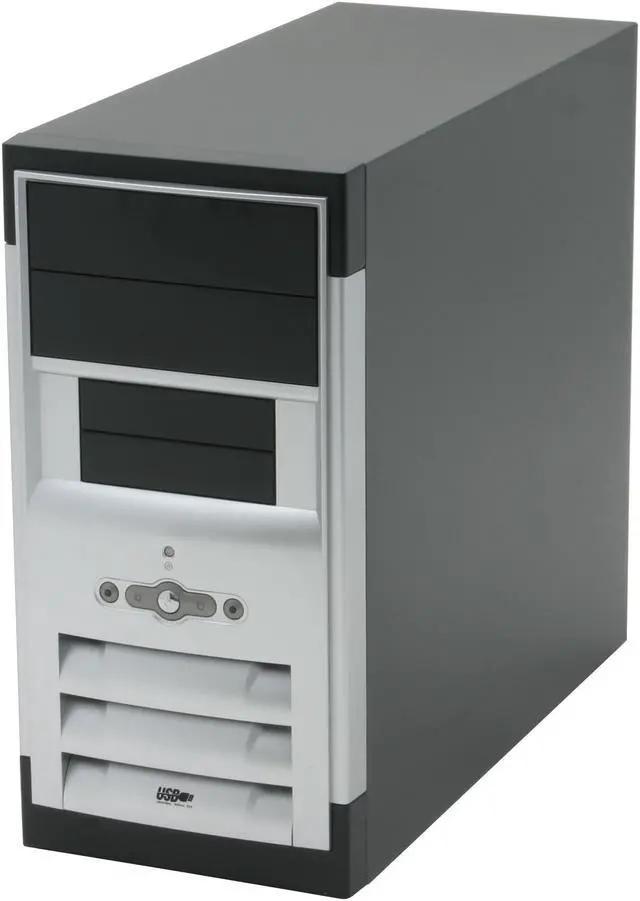

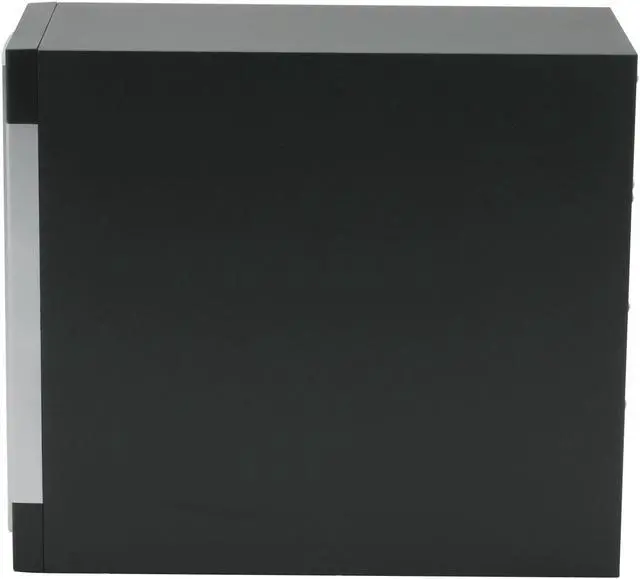

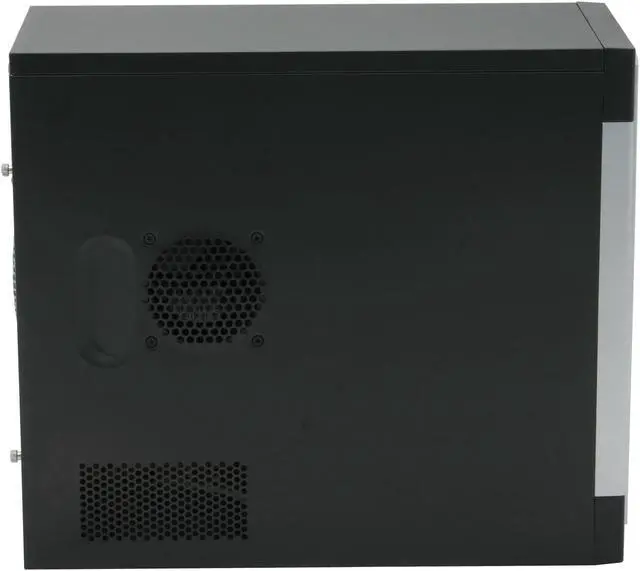

Alt view image 2 of 10 - MSI MBOX KM4M-L AMD Socket A(462) VIA KM400 Barebone

Alt view image 3 of 10 - MSI MBOX KM4M-L AMD Socket A(462) VIA KM400 Barebone

Alt view image 4 of 10 - MSI MBOX KM4M-L AMD Socket A(462) VIA KM400 Barebone

Alt view image 5 of 10 - MSI MBOX KM4M-L AMD Socket A(462) VIA KM400 Barebone

Alt view image 6 of 10 - MSI MBOX KM4M-L AMD Socket A(462) VIA KM400 Barebone

Alt view image 7 of 10 - MSI MBOX KM4M-L AMD Socket A(462) VIA KM400 Barebone

Alt view image 8 of 10 - MSI MBOX KM4M-L AMD Socket A(462) VIA KM400 Barebone

Alt view image 9 of 10 - MSI MBOX KM4M-L AMD Socket A(462) VIA KM400 Barebone

Alt view image 10 of 10 - MSI MBOX KM4M-L AMD Socket A(462) VIA KM400 Barebone

Shop All MSI Products

MSI MBOX KM4M-L AMD Socket A(462) VIA KM400 Barebone

(3) Write a Review

AMD Athlon XP / Athlon / Sempron / Duron AMD Socket A(462)
VIA KM400 VT8235
2 x 184Pin DIMM DDR 333/266
VIA UniChrome 2D/3D

Specs

Reviews (3)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MSI KM4M-L

General
Brand	MSI
Series	MBOX
Model	KM4M-L

CPU Supported
CPU Type	AMD Athlon XP / Athlon / Sempron / Duron
CPU Socket	AMD Socket A(462)
FSB	333/266 MHz

Chipset
North Bridge	VIA KM400
South Bridge	VT8235

Memory Supported
Memory slot	2 x 184Pin DIMM
Memory Type Supported	DDR 333/266
Max Memory Supported	2GB

Expansion Slots
AGP	AGP 8X
PCI	3

Storage
IDE ATA	2 x ATA 133

Graphics
Onboard Video	VIA UniChrome 2D/3D
Video Memory	Shared 64MB

Audio
Onboard Audio	Realtek ALC655
Channel	6-CH

Communications
First LAN	VIA VT6103 (10/100Mbps)
Max LAN Speed	10/100Mbps

Extension Bays
3.5" Internal bays	1
3.5" External bays	2
5.25" External bays	2

Front Panel Ports
Front USB	2
Front Audio Ports	2 jacks

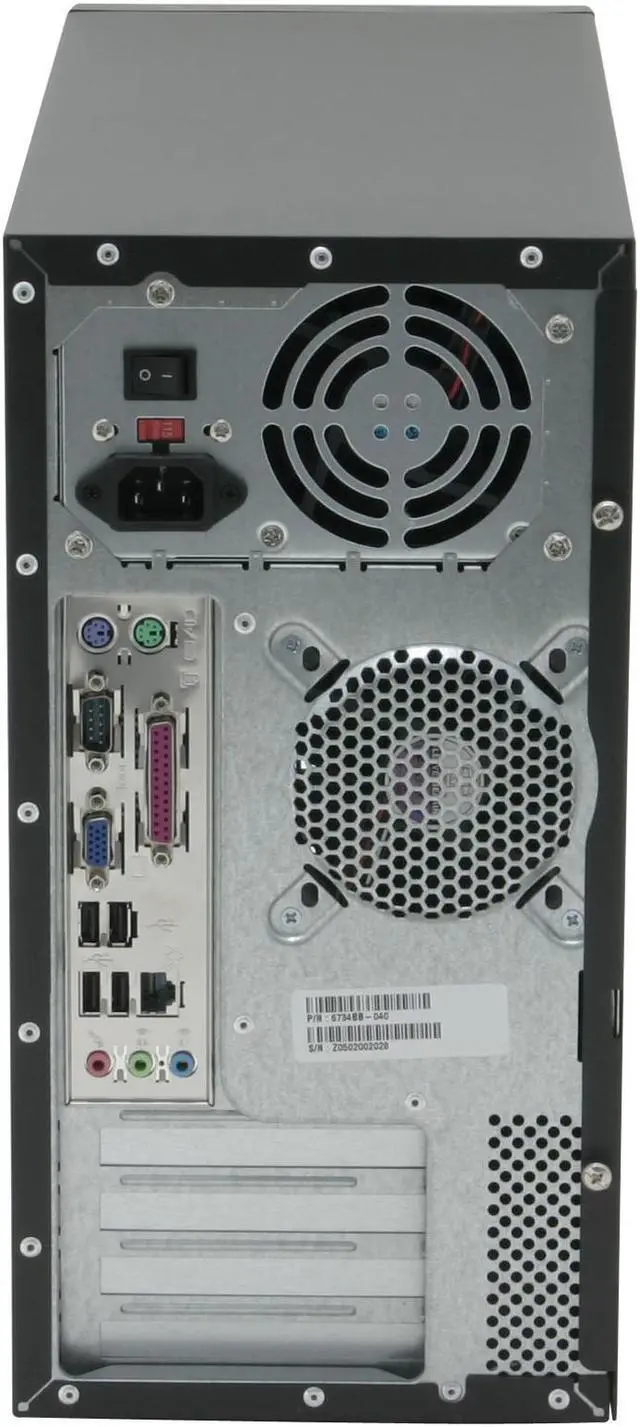

Back Panel Ports
PS/2	2
COM	1
LPT	1
VGA	1
Rear USB	4
RJ45	1
Rear Audio Ports	3 jacks

Power Supply

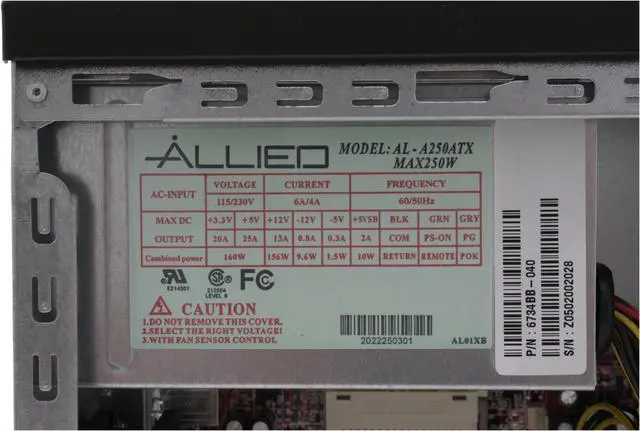

Power Supply	250W

Physical SPEC
Dimensions	16.5" x 7.0" x 14.3"
Material	Sturdy Construction with 0.8mm SECC Steel

Packaging

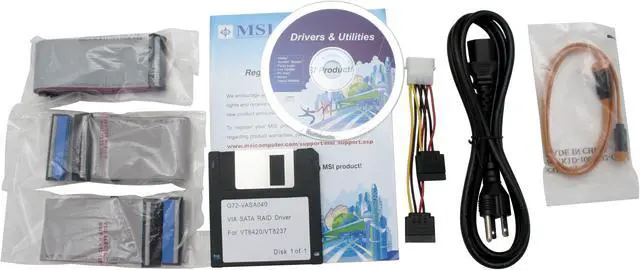

Package Contents	Power Cord Case Assembly User Manual Screws & Standoffs Intel & AMD Listed ATX12V Power Supply 250W

Additional Information
First Listed on Newegg	March 07, 2005
