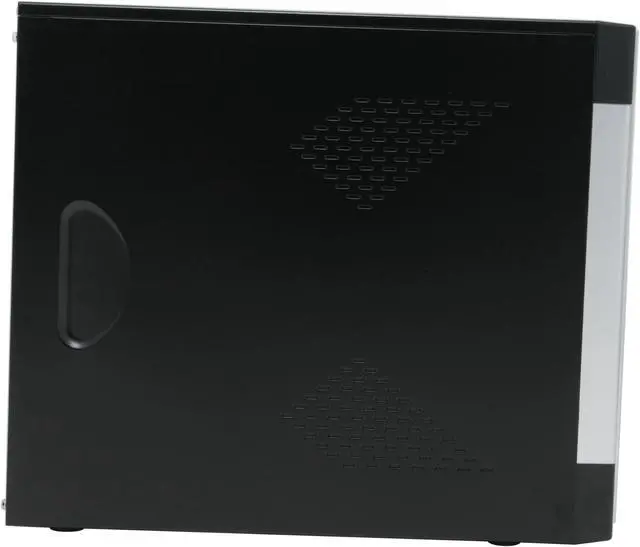

Main image of MSI MBOX PM8M2-V Intel Socket T(LGA775) VIA P4M800 Barebone

Alt view image 2 of 11 - MSI MBOX PM8M2-V Intel Socket T(LGA775) VIA P4M800 Barebone

Alt view image 3 of 11 - MSI MBOX PM8M2-V Intel Socket T(LGA775) VIA P4M800 Barebone

Alt view image 4 of 11 - MSI MBOX PM8M2-V Intel Socket T(LGA775) VIA P4M800 Barebone

Alt view image 5 of 11 - MSI MBOX PM8M2-V Intel Socket T(LGA775) VIA P4M800 Barebone

Alt view image 6 of 11 - MSI MBOX PM8M2-V Intel Socket T(LGA775) VIA P4M800 Barebone

Alt view image 7 of 11 - MSI MBOX PM8M2-V Intel Socket T(LGA775) VIA P4M800 Barebone

Alt view image 8 of 11 - MSI MBOX PM8M2-V Intel Socket T(LGA775) VIA P4M800 Barebone

Alt view image 9 of 11 - MSI MBOX PM8M2-V Intel Socket T(LGA775) VIA P4M800 Barebone

Alt view image 10 of 11 - MSI MBOX PM8M2-V Intel Socket T(LGA775) VIA P4M800 Barebone

Alt view image 11 of 11 - MSI MBOX PM8M2-V Intel Socket T(LGA775) VIA P4M800 Barebone

Shop All MSI Products

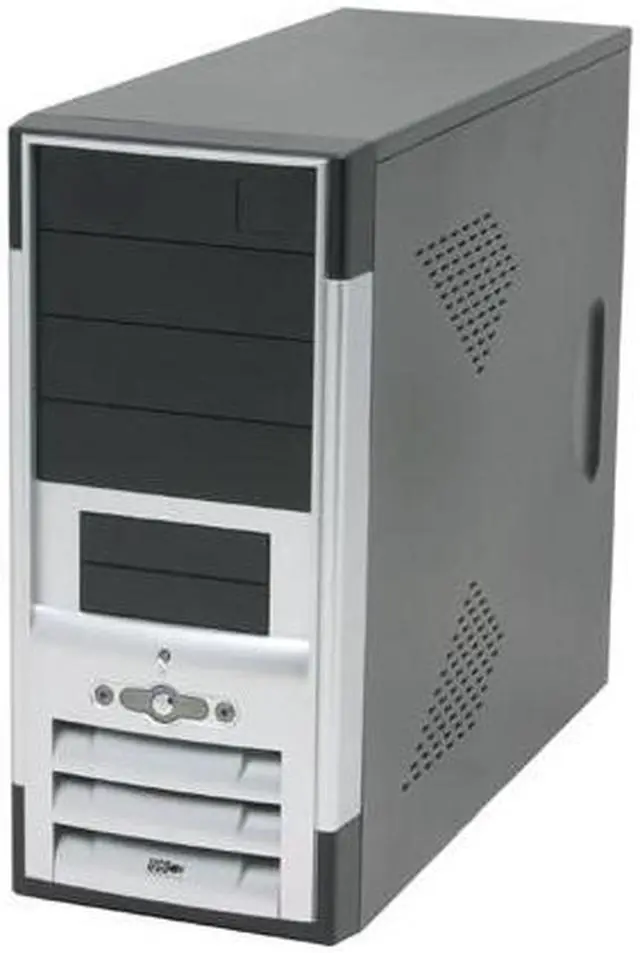

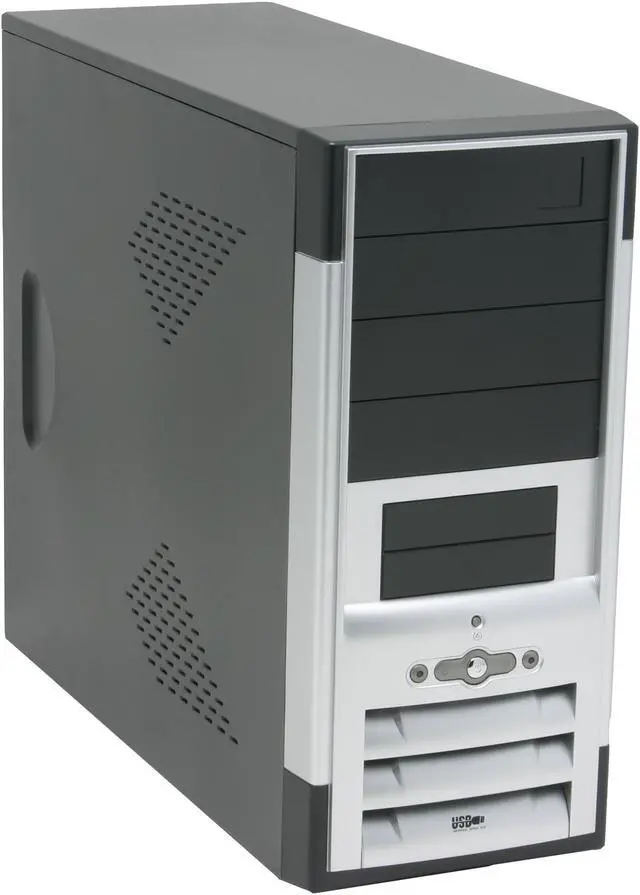

MSI MBOX PM8M2-V Intel Socket T(LGA775) VIA P4M800 Barebone

(101) Write a Review

Intel P4/Prescott(LGA775) 800/533 FSB CPU Support Intel Socket T(LGA775)
VIA P4M800 VT8237
2 x 184Pin DIMM DDR 400/333
VIA UniChrome Pro 3D Graphic

Overview

Specs

Reviews (101)

Any questions? Our AI beta will help you find out quickly.

Try me now

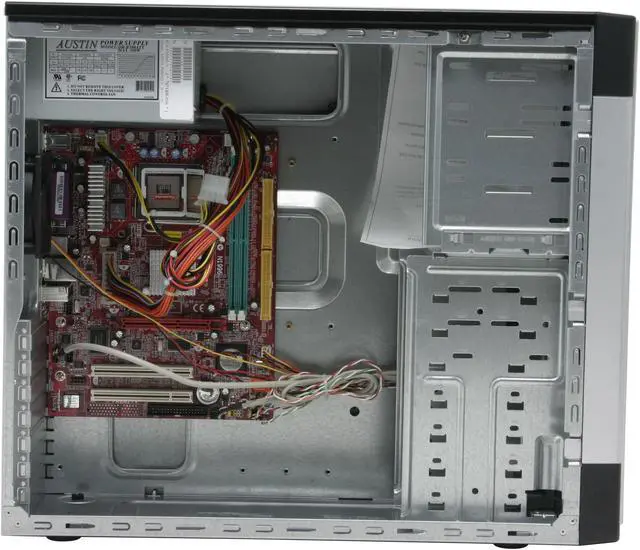

PM8M2-V Desktop Board on VIA P4M800 and VT8237R chipsets for optimal system efficiency. Designed to fit the advanced Intel Pentium 4 Prescott processor, the PM8M2-V mainboard delivers a high performance and professional desktop platform solution.

General
Brand	MSI
Series	MBOX
Model	PM8M2-V

CPU Supported
CPU Type	Intel P4/Prescott(LGA775) 800/533 FSB CPU Support
CPU Socket	Intel Socket T(LGA775)
FSB	800/533 MHz

Chipset
North Bridge	VIA P4M800
South Bridge	VT8237

Memory Supported
Memory slot	2 x 184Pin DIMM
Memory Type Supported	DDR 400/333
Max Memory Supported	2GB

Expansion Slots
AGP	AGP 8X
PCI Express	None
PCI	2

Storage
IDE ATA	2 x ATA 100
Serial ATA	2 x SATA 1.5Gb/s
SATA RAID	RAID 0/1

Graphics
Onboard Video	VIA UniChrome Pro 3D Graphic
Video Memory	Shared 64MB

Audio
Onboard Audio	Realtek ALC655
Channel	6-CH

Communications
First LAN	VIA VT6103 (10/100Mbps)
Max LAN Speed	10/100Mbps

Extension Bays
3.5" Internal bays	4
3.5" External bays	2
5.25" External bays	4

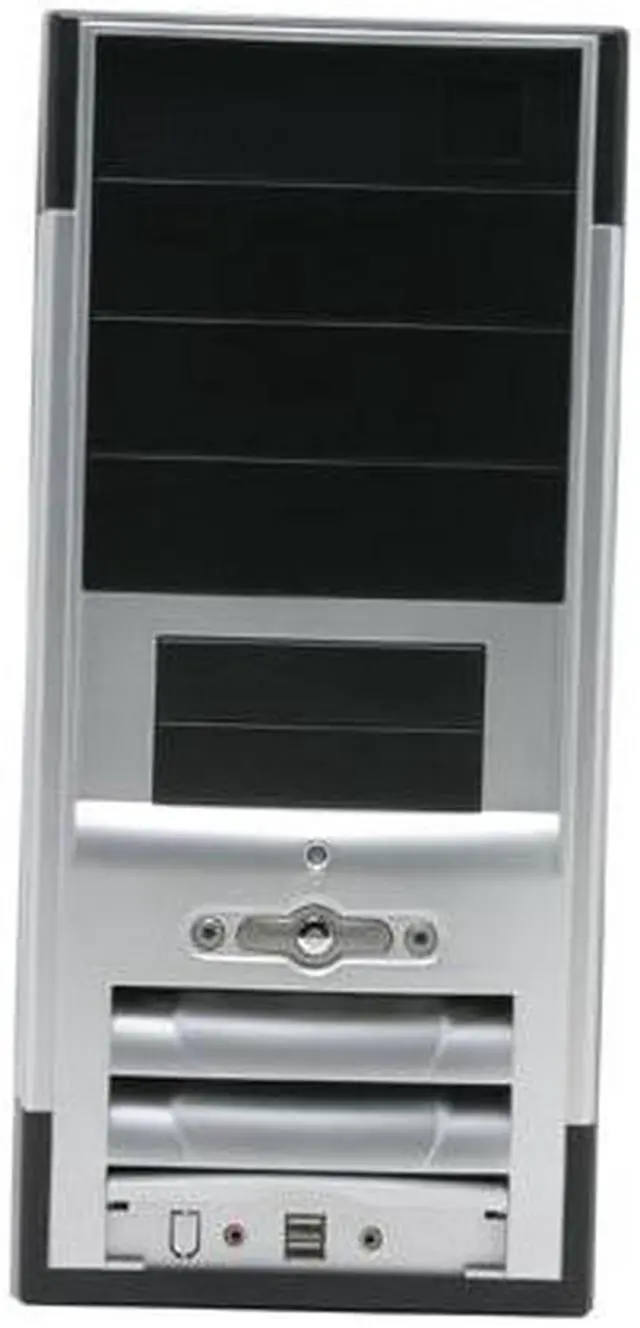

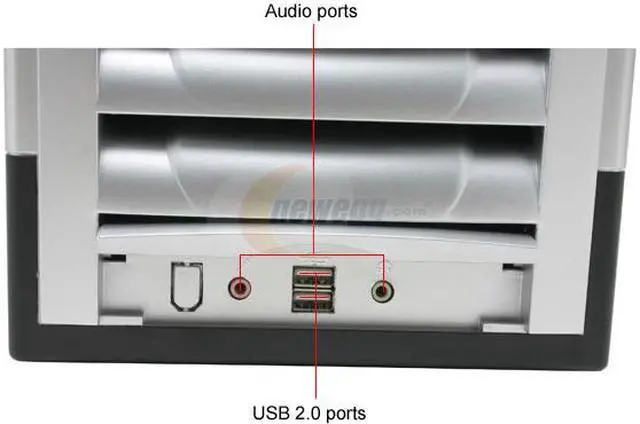

Front Panel Ports
Front USB	2
Front Audio Ports	2 jacks

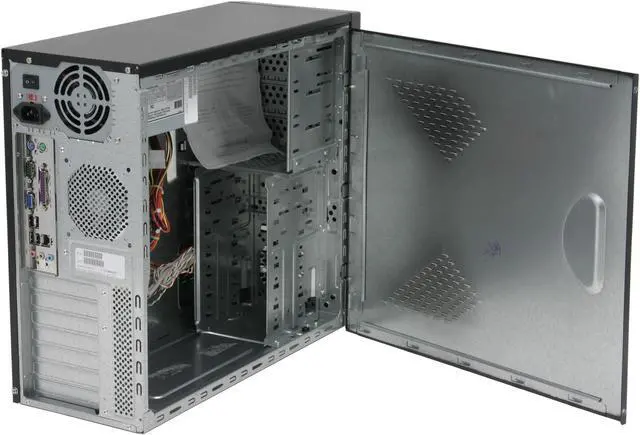

Back Panel Ports
PS/2	2
COM	1
LPT	1
VGA	1 x D-Sub
Rear USB	4
RJ45	1
Rear Audio Ports	3 jacks

Power Supply

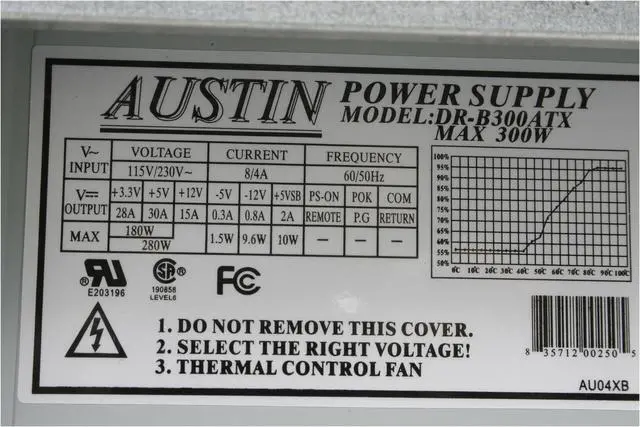

Power Supply	300W

Packaging
Package Contents	PM8M2-V User Manual Driver Disk IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable Power Cord Expansion Slot Brackets

Additional Information
First Listed on Newegg	August 16, 2005
