Question 1

Is the MSI MAG B760M MORTAR MAX WIFI DDR4 a worthwhile upgrade from the MSI MAG B660M MORTAR WIFI DDR4?

Accepted Answer

It is a worthwhile upgrade when you are building with a 13th- or 14th-generation Intel processor, want PCIe 5.0 support, or want Wi-Fi 6E and higher DDR4 overclocking support. The B660M MORTAR WIFI DDR4 remains a practical value choice for a 12th-generation system if its lower price outweighs the newer platform features; verify BIOS and processor support before upgrading to a newer CPU.

Question 2

Should I choose this B760M motherboard or a higher-tier Z790 DDR4 motherboard?

Accepted Answer

Choose the MAG B760M MORTAR MAX WIFI DDR4 for a compact gaming PC using a locked or stock-configured Intel processor, DDR4 memory, one main graphics card, and up to two M.2 drives. Choose a Z790 DDR4 motherboard if you plan to use CPU multiplier or BCLK overclocking, need more chipset expansion lanes, or expect to run several high-bandwidth storage and add-in devices.

Question 3

Is the DDR4 version better than the DDR5 version of the MSI MAG B760M MORTAR MAX WIFI?

Accepted Answer

Choose the DDR4 version when you already own compatible DDR4 memory or want to reduce the cost of a new Intel build. Choose the DDR5 version when you are starting from scratch and prefer the newer memory platform for future system upgrades; DDR5 requires buying new memory and does not work in the DDR4 motherboard. The two versions target the same LGA1700 and B760 platform, so the decision is primarily about memory cost, reuse, and upgrade direction.

Question 4

Should I buy the MSI MAG B760M MORTAR MAX WIFI DDR4 or the MSI PRO B760M-A WIFI DDR4?

Accepted Answer

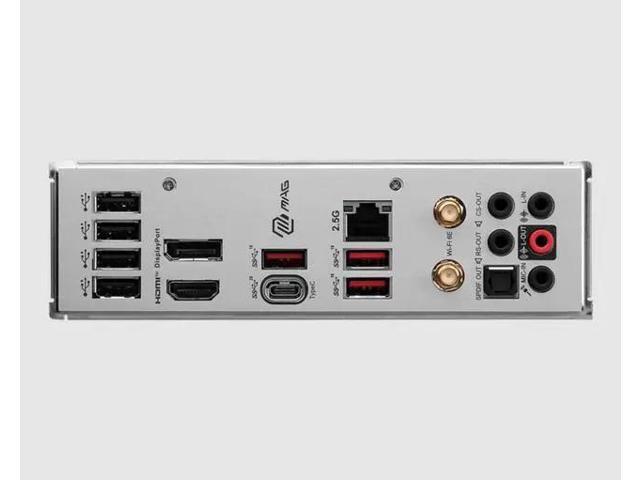

Choose the MAG B760M MORTAR MAX WIFI DDR4 if you want a PCIe 5.0 graphics slot, a rear USB 20Gbps Type-C port, six SATA ports, and a more feature-focused gaming layout. Choose the PRO B760M-A WIFI DDR4 if PCIe 4.0 graphics, four SATA ports, and standard USB connectivity are sufficient and the lower-tier configuration is less expensive.

Question 5

Does it have built-in Wi-Fi, or do I need a separate network adapter?

Accepted Answer

It includes an integrated Intel Wi-Fi 6E wireless module and Bluetooth 5.3, so a separate Wi-Fi card is not required. It also has a 2.5Gbps wired LAN port for Ethernet connections.

Question 6

Will this motherboard fit in my PC case?

Accepted Answer

It uses the micro-ATX form factor, measuring approximately 243.84 × 243.84 mm. It should fit a case that specifically supports micro-ATX, but case clearance for the graphics card, CPU cooler, radiator, and power cables should also be checked.

Question 7

Which processors are compatible with this motherboard?

Accepted Answer

This motherboard uses the LGA 1700 socket and supports the Intel Core, Pentium Gold, and Celeron processors listed for 12th and 13th Gen compatibility. Confirm the exact CPU model on MSI's support list before purchasing.

Question 8

How many M.2 SSDs can this motherboard support?

Accepted Answer

It has two M.2 Key M storage slots. Both support PCIe 4.0 x4 drives; the second slot also supports M.2 SATA mode. The board also provides six SATA 6Gbps ports.

Question 9

What type of RAM does this motherboard support?

Accepted Answer

It supports DDR4 desktop memory in four DIMM slots, with speeds up to 5333+ MHz when overclocked. DDR5 memory is not compatible, and rated speeds may depend on the CPU, memory kit, and BIOS settings.

Question 10

Can this motherboard handle a Core i5-13600K or a higher-power Intel processor?

Accepted Answer

It is a reasonable match for processors such as the Core i5-13600K, and community discussions also describe the Mortar platform as capable of handling high-end 12th- and 13th-generation CPUs. For sustained heavy workloads, use a capable CPU cooler and consider sensible power limits because the motherboard alone does not control CPU temperatures. ([reddit.com](https://www.reddit.com/r/PHbuildapc/comments/1838lao?utm_source=openai))
