Question 1

Would this work with a 650 watt power supply?

Accepted Answer

Absolutely. To be honest, you could put 5 or so of these cards safely on a 650 watt power supply. Yes, they use that little power. It doesn't even require a direct connection from the power supply -- the motherboard alone is what powers it.

These are truly revolutionary cards. It's been at least ten years since I've had a GPU that didn't have a plug where it could draw extra power from the power supply.

Question 2

hi there, how do i connect this card to my power supply?? i cant see the port  Thanks,

Accepted Answer

This does not require an external power connection. It draws all the power it requires through its PCI-E connection. The 750 Ti series is very energy efficient and this only consumes 60W power avg.

Question 3

Is this a PCI EXPRESS?

Accepted Answer

The video card I have now uses a 6 pin connector.  Will this video card use it as well or do I just not hook up the connector?

Question 4

Will a 22" dell monitor with this g-card?

Accepted Answer

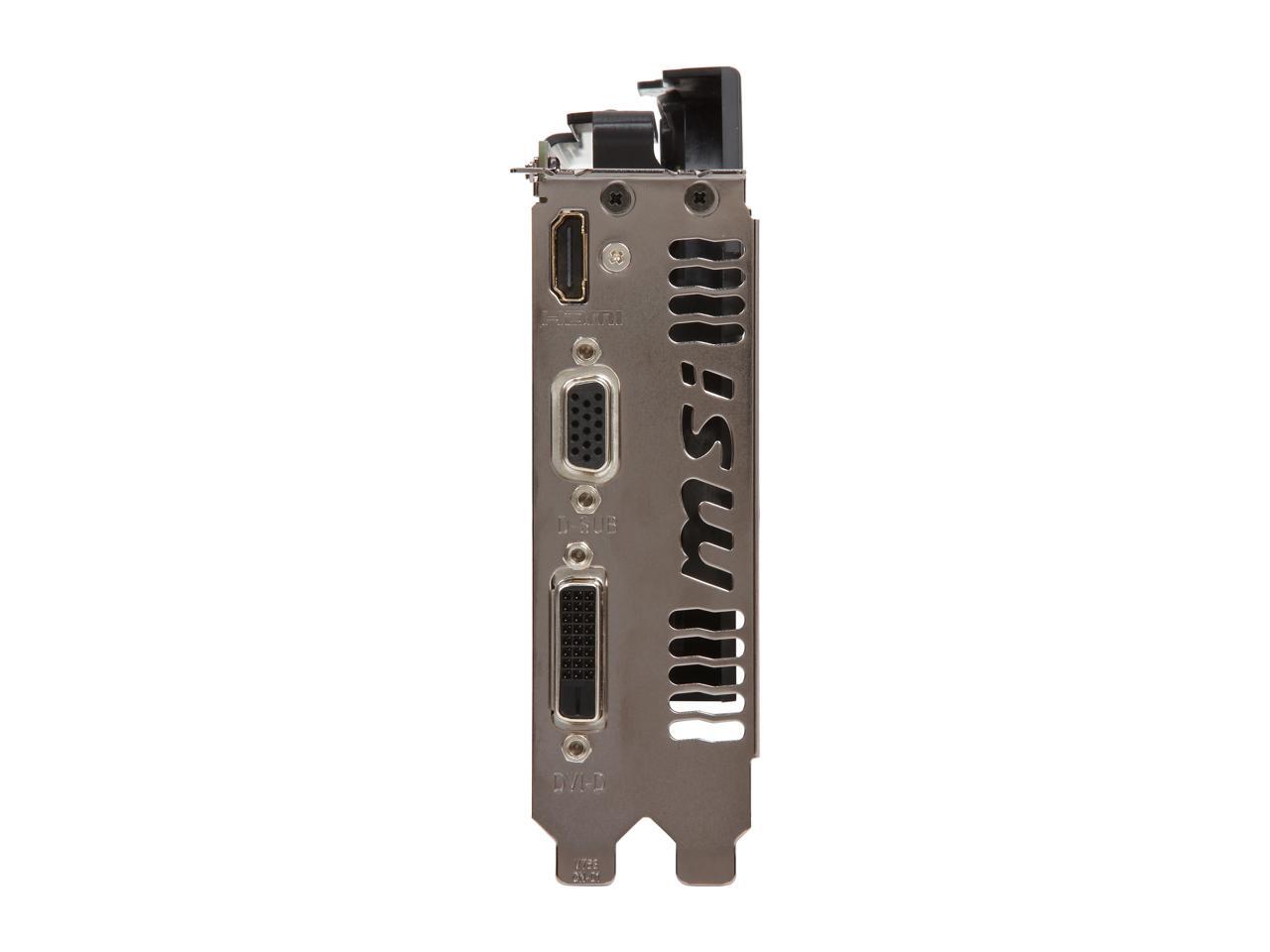

Absolutely! I use a dell U2412M and a HP 24 LED budget priced monitor to compare components with. This MSI 750TI card draws very little power on our build, plus stays at 40c and helps keep case cool, add plus. The fact the card has all 3 video outputs is a plus, DVI HDMI and SVGA. From all the hype about HDMI we ended up using the SVGA output, which is kind of interesting. The resolution settings are easier to deal with for most people. The MSI socket supports both VGA or SVGA. Just means it will use all 15 wires and allows for a high quality HD signal to pass thorough unrestricted. We had a high quality 6 ft SVGA cord. This can be had for 7 to 10 dollars. We observed no difference between the HDMI DVI and VGA when watching movies (Blu-ray) or playing games (assassins creed) on either monitors. We now have the PC with the MSI 750ti card hooked up to a Panasonic 46” LED TV using the SVGA and it works perfect. The quality of this card and how it performs is amazing. It is a little long so being mindful of that. However heat and power draw is minimal.
We wanted to build a budget PC for under 500.00 that performed well without using quad core processors.
H81 asrock board
G3220 Processor
Ultra 650 atx power supply, just in case we needed more power later.
8 GB of ram by TEAM
Crucial 120GB SSD
And the MSI 750TI

The whole thing playing movies draws 30 to 35 watts of power at the wall.
I highly recommend this card.

Question 5

why does this video card have no power hookup  no 8 or 6 pin  for power ?

Accepted Answer

The card does not require an external PCI-Express power connector as all power (up to 75 W) is supplied via the PCI-Express slot :) People with low end power supplies like a 400W power supply with no 8 or 6 pin for power will enjoy using this video card as all you will only need is the PCI-Express slot to power the card.

Question 6

Can you run two of these on SLI?

Accepted Answer

No, this card does not support SLI.

Question 7

Does this card need an extra six pin power connector or can it just run off the motherboard?

Accepted Answer

It does not need any extra pin connectors for power. It draws everything from the motherboard. (Very convenient)

Question 8

Can I use this in a PCI Express 2.0 slot?

Accepted Answer

Yes. I am using this on an ASUS M5A97 mobo. It runs any game I put it through on max settings and has no issues at all.

You will get better performance from a 3.0 slot but it is backwards compatible.

Question 9

what kind of power dose this card need to run?

Accepted Answer

Sam, I have a full blown system with 3 video cards... a 6c core processor and 8gb RAM. This card does not require a PCI support power cable amd my 750w Corsair pushes the entire system nicely for all my graphic needs. So you dont need a kilowattbpower supply unless you are supplementing a bank of hard drives or something. This card pushes my nVIDIA 3D ReadyASUS 24" monitor with unnoticable lag except Iin extremely congested areas. It worth the money for my buy. I hope you enjoy yours as much as I have mine. Plus I run a 3card-3 monitor system. It also overclocks nicely. Good luck

Question 10

Is this GPU compatible with the MSI Z97-G45 motherboard?

Accepted Answer

okay awesome. whats a GPU that has similar performane, but supports SLI or Crossfire?
