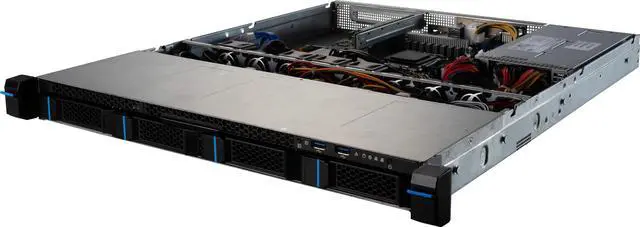

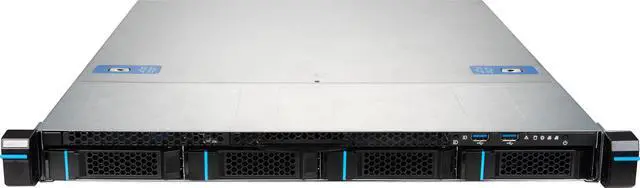

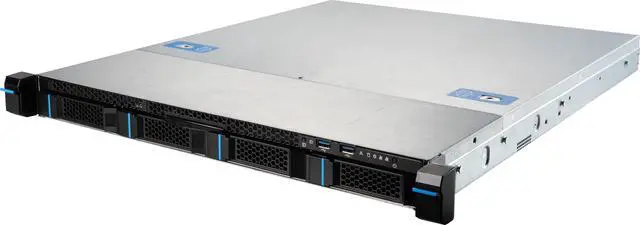

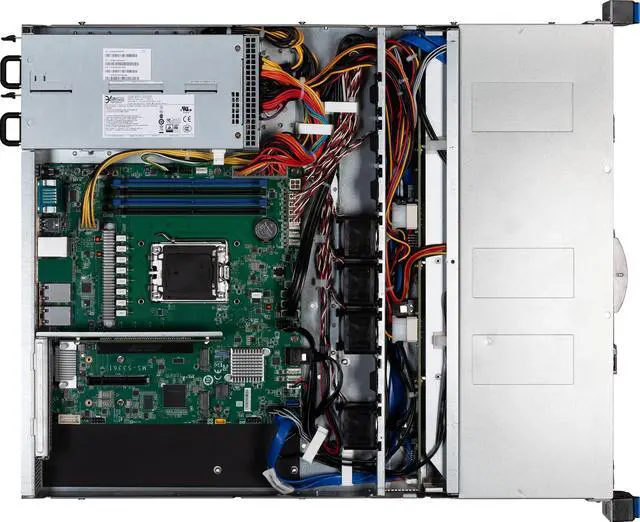

MSI S1102-01 1U Server Barebone (1) AMD Socket 4004/4005 Series Procesor AM5 AMD B650

(2) Write a Review
  • (1) AMD Socket AM5
  • Single AMD Ryzen 7000 Series Processor, up to TDP 105W
  • (4) DDR5 DIMM slots, 2DPC, ECC/non-ECC UDIMM Memory Slots
  • (1+1) 450W Redundant PSU 80+ Platinum
View User Manual Details
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews (2)
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MSI S1102-01

Best Seller Ranking #39 in Server Barebones
General
Brand MSI
Model S1102-01
Form Factor 1U
Workload General Purpose Server
CPU Supported
CPU Type Single AMD Ryzen 7000 Series Processor, up to TDP 105W
CPU Socket (1) AMD Socket AM5
Installed CPU No CPU Installed
Max Processors 1
Chipset
North Bridge AMD B650
Memory Supported
Memory Slots (4) DDR5 DIMM slots, 2DPC, ECC/non-ECC UDIMM
Installed Memory Size No Memory Installed
Max Memory Supported Max. Capacity per DIMM: 48GB
Memory Type Supported Max. Frequency 5200MT/s(1DPC) and 3600MT/s(2DPC)
ECC Supported Yes
Storage Supported
Installed HDD No Storage Installed
M.2 (2) M.2 2280/22110 PCIe4.0 x4 ports
Expansion Slots
PCI Express (1) PCIe 4.0 x16 slot from CPU support FHHL PCIe card
Communications
First LAN (2) 10GBase-T Ethernet Ports (Intel X710AT2)
*JLAN1,2 supports NCSI
Max. LAN Speed 10 Gigabit
Expansion Bays
2.5" Bays (2) Internal 2.5" drive bays support SATA 2.0
Hot-Swap Bays (4) Hot-swap 3.5”/2.5" drive bays support SATA 3.0
Panel Ports
Front USB (2) USB3.2 Gen1 Type-A Ports
COM (1) COM DB9 Port
VGA (1) VGA D-Sub Port
Rear USB (4) USB3.2 Gen1 Type-A Ports
RJ45 (2) 10GBase-T Ethernet Ports
(1) 1000Base-T Dedicated Server Management Port
Other Ports Front
(1) System Power Button
(1) UID Button
(1) UID LED
(5) Status LEDs: Power/Fault/HDD/(2)LAN

Rear
(1) UID LED Button
Power Supply
Max. Power (1+1) 450W Redundant PSU 80+ Platinum
Cooling
Fans (1) Vapor chamber air cooling module for max. 105W CPU
(4) 4028 system FANs
Environment
Temperature System Operating Temperature : 0°C ~ 35°C
Non-operating Temperature : -20°C ~ 70°C
Humidity Non-operating Relative Humidity : 5% ~ 85% (non-condensing)
Dimensions & Weight
Dimensions 438.5mm(17.26") Wx 43.5mm(1.71")H x 547.6mm(21.56")D
Packaging
Package Contents (1) 1U Barebone S1102-01
(1) Quick guide
(1) Slide rail Kits
(1) Vapor chamber air cooling module
(4) Power cables
