12" Dual 4 Ohm 400W RMS Subwoofer
- MTX
- 12" Polypropylene Woofer
- Dual Voice Coil 4 Ohm
- 26 Hz - 130 Hz
- Sensitivity 85.7 dB
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

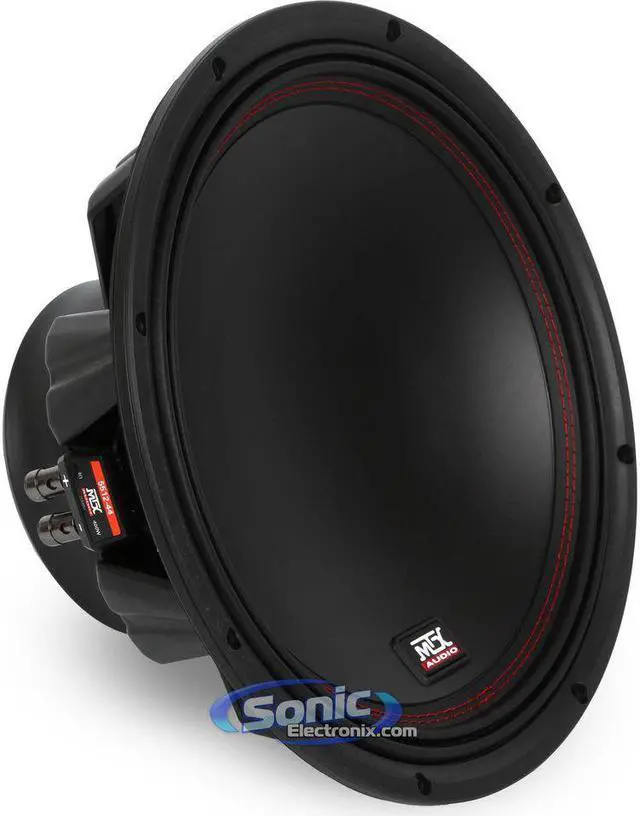

MTX Audio 12" Subwoofer Dual 4 Ohm DVC 5512-44
The 5512-44 Subwoofer by MTX is a Dual 2 Ohm 12" subwoofer with an RMS power rating of 400W and Peak power of 800W. Part of the 55 Series, this subwoofer is designed for applications where bass levels are the most important factor. The 55 Series 5512-44 subwoofer implements many of the same features found in MTX 75 & 95 series woofers. Designed to move air and go boom, these 55 series subwoofers can rock harder and for longer periods of time maintaining accurate and clean bass.
The movement of the woofer also cools the subwoofer as it plays, so it will not overheat, and a special suspension exerts extra control when pushing the sub hard. The 5512-44 subwoofer features the MTX inverted APEX surround which is narrower than their traditional half-roll surround which will help to increase the surface diameter of the subwoofer cone enabling it to displace more air and generate higher SPL. The 55 Series Subwoofers are designed with progressive suspension that will lower distortion to improve the sound quality at higher volumes.
Spider Plateau Venting
MTX Inverted APEX Surround
Progressive Suspension
Radial Ribbed T-Yoke
2.0" High-Temperature Voice Coil
RMS/Peak Power: 400W/800W
SPL 1W/1m: 84.8 dB
Impedance: Dual 4 Ohm
Frequency Response: 26Hz-130Hz
Magnet Weight: 56 oz
Mounting Depth: 6.188"
Cutout Diameter: 11.125"
Parameters:
Fs: 33 Hz
QMS: 3.282
CMS: 0.122 mm/N
Mms: 191.49 g
RMS: 12.073K g/2
Vas: 1.911 ft
Xmax: 0.6 in
D: 10.55
Sd: 87.44
Vd: 52.46 in³
Qes: 1.023
Re: 1.73
Bl: 8.2 Tm
Prms: 400W
Qts: 0.78
n 0: 0. 182%
Splo: 84.8 dB
SPL 2.83V /1m: 91.5 dB
The 5512-44 Subwoofer by MTX is a Dual 2 Ohm 12" subwoofer with an RMS power rating of 400W and Peak power of 800W. Part of the 55 Series, this subwoofer is designed for applications where bass levels are the most important factor. The 55 Series 5512-44 subwoofer implements many of the same features found in MTX 75 & 95 series woofers. Designed to move air and go boom, these 55 series subwoofers can rock harder and for longer periods of time maintaining accurate and clean bass.
The movement of the woofer also cools the subwoofer as it plays, so it will not overheat, and a special suspension exerts extra control when pushing the sub hard. The 5512-44 subwoofer features the MTX inverted APEX surround which is narrower than their traditional half-roll surround which will help to increase the surface diameter of the subwoofer cone enabling it to displace more air and generate higher SPL. The 55 Series Subwoofers are designed with progressive suspension that will lower distortion to improve the sound quality at higher volumes.
Specifications
:Spider Plateau Venting
MTX Inverted APEX Surround
Progressive Suspension
Radial Ribbed T-Yoke
2.0" High-Temperature Voice Coil
RMS/Peak Power: 400W/800W
SPL 1W/1m: 84.8 dB
Impedance: Dual 4 Ohm
Frequency Response: 26Hz-130Hz
Magnet Weight: 56 oz
Mounting Depth: 6.188"
Cutout Diameter: 11.125"
Parameters:
Fs: 33 Hz
QMS: 3.282
CMS: 0.122 mm/N
Mms: 191.49 g
RMS: 12.073K g/2
Vas: 1.911 ft
Xmax: 0.6 in
D: 10.55
Sd: 87.44
Vd: 52.46 in³
Qes: 1.023
Re: 1.73
Bl: 8.2 Tm
Prms: 400W
Qts: 0.78
n 0: 0. 182%
Splo: 84.8 dB
SPL 2.83V /1m: 91.5 dB
