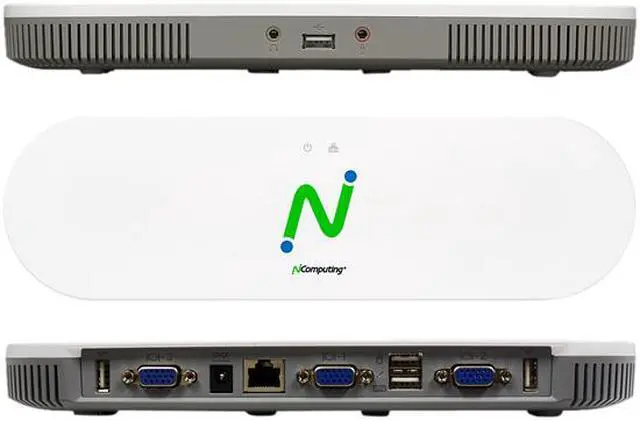

NComputing MX100D Direct Connect Ed 3U Kit

Quick Summary

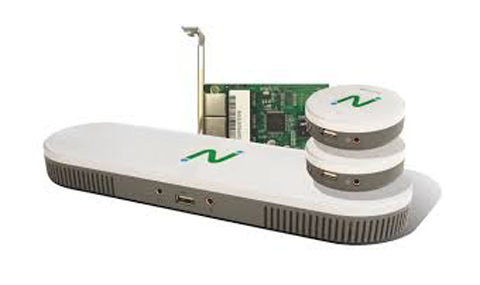

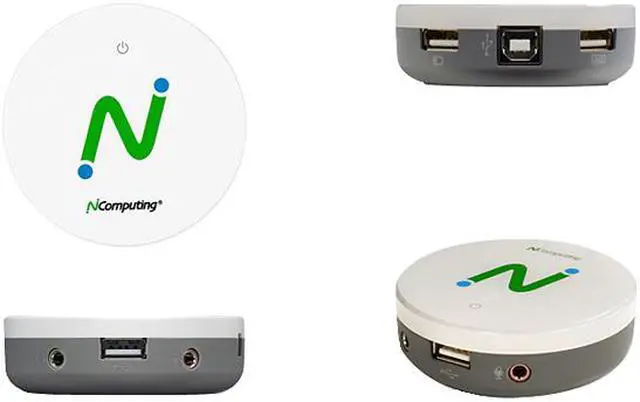

The NComputing MX100D Direct Connect Edition Kit provides a high-performance, user-friendly, low-cost computing solution for a simple, powerful & affordable desktop computing alternative. It includes three client devices (one primary device and two satellites) and one MX100D PCIe card with PoE.

As the industry's premier 3-in-1 thin client offering, this kit works with NComputing’s vSpace Server desktop virtualization software to deliver a high quality, media-rich Windows desktop experience to 3 users. It can also support up to two additional MX100S standard edition kits (sold separately), allowing user to connect up nine client devices directly to the host computer.

Architected as an end-to-end solution and built to be simple to deploy, operate, manage, and maintain, the hardware, software and protocol work seamlessly to provide the best user experience. Users don’t even know they are sharing a single computer.

Plus, this kit lowers computing costs per user by slashing acquisition, maintenance, and energy cost.

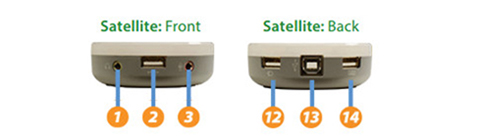

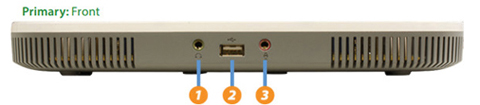

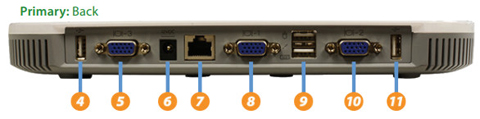

Profile

Diagram

Key Features and Benefits

Wide Applications

The MX100D is ideal for workgroup computing, classrooms, computer labs, training rooms, libraries and small business. It comes bundled with powerful NComputing vSpace Server desktop virtualization software (complimentary licenses included), and is designed for use without the need for any existing network infrastructure.

Connect up to Nine Client Devices Directly to the Host Computer

With the Direct Connect Edition, the vSpace Server host computer is configured with the included PCIe card, which provides both power and connectivity, for up to three MX100 kits (one MX100D plus two MX100S Standard Edition kits*), enabling up to 9-users per PCIe card. Each additional MX100D kit plus two MX100S kits enables an incremental 9-users to be added to the same vSpace Server.

* MX100S Standard Edition kits are sold separately.

High-quality Graphics

Second generation NUMO SoC device provides full screen video streaming up to 1920x1080 resolution, ensuring superior image quality.

User-friendly Design

This kit is simple to install, easy to configure, and fast to set up. The centralized management helps save time deploying and managing multiple vSpace Servers and client devices. The whole solution can be managed by users with only basic IT computer skills.

A Low-cost Solution

Benefit from superior multimedia capabilities, USB peripheral support and the highest number of users per host computer - all at a very affordable price. The economics improve even more with:

• vSpace Server’s ability to deliver Windows desktops to multiple users from a single computer.
• With a single cable for power and connectivity, the total requirement for cables is reduced by 50%.

MX100 rewrites new affordability standards in shared computing by slashing acquisition cost by as much as 65%, maintenance cost by 80% and energy cost by 90%*.

*Compared to an all PC solution

Service and Support

The NComputing provides the resources you need to maximize your technology investment and improve system uptime.

What’s in the Box?
