NEC E705 70" LED Backlit Commercial-Grade Display
- 70", 1920 x 1080, 60Hz, 450nit, Edge-lit
- Delivers a cost-effective solution while maintaining the extensive feature set and high visual quality that's expected with a commercial grade display
- Full bi-directional external control via both RS232 and LAN
- Expanded terminal interface including 2 HDMI, DisplayPort, DVI and VGA connections
- OPS slot available for simple integration of multiple accessories such as a digital tuner, HDBaseT, or OPS-DRD media player
- Additional Features: Integrated Temperature Sensors, Thermodynamic Cooling Fans, Ethernet control and communication, AMX Beacon Compatible, Crestron Connected Compatible, Full 24/7 Scheduler, Custom Input Detect Options
- Landscape only; 16/7 Operation
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

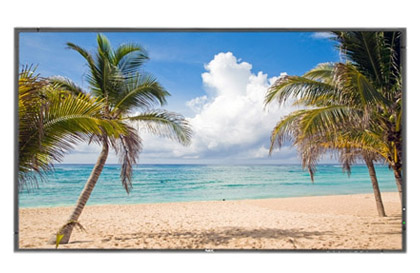

NEC Large E Series
Commercial-Grade
- LED backlighting delivers both environmental and economic benefits
- Temperature sensors and fans protect the panel from damage
- High definition, and contrast ratio deliver superior visual quality
- Internal 10W speakers and built-in handles enable a simplified installation
Connected
- Comprehensive input panel connects to latest peripherals
- Full bi-directional RS-232 control and ethernet control allow individual and group addressable control, including email diagnostics
- Compatibility with NEC control software PD Comms Tool and NaViSet Administrator 2
- Custom input detect feature to prioritize active inputs

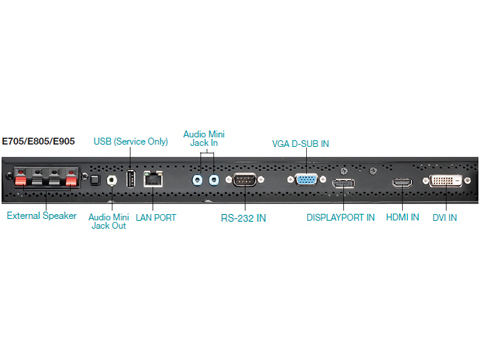

- Expanded terminal interface including 2 HDMI, DisplayPort, DVI and VGA options
Adaptable

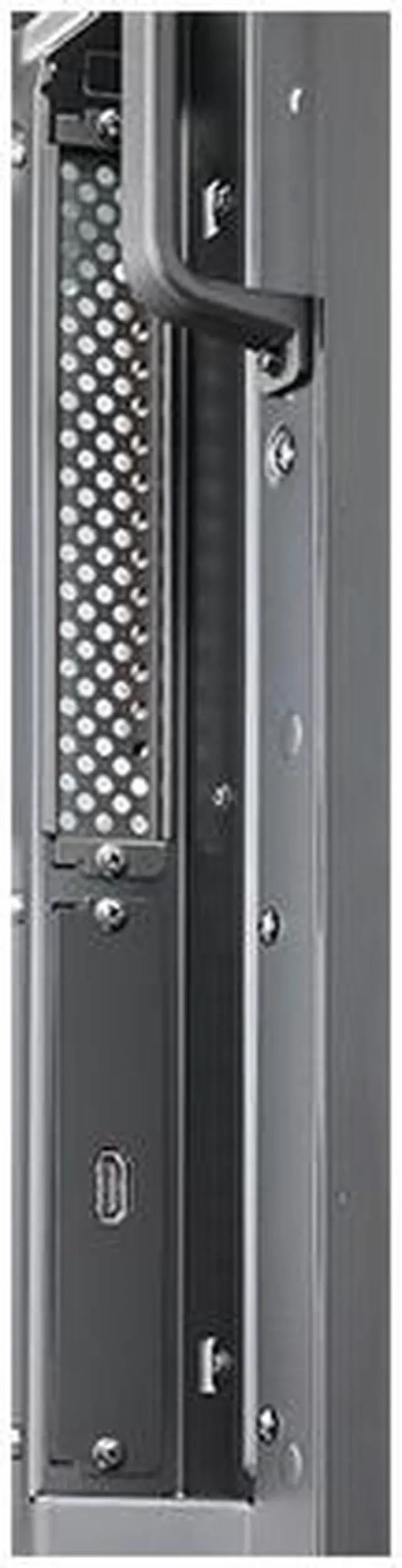

- Flexible connectivity with built-in OPS expansion slot for maximum versatility
- Extensive control and diagnostic communication provide the highest level of remote management

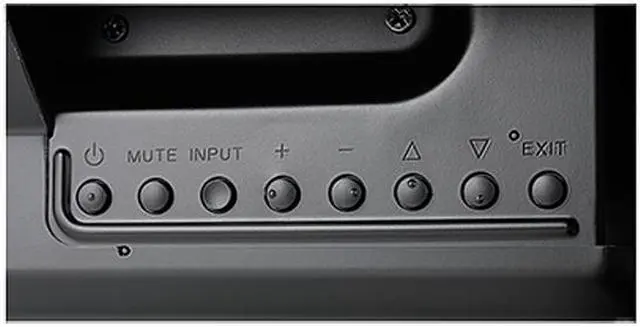

- IR and Button Lock options for protecting against unnecessary setting changes
Gallery
Specifications
| MODEL | E705 | E805 | E905 |
|---|---|---|---|
| LCD MODULE | |||
| Panel Technology | UV2A | UV2A | UV2A |
| Viewable Image Size | 70” | 80” | 90” |
| Native Resolution | 1920 x 1080 | ||
| Brightness (Typical/Max) | 360/450 cd/m2 | 280/350 cd/m2 | 280/350 cd/m2 |
| Contrast Ratio (Typical) | 4000:1 | 5000:1 | 5000:1 |
| Viewing Angle | 176° Vert. / 176 Hor.(88U/88D/88L/88R) @CR>10 | 176° Vert. / 176 Hor.(88U/88D/88L/88R) @CR>10 | 176° Vert. / 176 Hor.(88U/88D/88L/88R) @CR>10 |
| Aspect Ratio | 16:9 | ||
| Active Screen Area (W x H) | 60.6 x 34.1in. / 1538.9 x 865.6mm | 69.7 x 39.2 in. / 1771.2 x 996.3mm | 78.5 x 44.1 in. / 1923.0 x 1121.0mm |
| Displayable Colors | More than 16.7 million | More than 1.07 billion | More than 1.07 billion |
| CONNECTIVITY | |||
| Input Terminals | |||
| Digital | Displayport, HDMI x2, DVI | ||
| Analog | VGA 15-pin D-sub | ||
| Audio | Audio Mini-Jack x2 | ||
| External Control | Ethernet (RJ45), RS-232C | ||
| Other | USB (Service Port Only) | ||
| Output Terminals | |||
| Audio | Audio Mini-Jack, External Speaker Jack x2 | ||
| Digital Tuner | SB-03TM included in OPS slot for -AVT models | ||
| Speakers | Integrated (10W x 2) | ||
| POWER CONSUMPTION | |||
| On (Typical) | 150W | 235W | 270W |
| Power Saving Mode | <2.5W | ||
| PHYSICAL SPECIFICATIONS | |||
| Bezel Width (L/R, T/B) | 0.9/0.9, 0.9/0.9 in. / 23.0/23.0, 23.0/23.0 mm | 1.2/1.2, 1.2/1.2 in. / 29.7/29.7, 29.7/29.7mm | 1.2/1.2, 1.2/1.2 in. / 29.7/29.7, 29.7/29.7mm |
| Net Dimensions (without stand; WxHxD) | 62.5 x 36.2 x 3.4 in. / 1587.0 x 919.6 x 86.9 mm | 72.3 x 41.8 x 3.4 in. / 1836.2 x 1061.3 x 86.9mm | 81.0 x 46.7 x 4.9 in. / 2058.4 x 1186.4 x 123.2 mm |
| Net Weight (without stand) | 103.4lbs / 47.0 kg | 135.3lbs / 61.5 kg | 178.6lbs / 81.0kg |
| VESA Hole Configuration | 400 x 400mm (4-hole) | ||
| ENVIRONMENTAL CONDITIONS | |||
| Operating Temperature | 32°-104°F / 0°-40°C | ||
| Operating Humidity | 20 - 80% | ||
| Operating Altitude | 9843 ft. / 3000m | ||
| LIMITED WARRANTY | 3 years parts and labor, including backlight* | ||
| ADDITIONAL FEATURES | Integrated temperature sensors, thermodynamic cooling fans, Ethernet Control and Communication, RS-232C Control and Communication, AMX Beacon Compatible, Crestron Connected Compatible, Carbon Footprint Meter, Full 24/7 Scheduler Function, PIP/POP/Side by Side settings, Input Labeling, Built-In Speakers, OPS-Compliant Slot, Custom Input Detect Modes, NaViSet Administrator 2 Compatible, NEC PD Comms Tool Compatible, IR Lock Settings, Button Lock , Fixed/Variable Audio Out | ||
| SHIPS WITH | Power Cord, 1.8m DVI-D Cable, Wireless Remote Control, Batteries, CD-ROM, Setup Manual | ||
| OPTIONAL ACCESSORIES | |||
| Single Board Computers | All NEC OPS-based computers | ||
| Other | SB-03TM (Digital Tuner included in -AVT models), ST-801 (stand), SP-TF1 (thin rear or side-mounted speakers, 15W x 2), SB-01HC (OPS HD-SDI Card), SB-04HC (OPS 3G-SDI Card), ARM based Digital Media Player (OPS-DRD), Large Wall Mount (WMK-6598 ),OPS HDBaseT Receiver (SB-07BC | ||
