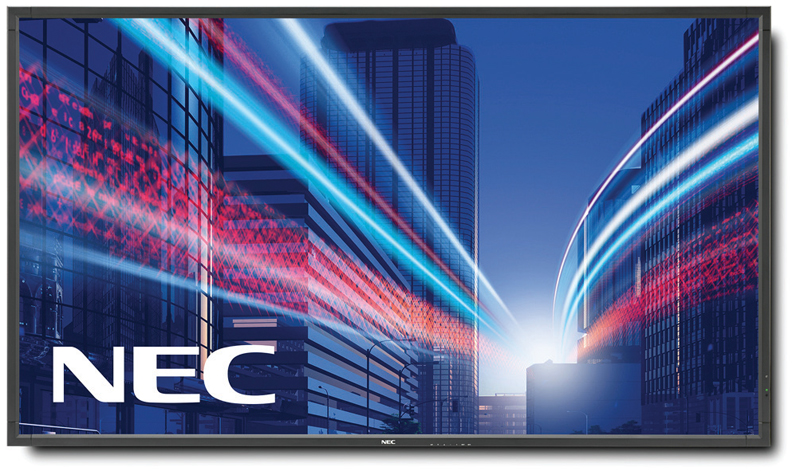

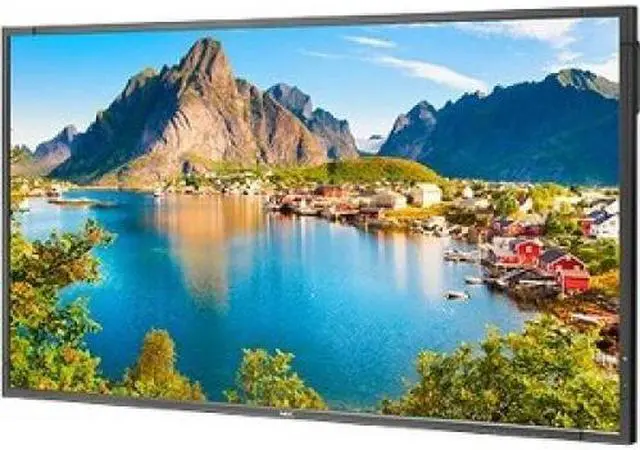

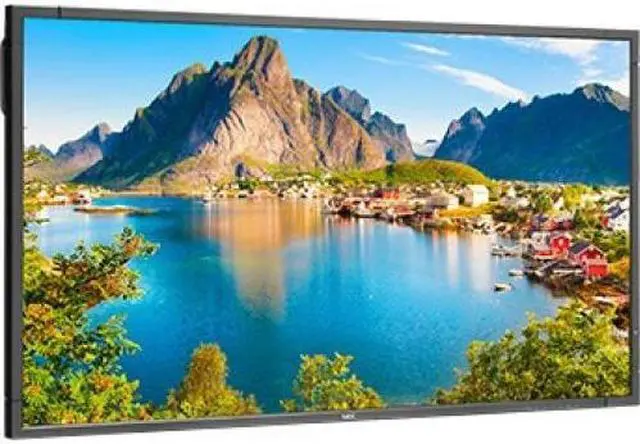

NEC E Series Large Format Commercial Display
The NEC MultiSync E series displays unify impressive visual performance, affordability and large viewing real estate. With Full HD resolution, high brightness and superb contrast ratio, these displays deliver impactful messaging and presentation that engages customers like never before. An integrated ambient light sensor enables comfortable viewing by detecting surrounding light and adjusting the screen brightness accordingly. And with full external control and multiple state-of-the-art connectivity options, the E-series displays are ideal for corporate conferencing and education usage as well as digital signage applications in museums, hospitality and retail environments with operating hours limited to 12/7.

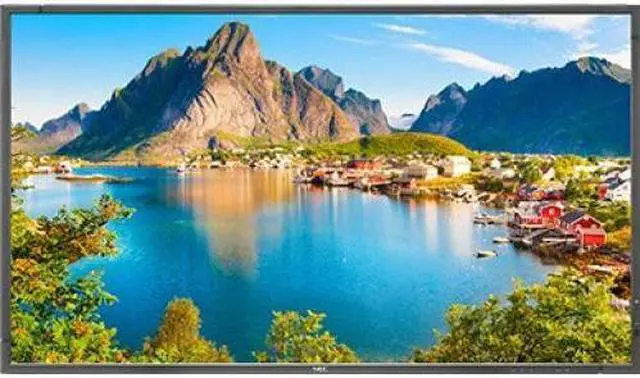

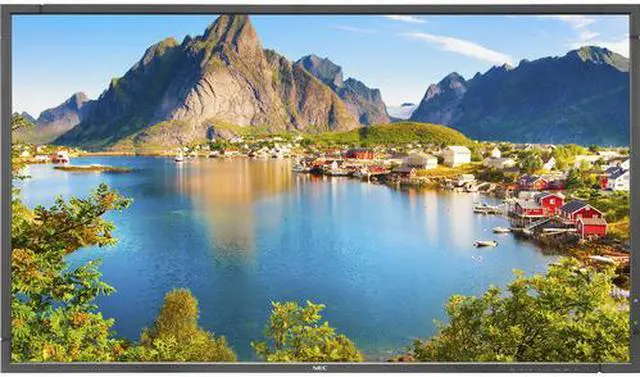

The NEC E805-PC3 is a bundle that includes an 80" E805 display and OPS-APIS-PS computer seamlessly integrated into the expansion slot of the display. This built-in functionality allows for a clean, hidden integration while reducing the bill of materials needed for installation.
OPS-APIS-PS
Integrated and removable single board computers
Enjoy seamless integration with this internal Intel Celeron Dual Core based PC that adheres to the Open Pluggable Specification (OPS) and increases the operational flexibility of a compatible NEC display for any digital signage application. The OPS-APIS-PS Series is ideal for quick-service restaurants, education, corporate, rental & staging, medical and retail applications.

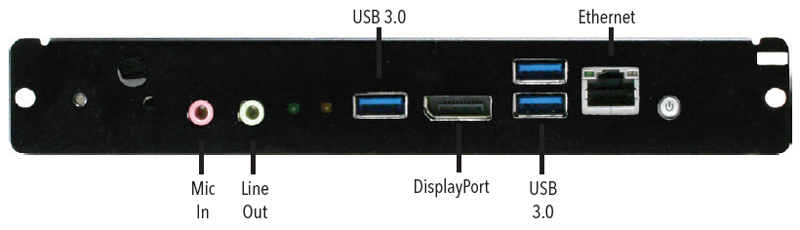

- No external connections required. PC signal, stereo, audio and RS232 control signals all passed internally from display to OPS device.
- Powerful, value driven 2.4GHz Dual Core CPU, utilizing the Intel Skylake Celeron processor providing an excellent balance of performance and efficiency for a variety of signage needs
- Durable and protected with an all-stainless steel chassis and integrated redundant cooling fans to protect the unit during installation, operation and service
- Includes microphone line in
- Support for UHD resolution and Full HD 1080P playback ensures reliable, crisp and clear content
- DisplayPort output allows for multi-display support
- USB 2.0 and USB 3.0 ports allow you to connect compatible devices
- Full networking capabilities through the integrated Gigabit LAN port
Reduced Installation and Operating Costs
Featuring LED backlight technology, the display is highly energy efficient with low power consumption, longer backlight lifetime and a lighter design for easy and flexible transportation, mounting and integration. It also contains no mercury to minimize the impact on the environment.

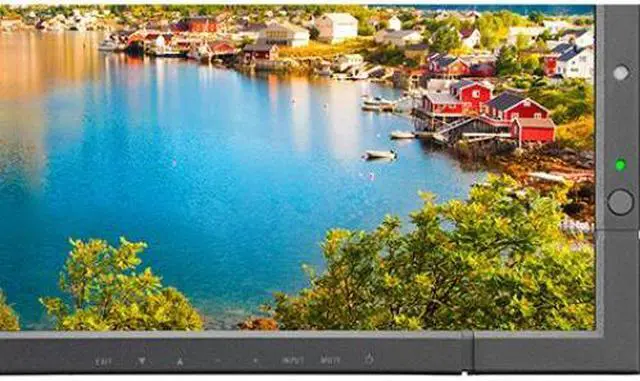

Programmable Ambient Light Sensor
This intelligent dimming function enables automatic adjustment of the backlight by APL (Average Picture Level) or luminance of the environment for reduced power consumption and eye pleasing brightness levels.
IPM (Intelligent Power Manager) System
IPM provides innovative power-saving methods that allow the display to shift to a lower power consumption level when on but not in use, saving two-thirds of your display energy costs, reducing emissions and lowering the air conditioning costs of the workplace.
Scheduler with a Real-time Clock
The schedule function allows you to set the display to power on and off at different times. Up to seven different schedules can be programmed.

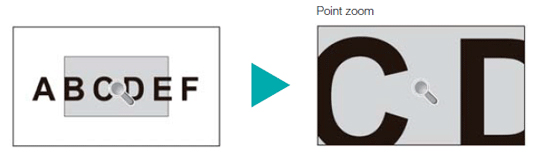

Point Zoom
An image can be enlarged or reduced by a remote control for detailed checks or explanations in a meeting or classroom.

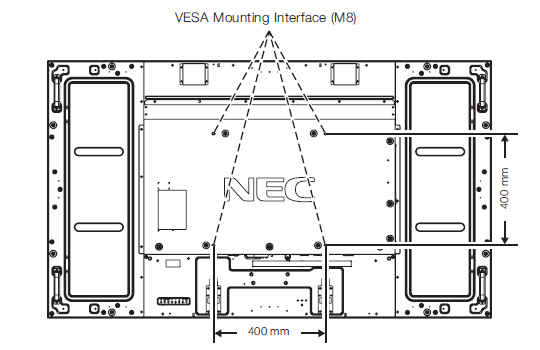

VESA Standard (FDMIv1) Mounting Interface
The interface allows you to connect your LCD display to any VESA standard (FDMIv1) third party mounting arm or bracket. NEC recommends using mounting interfaces that comply with the TÜV-GS standard, or the UL1678 standard in North America.

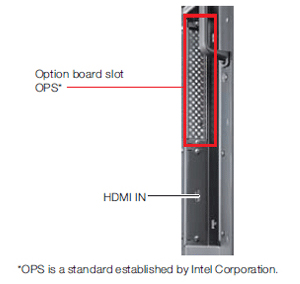

The slot technology allows for the integration of Open Pluggable Specification (OPS*) boards and other option slot products without the need to store additional external equipment. This offers the greater flexibility customers require.
HDBaseT Support*
Simplify your installations with HDBaseT, which is optimized for video applications and supports uncompressed Full-HD digital video, audio, Ethernet, and various control signals. With only a single cable (up to 100 m) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning. What’s more, control signals are contained in the same cable.
* Requires the optional HDBaseT board, SB-07BC
Powerful 10 W + 10 W Built-in Speakers
High-power 10 W + 10 W built-in stereo speakers and external 15 W + 15 W (8 ohm) terminals are convenient for integrated audio solutions.
Remote Control ID
The Remote Control ID mode works in conjunction with the display ID, allowing control of up to 100 individual displays. When there are many displays being used in the same area, a remote control in normal mode sends signals to every display at the same time, and a remote in Remote Control ID mode operates one specific display only within the group.
Remote Display Management
In addition to remote control by RS-232C, this series is also compatible with LAN control by connection through a network. These remote display management functions make it easy to implement various digital signage systems.
NaViSet Administrator 2
This freely downloadable multi-display management software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management and control functionality of the majority of NEC display devices and Windows computers. It is ideal for multi-device installations over larger infrastructures.
