NEC MultiSync X464UN-2 46" Ultra-Slim Narrow Bezel LCD Specialty Large Format Display

Be the first to review this product...
  • 46" Screen Size
  • 3500:1 Contrast
  • S-PVA Panel
  • 700 cd/m2 Brightness
  • 1920 x 1080 Resolution
  • 5.7 mm bezel
  • DP, D-Sub, HDMI, DVI-D, LAN, RS-232C
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

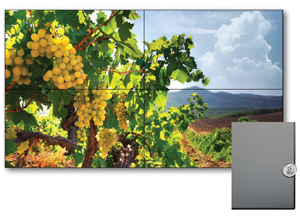

NEC Video Wall LCDs Series
46” & 55” LED-backlit, ultra-narrow, professional-grade LCD displays ideal for video wall applications

NEC X Series

Transform your video walls with the immaculate high definition of the NEC 46" X464UN-2, 46" X464UNV-2, 46" X464UNS, 55” X554UN-2, 55” X554UNV and X554UNS. Direct LED backlighting reduces power consumption and improves edge-to-edge brightness uniformity. Mere millimeters separate content from display to display which ensures a smooth transition across a video wall. This display is ideal for digital signage, boardrooms, entrance lobbies and broadcast applications, and can be deployed in video wall applications up to 10 x 10 in size utilizing integrated TileMatrix™ technology*. TileMatrix technology within these displays can also now support up to UHD (3840 x 2160) resolution across the entire wall. This is 4x the resolution that previous generations of product would support.



Advanced Technologies

  • LED direct backlighting source allows for even distribution of light across the panel, resulting in improved uniformity from bezel-to-bezel
  • Auto ID and Auto TileMatrix technology enables video walls (up to 100 displays in a 10x10 matrix)
  • Digital loop through with DP 1.2 Multistream supports ultra high definition resolutions for video wall deployments
  • Optional Human Sensor accessory ensures video walls are on and directed at a targeted audience
  • Open Pluggable Specification and Interface Expansion Slots offer the flexibility customers require
  • Intelligent Wireless Data functionality through integrated Near Field Communication (NFC) sensor, enables read/ write communication through a special NEC application and NFC compatible device

Highlights

  • Professional-grade LCD panel and components meet even the most formidable digital signage industry requirements, allowing for 24/7 run times
  • 1920 x 1080 full HD resolution allows for crisper, more lifelike imaging
  • Ground-breaking ultra-narrow bezel as low as 3.5mm creates a nearly seamless video wall
  • Optional color calibration solution ensures color uniformity and fidelity across individual and multiple screens, creating a perfectly matched image in tiled environments
  • Optional overframe bezel kit simplifies your installation and enhances the aesthetics of your video wall
  • ENERGY STAR® 6.0 is proudly offered, which meets strict energy efficiency guidelines set by the U.S. Environmental Protection Agency and the U.S. Department of Energy, helping you save money and reduce greenhouse gas emissions
  • UHD Resolution support and loop through for potential 3840 x 2160 resolution across the entire video wall.


Specifications

MODEL X464UNV-2 X464UN-2 X464UNS X554UNV X554UN-2 X554UNS
LCD MODULE
Panel Technology SPVA (P-DID)
Viewable Image Size 40" 55"
Native Resolution 1920 x 1080
Brightness (Typical/Maximum) 350 / 500 cd/m2 500 / 700 cd/m2 400 / 500 cd/m2 500 / 700 cd/m2
Contrast Ratio (Typical) 3500:1
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time (white to black) 8ms
Aspect Ratio 16:9
Active Screen Area (W x H) 40.1 x 22.6 in. / 1018.1 x 572.9mm 40.1 x 22.6 in. / 1018.1 x 572.7mm 47.6 x 26.8 in / 1209.6 x 680.4mm
Orientation Landscape/Portrait
Displayable Colors More than 16.7 million
CONNECTIVITY
PC/Mac Signal Compatibility Yes
Input Terminals
Digital DisplayPort, HDMI, DVI-D
Analog VGA 15-pin D-sub
Audio Audio Mini-Jack, DisplayPort Audio, HDMI Audio
External Control RS-232C, LAN, DDC/CI
Output Terminals
Digital DisplayPort (DisplayPort, HDMI, DVI-D or Option Signals out of this port)
Analog n/a
Audio Audio Mini-Jack, External Speaker Jack (2), HDMI Audio (through DisplayPort Out), DisplayPort Audio
External Control LAN
POWER CONSUMPTION
On (Typical) 90W 120W 125W 150W
ECO Mode Standby <0.5W
Current Rating 2.6A @ 100-120V / 1.1A @ 220-240V 3.0A @ 100-120V / 1.2A @ 220-240V 3.8A @ 100-120V / 1.6A @ 220-240V
PHYSICAL SPECIFICATIONS
Bezel Width (L/R, T/B) 0.15 in./0.075 in., 0.15 in./0.075 in. ; 3.8mm/1.9mm, 3.8mm/1.9mm 0.15 in./0.075 in., 0.15 in./0.075 in. ; 3.8mm/1.9mm, 3.8mm/1.9mm 0.09 in. / 0.05 in., 0.09 in. / 0.05 in. ; 2.3mm/1.2mm, 2.3mm/1.2mm 0.15 in./0.07 in., 0.15 in./0.07 in. ; 3.7mm/1.8mm, 3.7mm/1.8mm 0.09 in./0.05 in., 0.09 in./0.05 in. ; 2.3mm/1.2mm, 2.3mm/1.2mm
Net Dimensions
(without stand; WxHxD)		 40.3 x 22.8 x 4.6 in. / 1024 x 578.6 x 117.3mm 40.3 x 22.8 x 3.9 in. / 578.6 x 1024 x 99.7mm 40.2 x 22.7 x 4.0 in. / 1022.0 x 576.6 x 101.3mm 47.8 x 26.9 x 4.0 in. / 1213.5 x 684.3 x 100.4mm 47.8 x 27 x 3.9 in. / 1215.3 x 686.1 x 99.6mm 47.8 x 26.9 x 3.95 in. / 1213.5 x 684 x 100.4mm
Net Weight (without stand) 50.3lbs / 22.8kg 50.7 lbs. / 23 kg 45.0lbs / 20.4kg 57.1lbs / 25.9kg 64.64 lbs. / 29.2 kg 61.5 lbs. / 27.9 kg
VESA Hole Configuration 300 x 300mm (4-hole) 300 x 300mm (4-hole) 300 x 300 (4-hole) 400 x 400mm (4-hole)
ENVIRONMENTAL CONDITIONS
Operating Temperature 41-104°F / 5-40°C
Operating Humidity 20 - 80%
Operating Altitude 13,780 ft. / 4200m
LIMITED WARRANTY 3 years parts and labor, including backlight*
ADDITIONAL FEATURES Direct LED Backlighting, Advanced thermal capabilities, Ethernet Control and Communication, RS-232 Control and Communication, Landscape/portrait capable, Carbon footprint meter, Plug and Play (DDC/CI,DDC2B), Scheduler (w/ real-time clock), Screen saver function, Optional human sensor, Intelligent Wireless Data (Near Field Communications), Second expansion slot, Expanded daisy chain (DP 1.2), 6-axis color adjustments, Metal rear cabinet, Side-by-Side, Handles, Variable picture modes, Advanced video settings (Noice Reduction, Adaptive Contrast), Input labeling, Backlight adjust, Aspect ratio control, OPS/Expansion slot
SHIPS WITH Power cord; 1.8m DP cable; LAN cable, Batteries; CD-ROM (user manual); Option board slot cover; Screws; Thumbscrews
OPTIONAL ACCESSORIES Video Wall Kit (KT-TMX4C, KT-TMX9C, KT-RC2) (Remote Control/IR Sensor/Ambient Light/Human Sensor Accessory), Overframe Bezel Kit (X464UN-2: KT-46UN-OF2, X464UNV-2: KT- 46UN-OF3, X464UNS: KT-46UN-OF4, X554UN-2: KT-55UN-OF, X554UNS/X554UNV: KT-55UN-OF2), Display Wall Calibrator Kit (KT-LFD-CC)

NEC X Series

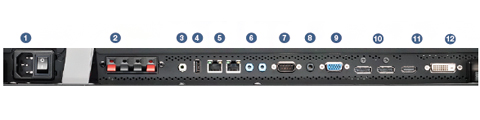

Input Panel

  • 1. Vacation Switch
  • 2. External Speaker Terminal
  • 3. Audio Mini Jack Out
  • 4. USB Service Port
  • 5. LAN Ports
  • 6. Audio Mini Jack In
  • 7. RS-232C In
  • 8. Remote In
  • 9. VGA D-Sub In
  • 10. DisplayPort In/Out
  • 11. HDMI In
  • 12. DVI-D In

NEC X Series

The NEC UN displays support Intel’s Open Pluggable Specification (OPS), and interface expansion slots to provide the flexibility customers need.
