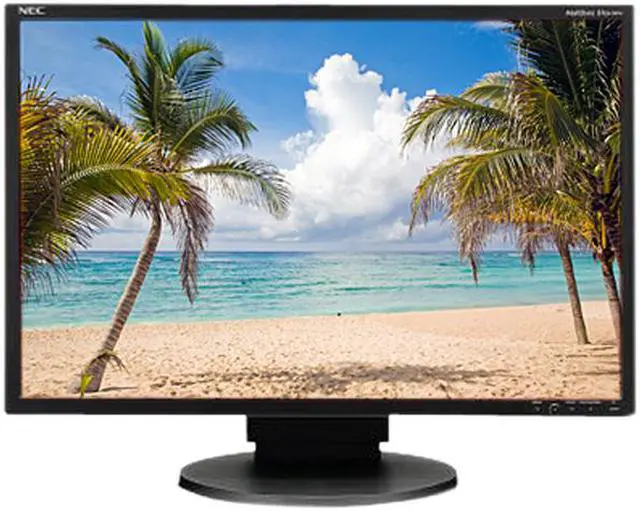

Energize your desktop computing experience with the 22" NEC MultiSync EA221WM, a widescreen LCD desktop monitor that combines cutting-edge technologies with dynamic design accents. The display's wide-format screen provides a viewable area significantly larger than standard aspect ratio screens, allowing users to work simultaneously in multiple/side-by-side application windows. This model, which touts flexibility for any number of applications and environments, meets the diverse needs of businesses of all kinds.
Features
- ECO Mode™ function helps save power, reduce heat and extend the life of the display by allowing you to dim the backlight

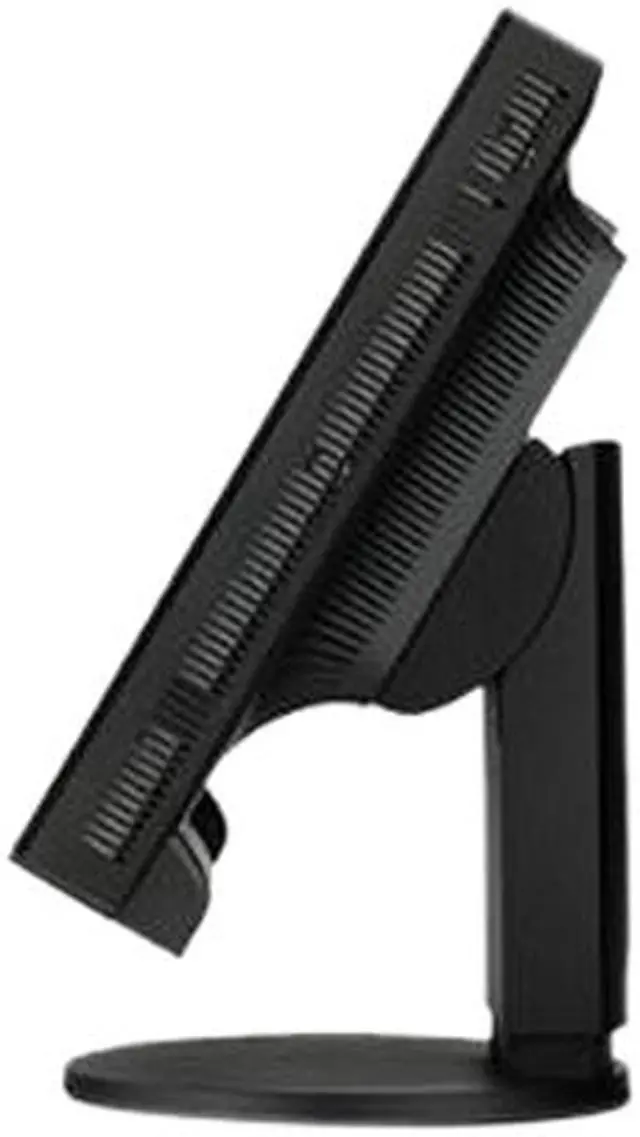

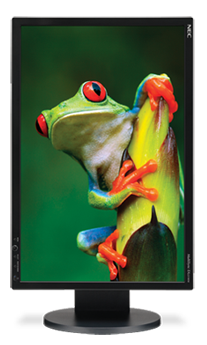

- Four-way ergonomic design (height-adjust, pivot, tilt & swivel) enhances your viewing comfort
- Dynamic Visual Mode enhances video and images with real-time optimization of brightness, color and contrast
- Multi-directional NaViKey™ allows for intuitive screen adjustments

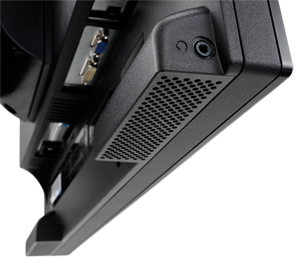

- Space-saving, down-firing multimedia speakers with headphone jack
- Integrated USB 2.0 hub easily connects you to your peripherals
- Built-in carrying handle simplifies moving and installation
- Carbon footprint meter
- Thin frame
- Integrated speakers
- Rapid Response
- Ambix
- XtraView
- OSD user controls
- NaViSet software
- Cable management
- VESA mount
- HDMI-capable via DVI adapter
- HDCP
- DDC/CI
- No Touch Auto Adjust
- Plug and Play (VESA DDC 1/2B)
- VESA DPMS power management
- Dynamic Video Mode
- AccuColor color control
- Digital smoothing
- Digital controls
- ISO 9241-307 Class I
Specifications
| Display | |
| Panel Technology | TN |
| Viewable Image Size | 22" |
| Aspect Ratio | 16:10 |
| Native Resolution | 1680 x 1050 |
| Pixel Pitch | 0.28mm |
| Pixels per Inch | 90 @ native resolution |
| Backlight Type | CCFL |
| Brightness (typical) | 250cd/m² |
| Contrast Ratio (typical) | 1000:1 |
| Viewing Angle (typical) | 170 degrees Vert., 176 degrees Hor. (85U/85D/88L/88R) @ CR>5 |
| Response Time (typical) | 5ms |
| Displayable Colors | More than 16.7 million |
| Synchronization Range | |
| Horizontal (Analog/Digital) | 31.5 - 82.3kHz |
| Vertical | 56 - 75Hz |
| Input Signal | |
| Video | Analog RGB 0.7 Vp-p / 75 Ohms |
| Sync | Separate Sync: TTL Level (Positive/Negative) Composite Sync: TTL Level (Positive/Negative) Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive) |
| Input connectors: | DVI-D, VGA 15-pin D-sub |
| Power Consumption (typical) | |
| On | 26W |
| Power Savings Mode | 2W |
| Physical Specifications | |
| Net Dimensions (W x H x D) | 20 x 15 - 19.4 x 8.7 in. (507.8 x 382 - 492 x 220mm) (with stand) 20 x 13.1 x 2.8 in. (507.8 x 332.1 x 71.8mm) (without stand) |
| Net Weight | 16.5lbs (7.5kg) (with stand) 11lbs (5kg) (without stand) |
| VESA Hole Configuration Specifications | 100 x 100mm |
| Environmental Compliance | |
| ENERGY STAR | 5.0 |
| TCO | 5.0 |
| EPEAT | Gold |
| RoHS | Yes |
