NEOSMAY N100 mini PC home Firewall Appliance, fanless mini pc,pfsense router,4 LAN compute,PoE IN, I225 2.5GbE,5G/4G SIM slot,1xRJ45 COM,1xUSB-C,5xUSB,HD+DP,12th Gen CPU N100 mini pc,16GB DDR4,512GB S

(1)(3) Write a Review

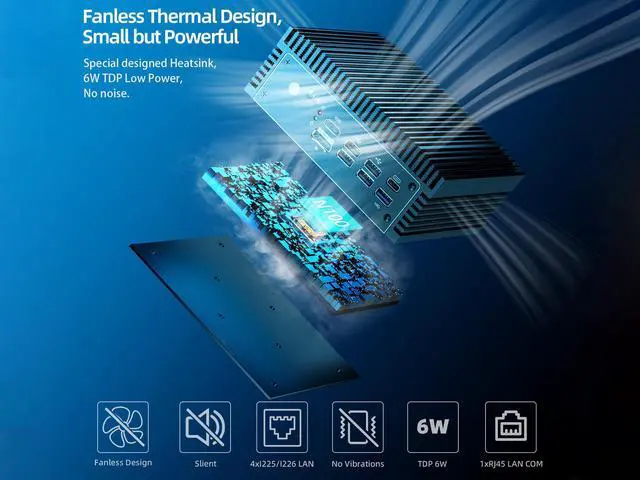

  • 1. Fanless mini PC, 4 LAN mini pc, home Firewall Appliance,Soft frsense Routor,PoE powered mini pc/AES-NI, computer router vpn router
  • 2. 12th CPU N100, 0.8GHz~3.4GHz,supports PoE IN, AES NI, pFsense Plus,Mikrotik,OPNsense VPN.Supports Win11/WIN10/ubuntu and other popular open source firewall router software.
  • 3. Input:100-240V AC, Output: 12V3A DC(included in package), also can be powered by PoE with 802.3 bt(PoE++) port
  • 3. 4K@60Hz HDMI2.0+DP1.4, 1xUSB3.0, 4xUSB2.0, 1xUSB3.0 Type-C, 1x SIM Card slot(Support 4G/5G(Not include)), 1xDC IN , Support WIFI ac/ax( NOT preinstalled WIFI module), 3x2.5G LAN((LAN1-LAN3,In tel I225), 1x2.5G LAN(LAN4,support PoE IN), 1 x RJ45 COM RS232

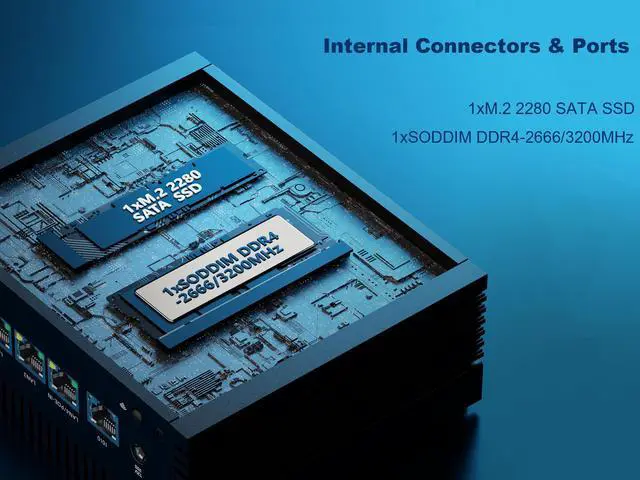

  • 4. Easily upgrade RAM and SSD: Pre-installed 16GB DDR4-2666/3200MHz & 512GB M.2 2280 SATA SSD. Max 32GB DDR4 RAM & 2TB SATA SSD , Upgrade easily.
  • 6. Feature: Support Auto Power On, Wake on LAN, PXE,VESA Mount
Overview
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
1
1
1
1
1
1
1
1
1
1
Brand NEOSMAY
Model AC8F POE IN
CPU Alder Lake-N 12th Gen N100,6M Cache, 0.8GHz(up to 3.4GHz), TDP 6W
Memory 1 x SO-DIMM DDR4 slots, support 3200MHz
Storage 1 x M. 2 2280 SSD slot, support SATA PCIe Gen4 SSD
OS Windows 11 pro
Power Input: 100-240V AC, Output: 12V3A DC
Network Card 2.5GbE I225/I226

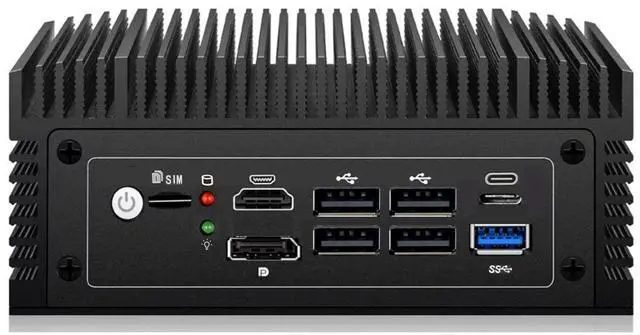

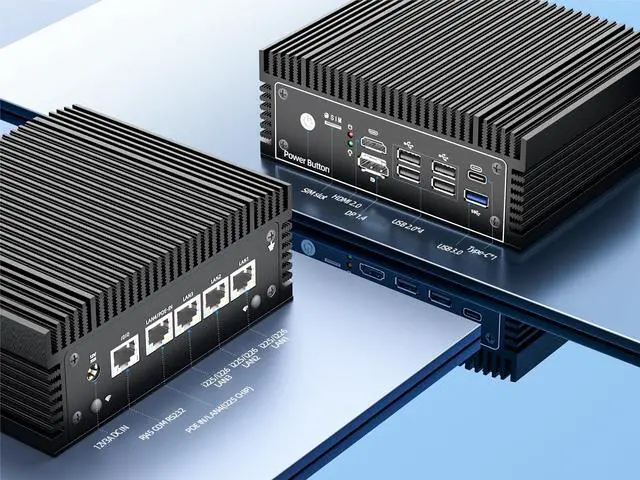

Front I/O 1 x Type-C, 1 x USB 3.2, 4 x USB 2.0, 1 x HDMI, 1 x DP, 1 x TF, 1 x Power Button

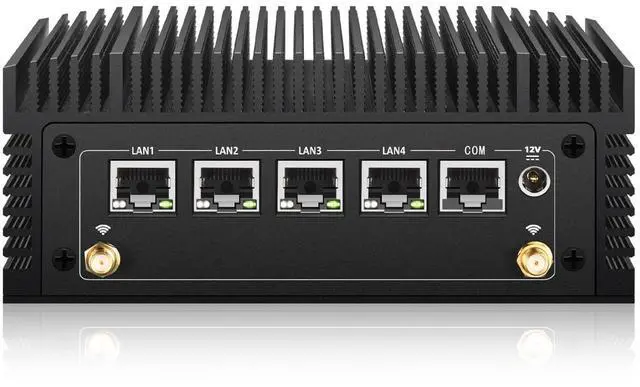

Back I/O 3 x 2.5G LAN((LAN1-LAN3)I225/I226), 1 x 2.5G LAN(LAN4),support POE IN), 1 x COM 232, 1 x D
Operating Temperature -10°c~70°c
Storage Temperature 0°c~70°c
Humidity 0%~95%(non-condensing)
Other Function POE-IN Supported,AES-NI Supported,Auto Power On when power is applied, Wake on LAN,PXE boot

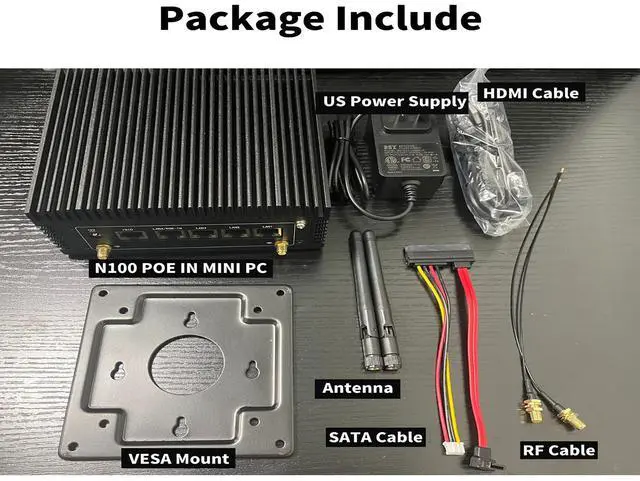

Packing List MINI PC,US Power Supply,HDMI Cable,RF Cable,SATA Cable,Antenna,VESA Mount(70x70/100x100mm)
Dimension 158mm (L) x125mm (W) x49mm (H), 1.2kg
Brand: NEOSMAY
Model: AC8F POE IN
CPU: Alder Lake-N 12th Gen N100,6M Cache, 0.8GHz(up to 3.4GHz), TDP 6W
Memory: 1 x SO-DIMM DDR4 slots, support 3200MHz
Storage:1 x M. 2 2280 SSD slot, support SATA PCIe Gen4 SSD
AES-NI Supported: Yes
POE-IN Supported: Yes
OS: Windows 11 pro
Network Card: 2.5GbE I225/I226
Front I/O: 1 x Type-C, 1 x USB 3.2, 4 x USB 2.0, 1 x HDMI, 1 x DP, 1 x TF, 1 x Power Button
Back I/O: 3 x 2.5G LAN((LAN1-LAN3)I225/I226), 1 x 2.5G LAN(LAN4),support POE IN), 1 x COM 232, 1 x DC-IN
Operating Temperature: -10°c~70°c
Storage Temperature: 0°c~70°c
Humidity: 0%~95%(non-condensing)
Power: Input-100-240V AC, Output-12V3A DC
Other Function: Auto Power On when power is applied, Wake on LAN,PXE boot
Packing List:N100 POE IN Firewall Appliance MINI PC,US Power Supply,HDMI Cable,RF Cable,SATA Cable,Antenna,VESA Mount(70x70/100x100mm)
Dimension: 158mm (L) x125mm (W) x49mm (H)
