WiFi Generation | Wi-Fi 6 |
---|
Wireless Standard | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
---|
Network Protocols | IPv4, IPv6 |
---|
Device Management | Access Control, Local Management, Remote Management |
---|
Security | Access Control: Parental Controls, Local Management Control, Host List, White List, Black List Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding |
---|
WPA | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK encryptions |
---|

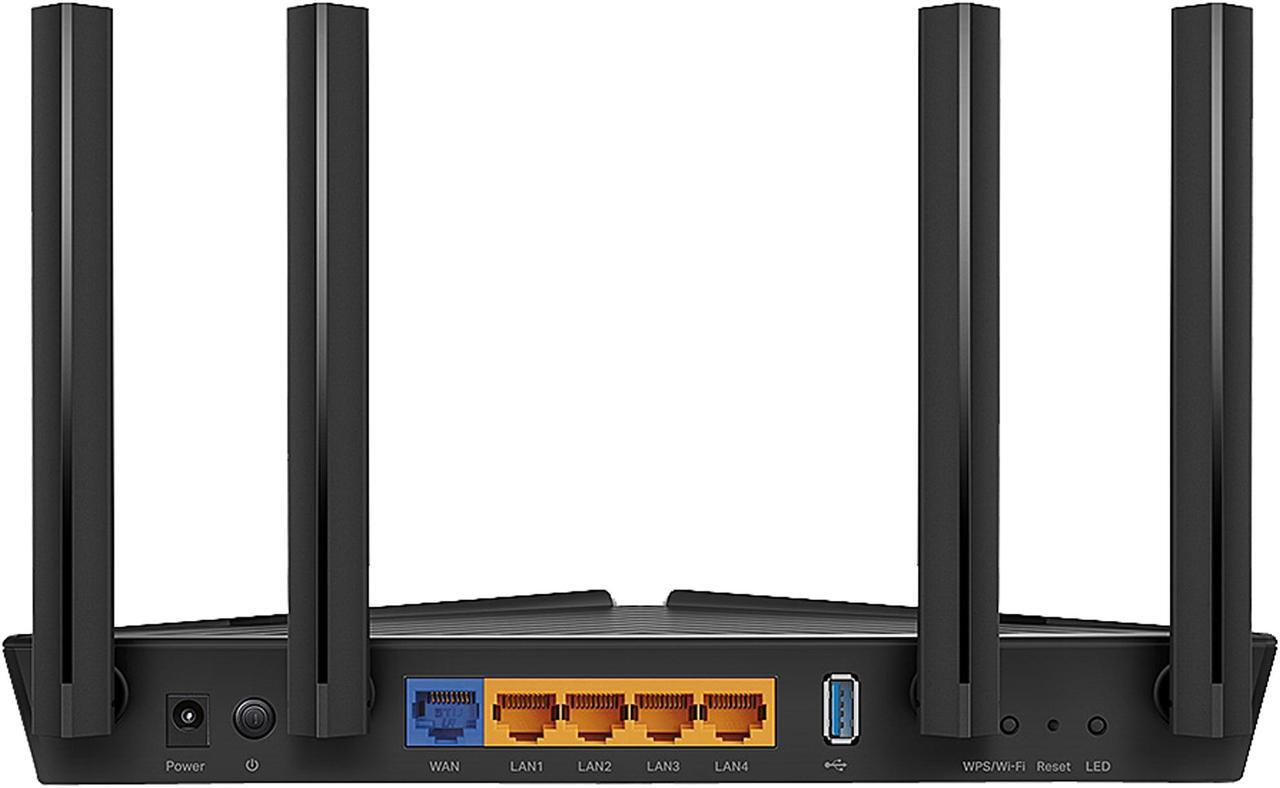

WAN Ports | 1 x 10/100/1000M |
---|
LAN Ports | 4 x 10/100/1000M |
---|
Buttons | WPS / Wi-Fi Button, LED On / Off Button, Power On / Off Button, Reset Button |
---|
Wireless Data Rates | 5 GHz: 2402 Mbps (802.11ax), 2.4 GHz: 574 Mbps (802.11ax) compatible with 802.11a/b/g/n/ac Wi-Fi standards |
---|
Frequency Band | 2.4 GHz / 5 GHz |
---|
Antenna | 4 x External Antennas |
---|
Transmitted Power | CE: <20 dBm (2.4 GHz), <23 dBm (5.15 GHz ~ 5.35 GHz); <30 dBm (5.47 GHz ~ 5.725 GHz) FCC:<30 dBm (2.4 GHz & 5.15 GHz ~ 5.825 GHz) |
---|
Receiver Sensitivity | 5 GHz: 11a 6 Mbps: -97 dBm, 11a 54 Mbps: -79 dBm 11ac VHT20_MCS0: -96 dBm, 11ac VHT20_MCS11: -66 dBm 11ac VHT40_MCS0: -94 dBm, 11ac VHT40_MCS11: -63 dBm 11ac VHT80_MCS0: -91 dBm, 11ac VHT80_MCS11: -60 dBm 11ac VHT160_MCS0: -88 dBm, 11ac VHT160_MCS11: -55 dBm 11ax HE20_MCS0: -95 dBm, 11ax HE20_MCS11: -63 dBm 11ax HE40_MCS0: -92 dBm, 11ax HE40_MCS11: -60 dBm 11ax HE80_MCS0: -89 dBm, 11ax HE80_MCS11: -58 dBm 11ax HE160_MCS0: -85 dBm, 11ax HE160_MCS11: -55 dBm 2.4 GHz: 11g 6 Mbps: -97 dBm, 11a 54 Mbps: -79 dBm 11n HT20_MCS0: -97 dBm, 11n HT20_MCS7: -78 dBm 11n HT40_MCS0: -95 dBm, 11n HT40_MCS7: -75 dBm 11ac VHT20_MCS0: -96 dBm, 11ac VHT20_MCS11: -67 dBm 11ac VHT40_MCS0: -94 dBm, 11ac VHT40_MCS11: -64 dBm 11ax HE20_MCS0: -96 dBm, 11ax HE20_MCS11: -64 dBm 11ax HE40_MCS0: -93 dBm, 11ax HE40_MCS11: -61 dBm |
---|
Operation Mode | Access Point Mode / Wireless Router Mode |
---|
Interface | 1 x USB 3.0 Type A Port |
---|
Power Supply | External Power Supply 12V / 2A |
---|
System Requirements | Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1 / 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access) |
---|
Dimensions | 1.50" x 10.20" x 5.30" |
---|
Temperature | Operating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit) Storage Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit) |
---|
Humidity | Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
---|
