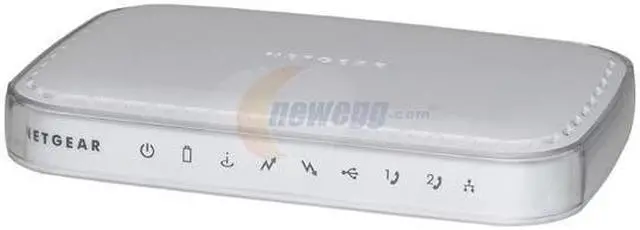

NETGEAR EM612 Embedded Multimedia Terminal Adapter DOCSIS 2.0 WAN Ports 1 x 10/100Mbps LAN Ports

Be the first to review this product...
  • DOCSIS 2.0 WAN Ports
  • 1 x 10/100Mbps LAN Ports
  • 1 x 10/100Mbps RJ-45 port
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Netgear Inc. EM612

Model
Brand NETGEAR
Model EM612
Details
Standards DOCSIS 2.0 and PacketCable™1.5 certified, EuroDOCSIS and EuroPacketCable available
Protocols UDP, TCP/IP, ARP, ICMP, DHCP, TFTP, SNMP, HTTP, RTP
Speed 10/100Mbps
WAN Ports DOCSIS 2.0
LAN Ports 1 x 10/100Mbps
LEDs Power, Battery, Cable Link, Upstream Traffic, Downstream Traffic, USB, Voice (1 and 2), Ethernet
DMZ Ports 1 x 10/100Mbps RJ-45 port
Temperature 32º to 104º F (0º to 40º C)
Humidity 90% maximum relative humidity, noncondensing
Features
Features Voice Port: 2 x Voice over Internet Protocol ports using PacketCable 1.5 standard. EuroDOCSIS/ EuroPacketCable and SIP are also available

VoIP Features:
Caller ID, DTMF generation/detection, echo cancellation, T.38 Fax
Silence Suppression and Voice Activity Detection
Acoustic Echo Suppression
NCP (Network Call Signaling)
RTP (Real Time Protocol)
Supports 3, 7, 10 and 11 digit dialing
Supports codes

Voice Codec Support:
PCMU (G.711 Mu-law), PCMA (G.711 A-law)
G.726-16, G.726-24, G.726-32, G.726-40
G.728
BV16
G.723.1-5.3, G.723.1-6.3
G.729 A, G.729, G.729 E
iLBC

Management Features:
SNMP manageable via DOCSIS
SysLog available

User Support:
Wired LAN: Up to 253 users RFC Support:
TFTP client (RFC 1350)
RTP (RFC 1889)
DTMF (RFC2833)
Payload Type (RFC3264)
Dimensions & Weight
Dimensions 6.9" x 4.5" x 1.2"
Weight 0.7 lbs.
Additional Information
First Listed on Newegg March 29, 2007
