| Firewall Type | Gen 2 Stateful Filter |
|---|
| Type | Wired |
|---|
| Standard | Network: IP routing, TCP/IP, UDP, ICMP, PPPoE
IP addressing: DHCP (client and server)
Routing: RIP v1, RIPv2 (Static Routing, Dynamic Routing)
VPN/Security: IPSec (ESP), MD5, SHA-1, DES, 3DES, IKE, AES, PCI, x.509 certificates |
|---|
| Wireless Technology | None |
|---|
| Throughput | 12.5 Mbps |
|---|
| Maximum Users | > 100 |
|---|

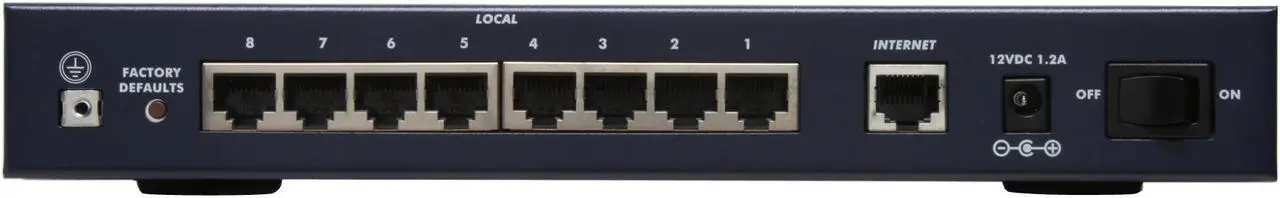

| Ports | WAN Ports: 1 x 10/100 Mbps Ethernet RJ-45 port to connect to any broadband modem
LAN Ports: 8 x 10/100Mbps auto-sensing, Auto UplinkTM RJ-45 ports (one Cat. 5 UTP cable included) |
|---|
| LAN Ports | 8 x RJ-45 |
|---|
| Wired Speed | 10/100 Mbps |
|---|
| Security | Firewall: Stateful Packet Inspection (SPI) to prevent Denial of Service (DoS) attacks (Syn flood, ICMP flood, UDP flood, “ping of death,” IP spoofing, land attack, tear drop attack, IP address sweep attack, Win Nuke attack), Intrusion Detection System (IDS) including logging, reporting and e-mail alerts, address, service and protocol), Web URL content filtering
Mode of Operation: Network Address Translation (NAT), static routing, unrestricted users per port
IP Address Assignment: Static IP address assign ment, internal DHCP server on LAN, DHCP client on WAN, PPPoE client support |
|---|
| VPN | VPN Functionality: Eight (8) dedicated VPN tunnels, Manual key and IKE Security Association (SA) assignment, 56-bit (DES), 168-bit (3DES), or 256-bit AES IP Sec encryption algorithm, MD5 or SHA-1authentication algorithm, pre-shared key, perfect forward secrecy (Diffie-Helman and Oakley client support), key life and IKE lifetime time settings, prevent replay attack, remote access VPN (client-to-site), site-to-site VPN, IPSec NAT traversal (VPN pass-through) |
|---|
| Power Input | Power requirements: 12VDC, 1.2A; plug is localized to country of sale |
|---|
