| Type | Wired |
|---|
| Standard | Network: IP routing, TCP/IP, UDP, ICMP, PPPoE
IP Addressing: DHCP (client and server)
Routing: RIP v1, RIPv2 (Static Routing, Dynamic Routing)
VPN/Security: IPSec (ESP, AH), MD5, SHA-1, DES, 3DES, IKE, PKI, AES |
|---|
| Throughput | Up to 75 Mbps LAN-to-WAN, up to 19 Mbps for 3DES IPsec tunnel |
|---|
| Maximum Users | LAN: up to 253 users |
|---|

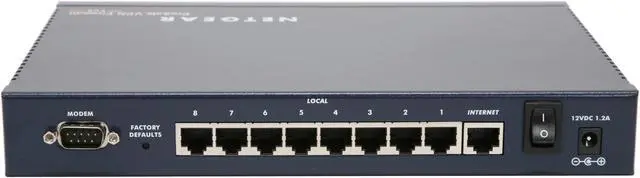

| Ports | WAN ports: 8 x 10/100Mbps RJ45 ports
LAN ports: 1 x 10/100Mbps RJ45 port
RS-232 serial port with DB-9 |
|---|
| Wired Speed | 10/100 Mbps |
|---|
| Security | SPI Firewall: Stateful Packet Inspection (SPI) to prevent notorious Denial of Service (DoS) attacks, Intrusion Detection System (IDS) including logging, reporting and e-mail alerts, address, service and protocol, Web URL keyword filtering, prevent replay attack (reassembly attack), port/service blocking. Advanced features include block Java/URL/ActiveX based on extension, FTP/SMTP/RPC program filtering
Mode of Operation: One-to-one/many-to-one Multi-Network Address Translation (NAT), classical routing, unrestricted users per port
IP Address Assignment: Static IP address assignment, internal DHCP server on LAN, DHCP client on WAN, PPPoE client support |
|---|
| VPN | VPN Functionality: Fifty (50) dedicated VPN tunnels, Manual key and Internet Key Exchange Security Association (IKE SA) assignment with pre-shared key and RSA/DSA signatures, key life and IKE lifetime time settings, perfect forward secrecy (Diffie-Hellman groups 1 and 2 and Oakley support), operating modes (Main, Aggressive, Quick), fully qualified domain name (FQDN) support for dynamic IP address VPN connections.
IPSec Support: IPSec-based 56-bit (DES), 168-bit (3DES), or 256-bit (AES) encryption algorithm, MD5 or SHA-1 hashing algorithm, AH/AH-ESP support, PKI features with X.509 v.3 certificate support, remote access VPN (client-to-site), site-to-site VPN, IPSec NAT traversal (VPN pass-through) |
|---|
