OVERVIEW

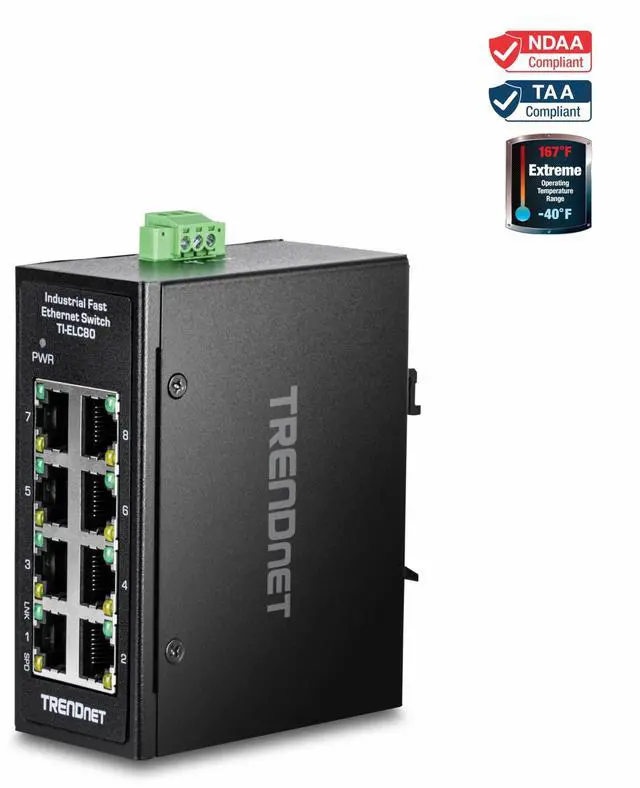

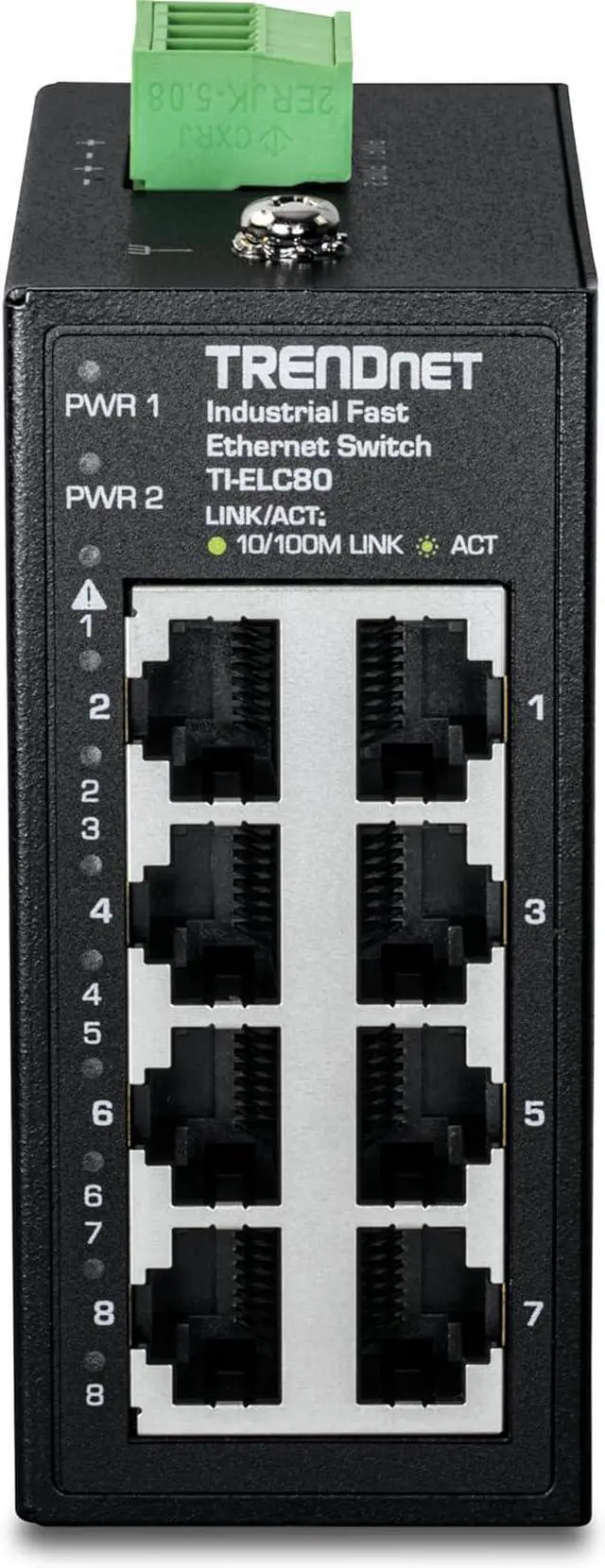

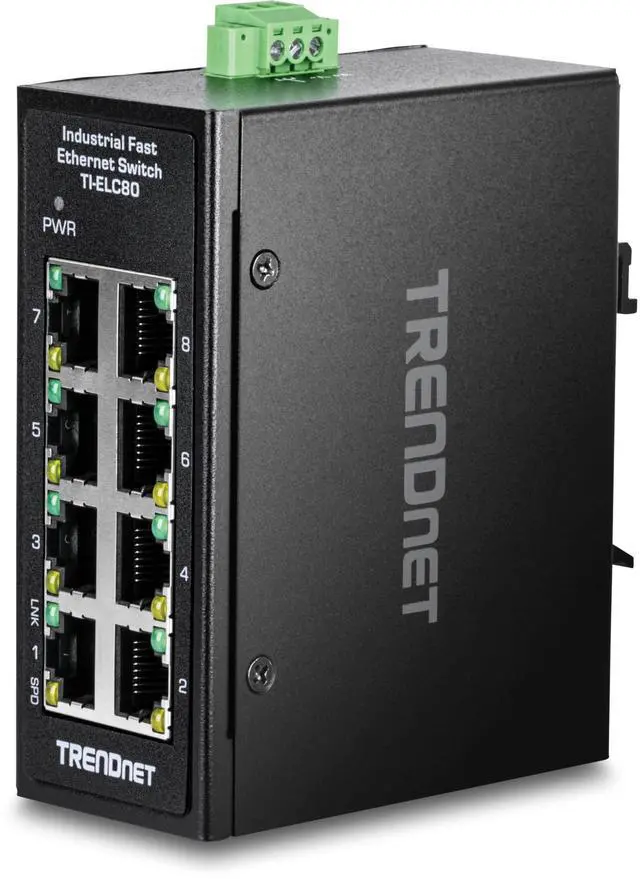

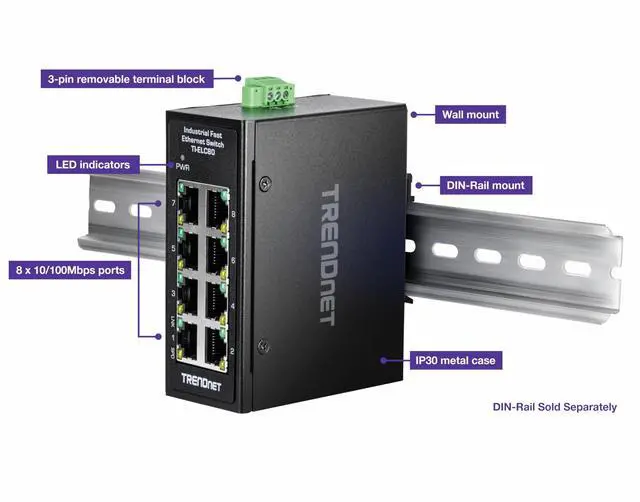

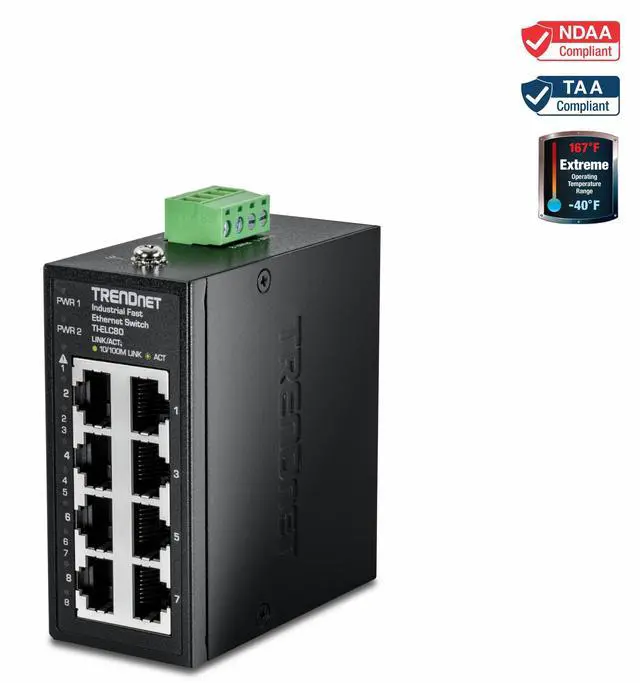

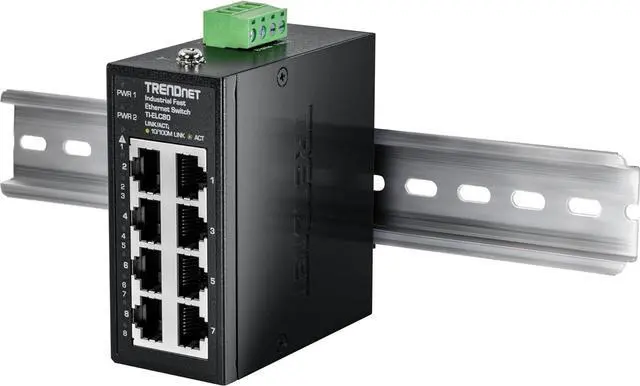

TRENDnet’s 8-Port Industrial Fast Ethernet DIN-Rail Mini Switch, model TI-ELC80, is a reliable and rugged networking solution designed for use in both extreme and demanding environments. This industrial Fast Ethernet DIN-Rail mini switch features a rugged IP30 rated metal enclosure and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial switch features five copper Ethernet ports for stable device connections. The mini-sized housing is designed to fit into most compact installation areas.
FEATURES
Fast Ethernet Ports
Up to 200Mbps full-duplex per port and total switching capacity of 1Gbps.

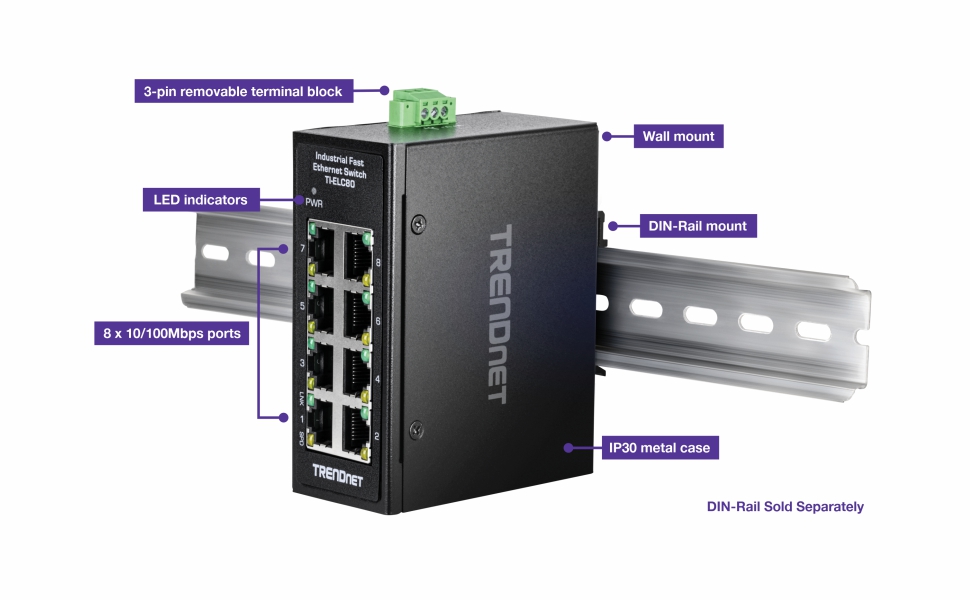

Industrial Hardened Design

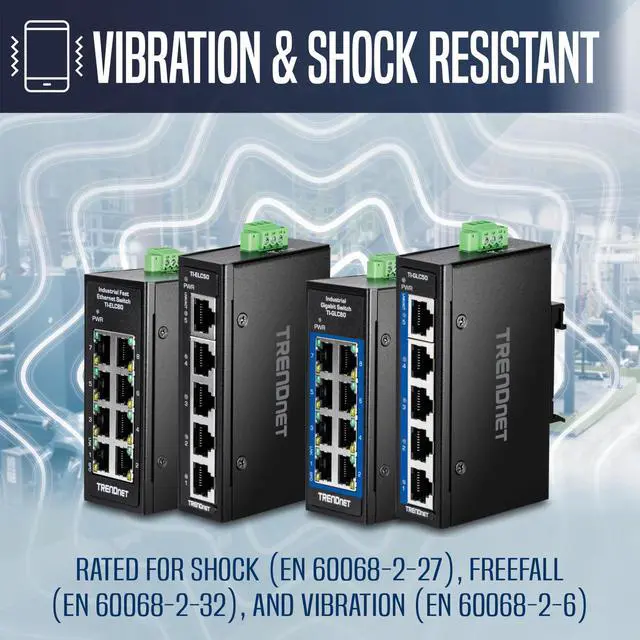

Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° – 75° C (-40° – 167° F).

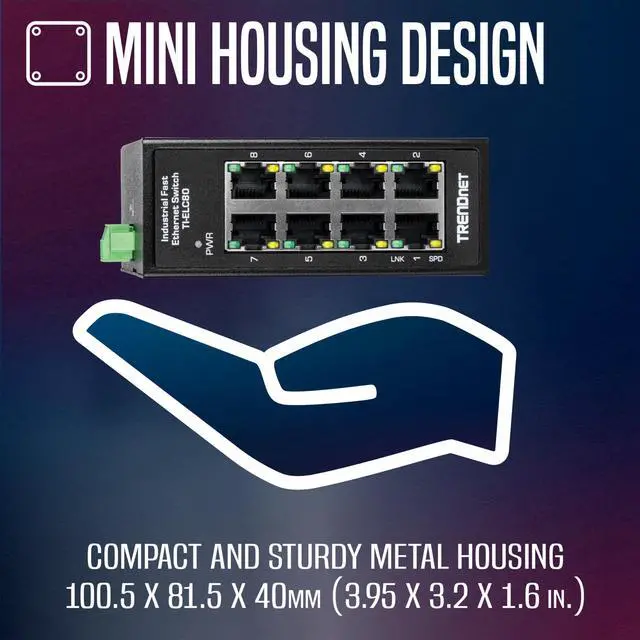

Mini Design
With a compact metal housing design, this mini network switch is well-suited for installations into most environments. Its fanless design is perfect for quiet environments that require silent operation.
NETWORKING SOLUTION

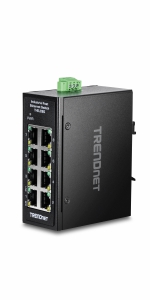

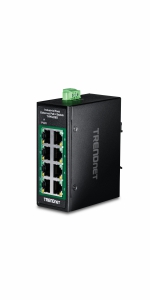

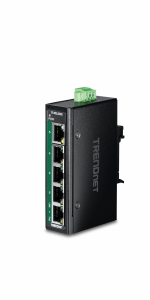

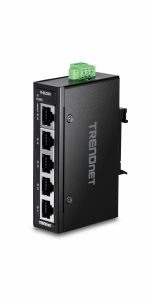

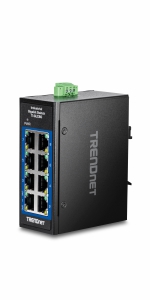

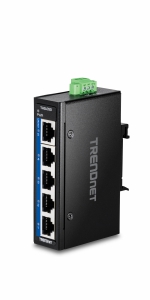

 TI-ELC50 |  TI-ELC80 |  TI-GLC50 |  TI-GLC80 |  TI-PELC50 |  TI-PELC80 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Ports | 5 x 10/100Mbps ports | 8 x 10/100Mbps ports | 5 x Gigabit ports | 8 x Gigabit ports | 4 x 10/100Mbps PoE+ ports •1 x 10/100Mbps port | 8 x 10/100Mbps PoE+ ports |
| NDAA / TAA compliant | ? | ? | ? | ? | ? | ? |
| IP30 metal case | ? | ? | ? | ? | ? | ? |
| Switching capacity | 1Gbps | 1.6 Gbps | 10Gbps | 16Gbps | 1Gbps | 1.6Gbps |
| MAC Address Table | 1K entries | 1K entries | 2K entries | 4K entries | 1K entries | 1K entries |
| Data RAM Buffer | 56KB | 56KB | 125KB | 125KB | 56KB | 1MB |
| Forwarding rate (64-byte packet size) | 0.7Mpps | 1.19Mpps | 7.44Mpps | 11.58Mpps | 0.744Mpps | 1.19Mpps |
| Operating Temperature | - 40° - 75° C (-40° - 167° F) | - 40° - 75° C (-40° - 167° F) | - 40° - 75° C (-40° - 167° F) | - 40° - 75° C (-40° - 167° F) | -40° – 75°C (-40° – 167°F) | -40° – 75°C (-40° – 167°F) |
| Operating Humidity | Max. 95% non-condensing | Max. 95% non-condensing | Max. 95% non-condensing | Max. 95% non-condensing | Max. 95% non-condensing | Max. 95% non-condensing |
| Dimensions | 3.95 x 2.36 x 1 in. | 3.95 x 3.2 x 1.6 in. | 3.95 x 2.36 x 1 in. | 3.93 x 3.16 x 1.53 in. | 3.95 x 2.36 x 1 in. | 3.93 x 3.16 x 1.53 in. |
