OVERVIEW

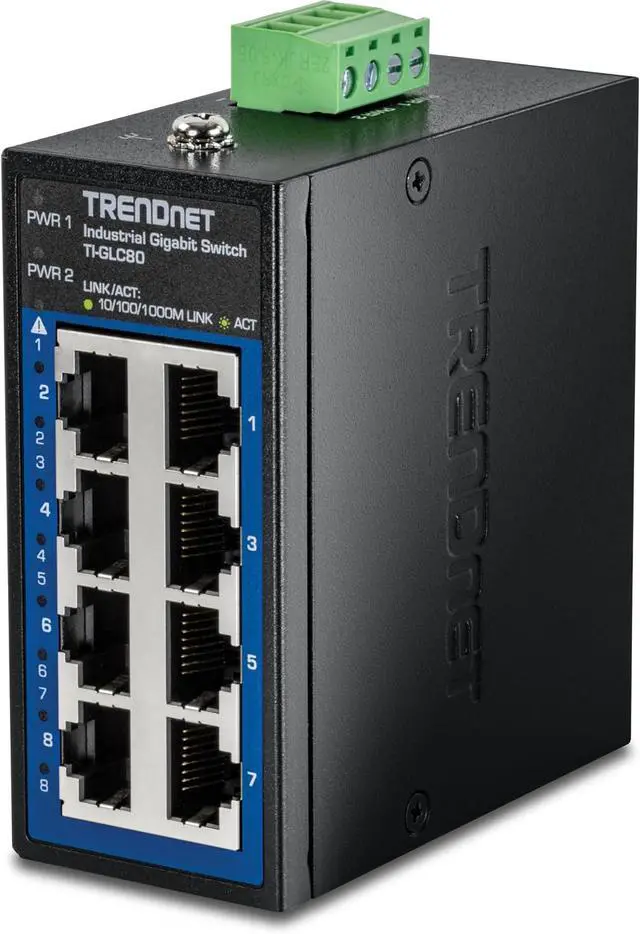

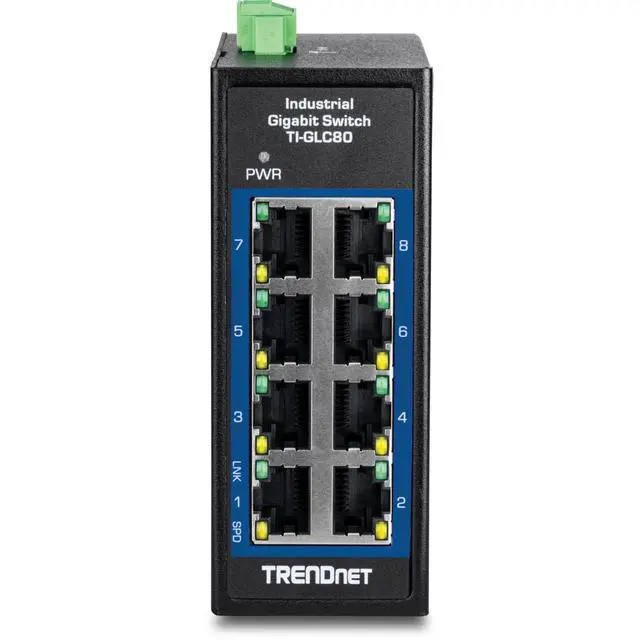

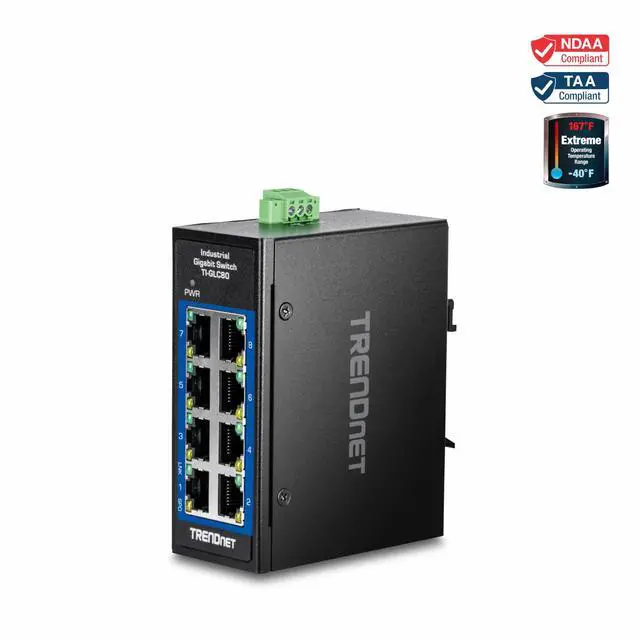

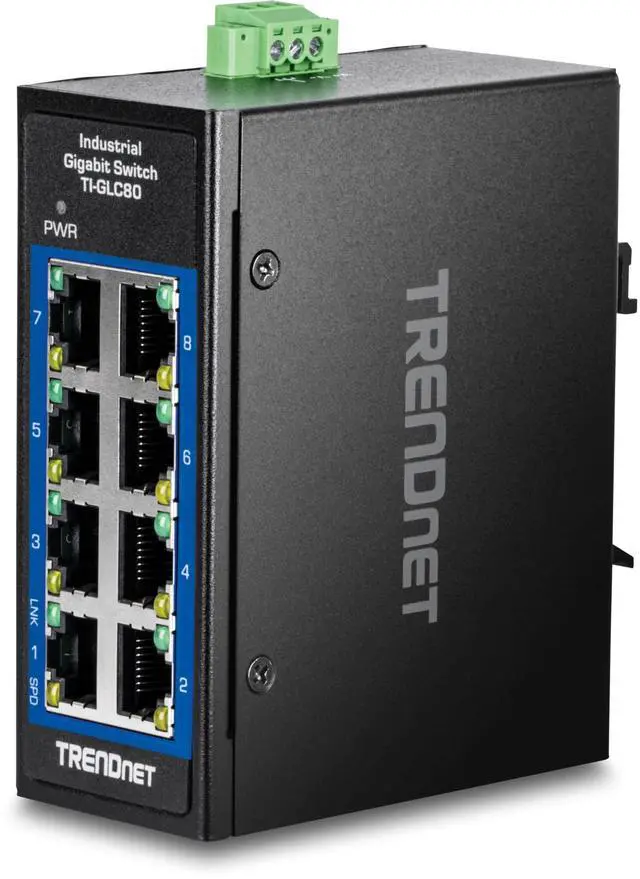

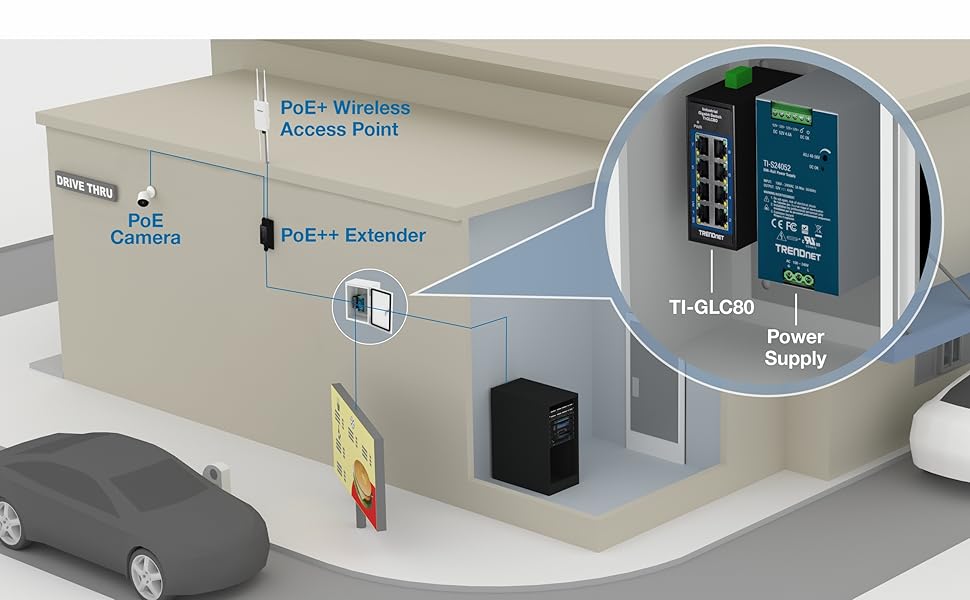

TRENDnet’s 8-Port Industrial Gigabit DIN-Rail Mini Switch, model TI-GLC80, is a reliable and rugged networking solution that is designed for use in both extreme and demanding environments. This compact industrial switch features a rugged IP30 rated metal enclosure and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial mini switch features eight copper Gigabit ports for high-speed device connections. The mini-sized housing is designed to fit into most compact installation areas.
FEATURES
Gigabit Ports
This compact industrial switch features eight copper gigabit ports for high-speed device connections.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° – 75° C (-40° – 167° F).

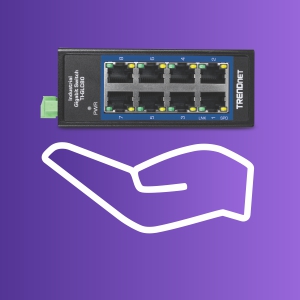

Compact Design
With a compact metal housing design, this mini network switch is well-suited for installations into most environments. Its fanless design is perfect for quiet environments that require silent operation.

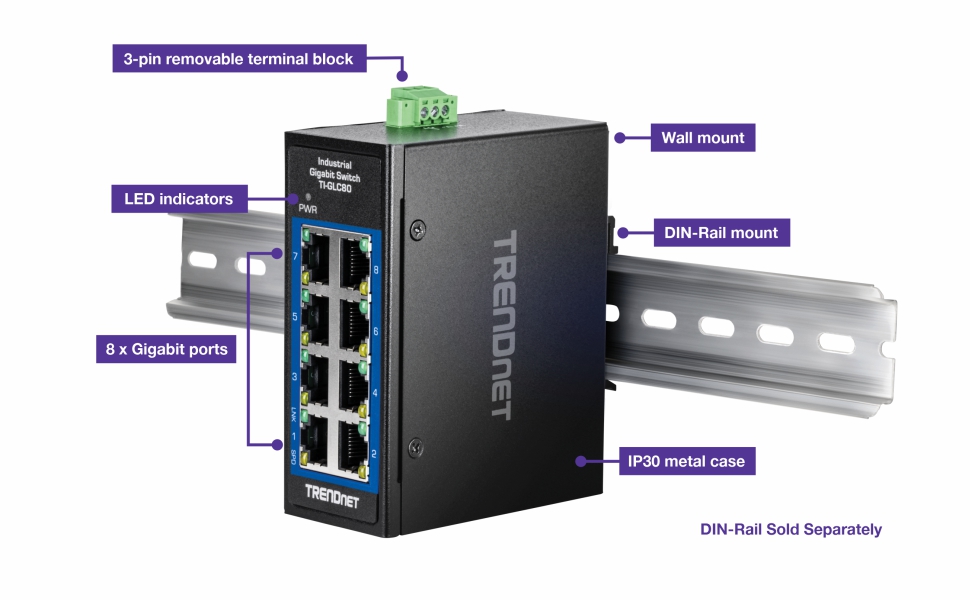

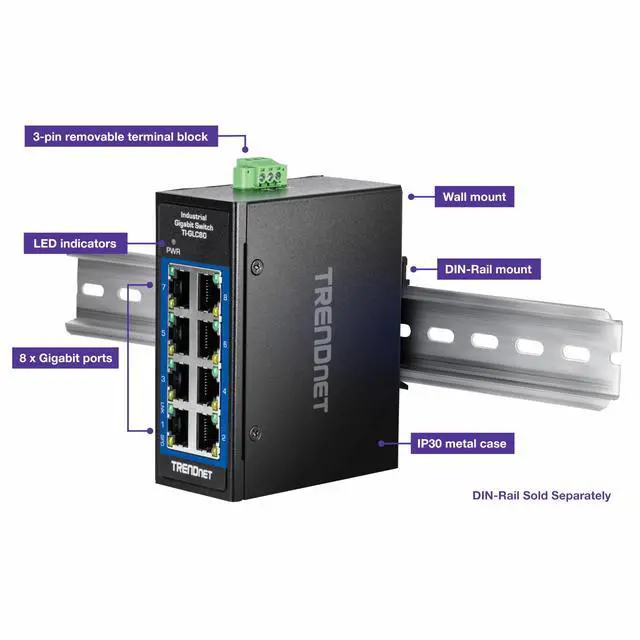

8-Port Industrial Gigabit DIN-Rail Mini Switch
- 8 x Gigabit ports
- Hardened IP30 rated metal mini switch
- Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
- 16Gbps switching capacity

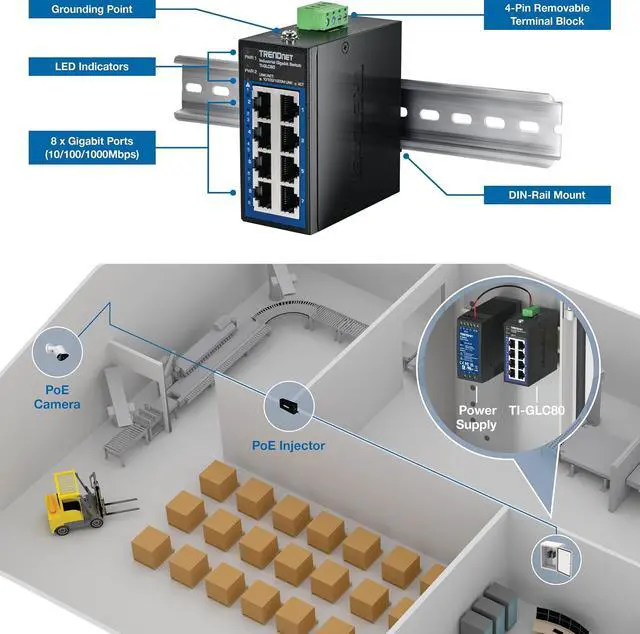

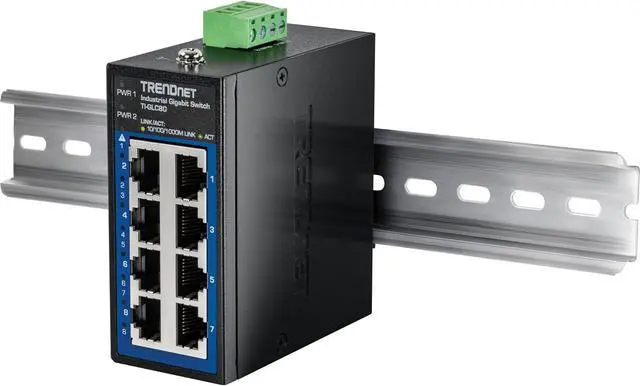

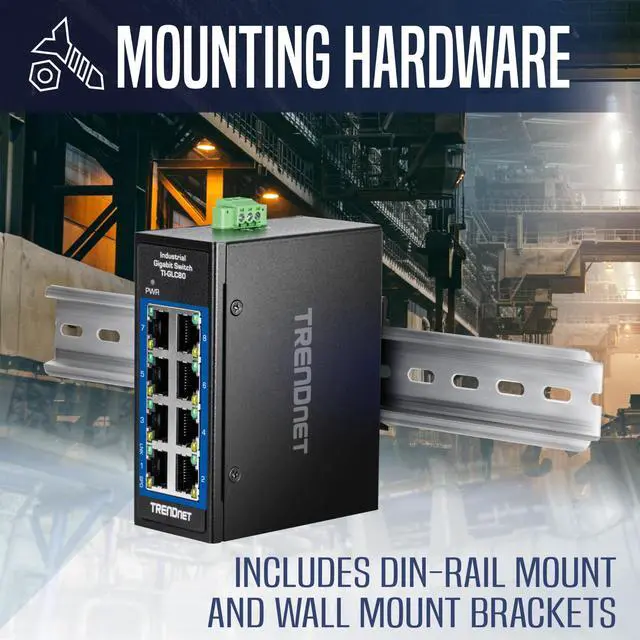

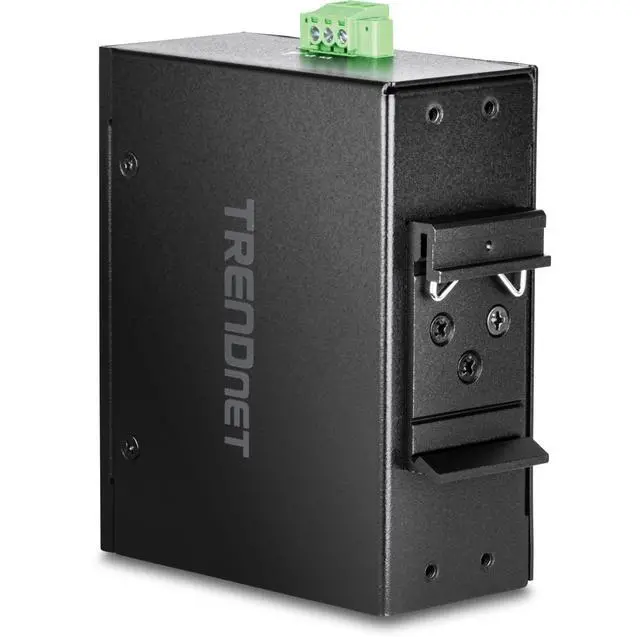

- Includes DIN-Rail mount and wall mount brackets
- Power supply sold separately (model: TI-M6024)
- NDAA / TAA compliant

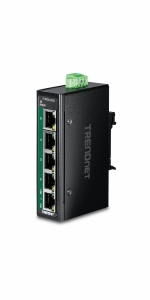

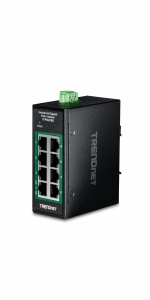

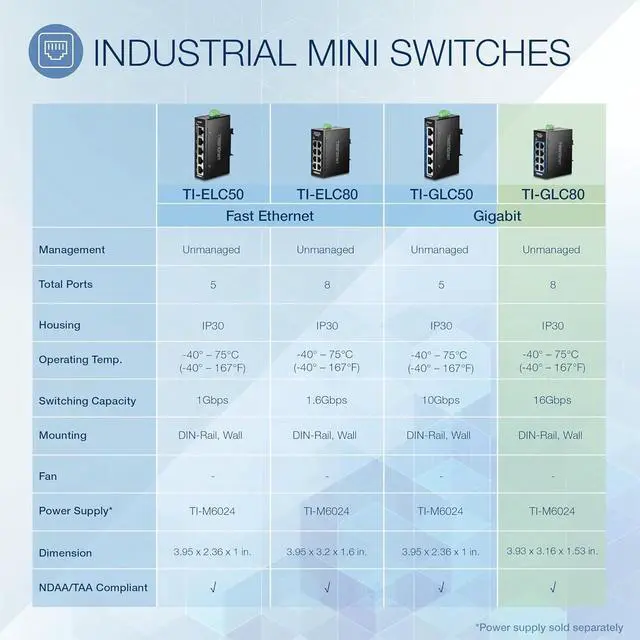

 TI-ELC50 |  TI-ELC80 |  TI-GLC50 |  TI-GLC80 |  TI-PGLC50 |  TI-PGLC80 | |
|---|---|---|---|---|---|---|
| Price | — | — | — | — | — | — |
| Ports | 5 x 10/100Mbps ports | 8 x 10/100Mbps ports | 5 x Gigabit ports | 8 x Gigabit ports | 4 x Gigabit PoE+ ports • 1 x Gigabit port | 8 x Gigabit PoE+ ports |
| NDAA / TAA compliant | ? | ? | ? | ? | ? | ? |
| IP30 metal case | ? | ? | ? | ? | ? | ? |
| MAC Address Table | 1K entries | 1K entries | 2K entries | 4K entries | 2K entries | 4K entries |
| Data RAM Buffer | 56KB | 56KB | 125KB | 125KB | 125KB | 125KB |
| Switching capacity | 1Gbps | 1.6 Gbps | 10Gbps | 16Gbps | 10Gbps | 16Gbps |
| Forwarding rate (64-byte packet size) | 0.7Mpps | 1.19Mpps | 7.44Mpps | 11.58Mpps | 7.44Mpps | 11.58Mpps |
| Operating Temperature | - 40° - 75° C (-40° - 167° F) | - 40° - 75° C (-40° - 167° F) | - 40° - 75° C (-40° - 167° F) | - 40° - 75° C (-40° - 167° F) | - 40° - 75° C (-40° - 167° F) | - 40° - 75° C (-40° - 167° F) |
| Operating Humidity | Max. 95% non-condensing | Max. 95% non-condensing | Max. 95% non-condensing | Max. 95% non-condensing | Max. 95% non-condensing | Max. 95% non-condensing |

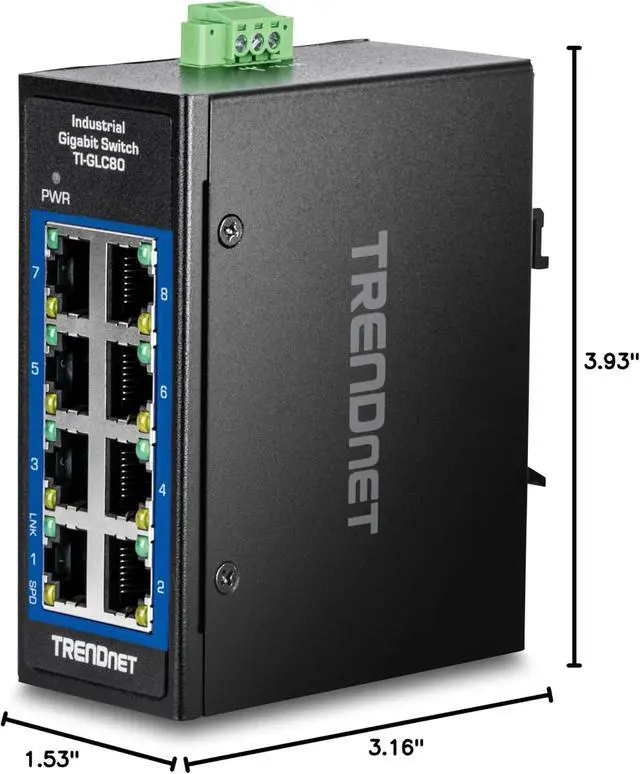

| Dimensions | 3.95 x 2.36 x 1 in. | 3.95 x 3.2 x 1.6 in. | 3.95 x 2.36 x 1 in. | 3.93 x 3.16 x 1.53 in. | 3.95 x 2.32 x 1 in. | 3.93 x 3.18 x 1.53 in. |
