LPG Gas Fireplace Fire Pit Flame Failure Safety Control Valve Kit Fits Gas BBQ Fire Pit Gas Heater Low Pressure Propane Fire Pit with Thermocouple 67385/472966 with 3/8" Flare Inlet & Outlet
- Kit Include:1/2 PSI brass propane gas control valve assembly,A zinc alloy knob (on-off mark), M8*1 thread with 600 mm/23.62 inch length thermocouple,Pressure is Low-Pressure 65Mbar(1/2PSI),Suitable for LPG gas low -pressure system (max BTU rating: 50000)
- Size: Thermocouple Length: 600mm/23.62inch; Head Tip: M8; Knob Diameter 44mm; "D" Insert for Valve: 6.0-6.1mm(Low Working Pressure Max 1/2 PSI (65mbar), Main Control Valve In & Out with 3/8 Male Flare thread (Max BTU rating: 50000).)

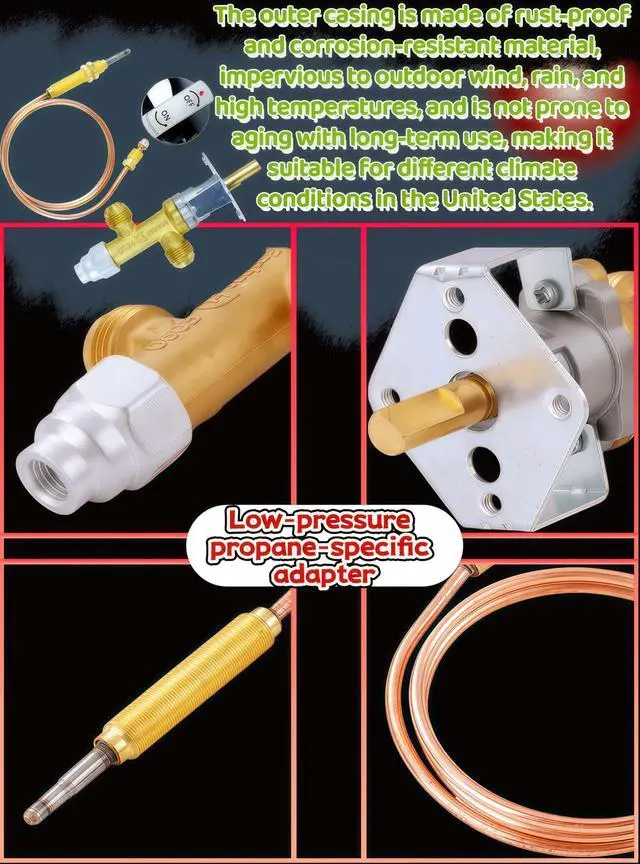

- The material is made of high-quality brass, which provides better pit pressure and corrosion resistance, reducing the need for replacement, unlike low-quality brass that is prone to damage
- Function:Thermocouple plays the role of a sensor, it senses the flame, will transmit a signal to the solenoid valve in the control valve, the solenoid valve receives the signal before opening the gas, in order to successfully ignite and keep the flame does not go out. In the installation, the control valve and thermocouple should be well connected, so the control valve will receive the signal transmitted by the thermocouple, it will pass gas and ignite.
- Propane LPG gas fire pit control safety valve kit is suitable for outdoor fire pits, fireplaces, and gas ovens, etc. it's LOW-PRESSURE PROPANE ONLY.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

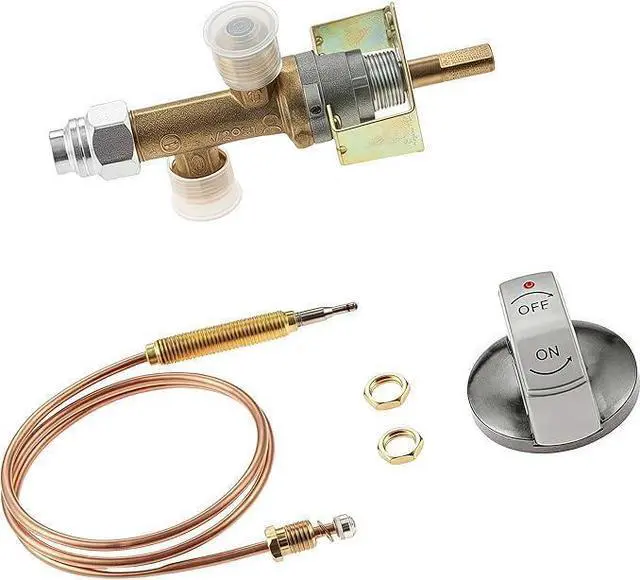

Package list:
1 x 1/2 PSI brass propane gas control valve
1 x zinc alloy knob
1 x 60cm thermocouple
1, The 65 mbar propane gas control safety valve is used for gas BBQ grill, gas fire pit, gas heater, etc Inlet and outlet thread size: 3/8" (5/8"-18UNF)Flare male threa thread
2, Pressure is Low-Pressure 65Mbar(1/2PSI),Suitable for LPG gas low -pressure system (max BTU rating: 50000)
3, Thermocouple Length: 60cm/23.6inch with M8 tip and NUT,The probe is highly sensitive and can sense temperature fast,stable performance
4, This low-pressure LPG propane gas fireplace fire pit flame fail-safe control valve kit is easy to install,Installed vertically at the opening of the equipment container. Secure the safety control valve with screws through four threaded holes
Note:Our product is a low-pressure valve, the inlet pressure does not exceed 6.5 kPa
Operation Instructions
1). Fix the valve on a plate or board of your grill or fire pit by the head screw and flange.
2). Connect your inlet and outlet hose on inlet and outlet side. (faston it tightly enough in case of gas leakage)
3). Faston the thermocouple nut M*8 on the valve end tightly
4). Connect thermocouple and end thread well
5). Open gas by correct size knob and push your valve around 5-10s till the thermocouple head is heated enough.
6). Release your hand and it work properly If when you release hand, gas valve shut off again, Please check
a. If your thermocouple is always be heated on flame
b. If the thermocouple end is well connect with valve
c. If the inlet and outlet side well connect with hose you have
Possible problems occurs during your use:
1) Valve after turn can not stick during using
Reason:
a. The thermocouple head is not heated in right place, please adjust thermocouple tip position.
v b. The connection between thermocouple end and valve is not connected tight enough or too tight, please adjust the screw again.
c. Need to push valve first then turn the spindle and hold for few seconds, it cannot stick immediately may need 5-15 Seconds.
