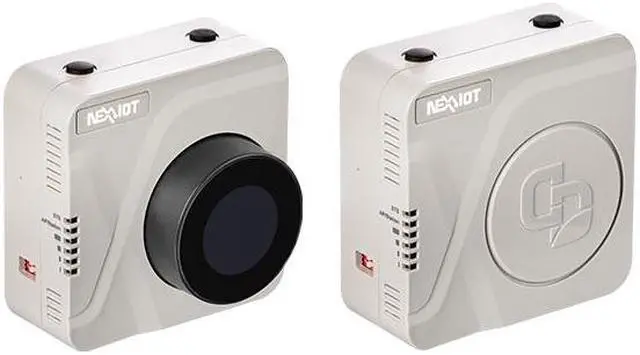

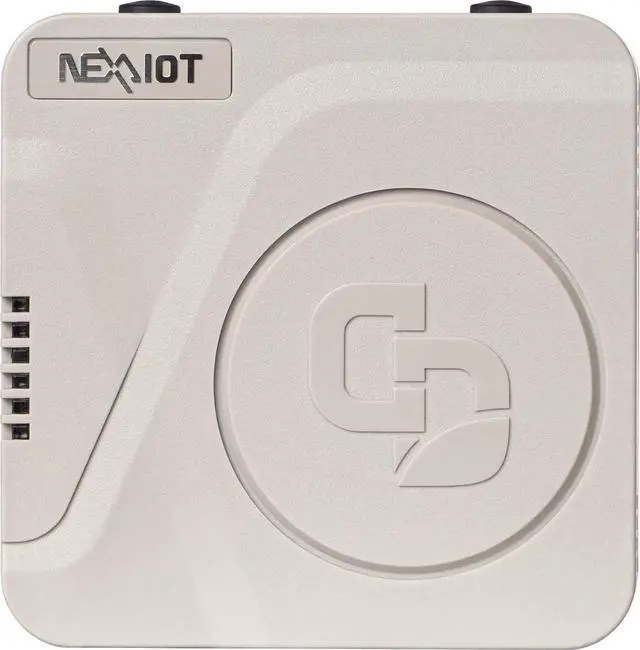

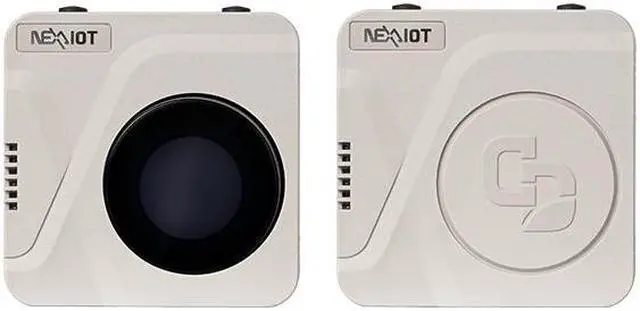

NexAIoT Remote Data Acquisition System | nDAS6000

Overview

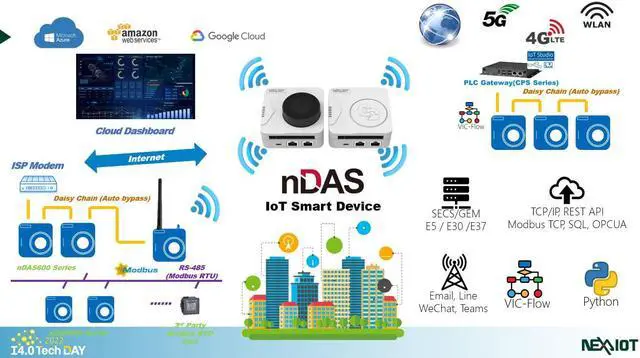

nDAS is a data acquisition system that can be applied in green energy, energy management, remote control, HVAC & AUQA, FA, etc. , and Industrial communication requires data exchange. When you are far away from the device, you can monitor the status of the device in real time, collect data, connect data, etc. Support data storage and cloud storage, simple settings can easily connect to the cloud. You can use it with different functions IO Boards to meet various occasions and needs.

AIoT Software free download https://www.aiotcloud.dev/en/community-version

Specifications

CPU Support

• Arm® Cortex®-A7 Core

Main Memory

• DDR3L-1866 SDRAM 512MB

Display Option

• WIFI module : M.2 2230 Wi-Fi modules, IEEE802.11 a/b/g/n/ac.KEY_TAB


• Mount : wall mount bracket

Front I/O Interface Status LEDs

• LED1

  - green : nomal

  - red : error LED2(WIFI mode) -green : infrastructure mode -red : AP modeKEY_TAB


• LED3-6 : Wi-Fi in infrastructure mode, the intensity of the Wi-Fi wireless signal is indicated by the strength of the green light

Rear I/O Interface

• 3P : powerKEY_TAB


• 21P
  - right 3P : RS485
  - other :N/A

Storage Device

• NAND EMMC 16G

Power Requirements

• 9-30 VDC

Dimensions

• 90mm x 38.7mm x 90mm(W) x (D) x (H) mm w/o din rail bracketKEY_TAB


• 90mm x 46.7mm x 90mm(W) x (D) x (H) mm w/ din rail bracket

Construction

• fanless

Environment

• Operating temperature(Ambient with air flow) : -25°C to 70°C;0°C to 50°C (with OLED or WIFI module)KEY_TAB


• Storage temperature : -40°C to 85°C


• Relative humidity : 95 %, no condensing

Certifications

• CE
  -EN 61326 1

  - EN 61000 6-2

  - EN 61000 6-4

  - EN 61131 2KEY_TAB


• FCC Class A

Weight Information

• 0.4kg
