NEXCOM Vehicle computer | Industrial Mini PC VTC 1910-S Intel Atom® processor Bay Trail E3815, 1.46GHz 1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/ 1333MHz up to 8GB. Default 4GB

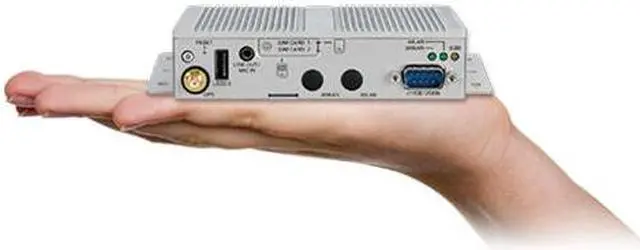

VTC 1910-S, a super slim, rugged and entry-level vehicle computer with Intel Atom^® processor E3815 (1.46GHz), is designed for the harsh in-vehicle environment. It allows to comply with stringent MIL-STD-810G military standard in rugged, fanless and compact mechanism. Because of the super slim design, it is especially for the vehicles with limited space to locate the computer system, but without compromising with its space to scarify its features.

VTC 1910-S has on board CAN 2.0B and optional OBD interface (SAE J1939/ J1708) for vehicle diagnostics and driver behavior management. An advanced GPS receiver supports GPS/Glonass/QZSS/Galileo/Beidou. VTC 1910-S features WLAN and WWAN wireless data and voice connectivity (collocate with VIOB-DA-01). With external 2 x SIM socket which can support a better connectivity quality by software. VTC 1910-S keeps the flexibility to meet different demands for telematics applications, such as IoT Gateway infotainment, fleet management and dispatching system.

AIoT Software free download https://www.aiotcloud.dev/en/community-version

VTC 1910-S, a super slim, rugged and entry-level vehicle computer with Intel Atom® processor E3815 (1.46GHz), is designed for the harsh in-vehicle environment. It allows to comply with stringent MIL-STD-810G military standard in rugged, fanless and compact mechanism. Because of the super slim design, it is especially for the vehicles with limited space to locate the computer system, but without compromising with its space to scarify its features.

VTC 1910-S has on board CAN 2.0B and optional OBD interface (SAE J1939/ J1708) for vehicle diagnostics and driver behavior management. An advanced GPS receiver supports GPS/Glonass/QZSS/Galileo/Beidou. VTC 1910-S features WLAN and WWAN wireless data and voice connectivity (collocate with VIOB-DA-01). With external 2 x SIM socket which can support a better connectivity quality by software. VTC 1910-S keeps the flexibility to meet different demands for telematics applications, such as IoT Gateway infotainment, fleet management and dispatching system.

Vehicle Telematics Comes in a Small Package to Create Big Advancement in Fleet Management

NEXCOM VTC 1910 leverages untapped vehicle telematics to advance fleet management with an easy remedy. Featuring Intel Atom® processor E3815, the telematics gateway VTC 1910 is geared for data acquisition, edge computing, and network communication. Integrated with onboard systems, the VTC 1910 can extract vehicle telematics, perform preliminary analysis, and stream and act on results, allowing for anomaly alerts and real-time adjustments to optimize planning and operations for public transport services, commercial fleets and more.

The VTC 1910 can make vehicle telematics shine on the road. More capable than most telematics gateways on the market, the VTC 1910 can not only gather but also analyze vehicle data. In public transportation services, bus carriers can use the VTC 1910 to conduct an initial assessment on passenger overload with a combination of, for instance, headcount, load capacity, and tire pressure data. The fare evasion can also be addressed closely with real-time comparison of passenger count and collected fare. With new perspectives on vehicle telematics provided by the VTC 1910, bus carriers can improve road safety, passenger satisfaction, and operation performance.

Fleet trucks and heavy duty machines can get a telematics revamp with the VTC 1910, transforming into a mobile node of the IoT. Equipped with rich interfaces and wireless connectivity, the VTC 1910 can read and compile vehicle status and diagnostic messages from vehicle control networks and keep control centers updated on vehicle locations and work progress. Moreover, users can enjoy uninterrupted data transmission by taking advantage of the flexibility to switch between data service networks for better LTE connection.

KEY_TAB

Specifications

CPU

• Intel Atom^® processor Bay Trail E3815, 1.46GHz

Memory

• 1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/ 1333MHz up to 8GB. Default 4GB

Storage

• 1 x mSATA


• SATA DOMKEY_TAB

Expansion

• 1 x Full size mini-PCIe socket (USB 2.0)


• 1 x Full size mini-PCIe socket (mSATA + PCIe)

Function

• 1 x u-blox NEO-M8N on board (support GPS/Glonass/QZSS/Galileo/BeiDou)


• Built-in G-sensorKEY_TAB


• TPM2.0

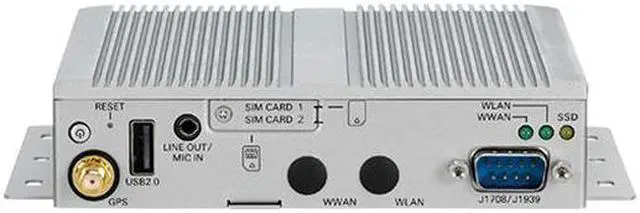

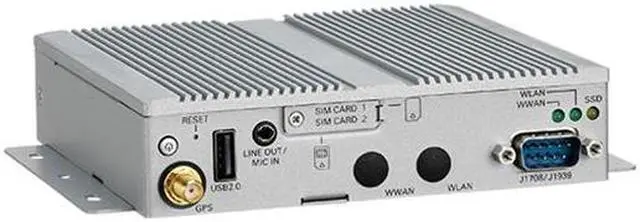

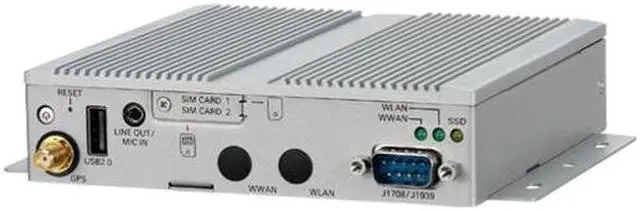

I/O Interface-Front

• 1 x Power button with LED


• 3 x LED for WWAN, WLAN, SSD


• 1 x Reset button


• 2 x SIM socket (Micro Type) with cover


• 1 x DB9 connector for optional SAE J1939 and J1708 modules


• 1 x Line-out/ MIC-In


• 1 x Type A USB 2.0 compliant host, supporting system boot up


• 3 x antenna hole for GPS/ WWAN/ WLAN

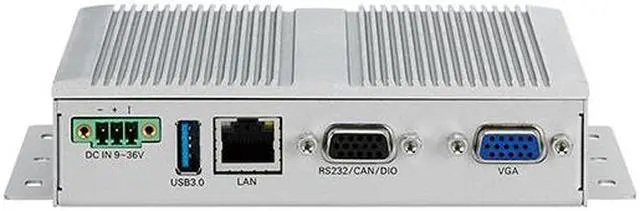

I/O Interface-Rear

• 1 x Phoenix connector for Power/GND/Ignition input


• 1 x Type A USB 3.0 compliant host, supporting system boot up


• 1 x RJ45 10/100/1000 Fast Ethernet with LED 1 x DB15 VGA, resolution up to 2560 x 1600 @60Hz


• 1 x DB15 for 2 x RS232 (TX/RX), 1 x RS485 (TX/RX),1 x CAN 2.0B, 3 x DI, 3 x DO

Operating System

• Windows 7, WES7


• Windows 8, WES8


• Windows 10 Linux (by request)

Environment

• Temperature:

  Operating temperatures: -40°C to 70°C

  Storage temperatures: -45°C to 85°C

  Damp Heat Test per EN60068-2-30


• Humidity:

  IEC60068-2-3, Damp Heat Steady State Test,40C,95%,48Hrs


• Vibration:

  IEC 60068-2-64, 2G

  Operating: MIL-STD-810G, 514.6C Procedure 1, Category 4

  Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24


• Shock:

  MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g Crash hazard: Procedure V, ground equipment=75g

Dimensions

• 130mm (W) x 120mm (D) x 32mm (H) (5.12 x 4.72 x 1.26)


• Weight: 0.6 kg (1.3 lbs)

Certifications

• CE approval


• FCC Class B


• E13 mark

Power Management

• Selectable boot-up & shut-down voltage for low power protection by software


• Setting 8-level power on/ off delay time by software Status of ignition and low voltage can be detected by software


• Support S3/ S4 suspend mode
