NexAIoT Industrial Gateway | NIO51
- Support EZ Mesh and Wi-Fi client router operation mode
- Selectable 2.4GHz/5GHz, 2x2 MIMO
- Support serial to Ethernet' serial to Wi-Fi and Ethernet to Wi-Fi
- Support Modbus/RTU to Modbus/TCP

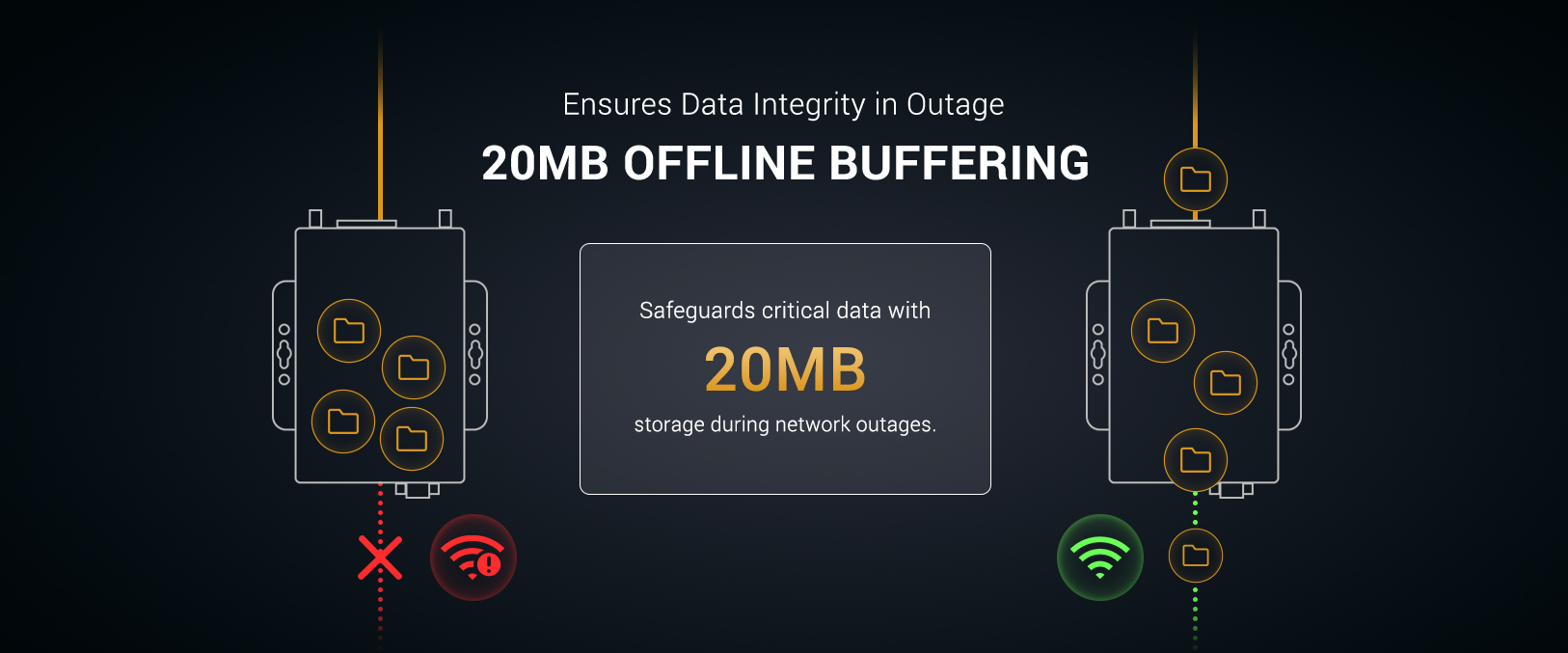

- Built-in offline port buffer with 20MB of storage
- High immunity to Surge, ESD & EFT protection
- Up to 921.6Kbps baud rate for RS-232/422/485 transmissions
- Web-based configuration
- Support serial data log
- Support nCare remote configuration
- Wide DC input range with 12V-48V
- Wide operation temperature from -40°C~70°C
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

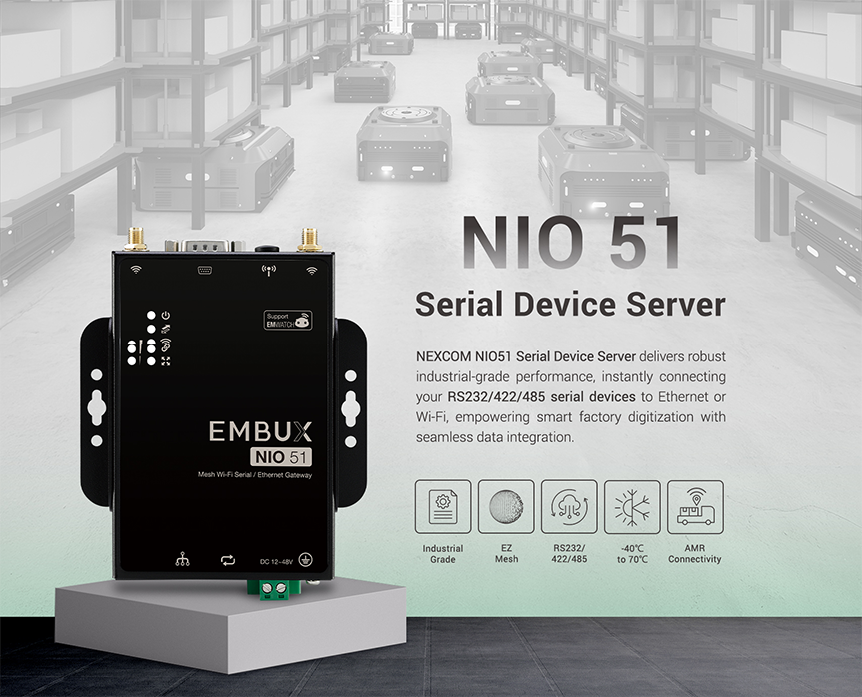

NIO 51 is an industrial Wi-Fi gateway designed for reliable wireless communication and data integration in automated industrial environments. It supports serial-to-Ethernet communication and wireless networking to enable seamless connectivity between industrial devices and control systems.
Equipped with dual-band 2.4 GHz and 5 GHz Wi-Fi radios, NIO 51 supports EZ Mesh technology to establish a flexible wireless mesh network. This allows devices to form a distributed wireless infrastructure without complex wiring, supporting mobile and dynamic industrial deployments such as autonomous mobile robots (AMRs) and automated guided vehicles (AGVs).
NIO 51 integrates isolated serial interfaces and Ethernet connectivity, enabling Modbus RTU to TCP communication for industrial equipment. It is designed to support remote monitoring and data acquisition while maintaining stable wireless performance in environments with signal interference and physical movement.
With an industrial-grade design and wide-range DC power input, NIO 51 is suitable for factory automation, warehouse logistics, and mobile industrial applications requiring reliable wireless connectivity and protocol integration.
Wireless Interface
- IEEE 802.11 a/b/g/n
- 2 x 2 MIMO
- Dual-band 2.4 GHz / 5 GHz
Serial Interface
- RS-232 / RS-422 / RS-485 with isolation
- Data bits: 8
- Stop bits: 1
- Parity: none, even, odd
- Baud rate: 300 bps to 921.6 Kbps
Ethernet Interface
- 10/100 Mbps Ethernet
Power Requirements
- Input voltage: 12 to 48 VDC
- 2-pin removable terminal block
LED Indicators
- Power / Status
- Serial status
- RSSI indicators
- Wi-Fi 2.4 GHz / 5 GHz status
- Ethernet Link / Activity
- Extension module status
Reset Function
- Factory default reset via hardware button
Connector Types
- DC input: Terminal block
- Ethernet: RJ-45
- Serial: DB9
Wi-Fi Operating Modes
- EZ Mesh
- Client Router
Wi-Fi Security (Client Mode)
- WEP (64-bit / 128-bit)
