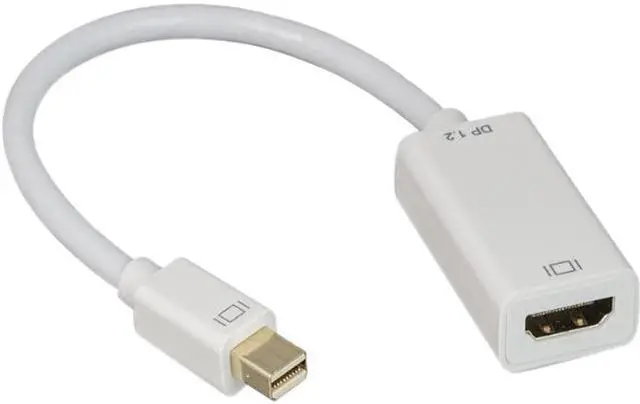

    Nippon Labs Mini DisplayPort 1.2 to HDMI Passive Adapter 4K, White MiniDP to HDMI Converter Adapter, 30DP-MDP-HM-4K

    • Support Mini DisplayPort 1.2a & HDMI 1.4b specification
    • Support HDMI resolutions up to 4K x 2K@30Hz

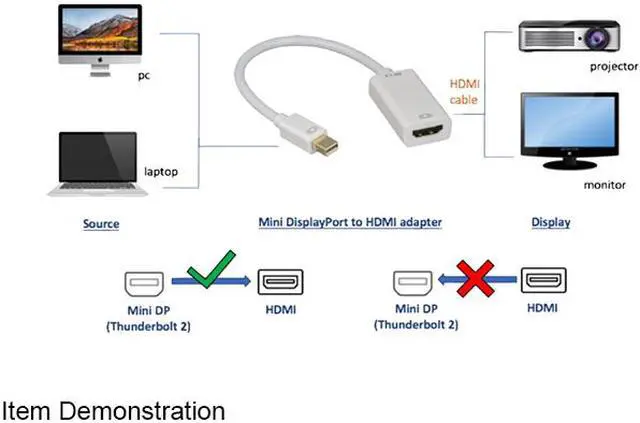

    • Connect your MacBook Pro, MacBook Air, iMac or other Mini DisplayPort (DP, DP++, DisplayPort++) / Thunderbolt 2 equipped computer to an Ultra HD monitor, TV or projector with HDMI input (An HDMI cable is required)
    • Gold-plated connector provides superior transmission, high reliability and durability
    • Deliver ultra high definition audio and video signals from your computer to a monitor for video streaming or gaming
    • This is a passive adapter that requires the connected source to have a DP++ port (DisplayPort++)
    • All relevant materials are complied with RoHS directive
    +
    +
    Specs
    Reviews
    See all Q & A

    Any questions? Ask CelesteSM will help you find out quickly.

    Learn more about the Nippon Labs 30DP-MDP-HM-4K

    Model
    Brand Nippon Labs
    Model 30DP-MDP-HM-4K
    Details
    Type Mini DP to HDMI
    Color White
    Specifications Connector A: Mini DisplayPort Male
    Connector B: HDMI Female
    Type: Mini DisplayPort to HDMI Passive Adapter
    Connectors
    Connector A 1x Mini DisplayPort male
    Connector B 1x HDMI 19pin female
    Features
    Features Support Mini DisplayPort 1.2a and 4 lanes.

    Support Mini DisplayPort 1.2a input and HDMI 1.4b output.

    Support HDMI highest video resolutions 4Kx2K@30Hz.

    Support multiple color format: RGB 6/8/10/12-bit per component (bpc) and YCbCr4:4:4, YCbCr4:2:2,8/10/12bpc.

    HDMI 1.4b compliant with maximum data rate 3.0Gbps.

    Support 10/12-bit deep color 1080p up to 2.25Gbps.

    Content protection of HDCP Rx and Tx keys to support HDCP repeater.

    Support up to 8 channel LPCM, compressed audio (AC-3, DTS) and HBR audio format.

    Support up to 192 kHz audio frame rate and up to 24-bit audio sample size.

    Powered from Mini DisplayPort source.
    Additional Information
    First Listed on Newegg April 08, 2022

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 1 year
    • Limited Warranty period (labor): 1 year
    • Read full details

    Return Policies

      We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

    • Return for refund until: January 31, 2027
    • Return for replacement until: January 31, 2027
    • This item is covered by Newegg.com's Extended Holiday Return Policy.
    • Read full return policy for details.
    LOADING...
    LOADING...

    The Nippon Labs 30DP-MDP-HM-4K is a passive Mini DisplayPort-to-HDMI adapter for connecting a DP++-equipped MacBook, iMac, or other compatible computer to an HDMI display at up to 4K@30Hz; an HDMI cable is required.

    Recommended For

    • People using a Mini DisplayPort or Thunderbolt 2 MacBook, iMac, or PC who want to connect it to an HDMI monitor or TV for everyday desktop work.
    • Users connecting an older Mini DisplayPort computer to an HDMI classroom, meeting-room, or presentation projector, provided the computer’s port supports DP++.
    • People who want to use a compatible Mini DisplayPort computer with a 4K HDMI screen for static work or casual viewing, and are comfortable with 4K output capped at 30Hz.
    • People who need a compact, driver-free connection from a Mini DisplayPort or Thunderbolt 2 laptop to an HDMI display for a simple single-screen setup.

    Spec Summary

    AttributeValue
    Best ForConnecting a Mini DisplayPort source to an HDMI display for video and audio, with video resolutions up to 4K × 2K at 30 Hz
    Connectors And CompatibilityPassive Mini DisplayPort male to HDMI 19-pin female adapter; supports Mini DisplayPort 1.2a input and HDMI 1.4b output
    Video And Signal SupportSupports up to 4K × 2K at 30 Hz, RGB 6/8/10/12-bit and YCbCr 4:4:4 or 4:2:2 at 8/10/12-bit; supports 10/12-bit deep color at 1080p up to 2.25 Gbps. HDMI maximum data rate is 3.0 Gbps
    Audio SupportSupports up to 8-channel LPCM, AC-3, DTS and HBR audio, with audio frame rates up to 192 kHz and sample sizes up to 24-bit
    Content Protection And PowerSupports HDCP Rx and Tx keys for HDCP repeater operation; powered from the Mini DisplayPort source
    ColorWhite
    Model IdentifiersNippon Labs 30DP-MDP-HM-4K
