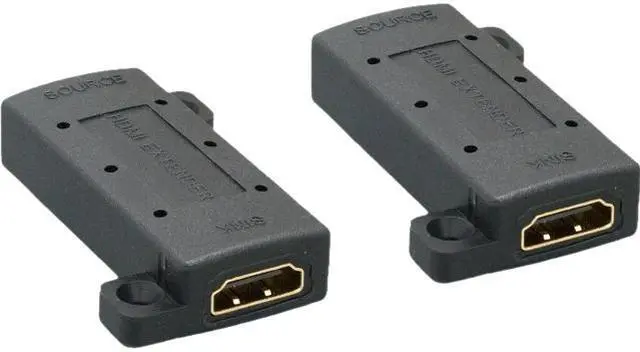

    Nippon Labs 30HM-604EQ-BK HDMI Active Extender, HDMI Female to HDMI Female BLACK Color

    • This HDMI extender can extend HDMI signal up to 100 ft.
    • Compliant with HDMI 1.3b
    • Support resolution up to 1080p
    • Support 225MHz / 2.25Gbps per channel (6.75Gbps all channel) bandwidth
    • Support 12bit per channel (36bit all channel) deep color
    • HDCP pass-through
    • Support uncompressed audio such as LPCM
    • Support compressed audio such as DTS Digital, Dolby Digital
    +
    +
    Specs
    Reviews
    See all Q & A

    Any questions? Ask CelesteSM will help you find out quickly.

    Learn more about the Nippon Labs 30HM-604EQ-BK

    Model
    Brand Nippon Labs
    Model 30HM-604EQ-BK
    Details
    Type HDMI to HDMI
    Color Black
    Connectors
    Connector A 1x HDMI 19pin female
    Connector B 1x HDMI 19pin female
    Audio Yes
    Features
    Features Maximum Data Length:
    Repeater + 30AWG HDMI cable: the maximum length is 30 meter
    Repeater + 28AWG HDMI cable: the maximum length is 35 meter
    Repeater + 26AWG HDMI cable: the maximum length is 40 meter
    Repeater + 24AWG HDMI cable: the maximum length is 45 meter
    Additional Information
    First Listed on Newegg September 17, 2021

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 1 year
    • Limited Warranty period (labor): 1 year
    • Read full details

    Return Policies

      We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

    • Return for refund until: January 31, 2027
    • Return for replacement until: January 31, 2027
    • This item is covered by Newegg.com's Extended Holiday Return Policy.
    • Read full return policy for details.
    LOADING...
    LOADING...

    The Nippon Labs 30HM-604EQ-BK is an HDMI female-to-female active extender for users who need to extend a 1080p HDMI connection over a longer cable run while retaining HDCP pass-through and audio support.

    Recommended For

    • People extending a fixed 1080p HDMI run to a TV or projector when a standard cable alone may not carry the signal reliably; the extender is designed to repeat HDMI over a longer cable path.
    • Home-theater users connecting a 1080p source—such as a Blu-ray player or streaming device—to a more distant TV or projector while passing compatible digital audio.
    • Classrooms, meeting rooms, or small offices with a fixed 1080p presentation setup that needs a longer HDMI connection between a computer or player and a display.
    • Users who already have two HDMI cables and need a female-to-female active repeater between them, with the required reach depending on cable gauge and setup.

    Spec Summary

    AttributeValue
    Best ForExtending an HDMI connection over longer cable runs between devices, with female-to-female HDMI connections
    HDMI Connection And Extension LengthHDMI to HDMI via 19-pin female connectors on both ends; maximum cable length depends on cable gauge: 30 m with 30 AWG, 35 m with 28 AWG, 40 m with 26 AWG, or 45 m with 24 AWG
    Audio SupportAudio supported
    ColorBlack
    Model IdentifiersNippon Labs 30HM-604EQ-BK
