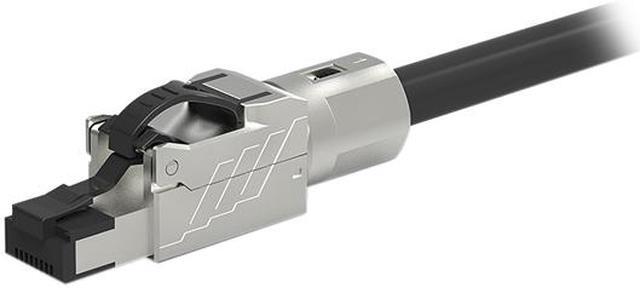

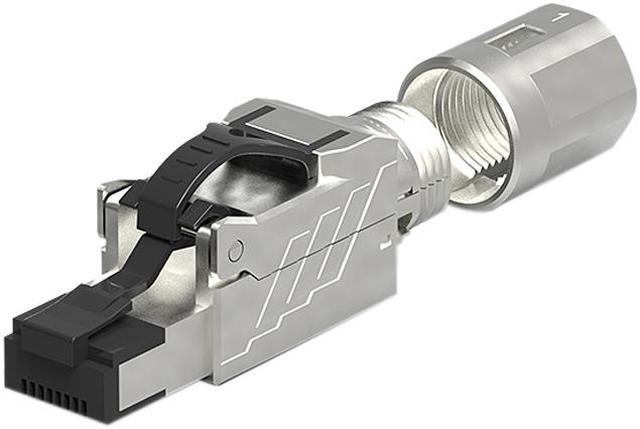

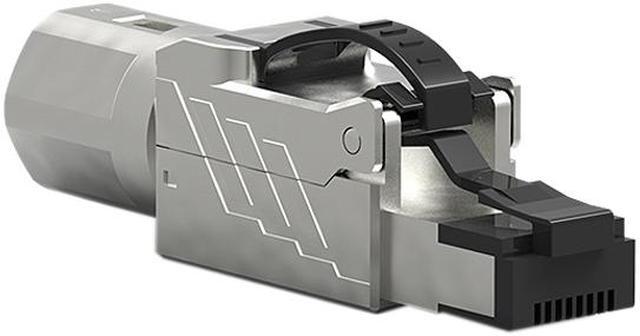

Nippon Labs 60CAT8-PG Cat.8 RJ45 Tool Less Shielded Plug (Single Piece)
- Applicable wire 22 - 26AWG
- Cable jacket diameter 6.5mm - 8.5mm
- Compatible with solid or stranded wire
- No tool is required to terminate
- Supports 40Gbps (4 times faster than Cat.6A)
- Excellent performance with POE++ applications
- UL/RoHS
+
+
Learn more about the Nippon Labs 60CAT8-PG
| Brand | Nippon Labs |
|---|---|
| Model | 60CAT8-PG |
| Type | Cat.8 RJ45 Tool Less Shielded Plug |
|---|---|

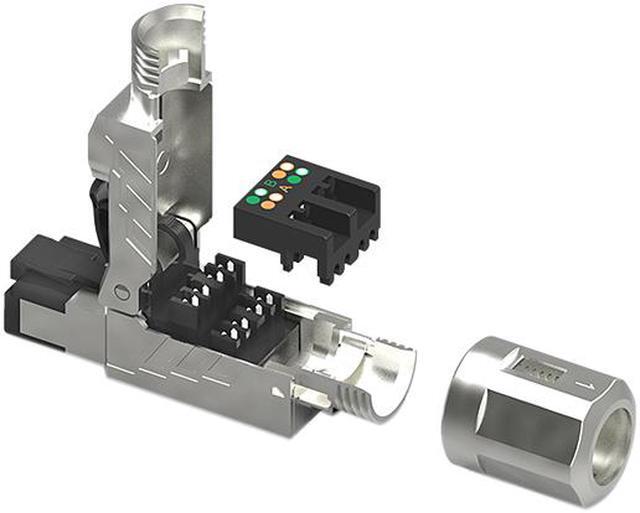

| Specifications | Cat. 8 RJ45 Tool Less Termination Plug for 40G: Cat.8 RJ45 connectors are designed to work specifically with Cat.8 Cable, the RJ45 contacts are gold plated, wire alignment insert provides an efficient termination without any need of tools, we do recommend to use a cable striper to expose the inner conductors. The hosing of the connectors is fully shielded to avoid corrosion and to protect from EMI (ElectroMagnetic interference). |
| Features | Applicable wire 22 - 26AWG Cable jacket diameter 6.5mm - 8.5mm Compatible with solid or stranded wire No tool is required to terminate Supports 40Gbps (4 times faster than Cat.6A) Excellent performance with POE++ applications UL/RoHS |
|---|
| First Listed on Newegg | September 25, 2020 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-909-598-9896
- Support Website
- View other products from Nippon Labs
LOADING...
LOADING...
The Nippon Labs 60CAT8-PG is a shielded, tool-less Cat.8 RJ45 plug for network installers and cable builders who want to terminate compatible Cat.8 cable without a crimping tool; it supports 22–26 AWG solid or stranded wire, 6.5–8.5 mm cable jackets, and up to 40 Gbps.
Recommended For
- Data-center technicians terminating short Cat.8 links between compatible 25G/40G switches and servers, where a field-terminable RJ45 plug fits the installation and equipment supports the target speed.
- Network installers making or repairing a small number of shielded Cat.8 cable ends on site who want a tool-less termination design and can prepare the cable correctly.
- Installers connecting nearby PoE++ devices, such as access points or security cameras, when the cable, powered device, and power source are compatible with the installation.
- Homelab or enterprise users who already have compatible Cat.8 cable and 25G/40G-capable network equipment and need a matching field-termination plug for a short run.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Terminating Cat.8 cable in indoor or outdoor network installations, including PoE++ applications |
| Connector And Cable Compatibility | Shielded, tool-less Cat.8 RJ45 plug with gold-plated contacts and a wire-alignment insert; accepts solid or stranded 22–26 AWG wire and cable jackets 6.5–8.5 mm in diameter |
| Data Rate And Power | Supports data transfer rates up to 40 Gbps and PoE++ applications |
| Compliance | UL/RoHS |
| Package Contents | One Cat.8 tool-less RJ45 plug |
| Color | Gold |
| Model And Brand | Nippon Labs 60CAT8-PG |
