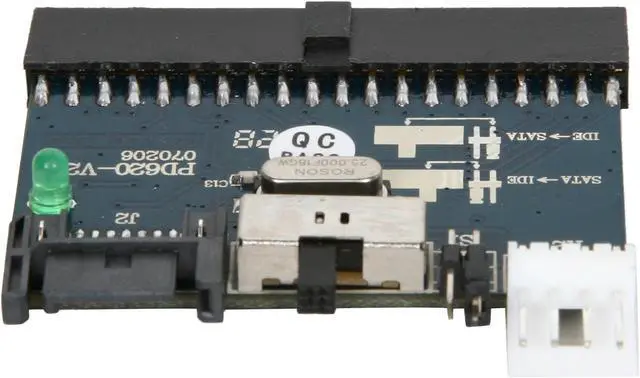

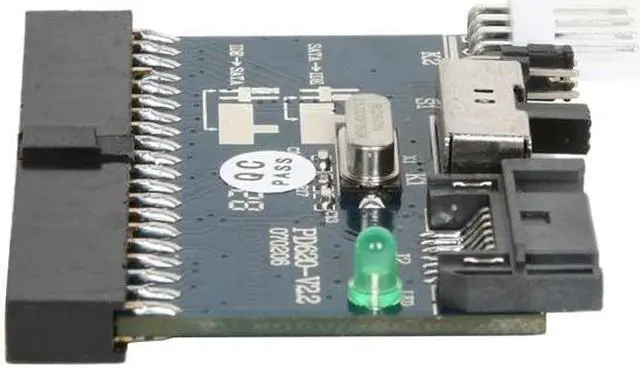

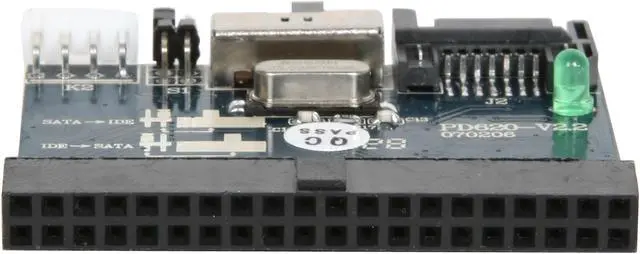

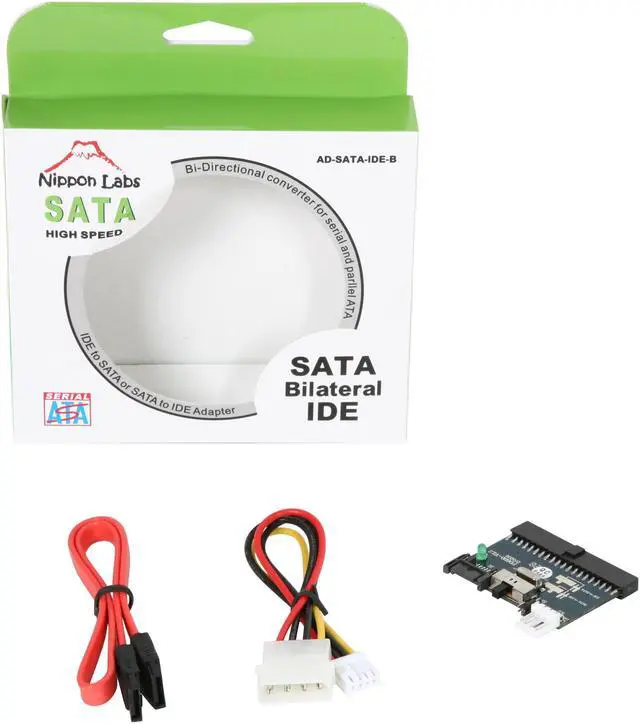

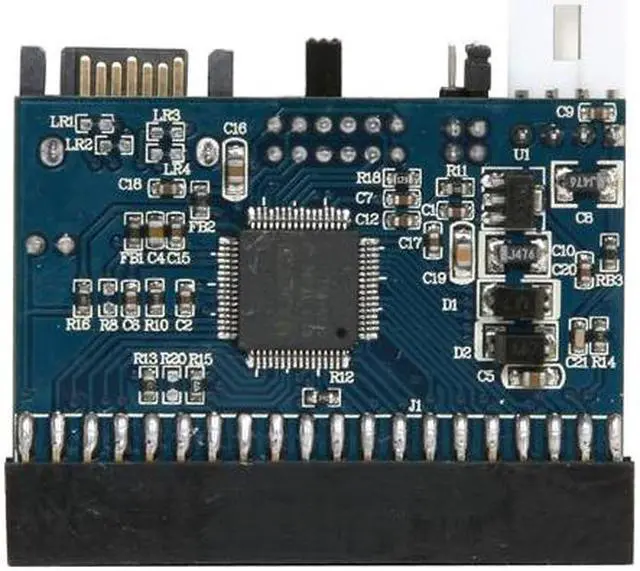

Learn more about the Nippon Labs AD-SATA-IDE-B
| Brand | Nippon Labs |
|---|---|
| Model | AD-SATA-IDE-B |
| Changer Type | IDE to SATA |
|---|---|
| Specifications | •With LED indicated power •Easy install & no driver needed •Serial ATA 1.0 specification compliant •Automatic Serial ATA 1.5 Gbps speed negotiation •ATA/ATAPI PIO mode 0 to 4 •ATA/ATAPIPI Ultra DMA of transfer rate 16.7, 25, 33, 48, 66, 100, 133, and 150 MB/S. •ATA/ATAPIPI LBA48 addressing mode associated with 2-byte sector count •Support Serial ATA hot-plug •Ultra low power consumption •Work for both AC and DC couple between the transmitter and the receiver •Provide specified OOB signal detection and transmission •Support spread spectrum clocking to reduce EMI •Support partial/slumber power management •Provide adjustable TX signal amplitude and pre-emphasis level •Slave support |
| Features | •Converts SATA hard drive to IDE or IDE drive to SATA host. •Bi-directional converter for serial and parallel ATA translation. •Includes the Serial ATA PHY, Link, Transport, and Parallel ATA (application layer) controller. •The Serial ATA Physical, link, and transport layers are compliant to Serial ATA 1.0. •Supports a 1.5 GHz data rate |
|---|
| First Listed on Newegg | November 02, 2009 |
|---|
