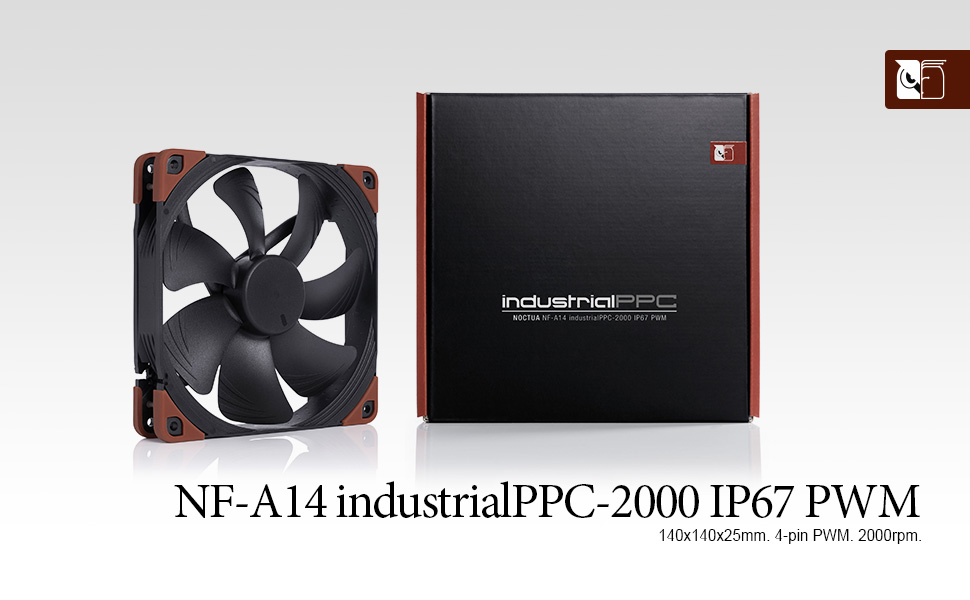

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology ensures an MTTF of over 150.000hrs. Topped off with Noctua's trusted reliability, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
| Thanks to its elevated 2000rpm top speed, the NF-A14 industrialPPC-2000 provides a significant performance boost over the 1500rpm retail version. Combined with the industrialPPC series' robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications. |
| While most axial fans use single-phase motors with 4 slots, Noctua's industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency. |
| The motor and PCB of the IP67 version are completely cast in a special, highly heat conductive resin that combines thoroughgoing protection and effective motor heat dissipation. Complying with the ingress protection rating IP67, this fan is not only fully dust tight but also completely waterproof up to 1m water depth. |
Both the impeller and the frame of Noctua's industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua's standard fibre-glass reinforced PBT fans.
| Products | ||||||
|---|---|---|---|---|---|---|
| Connector | 3-Pin | 4-Pin PWM | 4-Pin PWM | 4-Pin PWM | 4-pin PWM | 4-pin PWM |
| Voltage | 12V | 12V | 12V | 12V | 24V | 24V |
| RPM | 2000 | Max: 2000 / Min: 500 | Max: 2000 / Min: 500 | Max: 3000 / Min: 800 | Max: 2000 / Min: 500 | Max: 3000 / Min: 800 |
| Acoustical Noise | 31,5 dB(A) | 31,5 dB(A) | 31,5 dB(A) | 41,3 dB(A) | 31,5 dB(A) | 41,3 dB(A) |
| Static pressure | 4,18 mm H2O | 4,18 mm H2O | 4,18 mm H2O | 6,58 mm H2O | 4,18 mm H2O | 6,58 mm H2O |
| Airflow | 182,5 m³/h | 182,5 m³/h | 182,5 m³/h | 269,3 m³/h | 182,5 m³/h | 269,3 m³/h |
| Ingress Protection Rating | IP52 | IP52 | IP67 | IP52 | IP67 | IP67 |
| Size | 140x140x25 mm | 140x140x25 mm | 140x140x25 mm | 140x140x25 mm | 140x140x25 mm | 140x140x25 mm |
