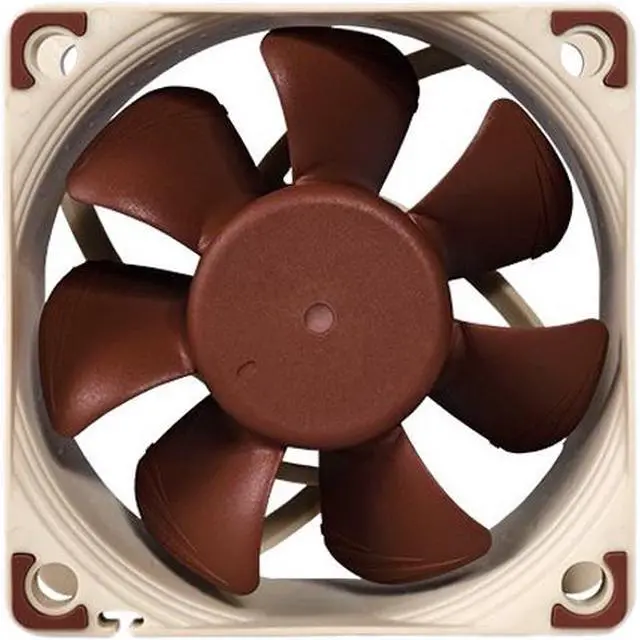

Noctua NF-A6x25-PWM 60mm Case Fan

60mm
Rotational Speed (+/- 10%): 3000 RPM Rotational Speed with L.N.A. (+/- 10%): 2300 RPM Min. Rotational Speed (PWM, +/-20%): 550 RPM 29.2 m³/h 22.6 m³/h (with L.N.A.)
SSO2

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	Noctua
Model	NF-A6x25-PWM

Details
Fan Counts	1 Fan
Fan Controller	No Controller
Type	Case Fan
Fan Size	60mm
Fan Thickness	25mm
Bearing Type	SSO2
RPM	Rotational Speed (+/- 10%): 3000 RPM Rotational Speed with L.N.A. (+/- 10%): 2300 RPM Min. Rotational Speed (PWM, +/-20%): 550 RPM
Air Flow	29.2 m³/h 22.6 m³/h (with L.N.A.)
Noise Level	Acoustical Noise: 19.3 dB(A) Acoustical Noise with L.N.A.: 13.7 dB(A)
Power Connector	4 Pin

Features
Features	Static Pressure: 12.18 mm H2O Static Pressure with L.N.A.: 1.29 mm H2O Max. Input Power: 0.96 W Max. Input Current: 0.08 A Voltage: 12 V MTBF: > 150.000 h Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua's AAO frame, the NF-A6x25 is a highly optimised, premium quality quiet fan in 60x25mm size. The PWM version sports Noctua's custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 3000 to 2300rpm. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

Dimensions & Weight
Dimensions	60 x 60 x 25 mm

Additional Information
Date First Available	July 22, 2024

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
