Noctua Cooling Solutions

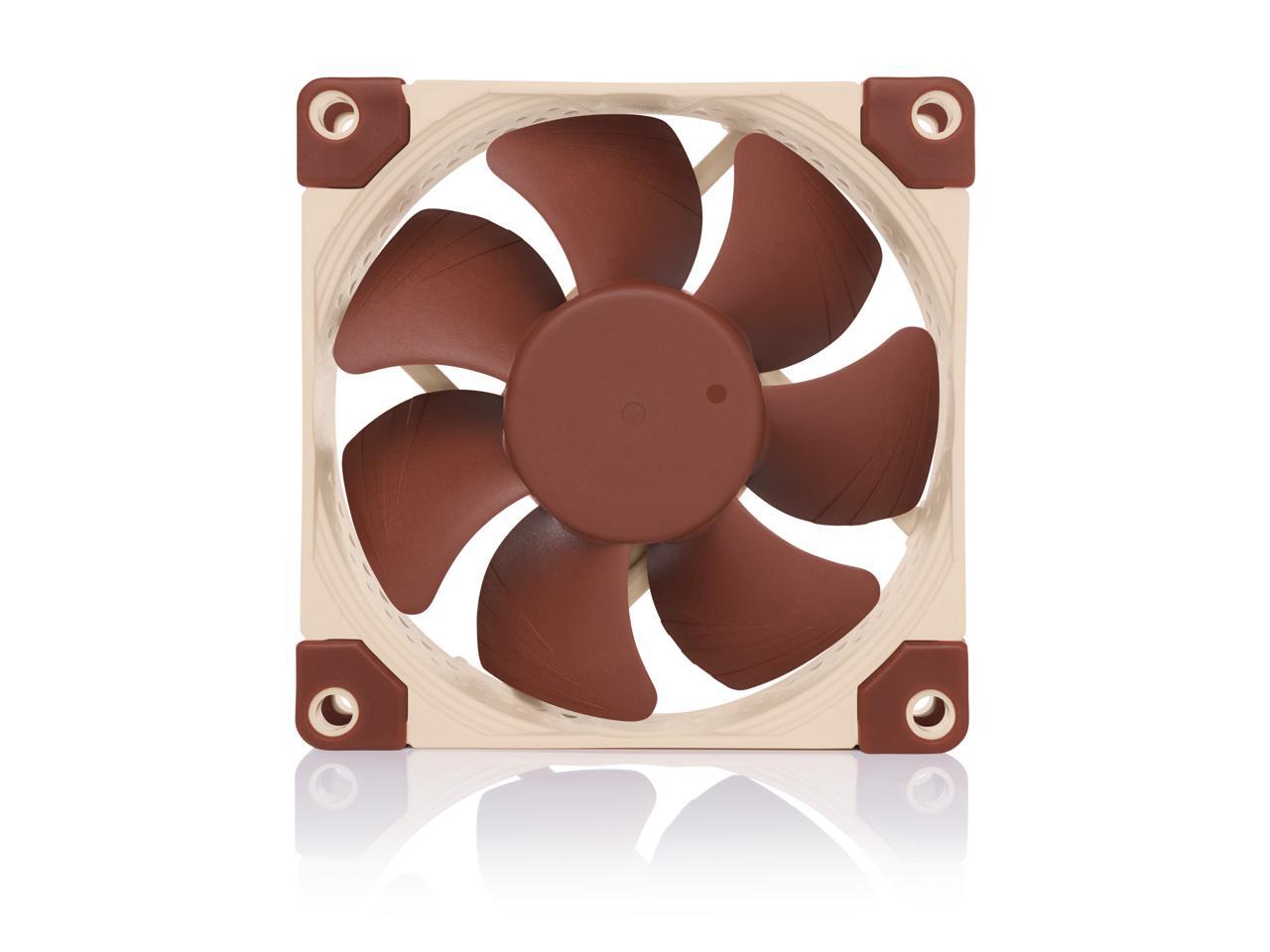

The NF-A8 is a highly optimised, premium quality quiet 80mm fan. Featuring Noctua's AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A8 further improves the renowned quiet cooling performance of the award-winning NF-R8. The FLX version provides 2000/1650/1200rpm speed settings via the supplied Low-Noise Adaptors in order to provide full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, reference-class SSO2 bearing and Noctua's trusted premium quality make it an elite choice for the highest demands.

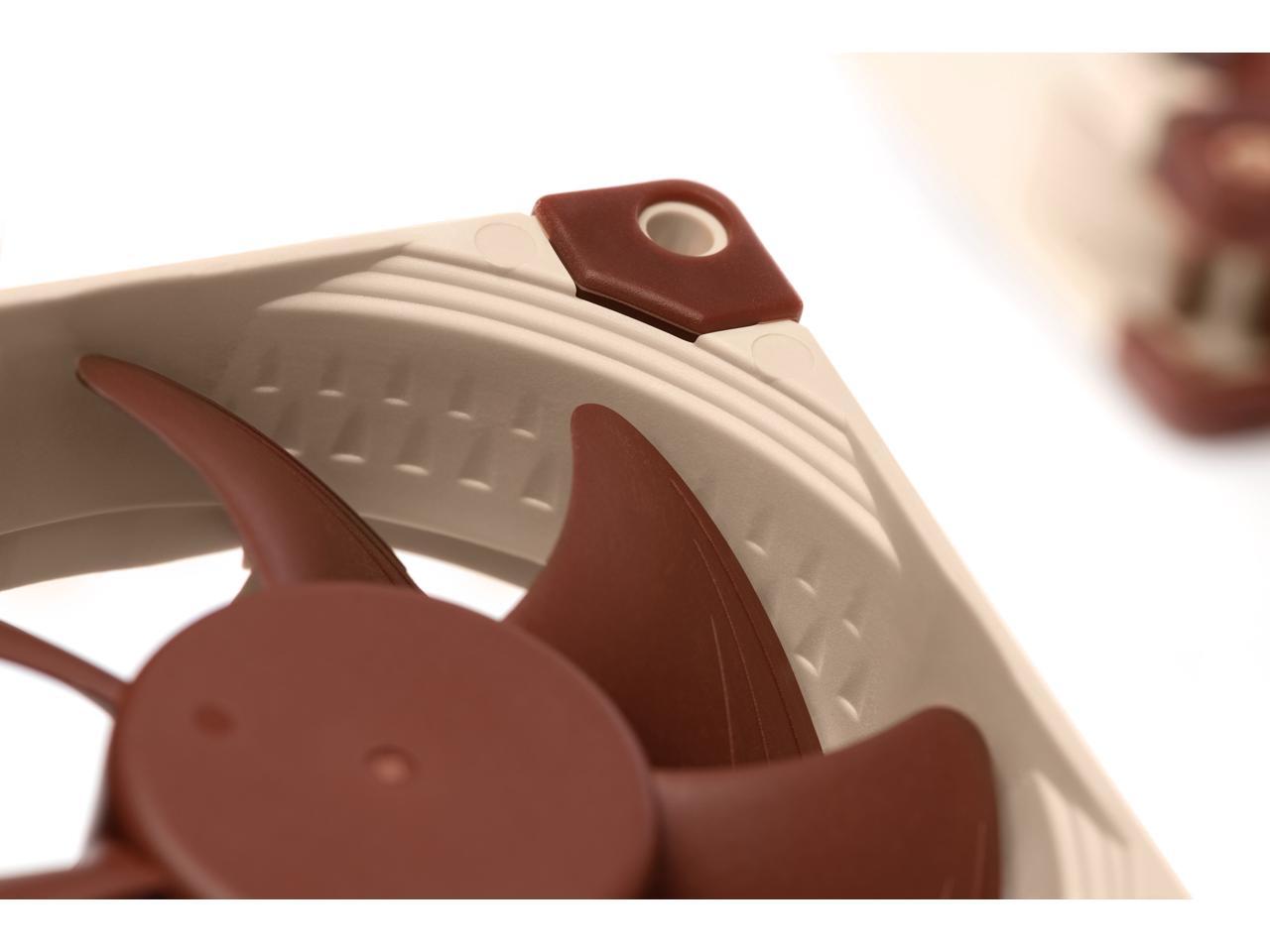

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
| The NF-A8 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise. |
| The NF-A8 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. |
| Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems. |

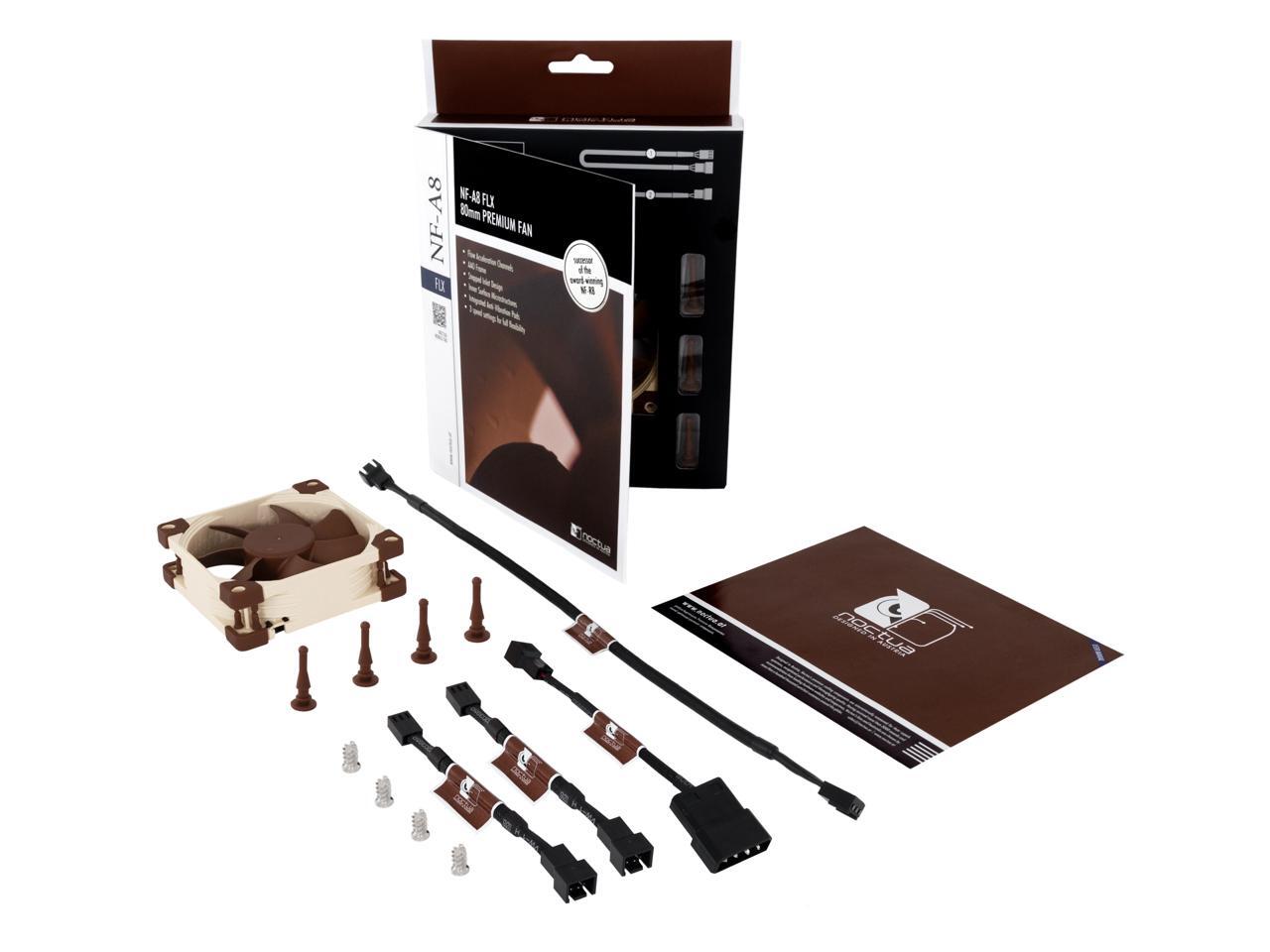

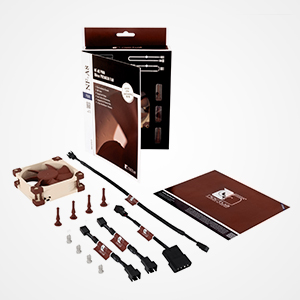

- Low-Noise Adaptor (L.N.A)
- Ultra-Low-Noise Adaptor (U.L.N.A.)

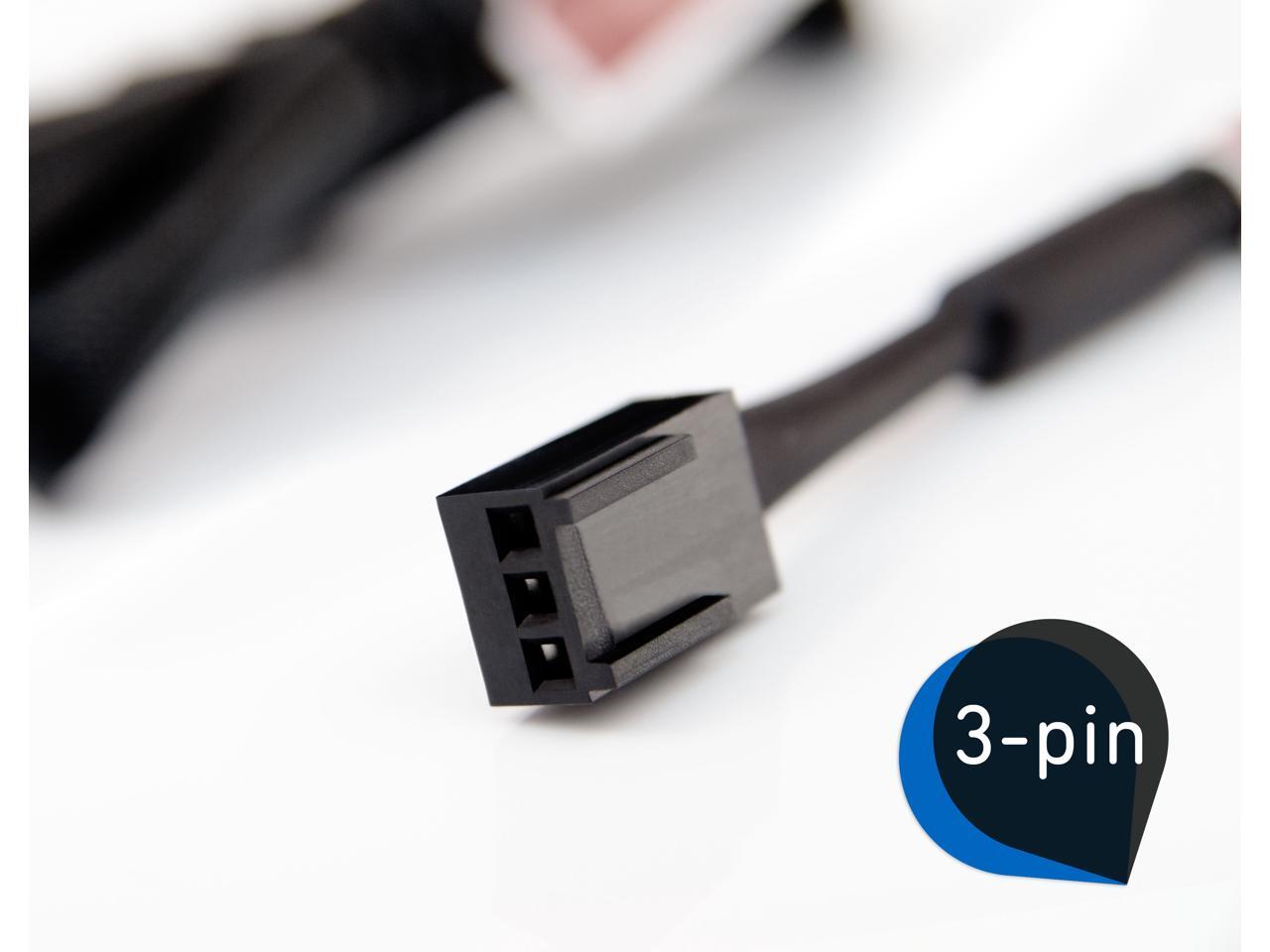

- NA-AC1 3:4-pin adaptor cable
- NA-EC2 30cm extension cable
- 4x NA-AV1 anti-vibration mounts
- Fan screws
| Products | ||||||
|---|---|---|---|---|---|---|
| Connector | 4-pin PWM | 3-pin | 3-pin | 4-pin PWM | 3-pin | 4-pin PWM |
| Voltage | 12V | 12V | 12V | 5V | 5V | 12V |
| RPM | Max: 2200 / Min: 450 | 2000 | 1400 | Max: 2200 / Min: 450 | 2200 | Max: 2200 / Min: 450 |
| RPM with L.N.A. | 1750 | 1650 | 1100 | - | - | - |
| RPM with U.L.N.A. | - | 1200 | - | - | - | - |
| Acoustical Noise | 17,7 dB(A) | 16,1 dB(A) | 10,4 dB(A) | 17,7 dB(A) | 17,7 dB(A) | 17,7 dB(A) |
| Acoustical Noise with L.N.A. | 13,8 dB(A) | 12,9 dB(A) | 6,5 dB(A) | - | - | - |
| Acoustical Noise with U.L.N.A. | - | 7,9 dB(A) | - | -- | - | - |
| Size | 80x80x25 mm | 80x80x25 mm | 80x80x25 mm | 80x80x25 mm | 80x80x25 mm | 80x80x25 mm |
| Colour | Brown & Beige | Brown & Beige | Brown & Beige | Brown & Beige | Brown & Beige | Black with swappable coloured anti-vibration pads |
