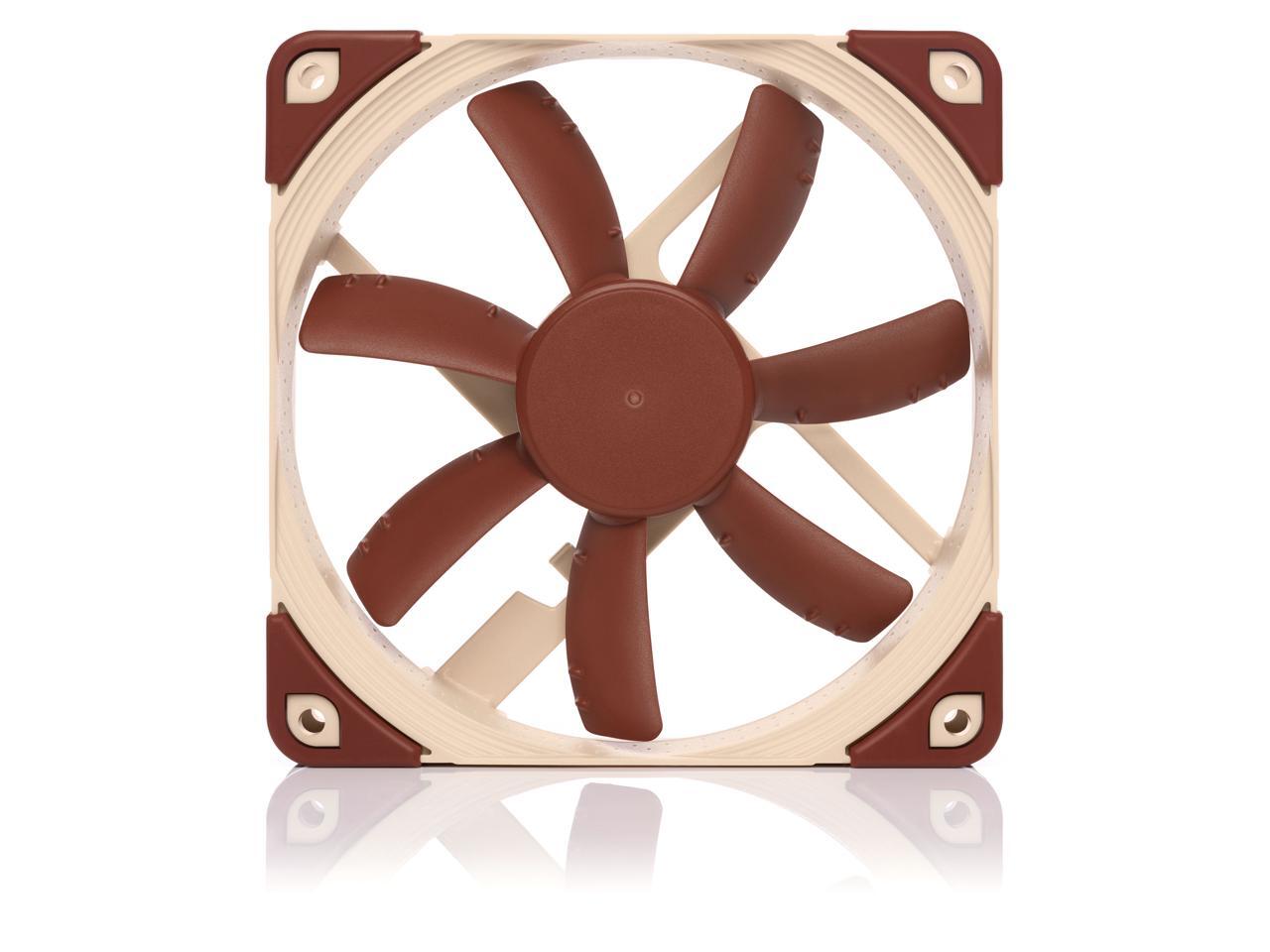

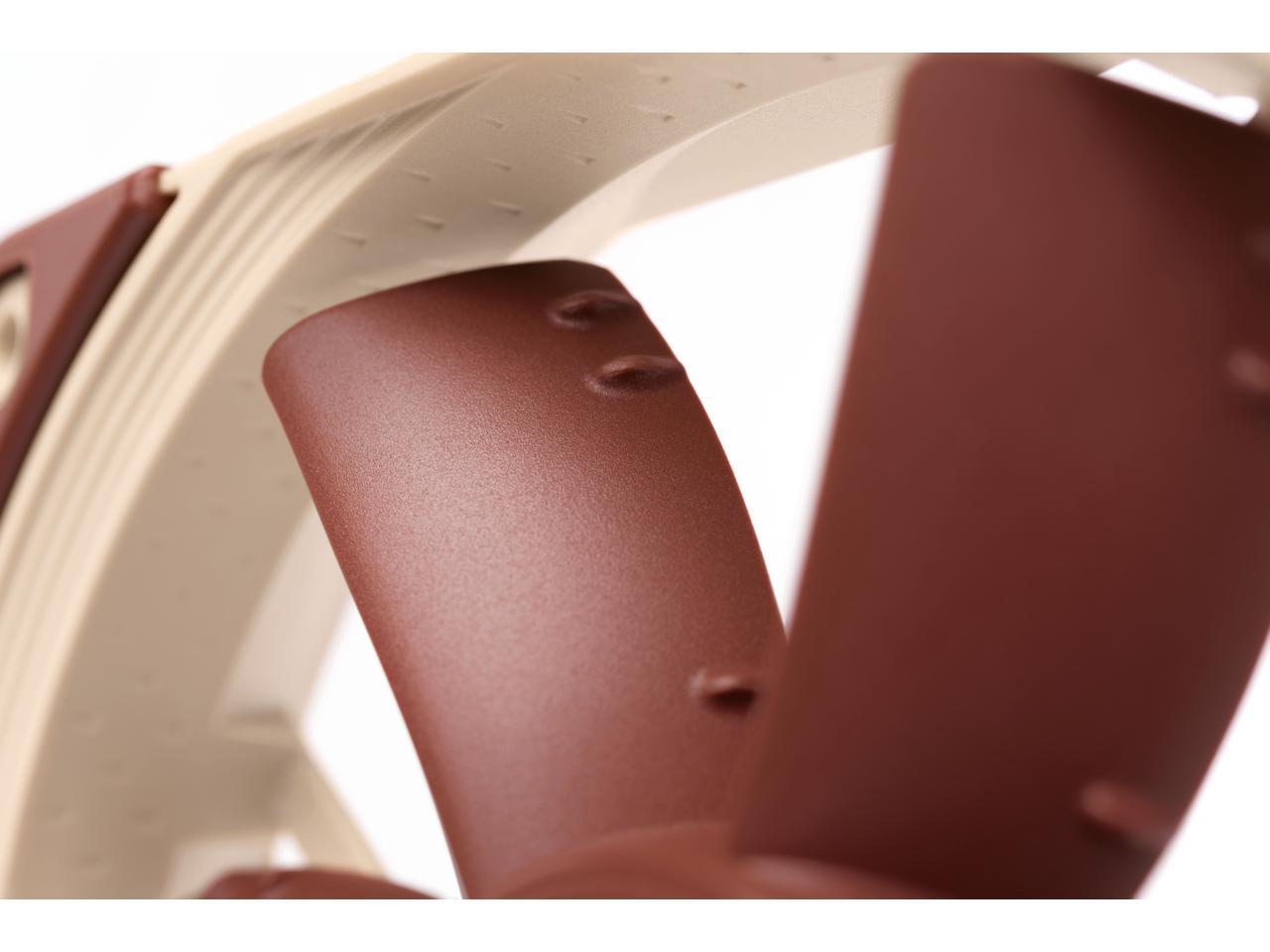

The NF-S12A marks the third generation of Noctua's signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO (Advanced Acoustic Optimisation) frame, the NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%. The PWM version sports Noctua's custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 1200 to 900rpm. Its superb running smoothness, SSO2 bearing and Noctua's trusted premium quality make it an elite choice for quiet case cooling
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
| Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems. |
| The NF-S12A features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. |

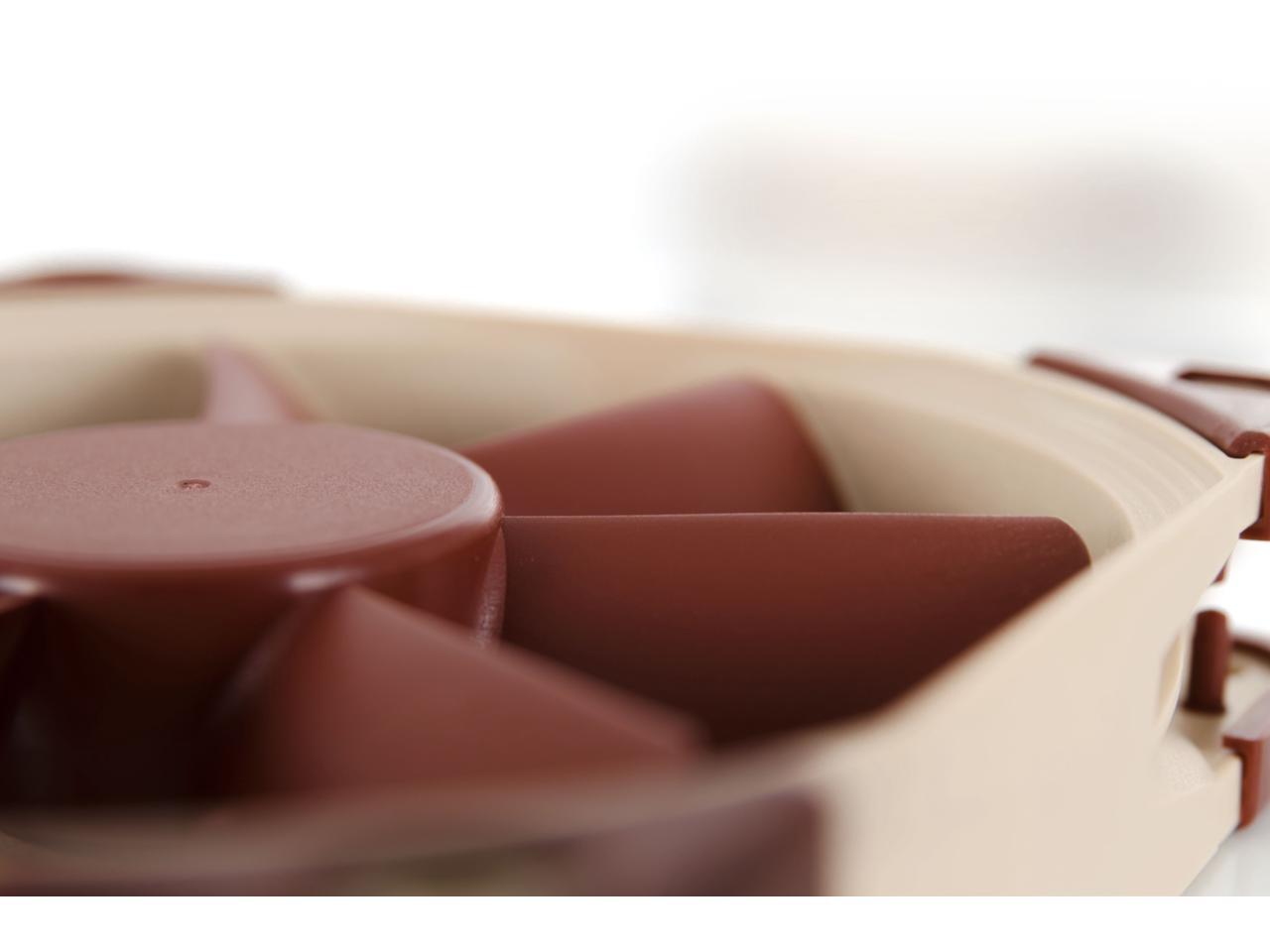

| With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency. |

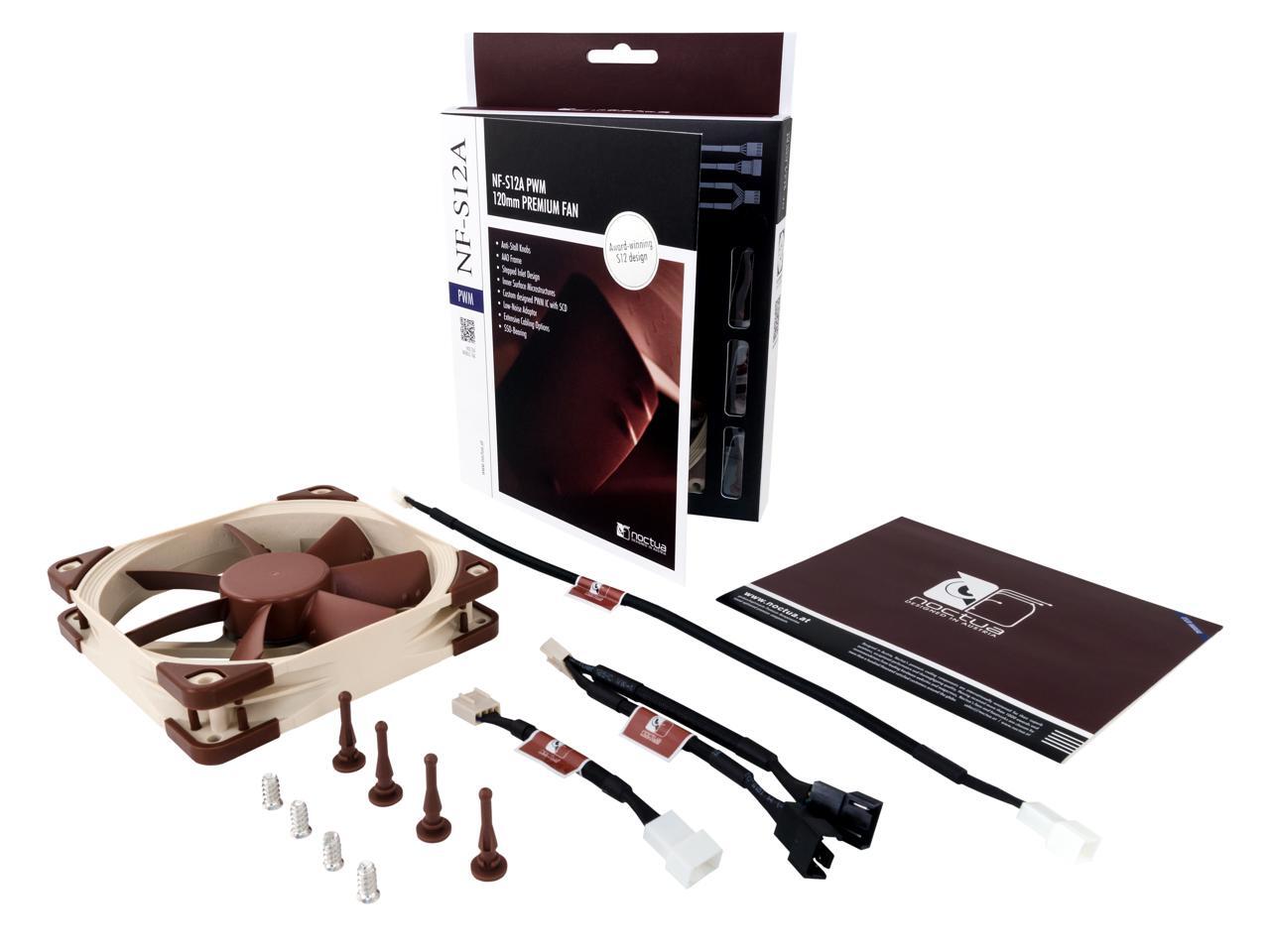

- NA-RC7 Low-Noise Adaptor (L.N.A)
- NA-YC1 4-pin PWM y-cable
- NA-EC1 30cm extension cable
- 4x NA-AV1 anti-vibration mounts
- Fan screws
| Products | ||||
|---|---|---|---|---|

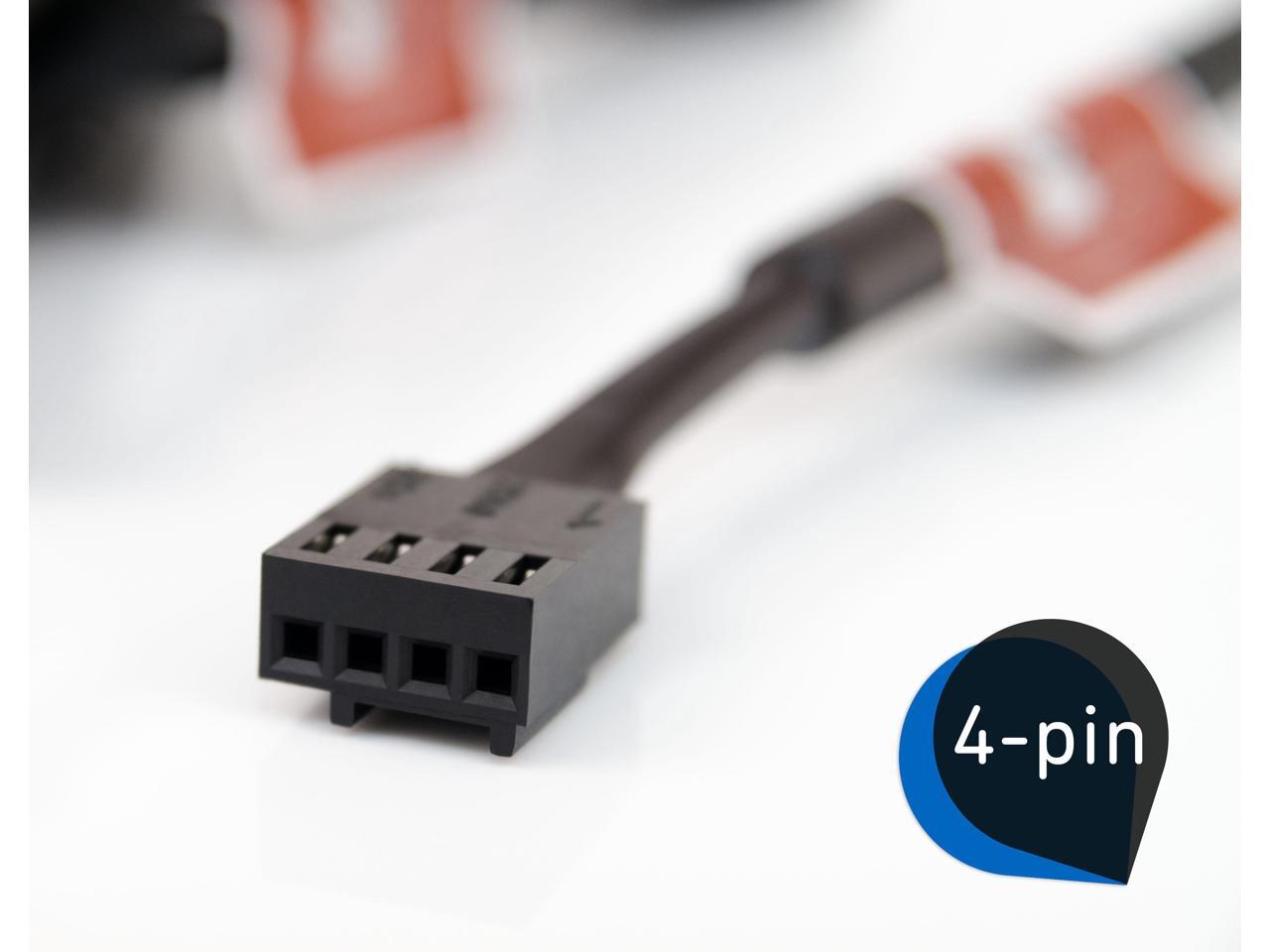

| Connector | 4-pin PWM | 3-pin | 3-pin | 4-pin PWM |
| Voltage | 12V | 12V | 12V | 12V |
| RPM | Max: 1200 / Min: 300 | 1200 | 800 | Max: 1200 / Min: 300 |
| RPM with L.N.A. | 900 | 900 | 600 | - |
| RPM with U.L.N.A. | - | 700 | - | - |
| Acoustical Noise | 17,8 dB(A) | 17,8 dB(A) | 8,6 dB(A) | 17,8 dB(A) |
| Acoustical Noise with L.N.A. | 10,7 dB(A) | 10,7 dB(A) | 6,7 dB(A) | - |
| Acoustical Noise with U.L.N.A. | - | 7,4 dB(A) | - | - |
| Size (mm) | 120x120x25 | 120x120x25 | 120x120x25 | 120x120x25 |
| Colour | Brown & Beige | Brown & Beige | Brown & Beige | Black with swappable coloured anti-vibration pads |
