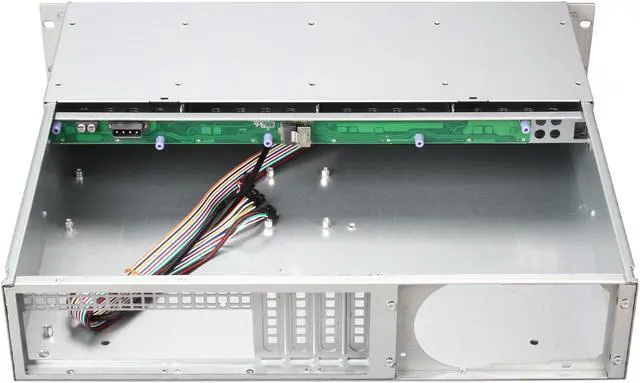

If I wanted to connect a RAID card to the backplane to hook up the HDD's what cable would I need? Thx!

From the picture that is a Mini-SAS. Just keep in mind that if you get a card with a MiniSAS connector then you will need a MiniSAS to MiniSAS cable. If the card has SATA connectors then you will need a REVERSE FAN-OUT cable MiniSAS to 4 SATA.

What is the largest hard drive that can be install as far as Tera-Bytes ?

This is a dumb case, (no electronics) it doesn't care about drive capacity. Any standard 3.5" device will fit in one of the 4 drive bays. The backplane is passive, and it will be up to whatever motherboard/OS you choose as a max capacity.

Does this case include a set of rails that can be purchased with or without the case?

Unfortunately case did not include rails - ended up using existing rails from an old server

Does this case have any sort of internal mount points for drives?

Yes I have a 3.5 and 2.5 ssd mounted. It is a single tray and has anti-vibration pads, as well.

Will this case fit on a 19" rackmount? Dimensions don't indicate that it will.

Yes, it will fit in a 19" rackmount.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 1 wish list)

Sold by Newegg

Shipped by Newegg

Main image of NORCO RPC-2304 2U Rackmount 2U Short Depth Rackmount Chassis with 4 x Hot Swap Trays Standard ATX power supply

Alt view image 2 of 7 - NORCO RPC-2304 2U Rackmount 2U Short Depth Rackmount Chassis with 4 x Hot Swap Trays Standard ATX power supply

Alt view image 3 of 7 - NORCO RPC-2304 2U Rackmount 2U Short Depth Rackmount Chassis with 4 x Hot Swap Trays Standard ATX power supply

Alt view image 4 of 7 - NORCO RPC-2304 2U Rackmount 2U Short Depth Rackmount Chassis with 4 x Hot Swap Trays Standard ATX power supply

Alt view image 5 of 7 - NORCO RPC-2304 2U Rackmount 2U Short Depth Rackmount Chassis with 4 x Hot Swap Trays Standard ATX power supply

Alt view image 6 of 7 - NORCO RPC-2304 2U Rackmount 2U Short Depth Rackmount Chassis with 4 x Hot Swap Trays Standard ATX power supply

Alt view image 7 of 7 - NORCO RPC-2304 2U Rackmount 2U Short Depth Rackmount Chassis with 4 x Hot Swap Trays Standard ATX power supply

Shop All Norco Technologies Inc. Products

NORCO RPC-2304 2U Rackmount 2U Short Depth Rackmount Chassis with 4 x Hot Swap Trays Standard ATX power supply

(11) Write a Review

Standard ATX power supply
Three optional 40mm rear fans 40mm Fans

Overview

Specs

Reviews (11)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Features

2U rack mount design,meets EIARS-310C standard.
Super short depth, only 15.25 inch
Support Micro-ATX (9.6 x 9.6 in.), ITX (6.7 x 6.7 in.) motherboard
Two front USB ports
Three optional 40mm rear fans
Smooth border prevent lacerating your skin
RoHS Compliant

Specifications

Drive Bay - Supports four hot swappable 3.5 in. or 2.5 in. drives
Cooling Fan - Three optional 40mm rear fans
Switch - Power ON/OFF x 1, System reset x 1
Indicator - Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connector - Two front USB ports
Motherboard Compatibility - Support Micro-ATX (9.6";x9.6";), ITX (6.7"; x 6.7";) motherboard
Power Supply Options - Standard ATX power supply
Environment Temperature - 0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity - 5% to 95%,non-condensing
Vibration ( 5-500 Hz ) - 1 Grms (Operating), 2 G (Non-Operating)
Shock - 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
Dimension ( W x D x H ) - 16.9 x 15.25 x 3.5 in.
Item Weight - 18 lbs.

Model
Brand	NORCO
Model	RPC-2304

Details
Chassis Type	Rackmount
Form Factor	2U
Motherboard Compatibility	Support Micro-ATX (9.6"x9.6"), ITX (6.7" x 6.7") motherboard
Power Supply	Standard ATX power supply

Ports
Front Ports	Two front USB ports

Cooling System
40mm Fans	Three optional 40mm rear fans

Features
Features	2U rackmount design,meets EIARS-310C standard. Super short depth, only 15.25 inch Support Micro-ATX (9.6"x9.6"), ITX (6.7" x 6.7") motherboard Two front USB ports Three optional 40mm rear fans Smooth border prevent lacerating your skin RoHS Compliant Drive Bay: Supports four hot swappable 3.5" or 2.5" drives Switch: Power ON/OFF x 1, System reset x 1 Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 2\ Environment Temperature:0/55 degree C, 32/131 degree F (Operating) -20/60 degree C, -4/140 degree F (Non-Operating) Relative Humidity: 5% to 95%,non-condensing Vibration ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating) Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)

Dimensions & Weight
Dimensions	3.50" x 16.90" x 15.25"
Weight	18.00 lbs.

Additional Information
First Listed on Newegg	September 05, 2014
