Multipurpose Network Ethernet LAN Phone Cable Tester Scanner RJ45 RJ11 Cat-5 , LCD Display Telephone Network Ethernet LAN Phone Tester Multipurpose Cable Wire Tracker Length Scanner NF308

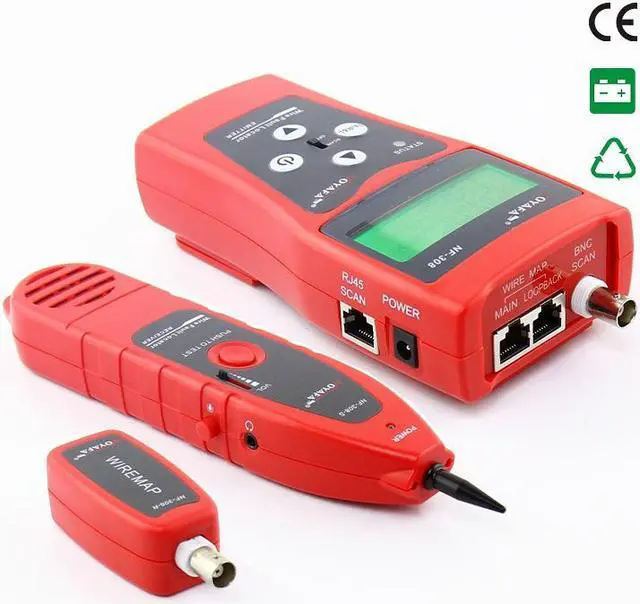

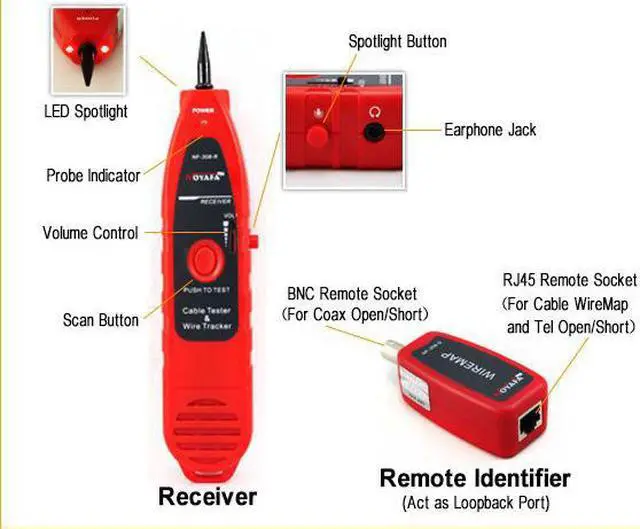

NF-308 LCD Display Telephone Network Ethernet LAN Phone Tester Multipurpose Cable Wire Tracker Length Scanner RJ45 11 NF-308 is composed of tester, receiver and remote identifier. It is provided with fluent appearance, excellent hand feel and considerate human-centered design. It owns three great functions of hunting, wire sorting and circuit status testing and the features of quickness and accuracy, thus, it becomes available tool for technicians in installation and maintenance of weak current system, such as, communication line, comprehensive wiring circuit, etc. It is widely applicable to telephone system, computer network, other metal wire circuit and other fields.

One person enough to complete cable continuity check. Check wiring error in 5E, 6E, telephone line, coaxial cable, USB cable such as open circuit, short circuit, jumper wire, reverse connection or cross-talk interference. Simple and easy use. Big screen to display test result clear. NF-308 LCD Display Telephone Network Ethernet LAN Phone Tester Multipurpose Cable Wire Tracker Length Scanner RJ45 11 NF-308 is composed of tester, receiver and remote identifier. It is provided with fluent appearance, excellent hand feel and considerate human-centered design. It owns three great functions of hunting, wire sorting and circuit status testing and the features of quickness and accuracy, thus, it becomes available tool for technicians in installation and maintenance of weak current system, such as, communication line, comprehensive wiring circuit, etc.

It is widely applicable to telephone system, computer network, other metal wire circuit and other fields.
Main Functions and features: One person enough to complete cable continuity check. Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables. Check wiring error in 5E, 6E, telephone line, coaxial cable, USB cable such as open circuit, short circuit, jumper wire, reverse connection or cross-talk interference. Locate the wiring or connection error. Measure cable length and determine the distance of open circuit and short circuit. Dynamically calibrate cable length and make length measurement as accurate as 97%. Simple and easy use. Big screen to display test result clear. Portable unit with long battery life (wait-case 50 hours). Automatically time-delay shut off and backlight display function. Measure length and pair with or without far-end recognizer. Locate cable and there are 8 far-end passive test jacks (ID No. ID1-ID 8). Far-end recognizer with prompting voice. Self-checking function and automatically compensate any change in capacity or ambient temperature. Single board computer software watchdog design and reliable operation.
Technical indexes: 1.

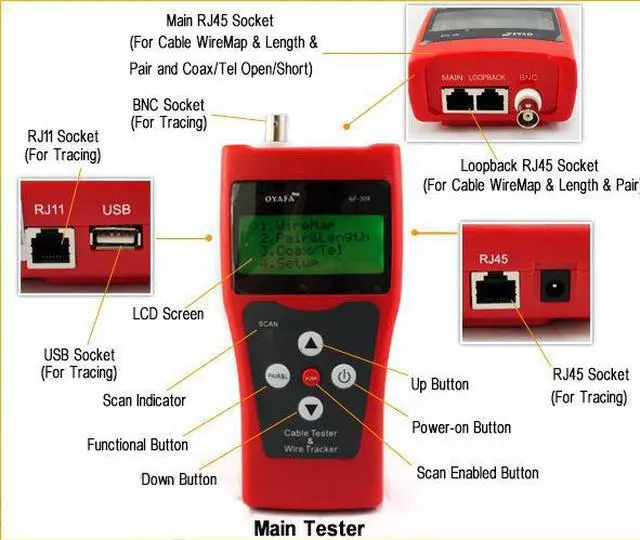

Overall dimension Main tester: 185 105 50mm
; receiver: 218 46 29mm;

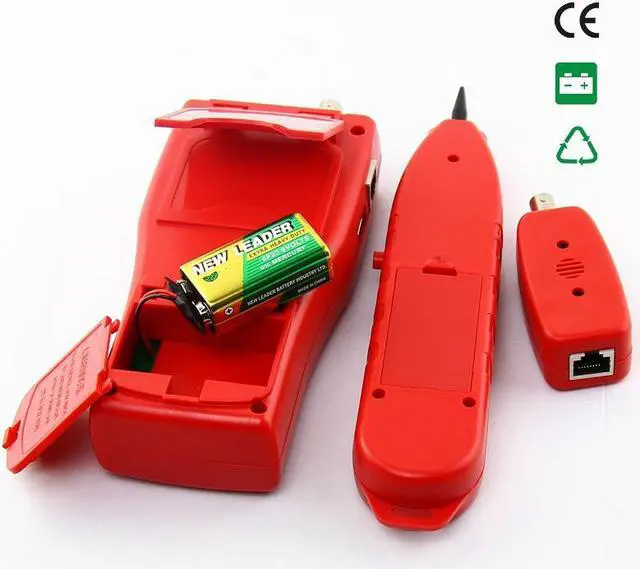

Remote identifier: 84 34 27mm. 2. Power Two laminated batteries of 9V. (Not include) 3. Display Special 4 x 16 character big screen LCD lattice (valid visual field 61.6 x 25.2 mm). 4. Type of cable tested STP/UTP twin twisted cable, coaxial cable, telephone line. 5. Type of cable detected 5E, 6E, telephone wire, coaxial cable,
