About this item
- Main Function : Detecting PoE voltage, current, power, PSE standards Power supply modes, Verify RJ45 cables
- 1. Three scan modes selectable: AC filter mode/ Analog mode/ PoE mode
- 2. Detect AC voltage presence (50V-1000V). Test physical status for STP, UTP lan cable.
- 3. Measure cable length accurately , the range is 120m.
- 4. Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.

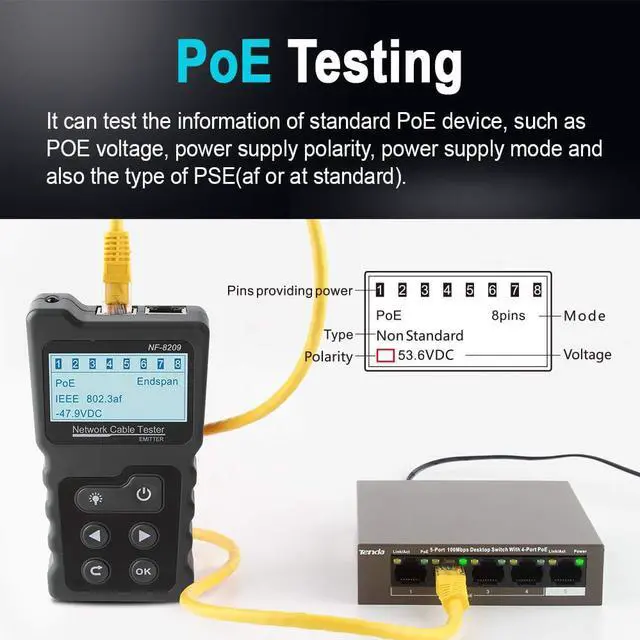

- 5. PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard)

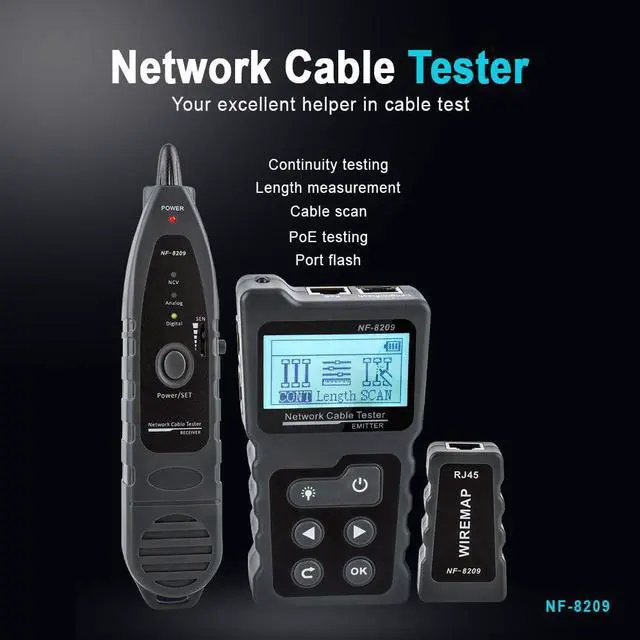

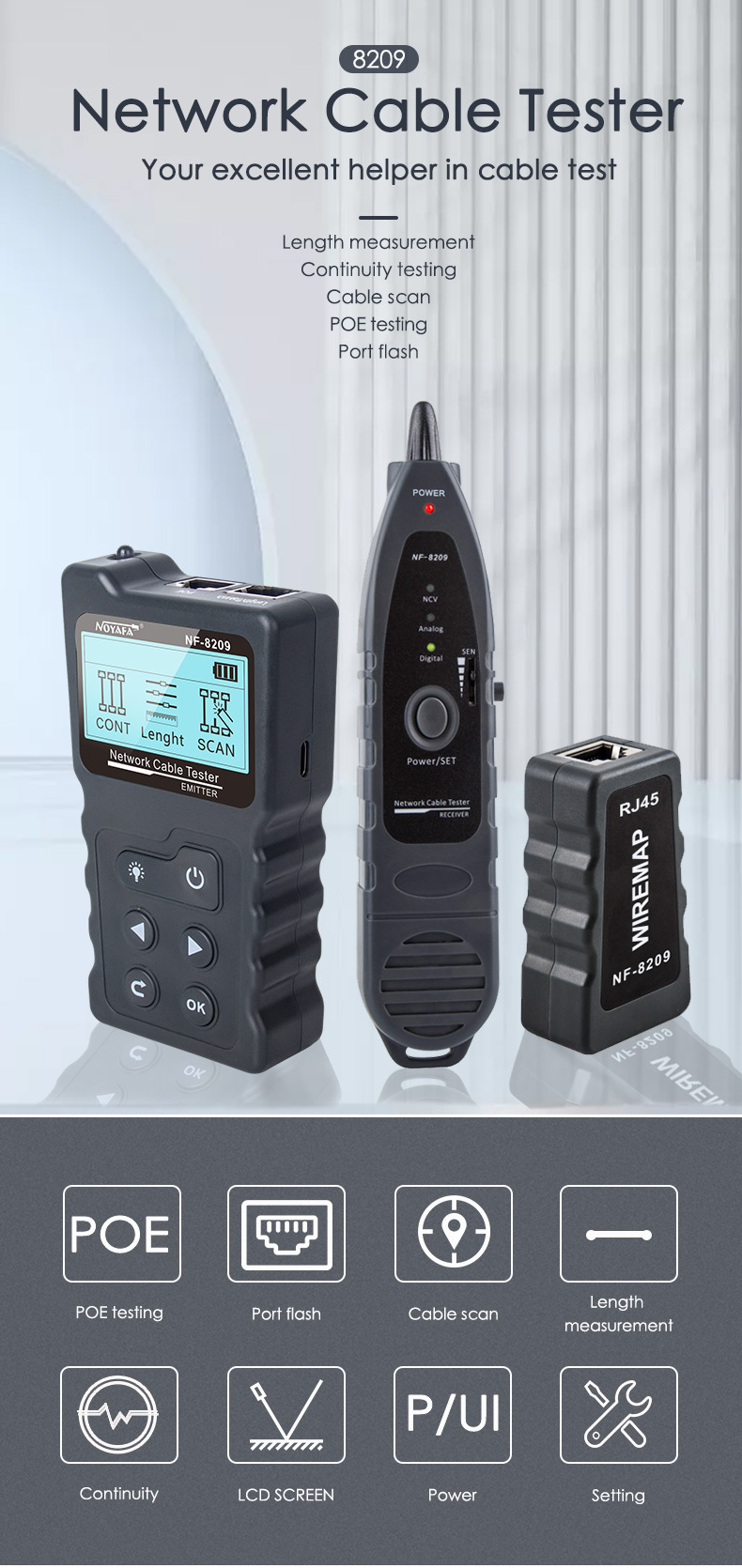

NF-8209 is a new generation to offer digital and analog signaling all in one network toner and probe. It has three modes for options to track cable like digital mode, analog mode and PoE mode. That means its equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement, cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.
Product Operation

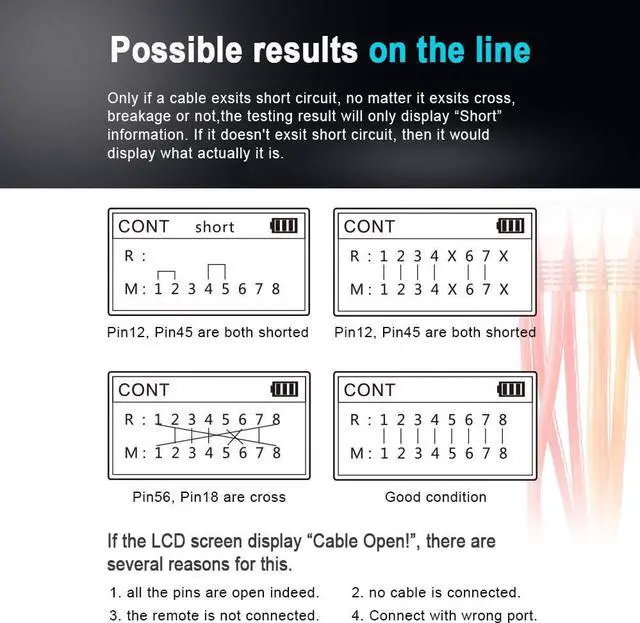

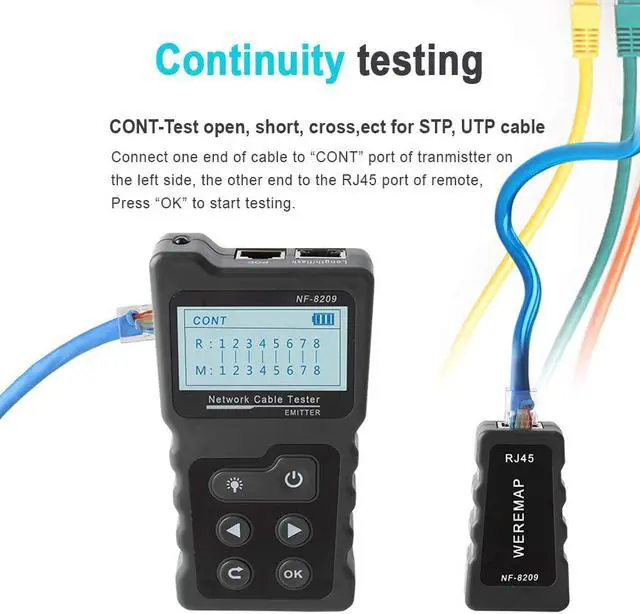

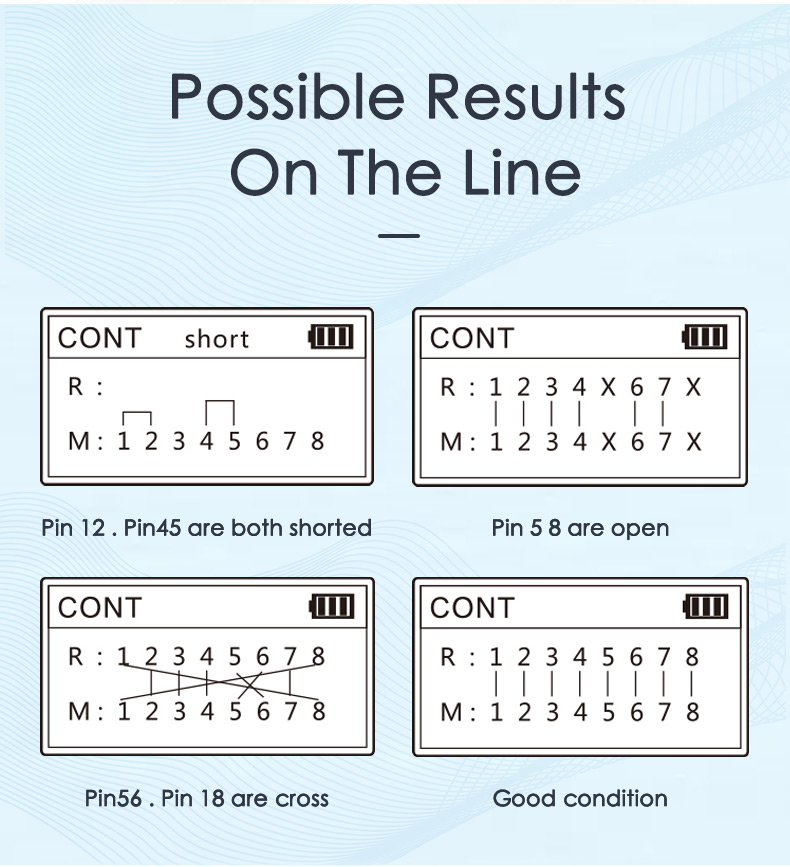

1. CONT-- Test open, short, cross, ect for STP, UTP cable.

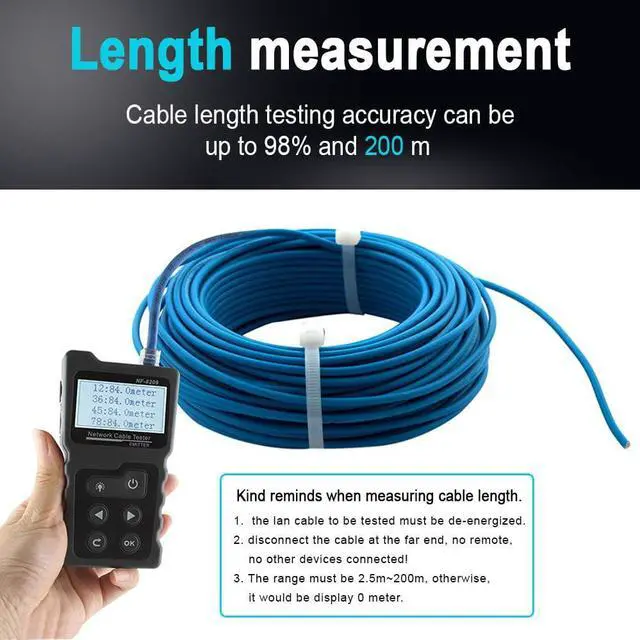

2. Length--measure length of lan cable, range is 2.5 m~200m.

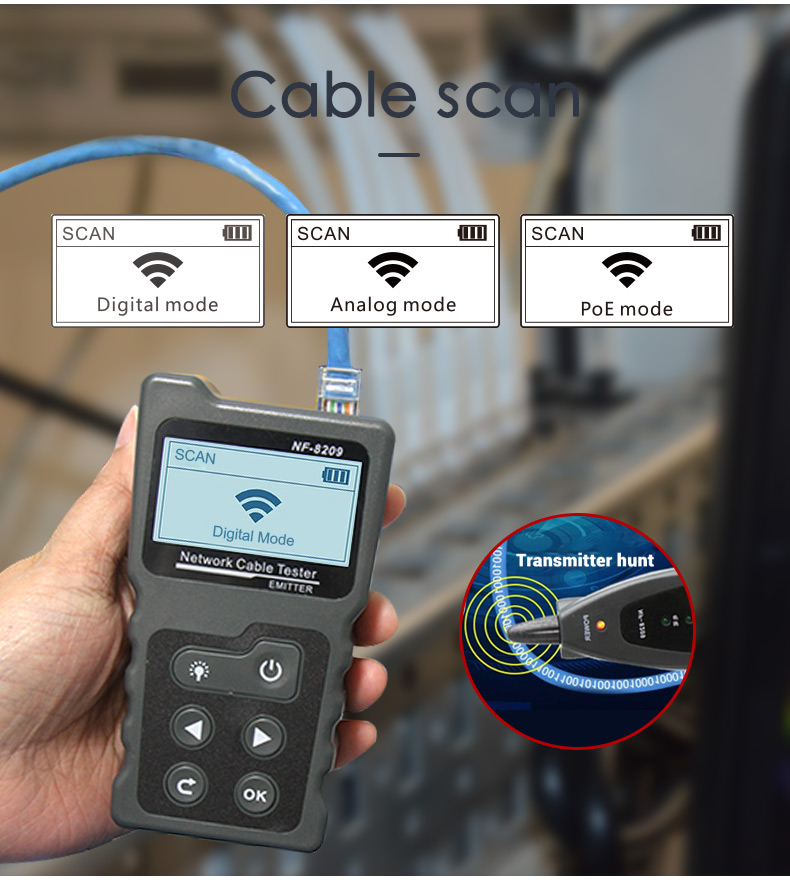

3. Scan--Analog/Digital/ PoE mode to locate lan cables.
4. PoE-- available for standard or non-standard PoE switch (5~60V), identify AT or AF standard of PSE type.
5. Flash--locate network port by the flashing port light on switch/ router.
6.
Setting: Set language, backlight time, auto-off time, contrast and version.
Specification:
Item Name: Network Cable Tester
Material: ABS
Transmitter function: wiremap, length test, cable scan, PoE testing, port flash, lighting function.
Cable type: CAT5e, CAT6, CAT6a(STP&UTP)
Transmitter parameter:
LCD display with backlight
power supply: AAA battery*3 (not included)
Low battery warning: 2.7V
Auto-off time: 15/30/60min/OFF
Voltage protection: DC 48V 5mA
Max working current: <150mA
Size: 130*70*28mm
Reciver parameter:
Sensitivity adjustable

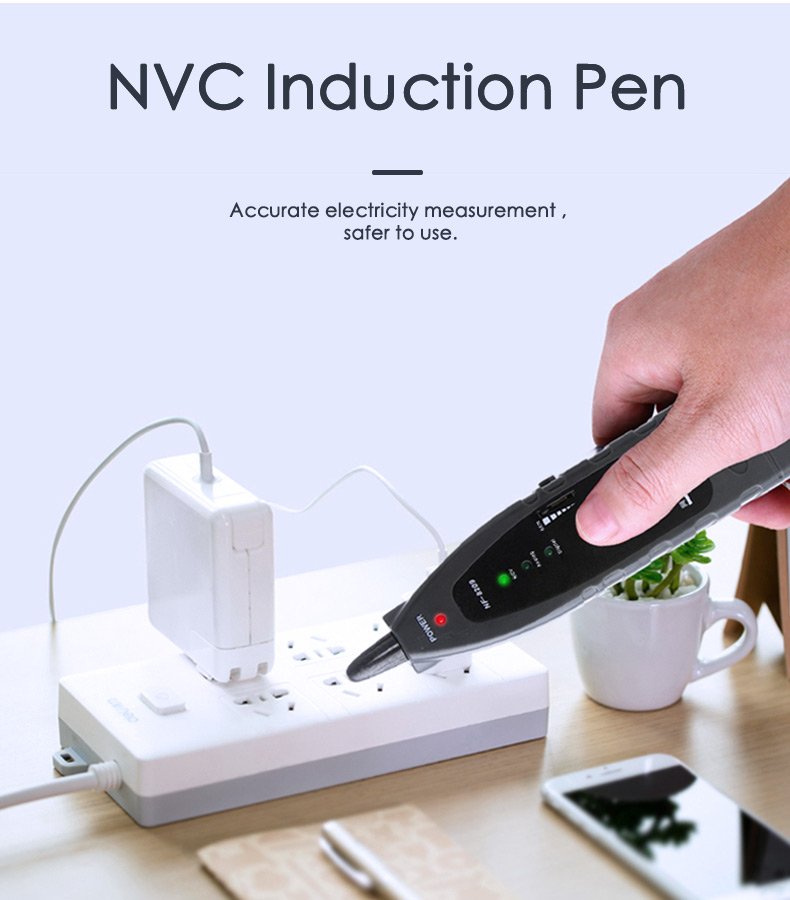

AC voltage detecting
lighting function
power supply: 9V*1pc (not included)
Low battery warning: 6+- 0.5V
Max working current: <100mA
Size: 210*43*27mm
Remote:
wiremap port: RJ45
Voltage protection: DC 48V 5mA
Size: 65*37*23mm

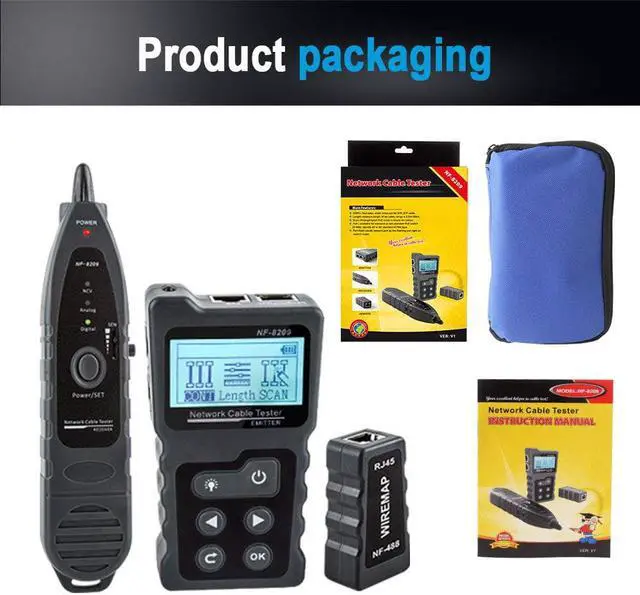

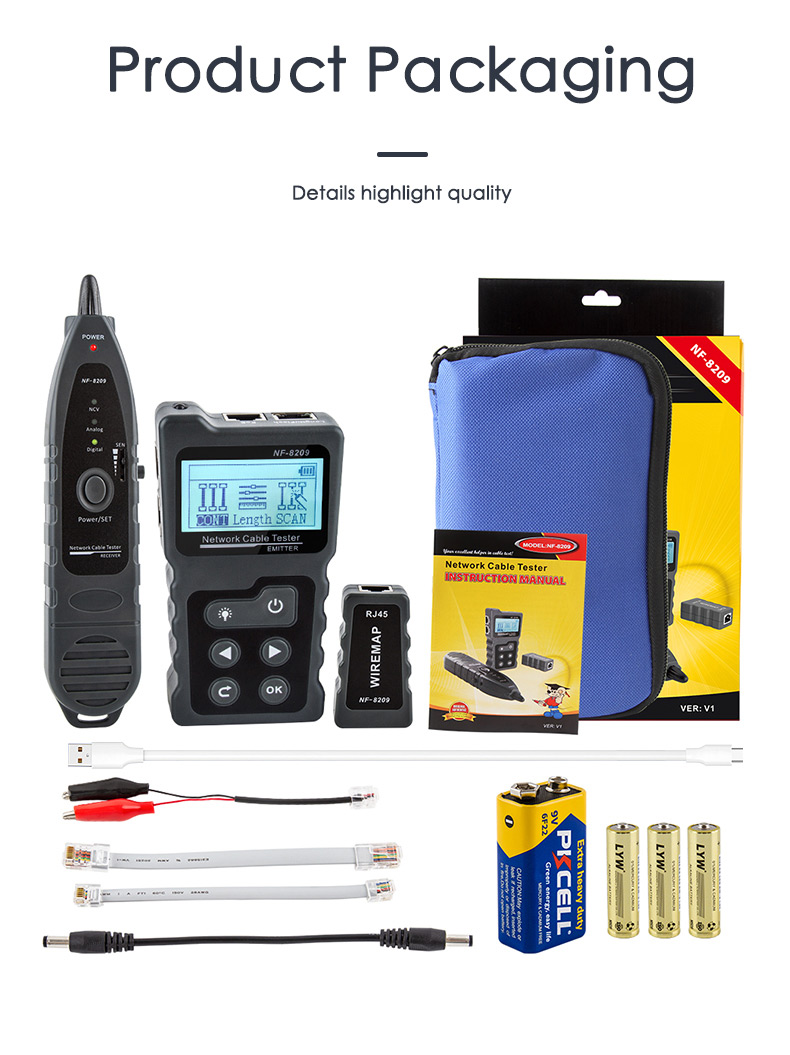

Package Includes:
1 x Transmitter
1 x Receiver
1 x Remote Adapter
1 x Earphone
1 Set of Cable Adapters
1 x Carry Bag
1 x User Manual
